INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Plastic Coils | Driven Type: | Electric |
|---|---|---|---|
| OD: | 600mm | ID: | 300mm |
| Packaging Material: | Stretch Film,paper Or Knit Tape | Type: | Packing Line |
| Packaging Type: | Film And Paper Wrapping | Voltage: | 380V/50HZ |
| Warranty: | 12 Months | Color: | Standard Color |
| Highlight: | Automatic PVC Pipe Packing Machine,CE PVC Pipe Packing Machine,Pipe Packaging line 600mm |
||
Application:

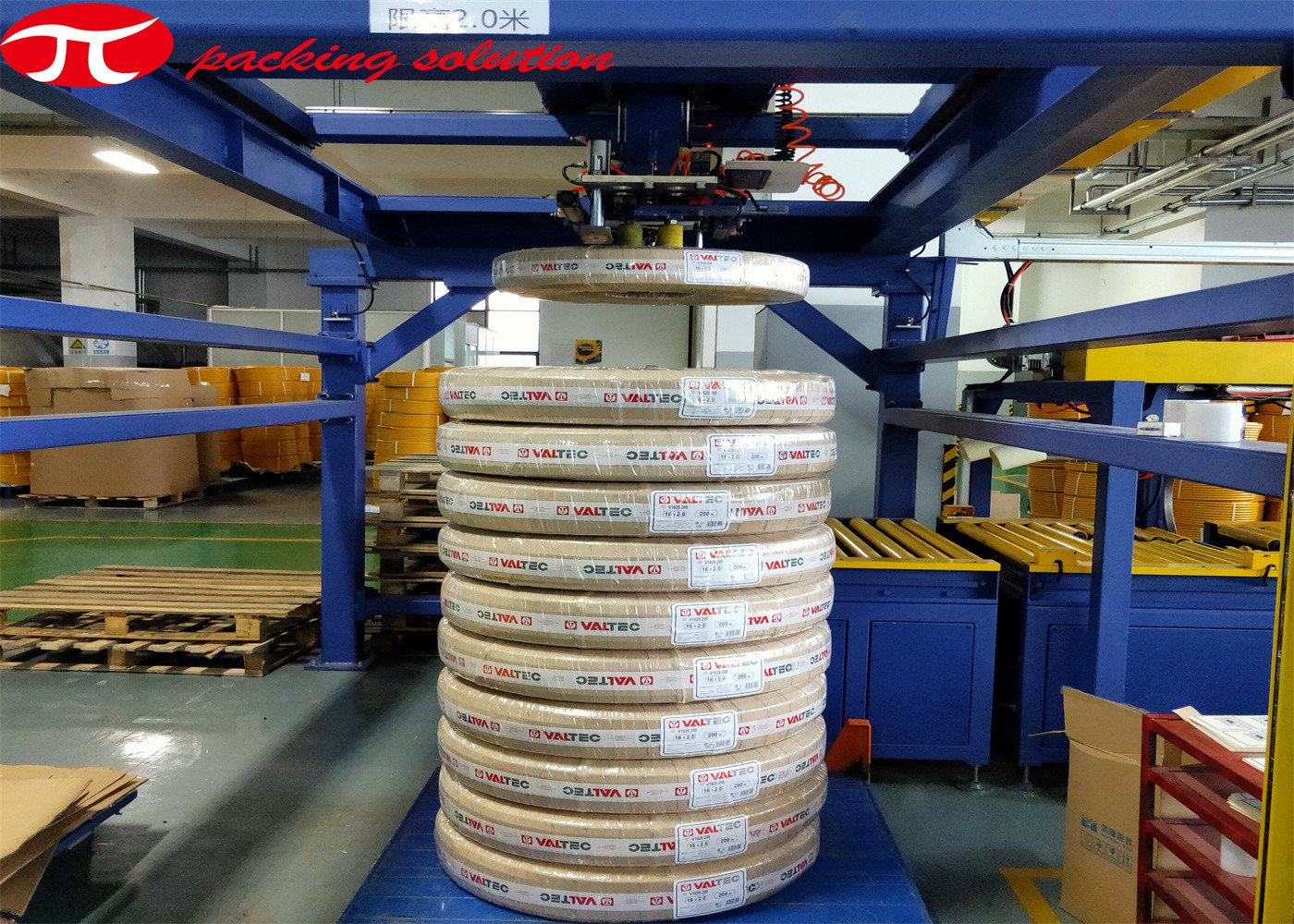

This packing line take compound paper as main packing material,apply coil picking, auto packing,stacking & etc for plastic coils,makes the object well packed and stacked, convenient for storage and transportation.
Basic composition:

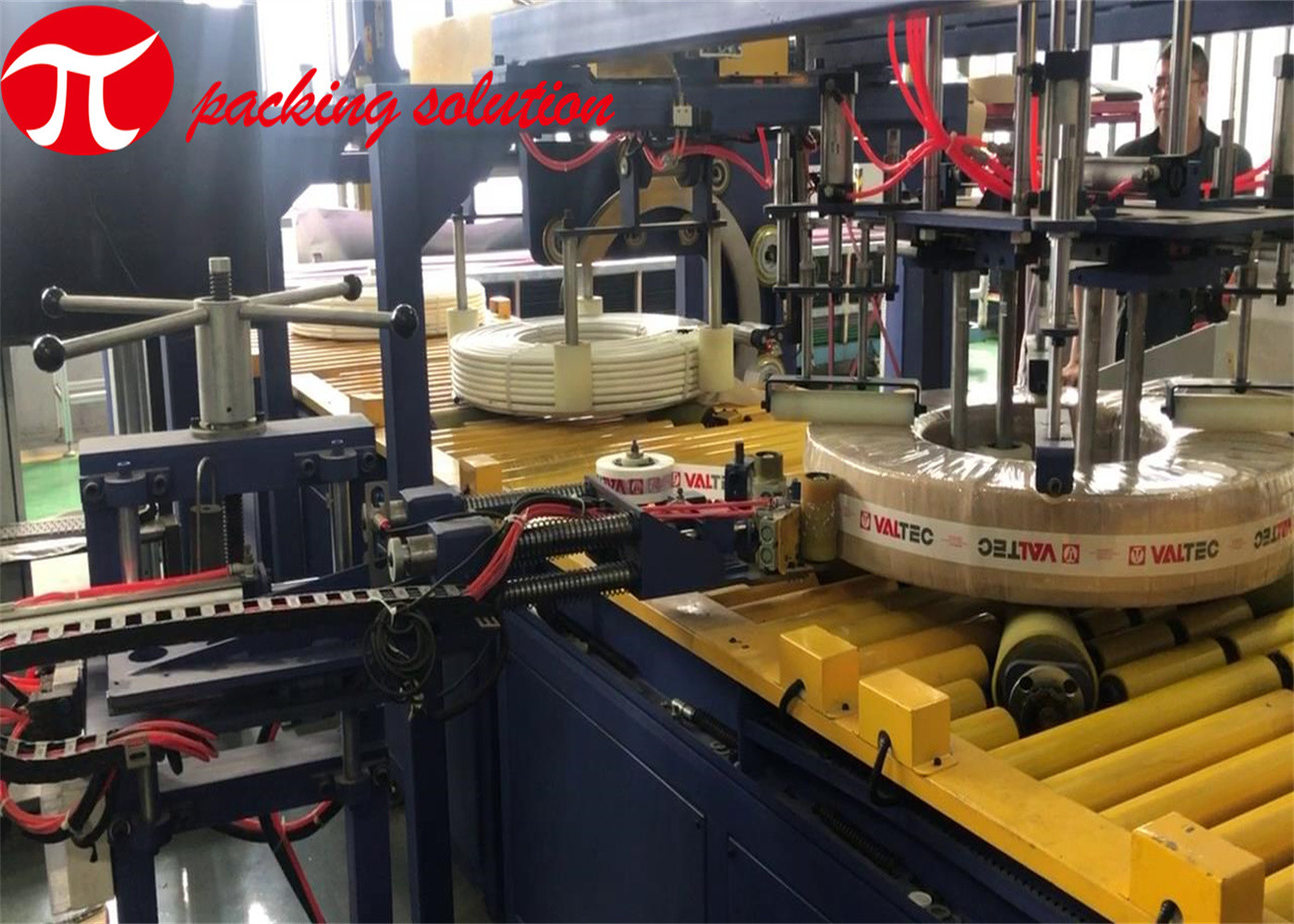

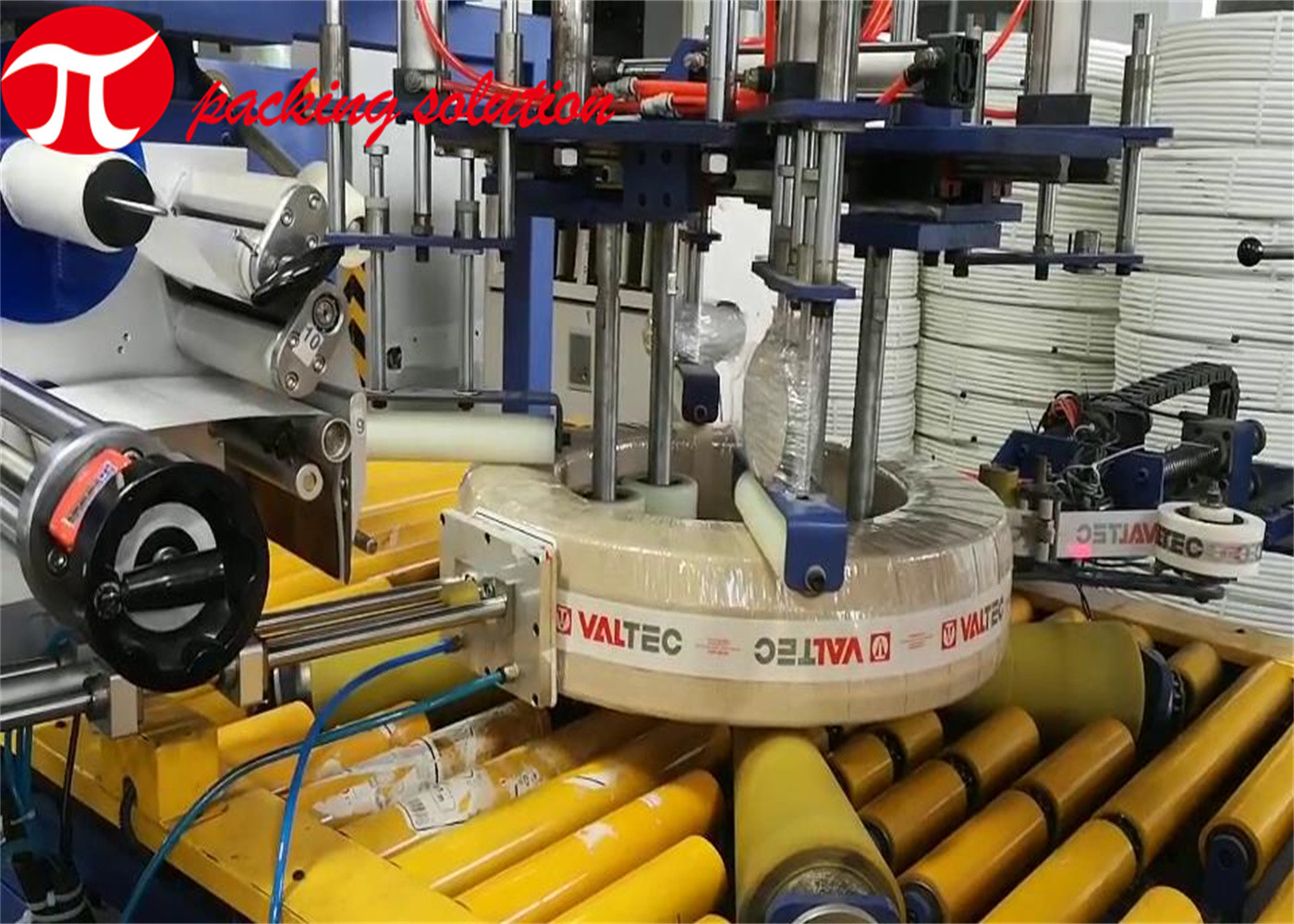

The fully auto machinery is composed of coil loading system,wrapping machine, stacking system, electrical cabinet and guardrails.
Main technical datas(for reference):
| Product OD | 600mm～1200mm |
| Product ID | 300-800mm |
| Product Width | 60mm～500mm |
| Product Weight | ≤100KG |
| Wrapping material | LLDPE stretch film/compound paper |
| Wrapping overlap | 30%～70% adjustable |
| Wrapping material size | Film roll width 90mm, roll OD 500mm,roll ID 76mm |
