INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Name: | Pipe Bagging Line | Packaging Type: | Plastic Bag Packing |
|---|---|---|---|
| Application: | PVC, PPR, PE Pipe | Pipe Diameter: | 20mm~110mm |
| Pipe Length: | 2000-6000mm | Driven Type: | Electric |
| Voltage: | 220V/380V/50HZ | Automatic Grade: | Automatic |
| Warranty: | 12 Months | Packaging Materials: | Platic / Woven Bag |
| Highlight: | Pipe Bundling And Bagging Machine,PVC Pipe Bundling And Bagging Machine |
||

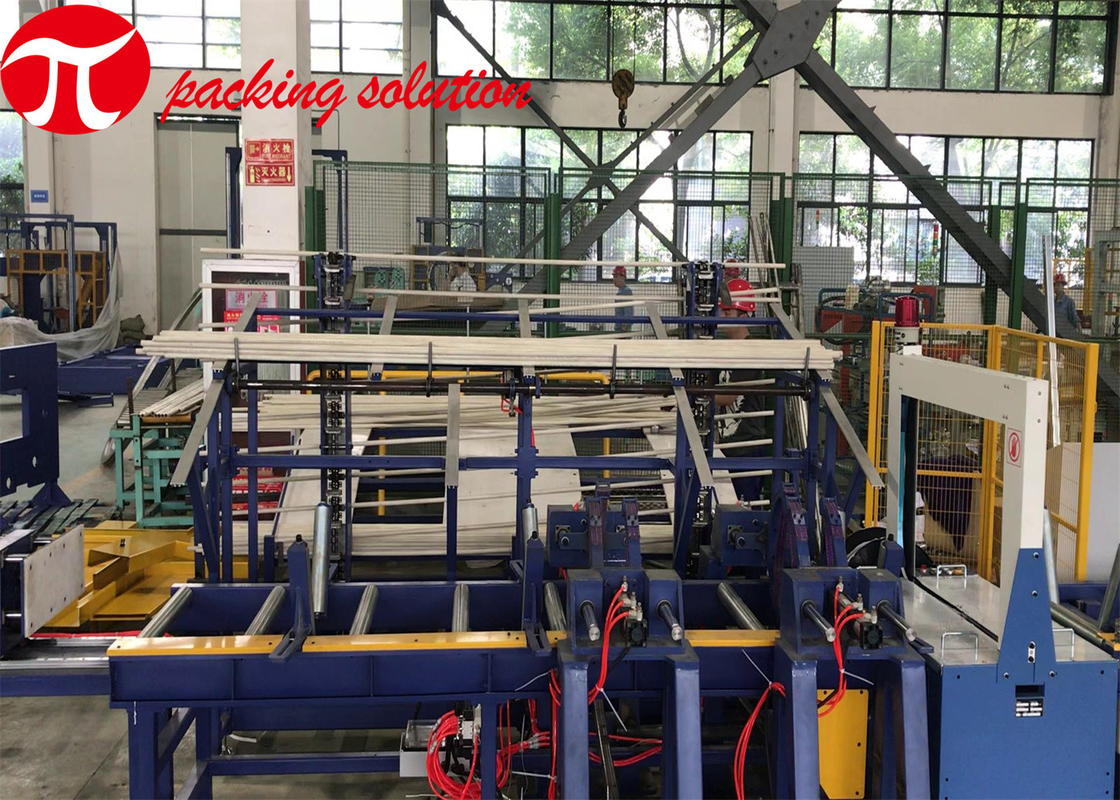

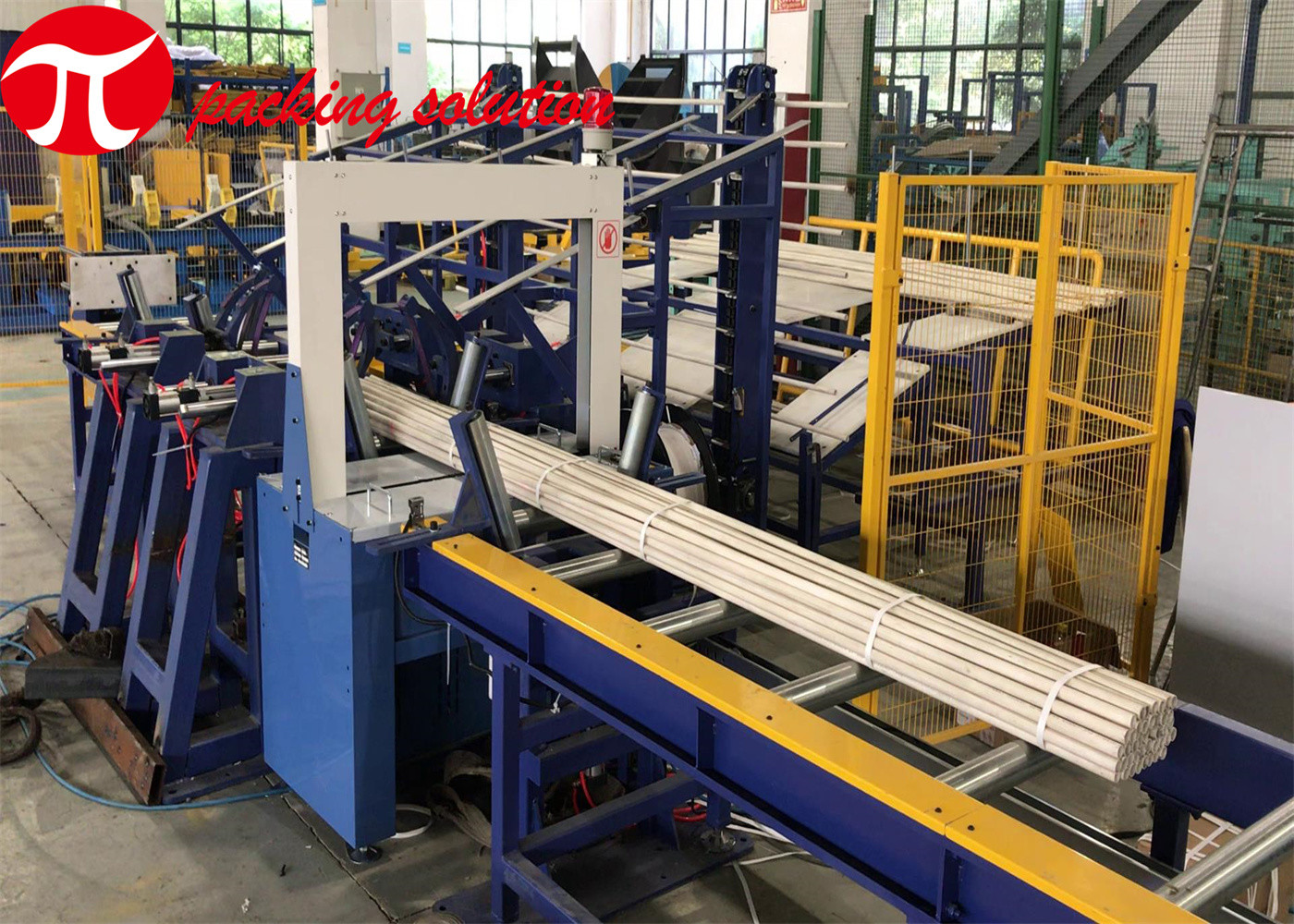

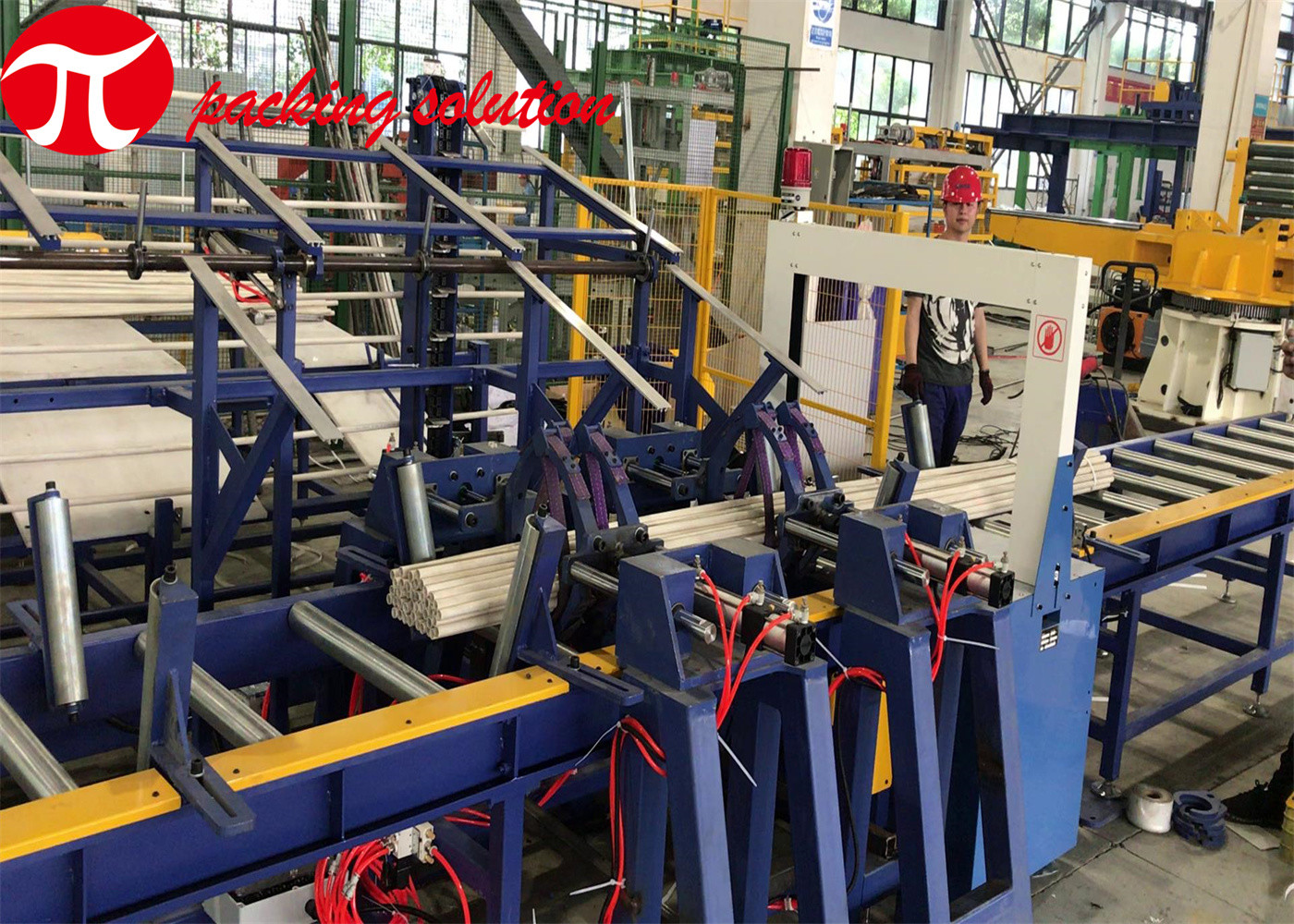

PE / PVC Plastic Pipe Bundling And Bagging Machine using plastic or woving bag for wrapping
1.Introduction of functions
This machine is suitable for automatic bagging and packaging of PVC, PPR, PE and aluminum-plastic composite plastic straight pipes. The process includes: the front end of plastic bag or woven bag is wrapped and fixed, printed, labeled and automatically stacked into the frame.
2.Basic composition
This unit consists of front-end feeding system, bagging machine, automatic sealing machine or automatic edge sewing machine, end wrapping and fixing equipment, printing and labeling machine and automatic stacking and framing equipment.
3.Scope of pipes
name: PVC, PPR, PE, aluminum-plastic composite (PAP)
Pipe diameter: 20 mm ~ 110 mm
Length: 2000mm, 3000mm, 4000mm, 6000mm
Bundle pipe outer diameter: 100-200mm
4.Packaging materials
1) Plastic coil Double-layer tube material
Outer diameter: 600mm
Width: 200-400mm
Inner diameter: 76mm
2) Woven tape wrapping Double-layer tube material
Outer diameter: 600mm
Width: 200-400mm Inner diameter: 76mm
