Horizontal PP PPR Pipe Packing Machine / Automatic Offline Plastic Pipe Bundling Machine

Horizontal PP PPR Pipe Packing Machine / Automatic Offline Plastic Pipe Bundling Machine
Horizontal PP PPR Pipe Packing Machine / Automatic Offline Plastic Pipe Bundling Machine
Horizontal PP PPR Pipe Packing Machine / Automatic Offline Plastic Pipe Bundling Machine Horizontal PP PPR Pipe Packing Machine / Automatic Offline Plastic Pipe Bundling Machine Horizontal PP PPR Pipe Packing Machine / Automatic Offline Plastic Pipe Bundling Machine Horizontal PP PPR Pipe Packing Machine / Automatic Offline Plastic Pipe Bundling Machine Horizontal PP PPR Pipe Packing Machine / Automatic Offline Plastic Pipe Bundling Machine Horizontal PP PPR Pipe Packing Machine / Automatic Offline Plastic Pipe Bundling Machine Horizontal PP PPR Pipe Packing Machine / Automatic Offline Plastic Pipe Bundling Machine Horizontal PP PPR Pipe Packing Machine / Automatic Offline Plastic Pipe Bundling Machine Horizontal PP PPR Pipe Packing Machine / Automatic Offline Plastic Pipe Bundling Machine Horizontal PP PPR Pipe Packing Machine / Automatic Offline Plastic Pipe Bundling Machine Horizontal PP PPR Pipe Packing Machine / Automatic Offline Plastic Pipe Bundling Machine Horizontal PP PPR Pipe Packing Machine / Automatic Offline Plastic Pipe Bundling Machine Horizontal PP PPR Pipe Packing Machine / Automatic Offline Plastic Pipe Bundling Machine
Basic Information
Place of Origin: China
Brand Name: jlpack
Certification: ISO9001，CE
Model Number: Customized
Minimum Order Quantity: 1
Packaging Details: wooden case /standard container
Delivery Time: 150 days
Payment Terms: T/T
Supply Ability: 10 sets/Year
Get Best Price Contact Now
Application: PVC, PPR, PE Pipe Type: Pipe Packaging Line
Pipe Bundle Diameter: ≤180mm Pipe Diameter(OD): Φ16mm-Φ110mm
Pipe Bundle Weight: 10-50kg Pipe Length: 3/4 Meters
Packaging Type: Film Stretch Wrapping Voltage: 220V/380V/50HZ
Automatic Grade: Automatic Driven Type: Electric
Highlight:

PP Pipe Packing Machine

,

PPR Pipe Packing Machine

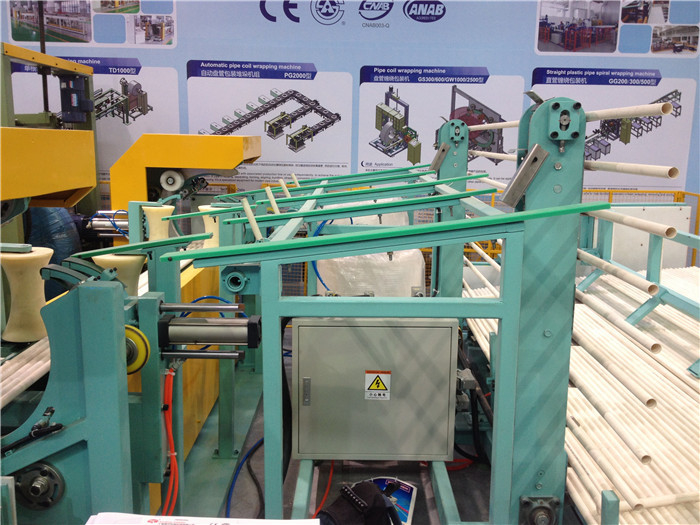

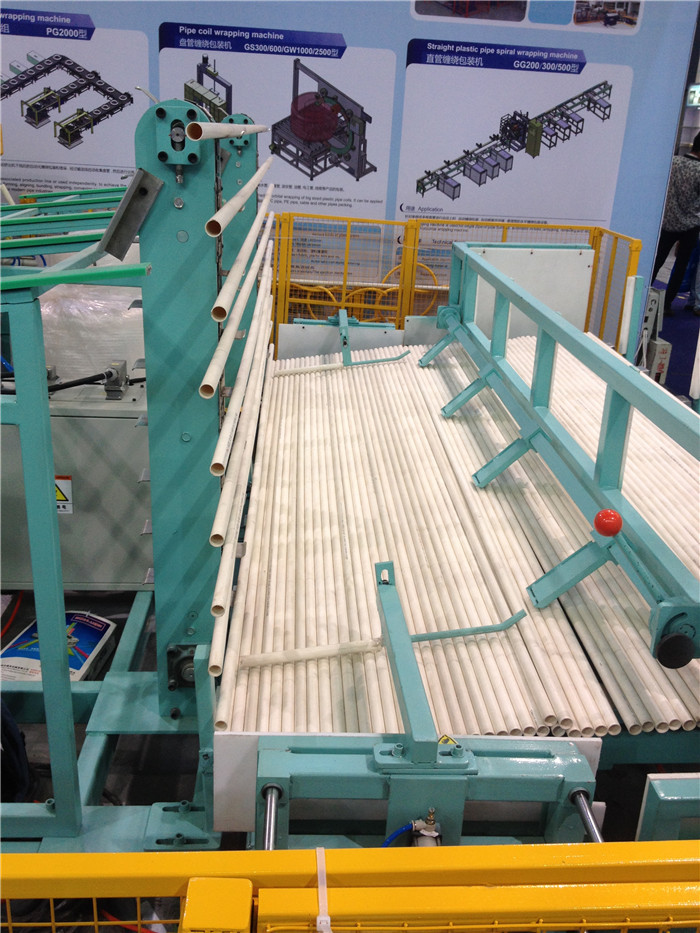

Horizontal PP PPR Pipe Packing Machine / Automatic Offline Plastic Pipe Bundling Machine





MACHINE APPLICATION:



This plastic pipe bundling machine is an automatic packing line for plastic pipe industries, the functions include pipe counting, feeding, storage, aligning, bundling, strapping, conveying, ejection system and etc. It can be connected to the pipe extruders for integrated and automatic operation. It is a set of efficient, convenient and safe wrapping machinery for pipe bundle packaging.



YOU BENEFIT:

  • Modular construction of the system;
  • Mechanical bundling has higher efficiency than manual package;
  • Wide range of application, special size product will have a special design;
  • No risk of product damage with humanized design and manufacture;
  • Extremely low cost of consumable and energy;
  • Machine operation at low noise level;
  • Machine is occupied with a quick change dispenser for the wrapping material;
  • Tension for bundle packaging is adjustable.



WORK FLOW:

  • Collect the pipe orderly into pipe basket. Or connect the packing line to the extruder.
  • Feeding(elevating)& storing the pipes one by one.
  • Counting the number of the pipes by program.
  • Accumulate and array the pipes.
  • Aligning the pipe bundle.

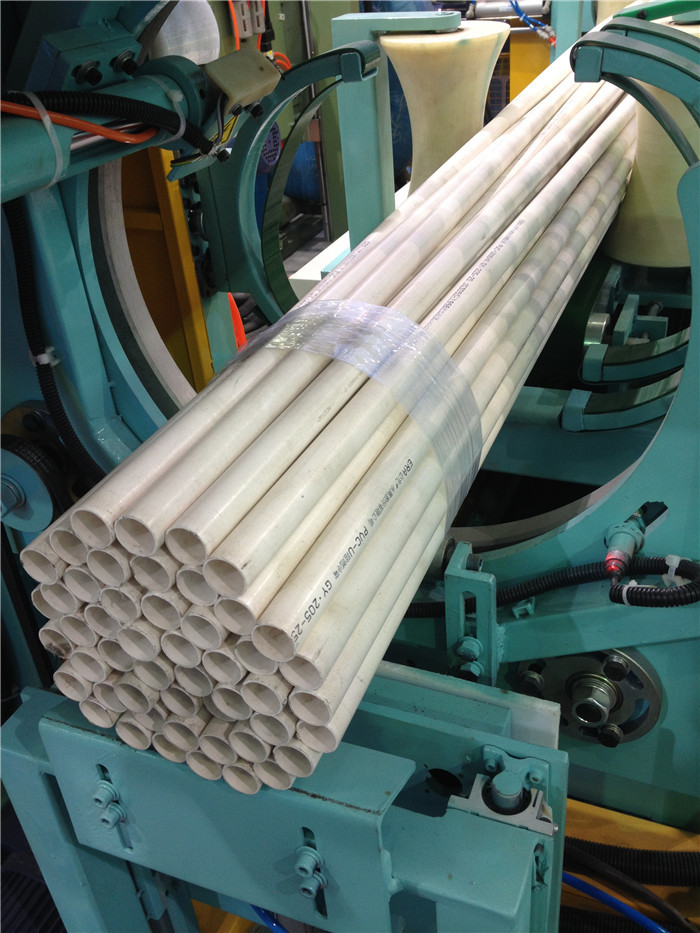

  • Bundling& strapping the pipe bundle by stretch film.
  • Strapped pipe bundle ejected and moved to the storage station.



TECHNICAL DATA



Items Data
Applications PVC/PE/PP/PPR pipe
Pipe diameter(OD) Φ16mm-Φ110mm
Pipe bundle diameter ≤180mm
Pipe bundle weight 10-50kg
Pipe length 3/4 meters
Counting mode Automatic, by program setting
Lifting mode Elevator
Lifting speed App. 60-70pcs/min
Conveying speed 1-10m/min
Strapping material Stretch film
Power supply AC, 380V 50Hz, 3 phase 5 wires

Note: the datas are only for reference.
