INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | GW2400 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Large Support Bearings | Ring Speed: | Appr. 20-90r/min |
|---|---|---|---|
| Roller Speed: | 5-8m/min | Driven Type: | Electric |
| Voltage: | 220V/380V/50HZ | Packaging Material: | Stretch Film,paper,plastic |
| Usage: | Outer Protective Wrapping | Type: | Wrapping Machine |
| Output: | Appr. 3kw | Air Supply: | 6～8kgf/cm2 |
| Highlight: | 3kw Horizontal Stretch Wrapping Machine,GW2400 Horizontal Stretch Wrapping Machine |
||

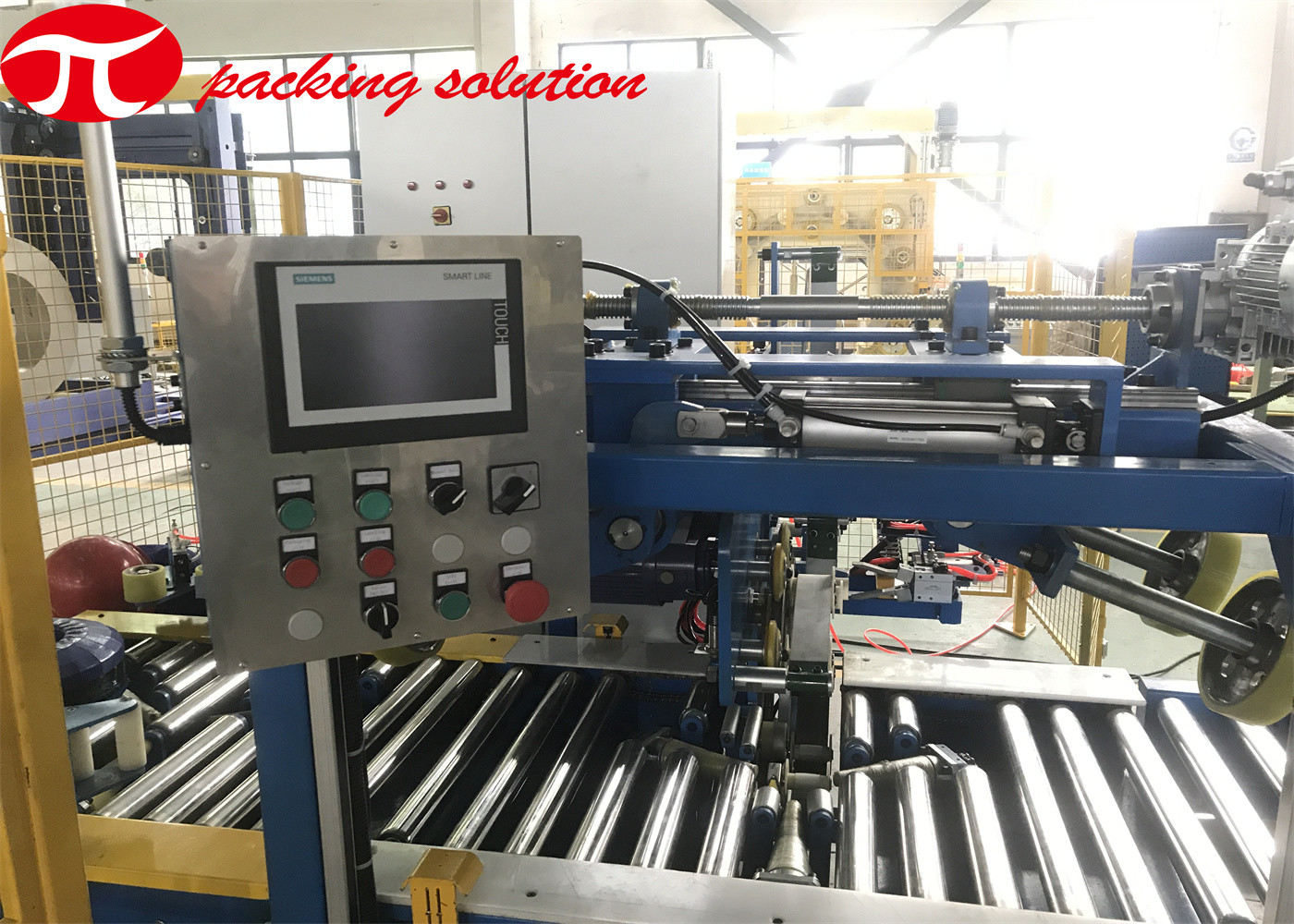

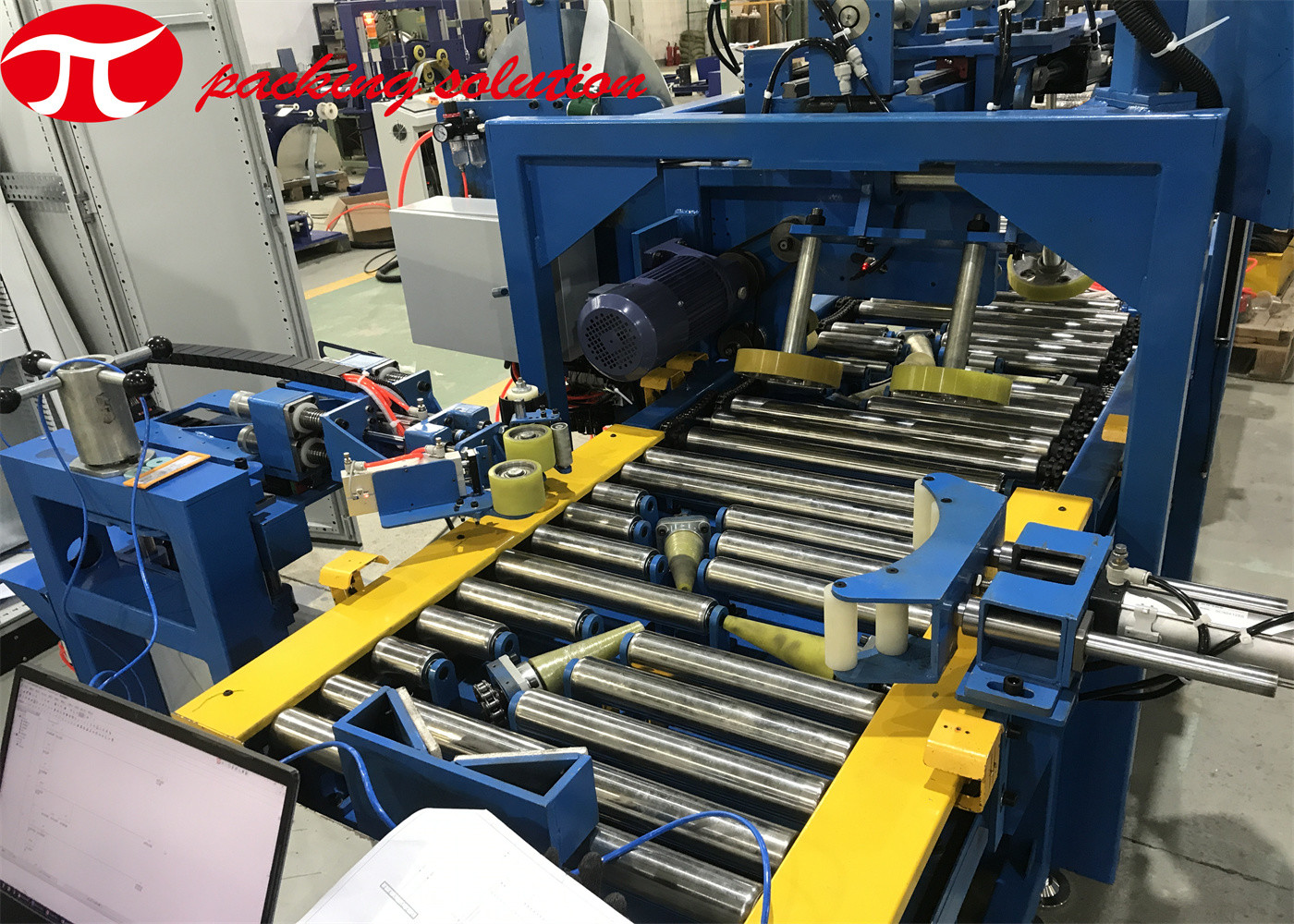

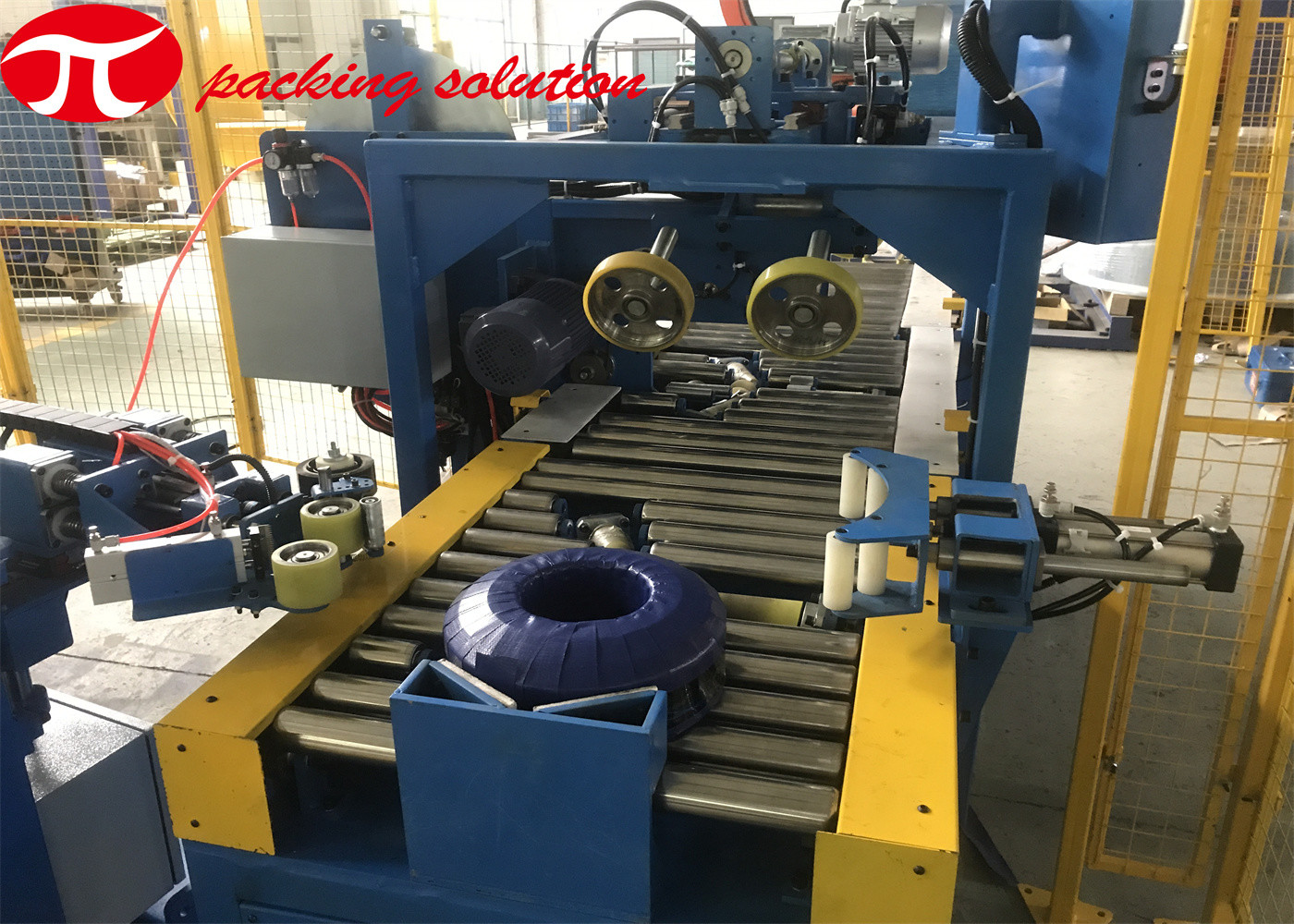

Automatic stainless steel bearing stretch packing machine by VCI paper GW2400 3kw
Automatic stainless steel bearing stretch packing machine by VCI paper application:
Jinglin’s large support bearing coil wrapping machine is specially designed for through-eye wrapping of large support bearings, it can be equipped with oil spraying system to automate the wrapping procedure, specially suitable for large size bearing industries. It simplifies the wrapping procedure and lessen the labor density. The wrapping machine can be connected with associated production line or operated independently.
Automatic stainless steel bearing stretch packing machine by VCI paper main parameters:
| Mode | ZC300 |
| Type | Horizontal |
| Application | All kinds of bearings |
| Object width | ≤300mm |
| Object ID | ≥500mm |
| Object OD | 1000-2500mm |
| Ring speed | Approx. 10-100r/min |
| Roller speed | 1-3m/min |
| Packing material |
Water proof tape, anti-rust paper, knit tape, stretch film/VCI film,etc Width: 120mm; core ID: 50mm; OD: 100-200mm |
| Output | Appr. 3kw |
| Supply voltage | 220V/380V, 50HZ/60HZ |
| Air supply | 6～8kgf/cm2 |
| Automatic mechanical hand | Optional |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
Automatic stainless steel bearing stretch packing machine by VCI paper basic features:
