INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | ZC300 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Beaing ,steel Wire Coil And Cable Coil | Packaging Material: | Stretch Film,paper,knit Plastic |
|---|---|---|---|
| Voltage: | 220V/380V/50HZ | Object Width: | ≤300mm |
| Type: | Film Wrapping Machine | Object Weight: | ≤500kg |
| Product Name: | Automatic Bearing Wrapping Machine | Driven Type: | Electric |
| Condition: | New | Warranty: | 12 Months |
| Highlight: | VCI Paper Bearing Packing Machine,1.5kw Bearing Packing Machine,GW300 Bearing Packaging Machine |
||

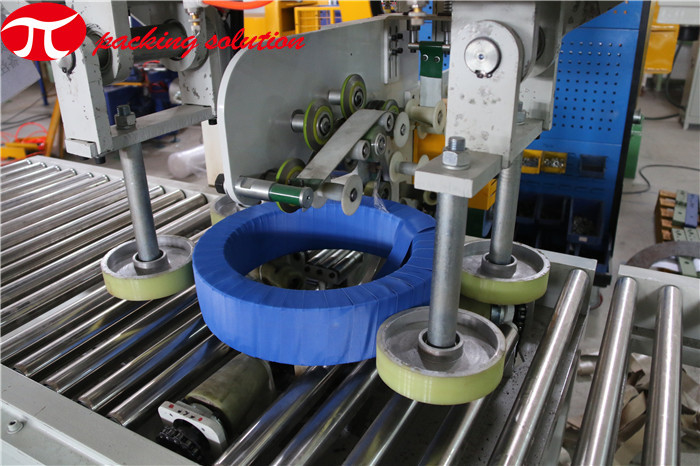

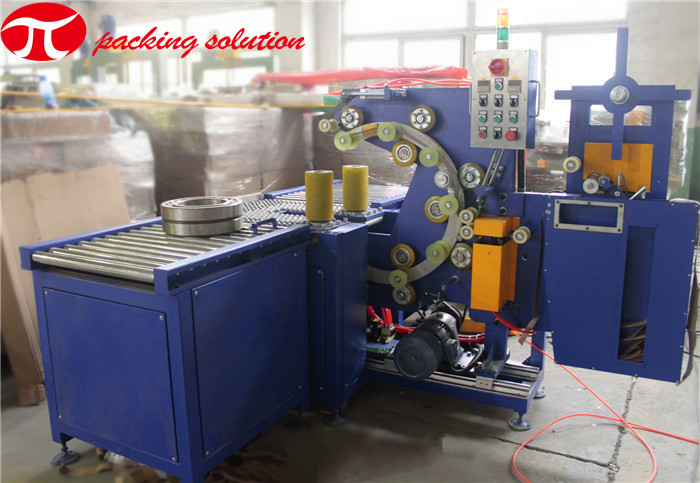

VCI paper automatic roller bearing packaging machinery with conveyor application
ZZ series bearing packing machine is widely used for various bearing packing.The packed object is well decorated and has good effect of rust-proof,dust-proof,water-proof,anti-wear and anti-damage.
VCI paper automatic roller bearing packaging machinery with conveyor parameters:
| Mode | ZC100 | ZC200 | ZC300 | ZC400 |
| Machine Type | Horizontal | Horizontal | Horizontal | Horizontal |
| Object width | ≤100mm | ≤200mm | ≤300mm | ≤400mm |
| Object ID | ≥150mm | ≥250mm | ≥400mm | ≥400mm |
| Object OD | ≤500mm | ≤700mm | ≤1300mm | ≤2000mm |
| Object weight | ≤100kg | ≤300kg | ≤500kg | ≤1000kg |
| Ring speed | 10-100r/min | 10-100r/min | 10-100r/min | 10-100r/min |
| Roller speed | 1-3m/min | 1-3m/min | 1-3m/min | 1-3m/min |
| Packing material |
Stretch film/VCI film,etc Width: 50-60mm; core ID: 50mm; OD: 100-200mm |
Stretch film/VCI film,etc Width: 50-60mm; core ID: 50mm; OD: 100-200mm |
Stretch film/VCI film,etc Width: 50-60mm; core ID: 50mm; OD: 100-200mm |
Stretch film/VCI film,etc Width: 50-60mm; core ID: 50mm; OD: 100-200mm |
|
PE film/knit tape/compound paper tape/crepe paper,etc Width:50-60mm, core ID:55mm, OD: 100-500mm |
PE film/knit tape/compound paper tape/crepe paper,etc Width:50-60mm, core ID:55mm,OD: 100-500mm |
PE film/knit tape/compound paper tape/crepe paper,etc Width:50-60mm, core ID:55mm,OD: 100-500mm |
PE film/knit tape/compound paper tape/crepe paper,etc Width:50-60mm, core ID:55mm,OD: 100-500mm |
|
| Output | Appr. 1.5kw | Appr. 1.5kw | Appr. 1.5kw | Appr. 1.5kw |
| Supply voltage | 220V/380V, 50HZ/60HZ | 220V/380V, 50HZ/60HZ | 220V/380V, 50HZ/60HZ | 220V/380V, 50HZ/60HZ |
| Air supply | 6～8kgf/cm2 | 6～8kgf/cm2 | 6～8kgf/cm2 | 6～8kgf/cm2 |
| Automatic mechanical hand | Optional | Optional | Optional | Optional |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
VCI paper automatic roller bearing packaging machinery with conveyor main features:
1. Horizontal structure with motorized conveyors for efficient packing.
2. Flexible wrapping table specially designed for turning of bearings.
3. PLC and HMI for automatic operation.
4. The tension and overlapping degree of wrapping material can be adjusted.
5. Photo sensors for automatic coil positioning.
6. Different packing material can be chose.
7. Packaging tension is adjustable by special breaker.
8. Independent control cabinet easy for operation and maintenance.
9. Automatic material feeding and cutting is available.
10. Safe guardrails for turning part ensure safe operation.
