INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001,CE |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Bearing ,steel Coil And Copper Coil | Wrapping Materil: | Paper,woven ,PE , Stretch Film & Etc. |
|---|---|---|---|
| Product ID: | 500-600mm | Product OD: | 500-800mm |
| Product Width: | 200-300mm | Product Weight: | 50-100KG |
| Ring Speed: | 70r/min | Power: | 3.0KW |
| Warranty: | 12 Months | After-sales Service Provided: | Commissioning And Training |
| Highlight: | 3KW Bearing Packing Machine,70r/min Bearing Packing Machine,Automatic Horizontal Bearing Packing Machine |
||

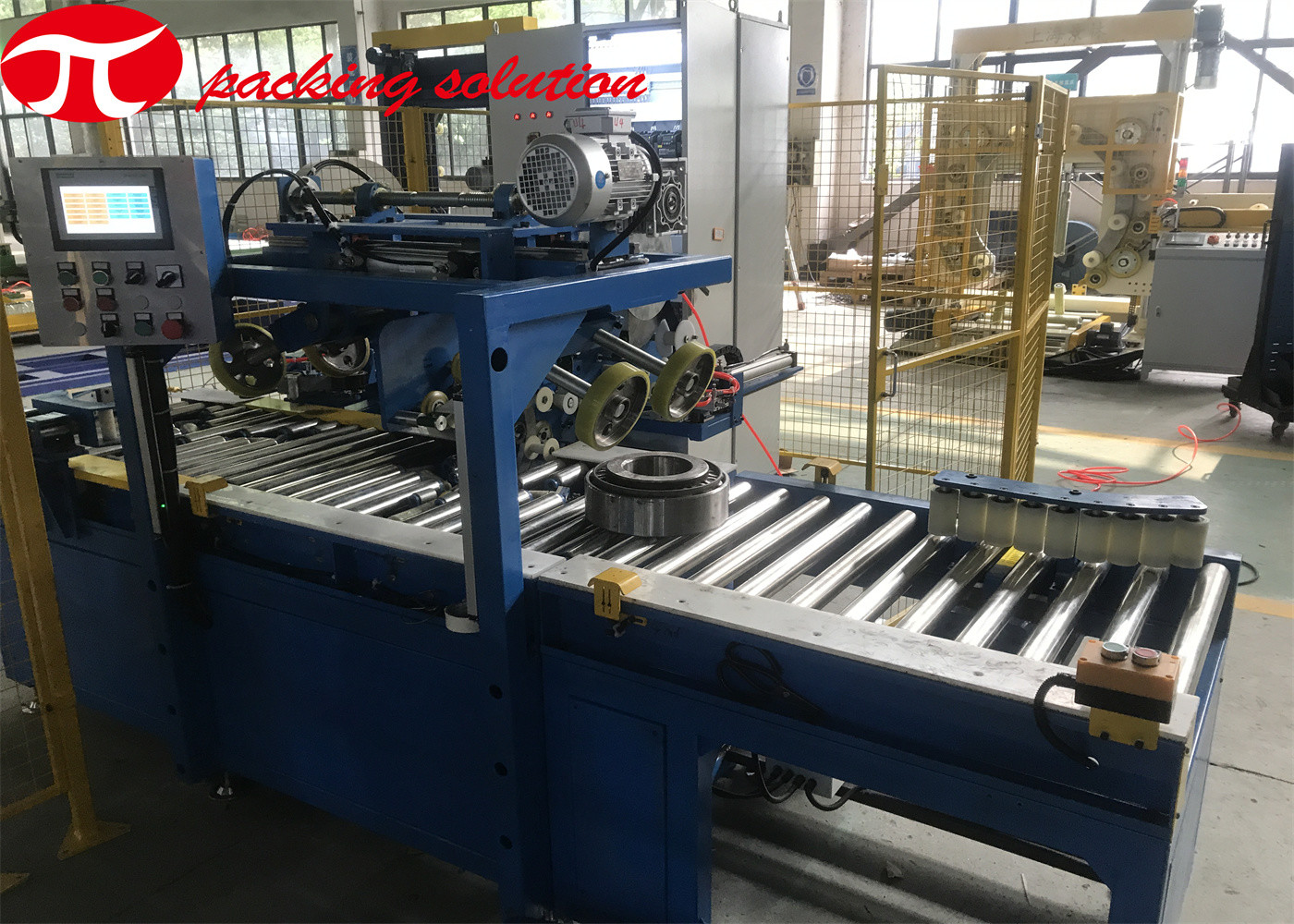

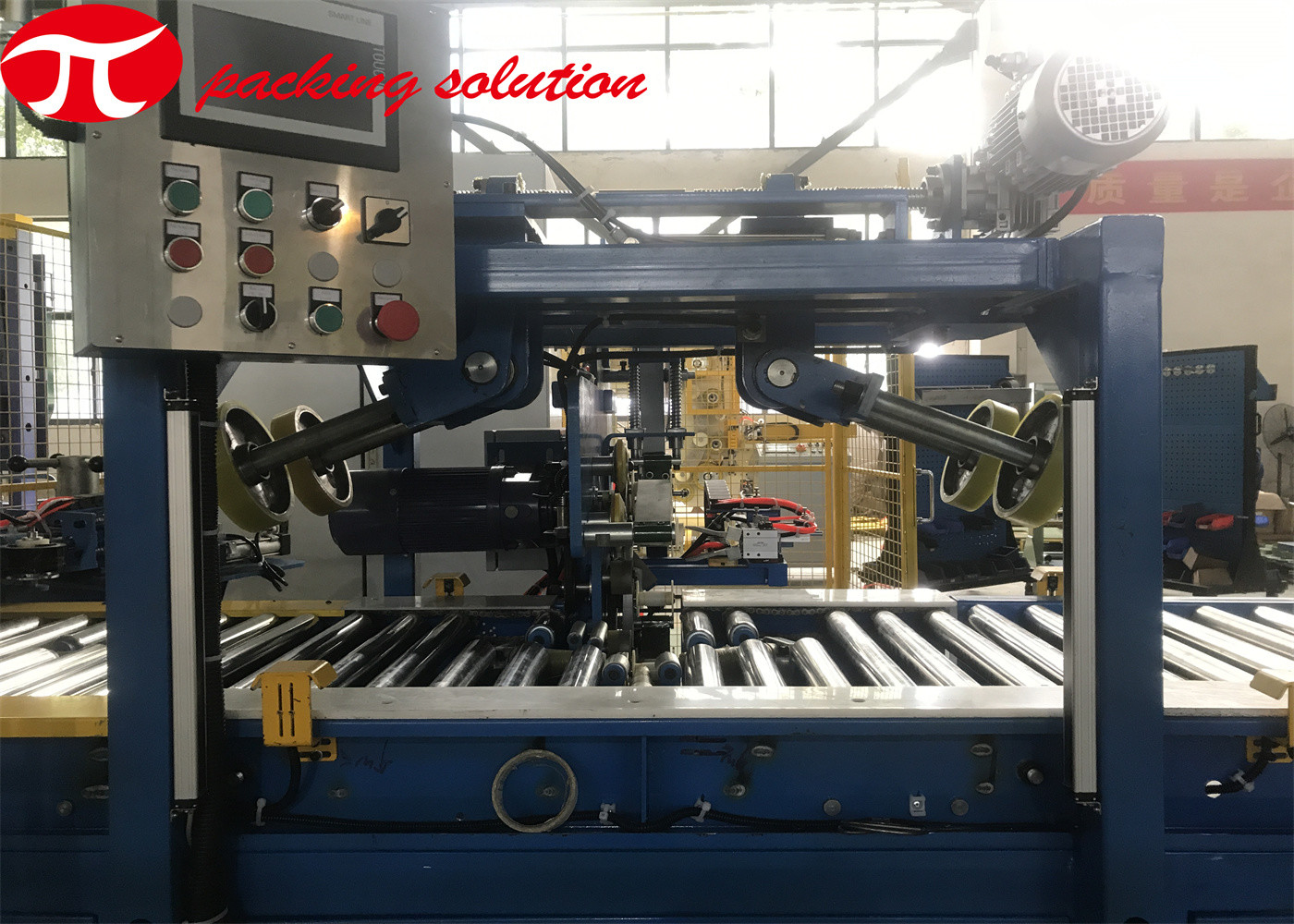

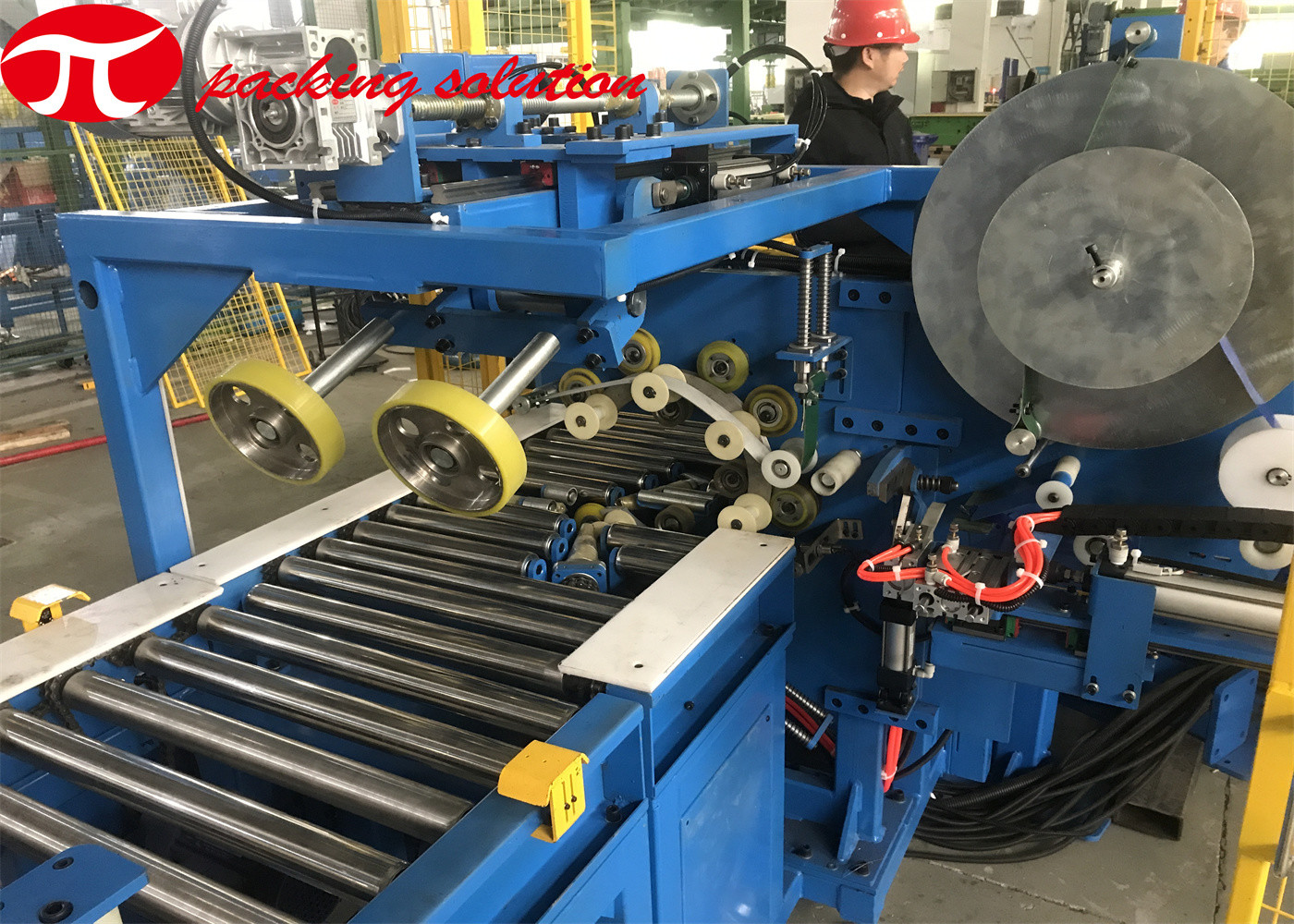

Automatic horizontal bearing packing machine with in-feeing and out-feeding roller conveyor
Description:
Automatic horizontal bearing packing machine with auto in-feeing and out-feeding roller conveyor for bearing auto loading and unloading. Wrapping material can be paper,woven ,PE , stretch film & etc.
customized machine applicable for bearing ,steel coil and copper coil
Fretures:
◆With auto in-feeing and out-feeding roller conveyor for bearing auto loading and unloading.
◆PlC program for bearing packaging.
◆Automatic fault alarming and fault display.
◆Taper rollers for driven,side rollers for prodection.
◆The rollers are wrapped by PU
◆With packing material cutting and clamping automatically .
◆Synchronous wrapping system can be chosed for wrapping two diffreent materials simultaneously.
◆The over lap rate and wrapping tape tension can be regulated according to requiment.
Main parameters:
| Product ID | 500-600mm |
| Product OD | 500-800mm |
| Product Width | 200-300mm |
| Product Weight | 50-100KG |
| Ring speed | 70r/min |
| Power | 3.0KW |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
