INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jl pack |
| Certification: | ISO9001，CE |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Pipe Coil, Steel Coil, Cooper Coil And Rubber Coil | Model: | GW600 |
|---|---|---|---|
| Object Width: | ≤600 | Object Weight: | ≤2000KG |
| Working Method: | Automatic | Rotating Ring Speed: | Max.120r/min |
| Packaging Efficiency: | About 40s/pcs | Control: | PLC |
GW600 Horizontal Pipe coil wrapping machine using knit tape as mail packing material
Application:
GW600 Horizontal wrapping packaging machine is used for wrapping and packing plastic coils, corrugated pipes and other products.
It is fully automatic packing equipment.
Basic features:
●Adopt the clear-density rotating ring, the operation is safe, smooth and strong.
● PLC programmable controller and HMI human-machine dialogue touch screen are adopted.
● Automatic fault alarm and automatic display of fault contents.
●Equipped with mechanical arm for loading and unloading, automatic feeding and discharging.
● The slip ring is frequency controlled and the overlap of the packing belt can be adjusted as needed.
● Independent control cabinet is adopted to improve operability and maintainability.
Technical parameters:
| Model | GW600 |
| Control | PLC |
| Working method | Automatic |
| Rotating ring speed | Max.120r/min |
| Packaging efficiency | About 40s/pcs |
| Inlet and outlet mode | Mechanical bar pulling |
| Conveyor line | Non-powered rollers |
| Conveyor line length (front and rear lines) | 1200mm*2pcs(Customizable) |
| Packaging Material |
LLDPE wrapping film:OD 100mm; ID50mm; Width70mm (Final design prevails) |
| Film application mode | Automatic |
| Film breaking mode | Automatic |
| Power | About 2.5kw |
| Ring start-stop mode | Soft start/soft stop |

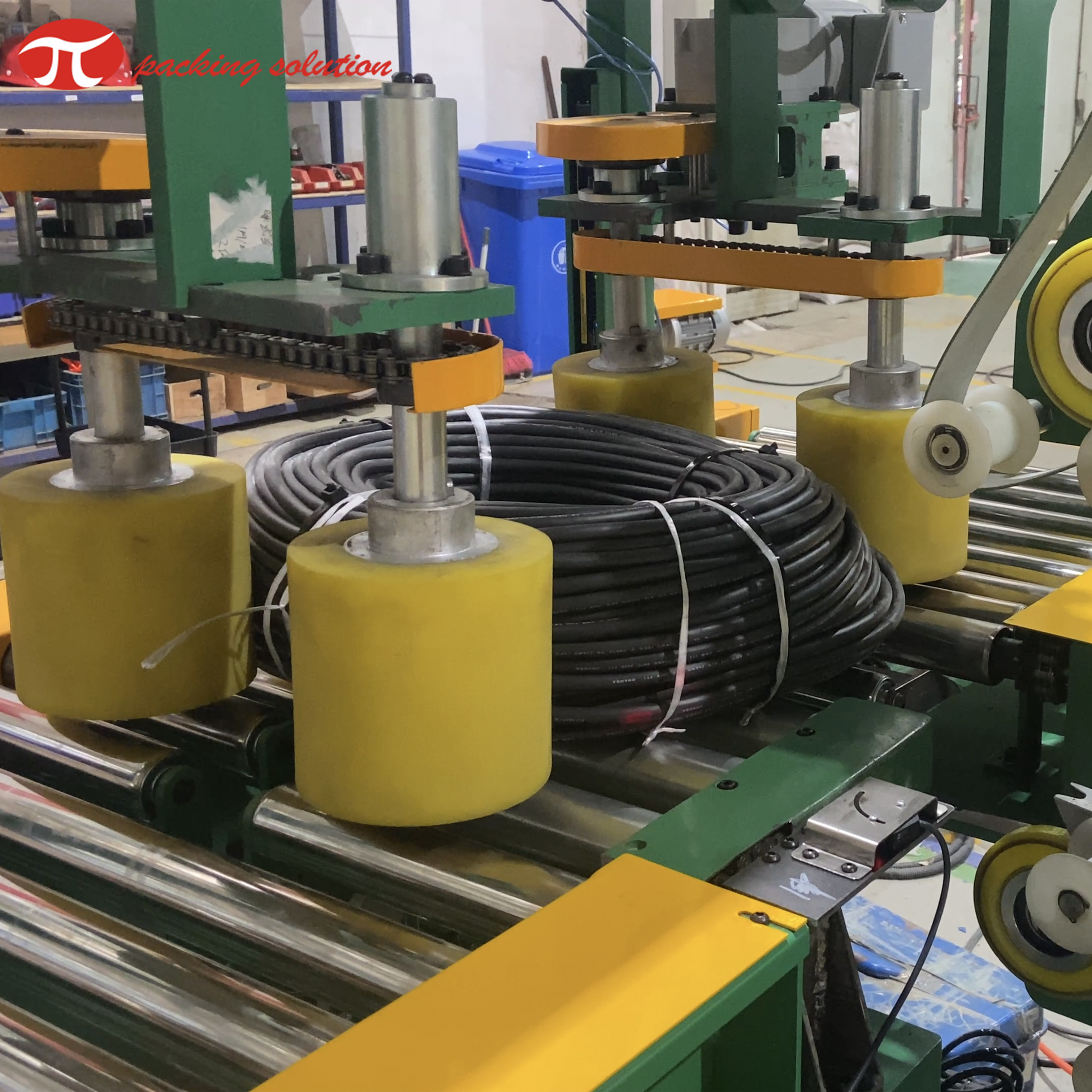

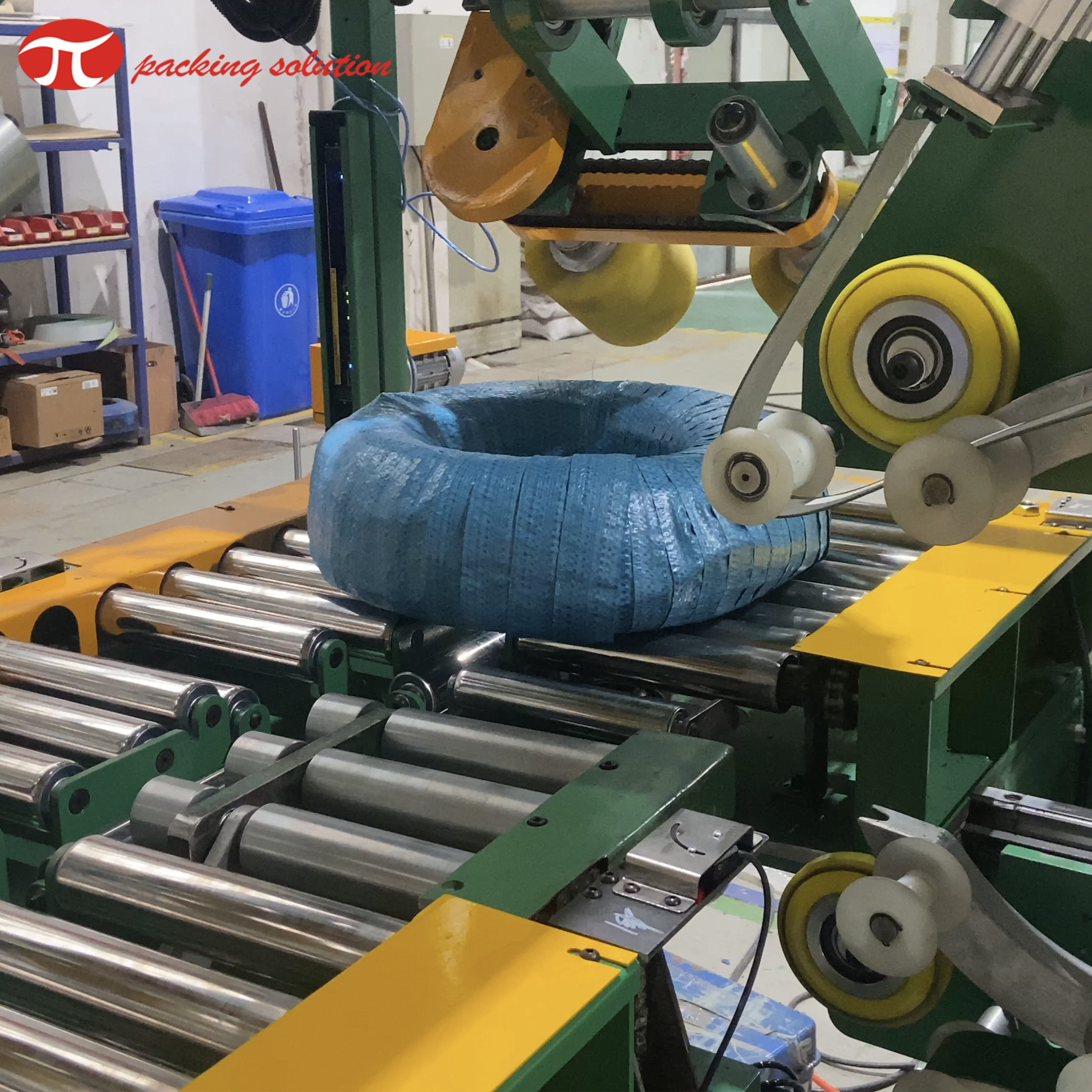

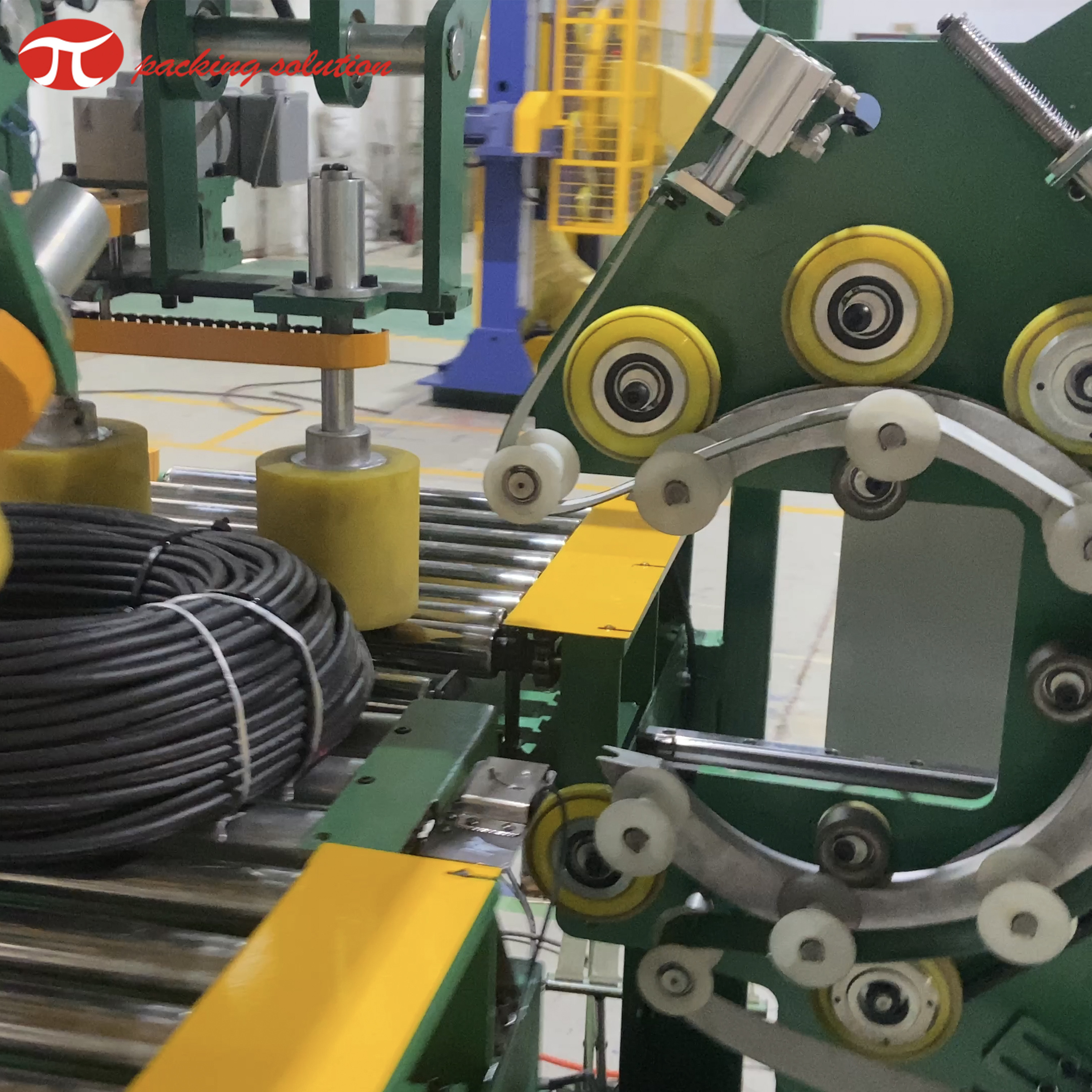

Product photo:
