INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | FZ Series |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Steel Coil And Other Metal Coils | Type: | Mechanical Coil Tilter |
|---|---|---|---|
| Turning Degree: | 90 Degree | Power Output: | About 1.5kw |
| Max Loading: | 8 Tons | Transfer Mode: | Mechanical |
| Product Width: | 600mm | Product Diameter: | 1500mm |
| Roduct Weight: | Within 8000kg | Power Voltage: | AC 380V, 3 Phase 5wires |
| Highlight: | FZ Series Coil Turnover Machine,1500mm Coil Turnover Machine |
||
FZ Series Coil Turnover Machine /Steel Coil Upender Industrial Flip factroy supply
FZ series machine application:

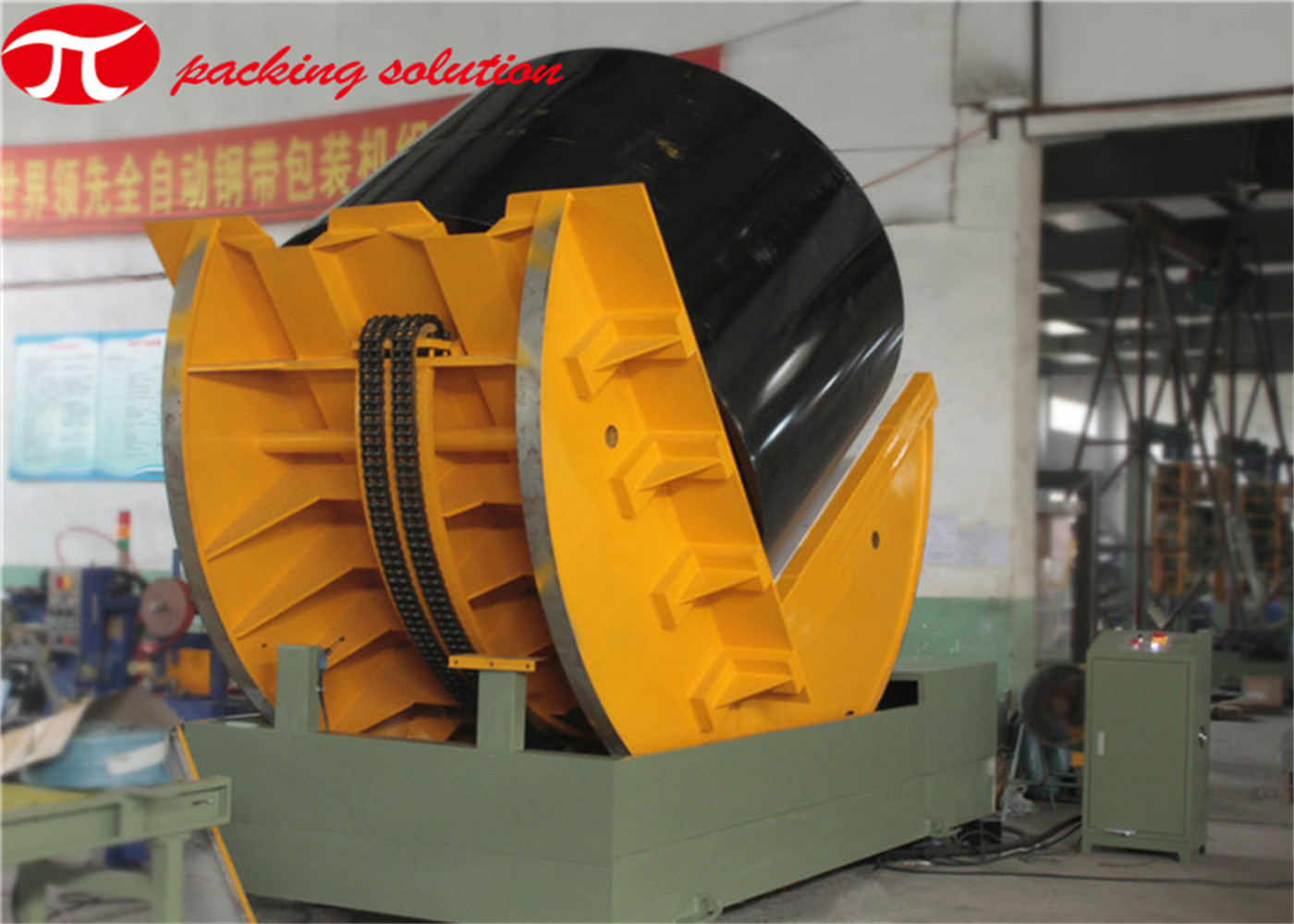

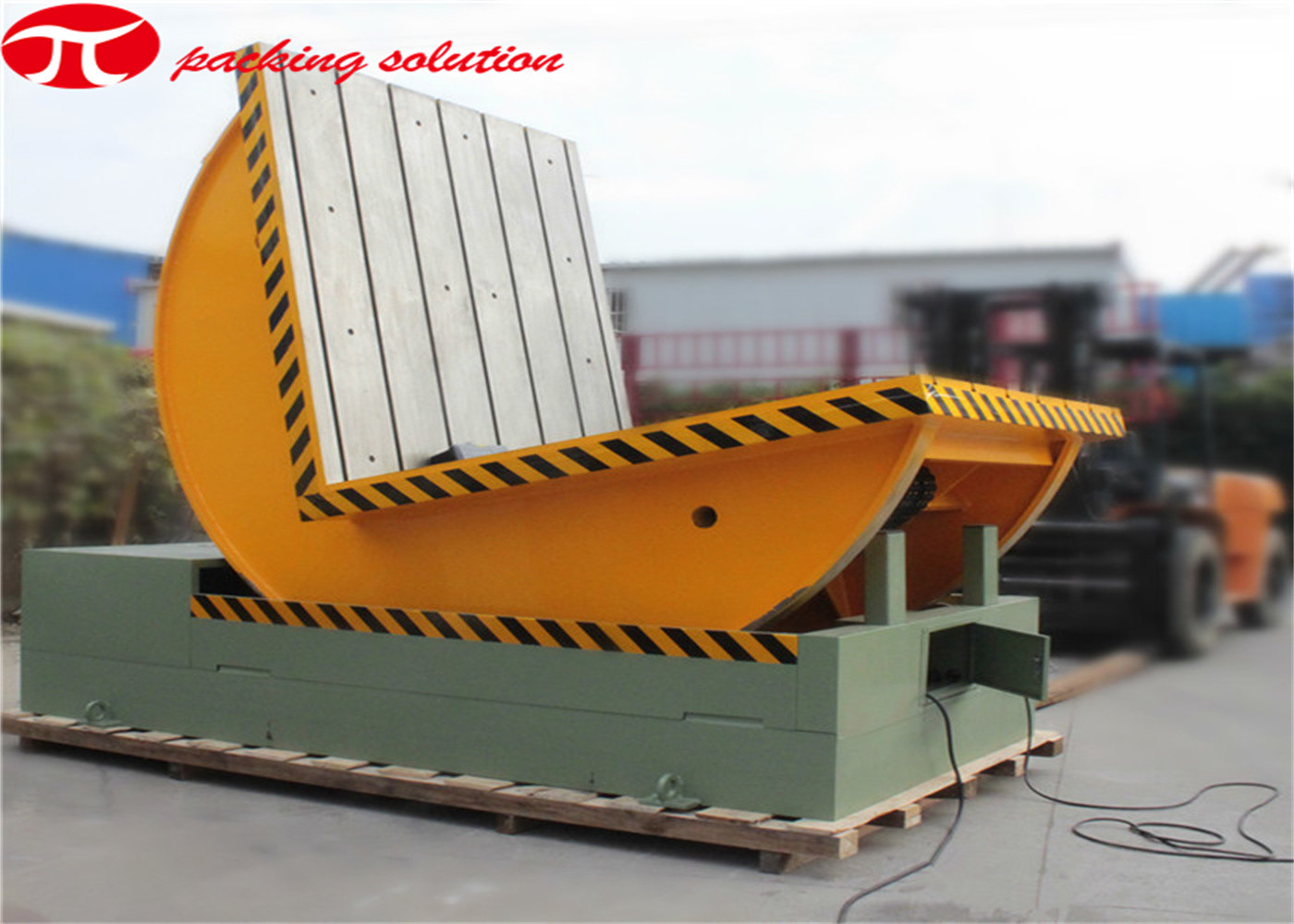

The tilters we have two types: mechanical coil tilters and hydraulic coil tilters ,which are all used for for tilting steel coils from eye vertical position to horizontal position or vice versa.

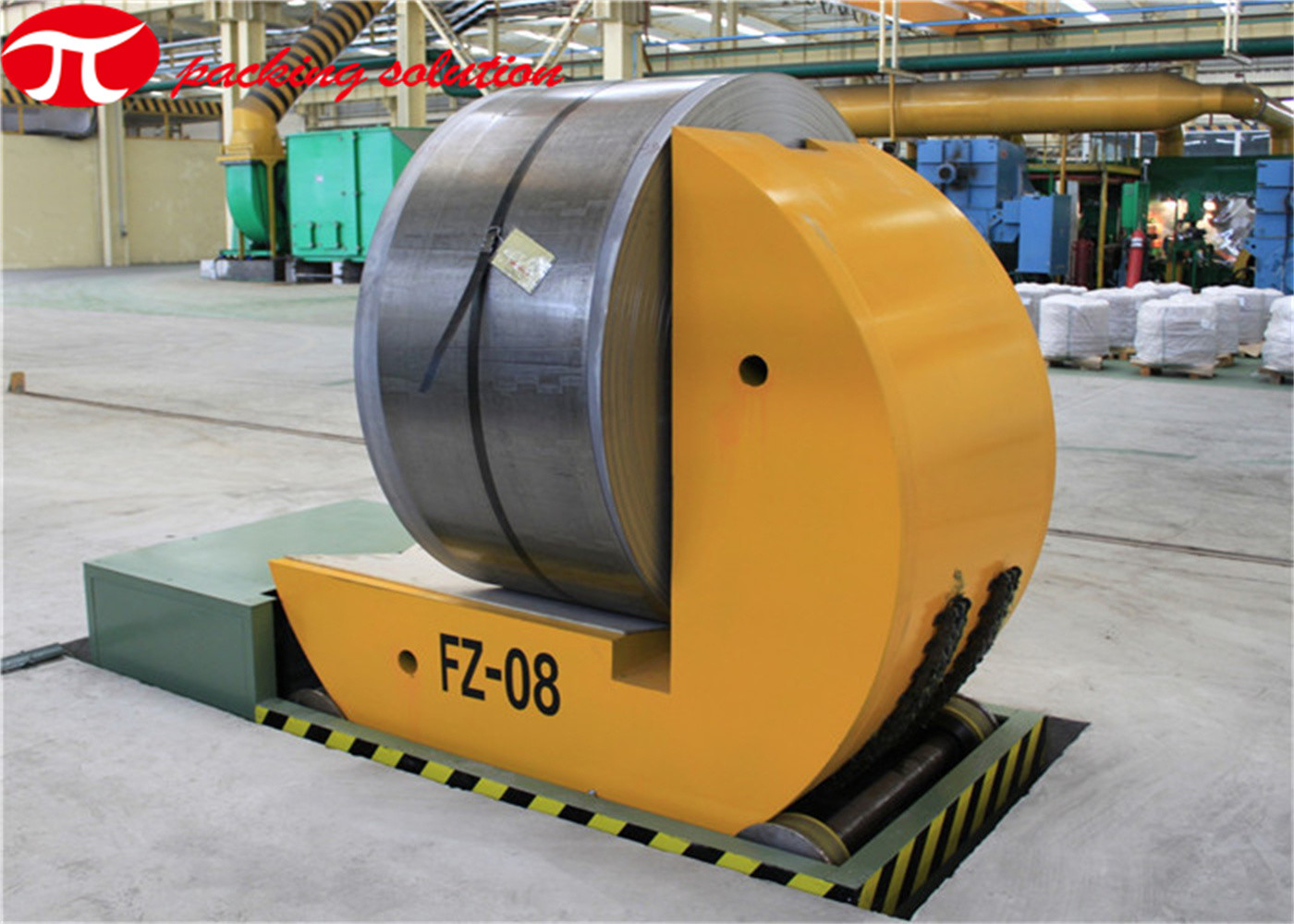

The FZ-08 coil tilter is used for tilting heavy objects with different specifications for 90 degree with max loading capacity 8tons.
It’s widely used in industries of metallurgy, stamping, metal plate, mold, paper making, steel strip, coil, barrels, and etc.
FZ series machine basic features:
FZ series machineMAIN PARAMETERS:
| Item data | FZ-08 |
| Max loading | 8T |
| One-way turn-over speed | 50s |
| Transfer mode | Mechanical |
| Power output | approx. 1.5KW |
| Working mode | Manual switch/ remote control |
| Product width | 600 mm |
| Product diameter | 1500mm |
| Product weight | Within 8000kg |
| Dimension | Approx. L2200mm/W1000/H1700mm |
| Power voltage | AC 380V, 3 phase 5wires |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
