INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | FZ Series |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Type: | Turning-over Machine | Turning Degree: | 90 Degree |
|---|---|---|---|
| Power Output: | About 1.5kw | Max Loading: | 5 Tons |
| Application: | Metal Coils, Moulds,paper Rolls,barrels | Transfer Mode: | Mechanical |
| Turning Time: | 40s | Working Mode: | Manual Switch/ Remote Control |
| Dimension: | Approx. L2200mm/W1000/H1700mm | Power Voltage: | AC 380V, 3 Phase 5wires |
| Highlight: | FZ-03 Steel Coil Turnover,90 Degree Steel Coil Turnover,Hydraulic Coil Upender |
||

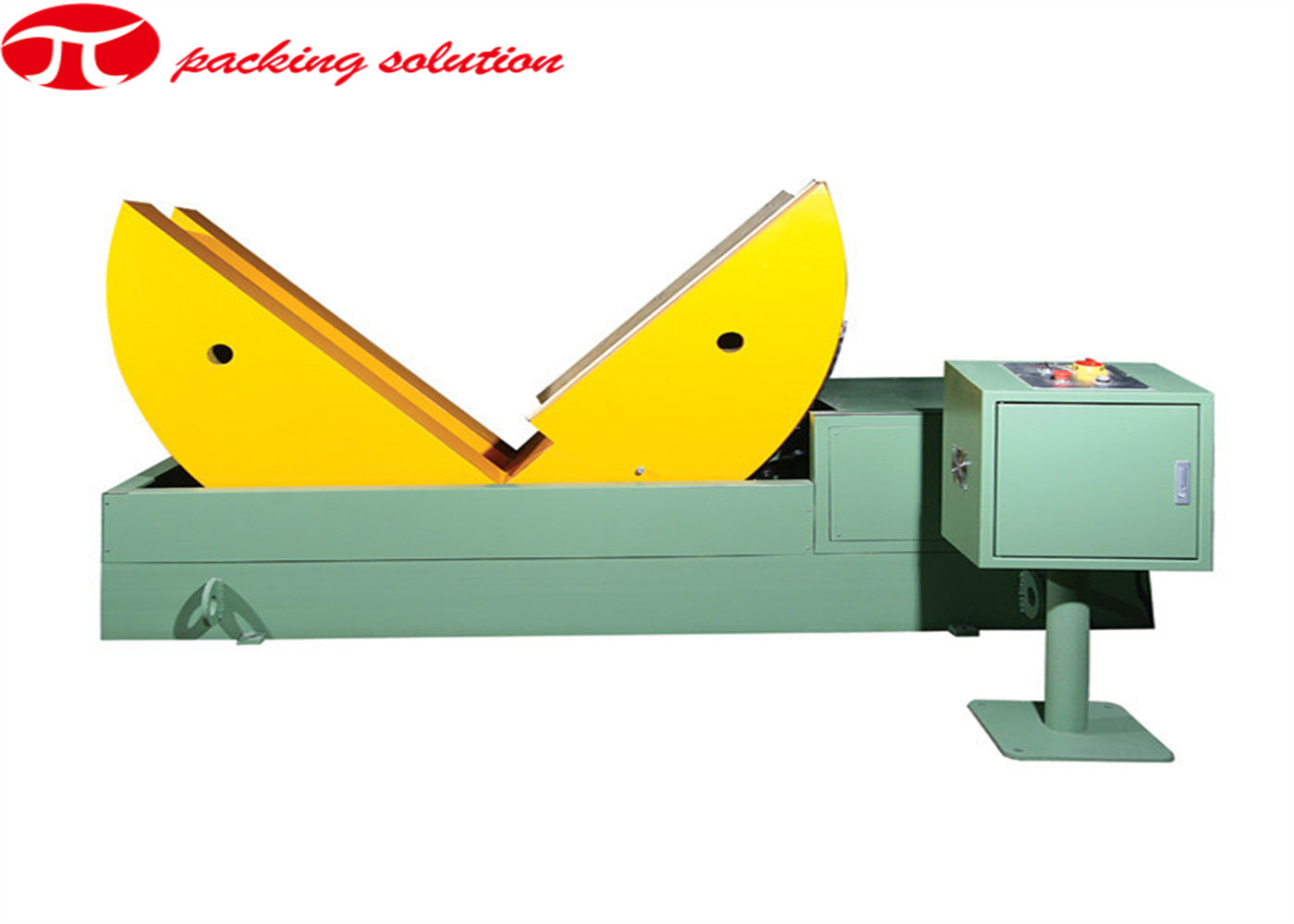

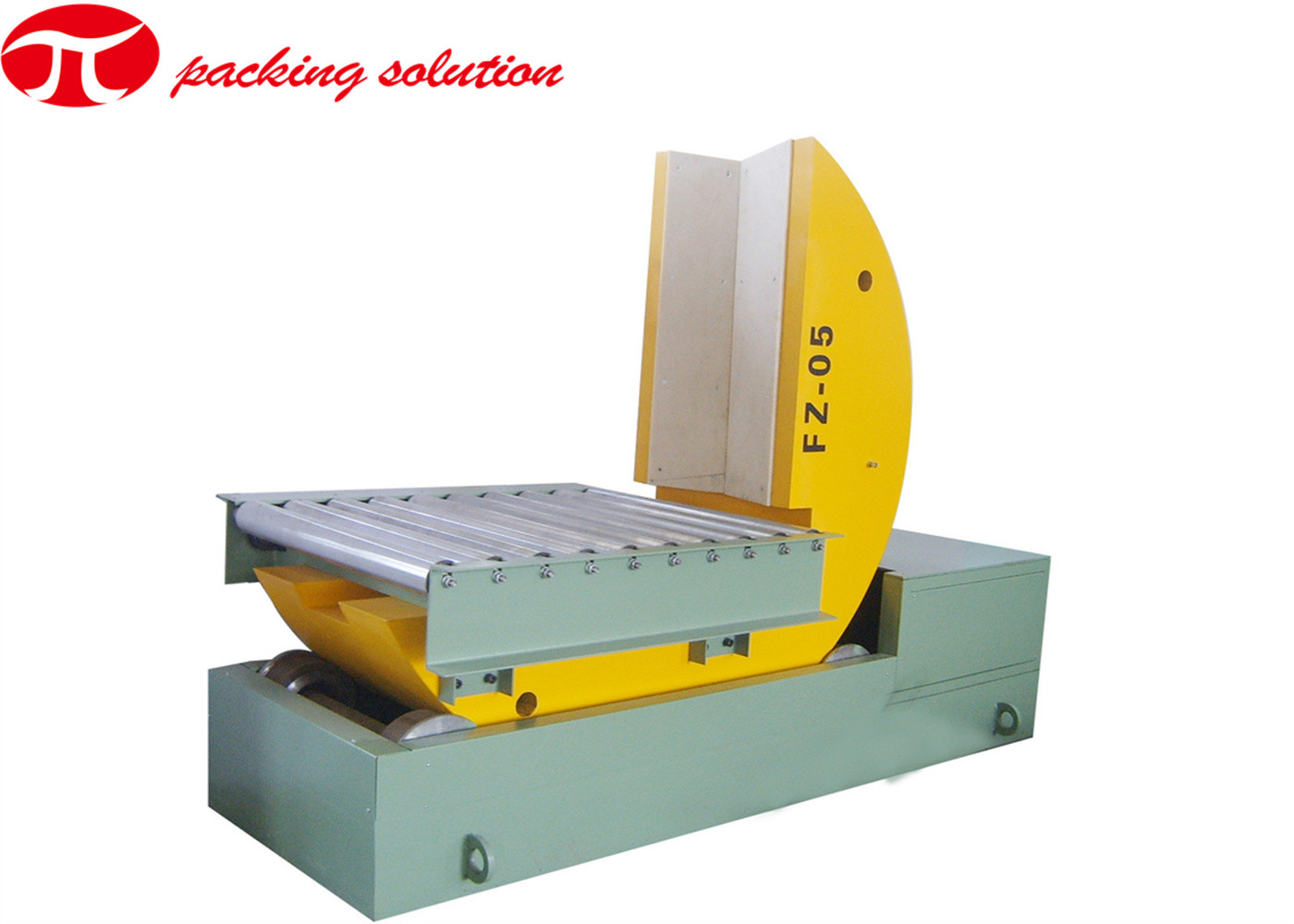

FZ-05 Industrial Flip Hydraulic Type 90 Degree Coil Turnover Machine Coil Upender
MACHINE APPLICATION:
The FZ-05 coil tilter is used for tilting heavy objects with different specifications for 90 degree with max loading capacity 5tons. It’s widely used in industries of metallurgy, stamping, metal plate, mold, paper making, steel strip, coil, barrels, and etc. High efficient working, safe and reliable.
BASIC FEATURES:
The equipment has the characteristics of being able to turn over without being limited by the length, width, size and shape of the workpiece
MAIN PARAMETERS:
| Item data | FZ-05 |
| Max loading | 5T |
| One-way turn-over speed | 40s |
| Transfer mode | Mechanical |
| Power output | Approx. 1.5KW |
| Working mode | Manual switch/ remote control |
| Product width | 600 mm |
| Product diameter | 1500mm |
| Product weight | Within 3000kg |
| Dimension | Approx. L2200mm/W1000/H1700mm |
| Power voltage | AC 380V, 3 phase 5wires |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
