Place of Origin: | China |
---|---|
Brand Name: | jlpack |
Certification: | ISO9001,CE |
Model Number: | FZ Series |
Minimum Order Quantity: | 1 |
Packaging Details: | Wooden case /standard container |
Delivery Time: | Stand-alone 1 week ,the packing line 150days |
Payment Terms: | T/T |
Supply Ability: | 200 sets/Year |
Type: | Mould Turnover Machine | Application: | Metal Coils, Moulds,paper Rolls,barrels |
---|---|---|---|
Power Output: | About 1.5kw | Max Loading: | 3 Tons |
Transfer Mode: | Mechanical | Turning Degree: | 90 Degree |
Dimension: | Approx. L2200mm/W1000/H1700mm | Product Width: | 600mm |
Product Diameter: | 1500mm | Warranty: | 12 Months |
Highlight: | Hydraulic Coil Tilter,CE Coil Tilter,1.5KW Mould Turnover Machine |

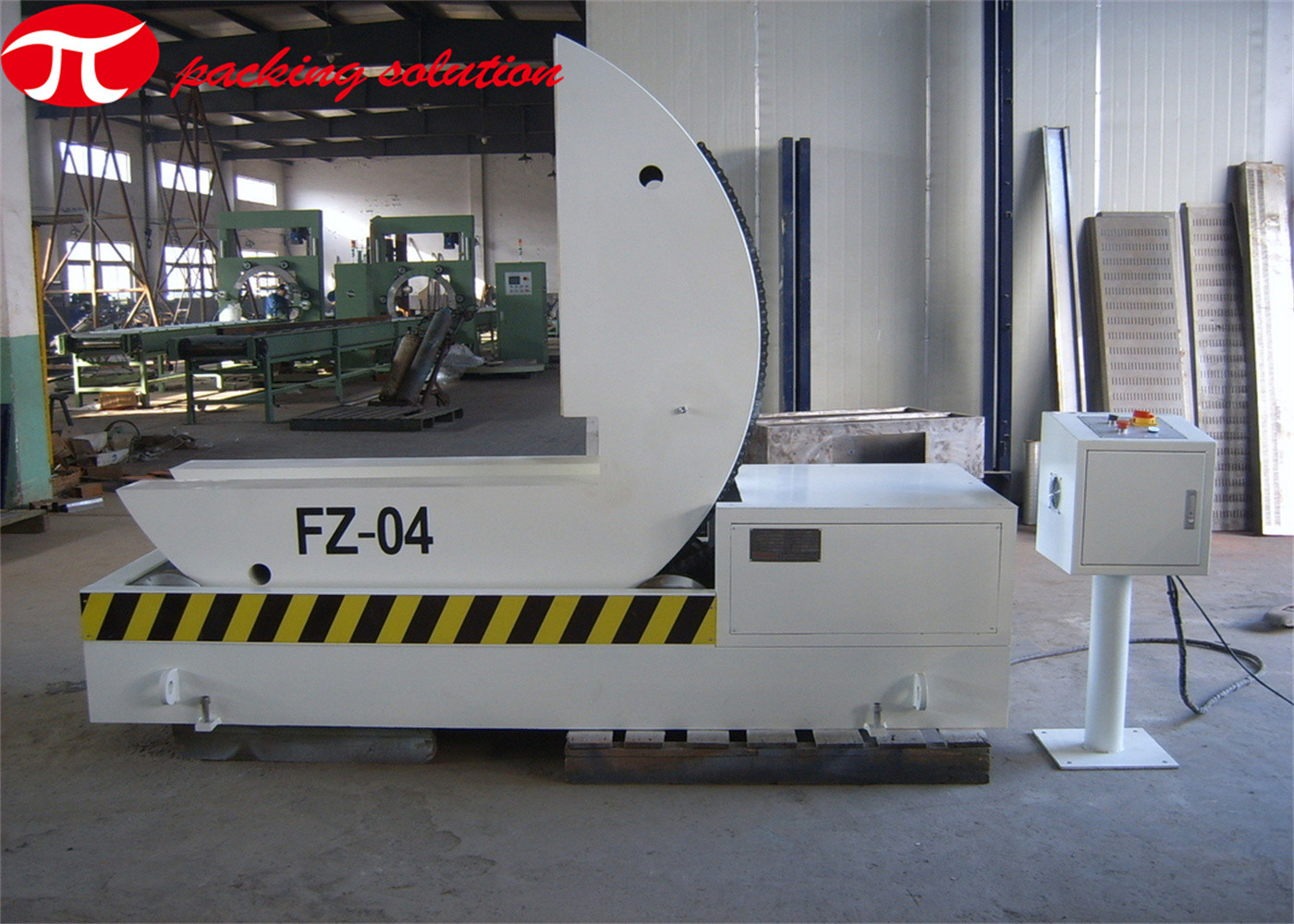

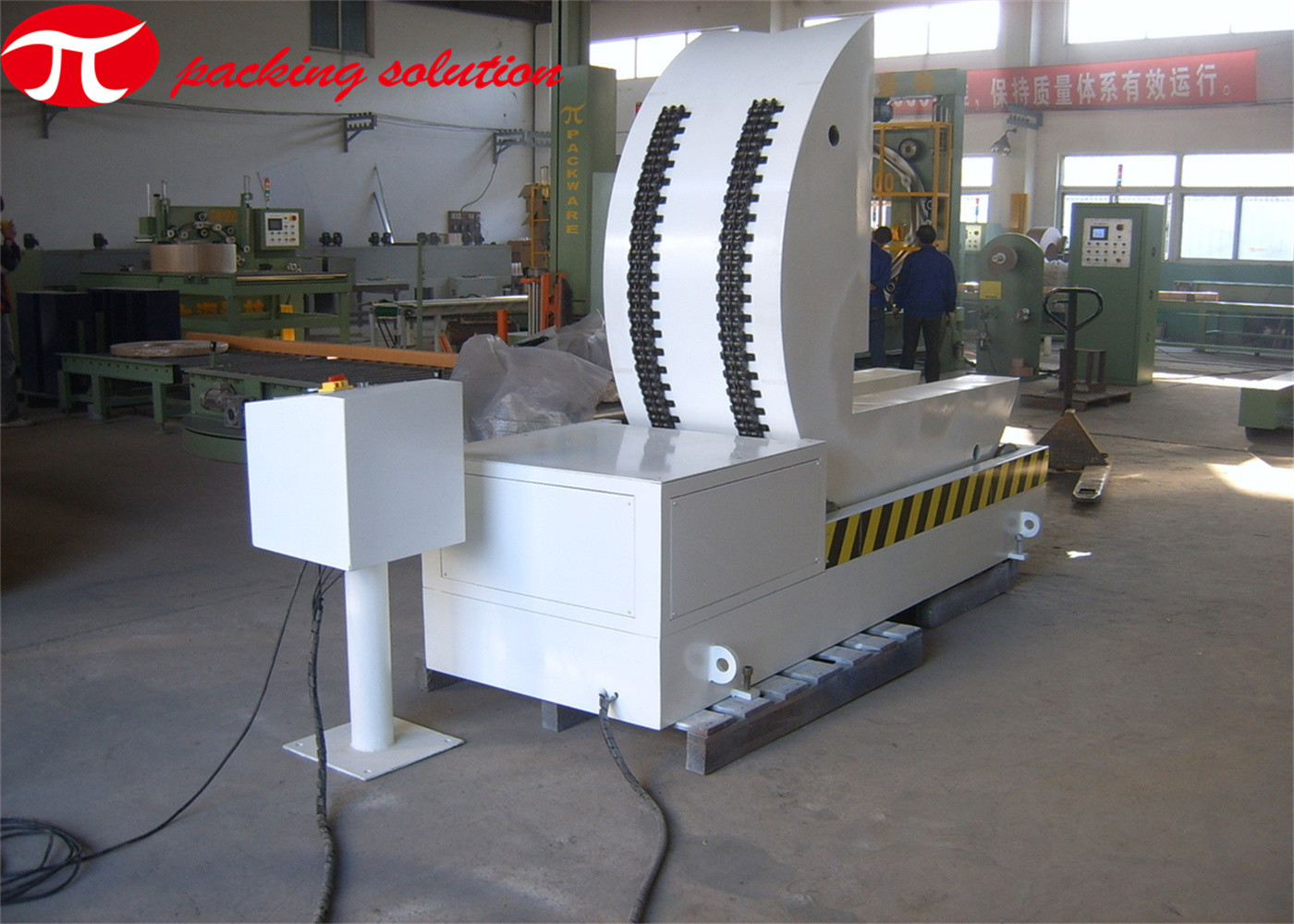

Industrial Coil Tilter Mould Turnover Machine Mechanical Transfer 1.5KW CE Approved
MACHINE APPLICATION:
It is a packaging device that is very simple to operate and functional. It ensures the safety of production, the packaging effect is neat, beautiful, and the tension is strong, which improves the appearance quality. Increased product added value, reflecting the corporate image. Moreover, we provide this product in several specifications as per client’s requirements.
MAIN PARAMETERS:
Item data | FZ-03 |
Max loading | 3T |
One-way turn-over speed | 50s |
Transfer mode | Mechanical |
Power output | Approx. 1.5KW |
Working mode | Manual switch/ remote control |
Product width | 600 mm |
Product diameter | 1500mm |
Product weight | Within 3000kg |
Dimension | Approx. L2200mm/W1000/H1700mm |
Power voltage | AC 380V, 3 phase 5wires |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
BASIC FEATURES:
