INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | GD300 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Name: | Steel Strip Coil Wrapping Machine | Application: | Stee Strip, Steel Wire, Copper Strip |
|---|---|---|---|
| Roller Speed: | 5-8m/min | Automation: | Automatic |
| Ring Speed: | Appr. 20-90r/min | Driven Type: | Electric |
| Voltage: | 380V/50HZ | Packaging Material: | Stretch Film, Paper, Knit Tape,etc |
| Color: | Blue/green/custom | Usage: | Outer Protective Wrapping |
| Highlight: | 4.0KW Steel Coil Packing Machine,1500mm Steel Coil Packing Machine,80r/min Slit Coil Packing Machine |
||
Automatic heavy loading slit steel coils Packing Machine
MACHINE APPLICATION:

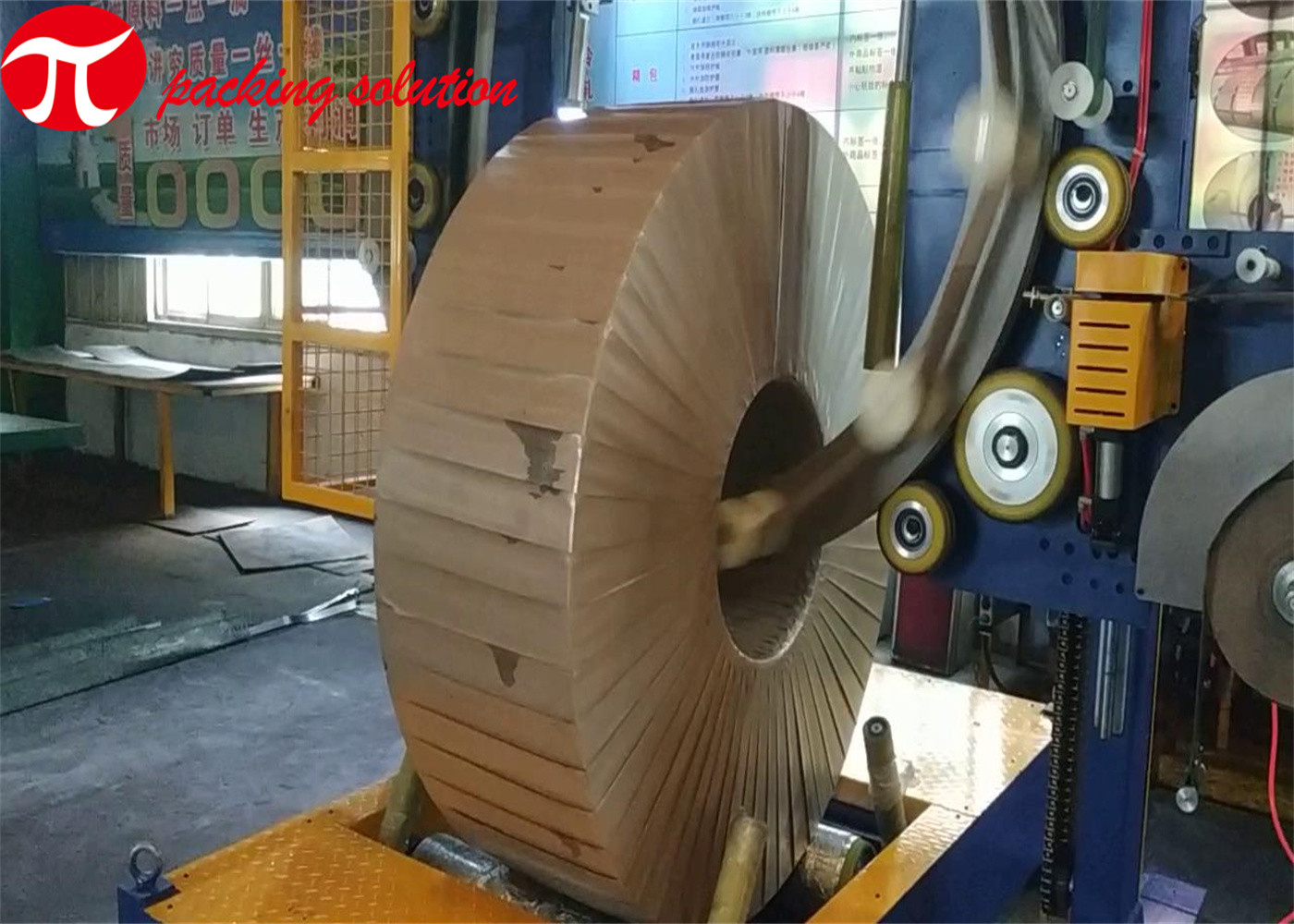

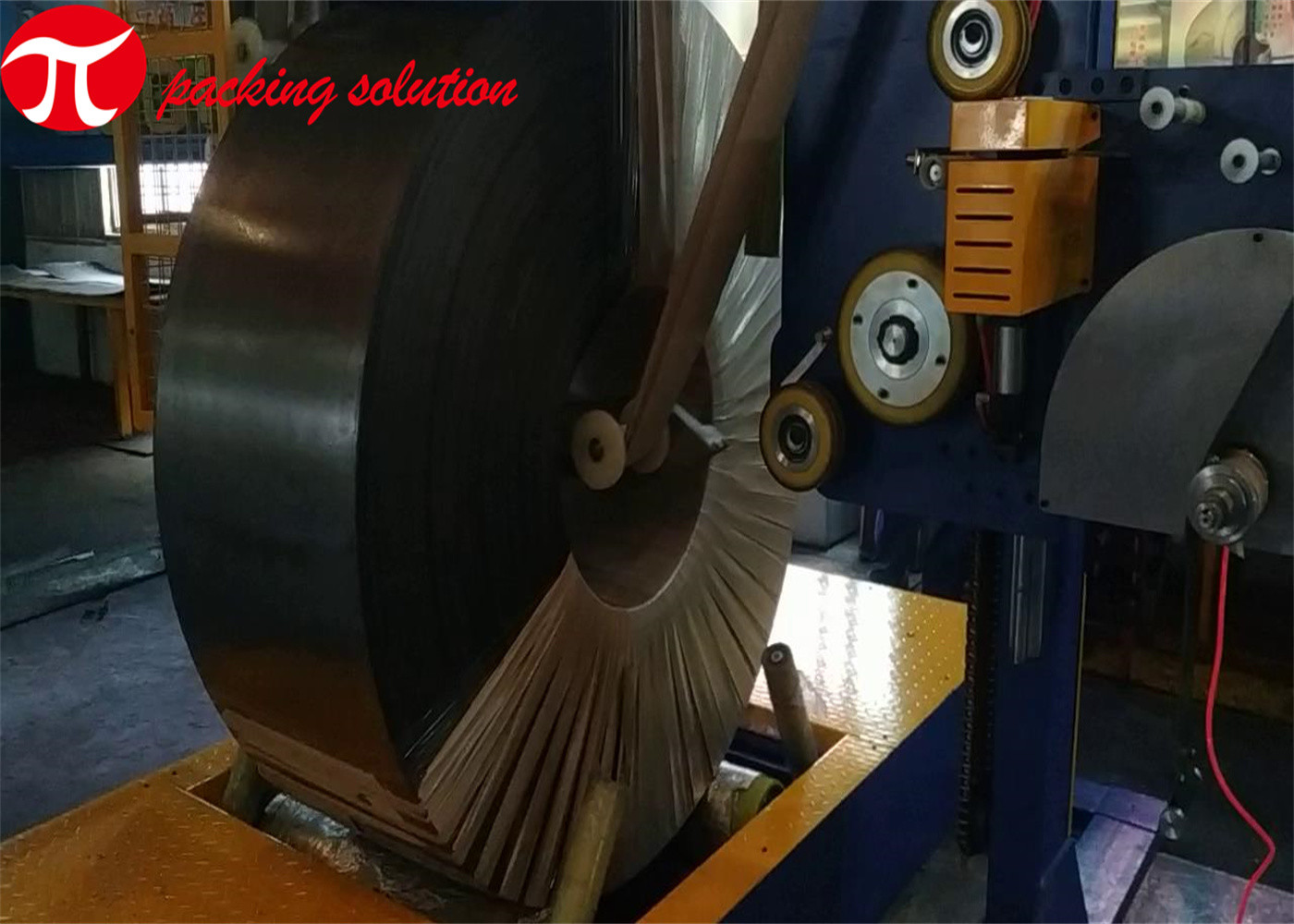

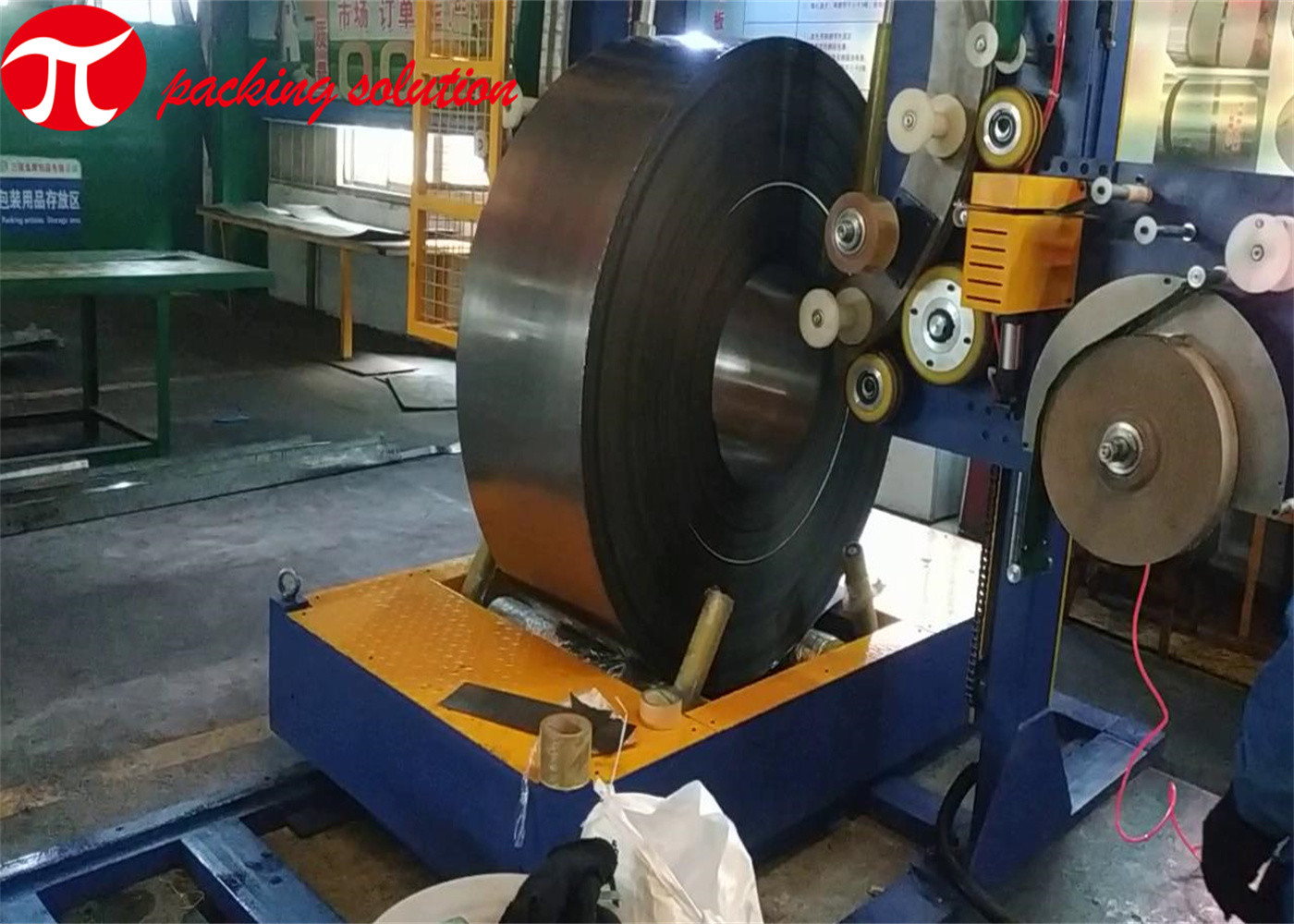

The slit coil packing machine can not only be used for wrapping slit coils, but also widely applied for other coiled objects of steel coils, copper coils, aluminum coils, copper wire coils, steel wire coils, cable coils and other coiled objects, to make the product well-protected&sealed, waterproof, dustproof, rustproof, and convenient for transportation. The coil wrapper wraps the coil shaped products in a spiral manner through eye of the coil. The machine can greatly simplify your packing operation and free your labor forces.
BASIC FEATURES:
MAIN PARAMETERS:
| Model | GD300 |
| Type | Wrapper moveable |
| Coil width | 20mm-300mm |
| Coil OD | 700mm-1500mm |
| Coil ID | 508mm/610mm |
| Coil weight | 50kg-2000Kg |
| Ring speed | 80r/min |
| Roller speed | 5-8m/min |
| Driven type | Electric |
| Power output | 4.0KW |
| Power supply | AC/380V/50Hz |
| Air supply | 6-8kgf/cm2 |
| Packing material | Knit tape: width:80-100mm; ID:55mm; OD≤480mm |
| Stretch film: width:80-100mm; ID:50mm;OD≤150mm | |
| VCI paper: width:80-100mm; ID:55mm; OD≤500mm | |
| synchronous wrapping system | Optional |
| Automatic mechanical hand | Optional |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
