INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | GD600 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Steel Coil, Wire Coil, Copper Coil | Automation: | Automatic/semi-auto |
|---|---|---|---|
| Ring Speed: | Appr. 20-80r/min | Coil OD: | 800-1500MM |
| Roller Speed: | 5-8m/min | Control Mode: | PLC Control |
| Voltage: | 380V/50HZ | Packaging Material: | Stretch Film, Paper, Knit Tape,etc |
| Name: | Steel Coil Packing Machine | Warranty: | 12 Months |
| Highlight: | Rolled Steel Coil Packing Machine,8m/min Steel Coil Packing Machine,Trolley Coil Packaging Machine |
||

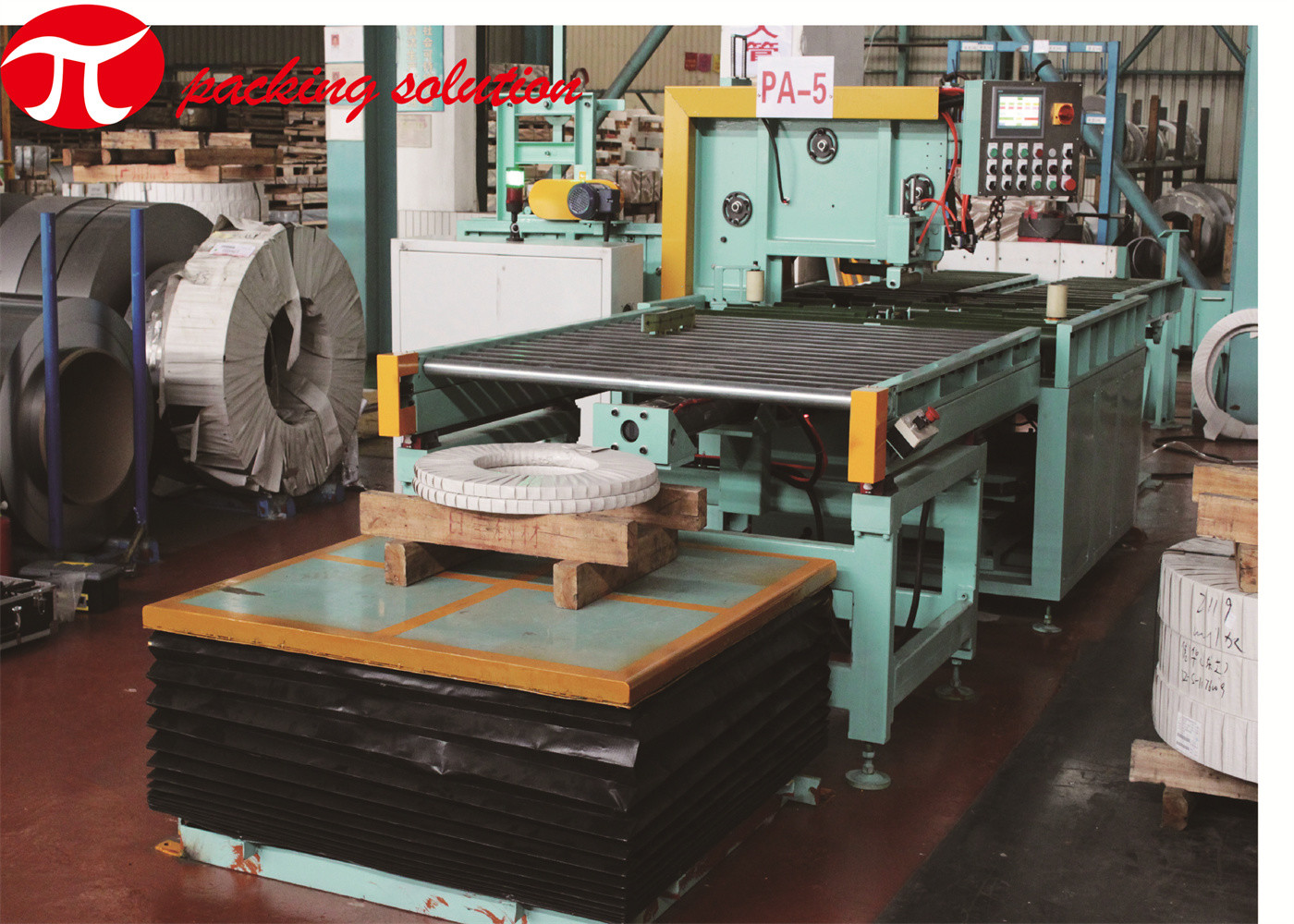

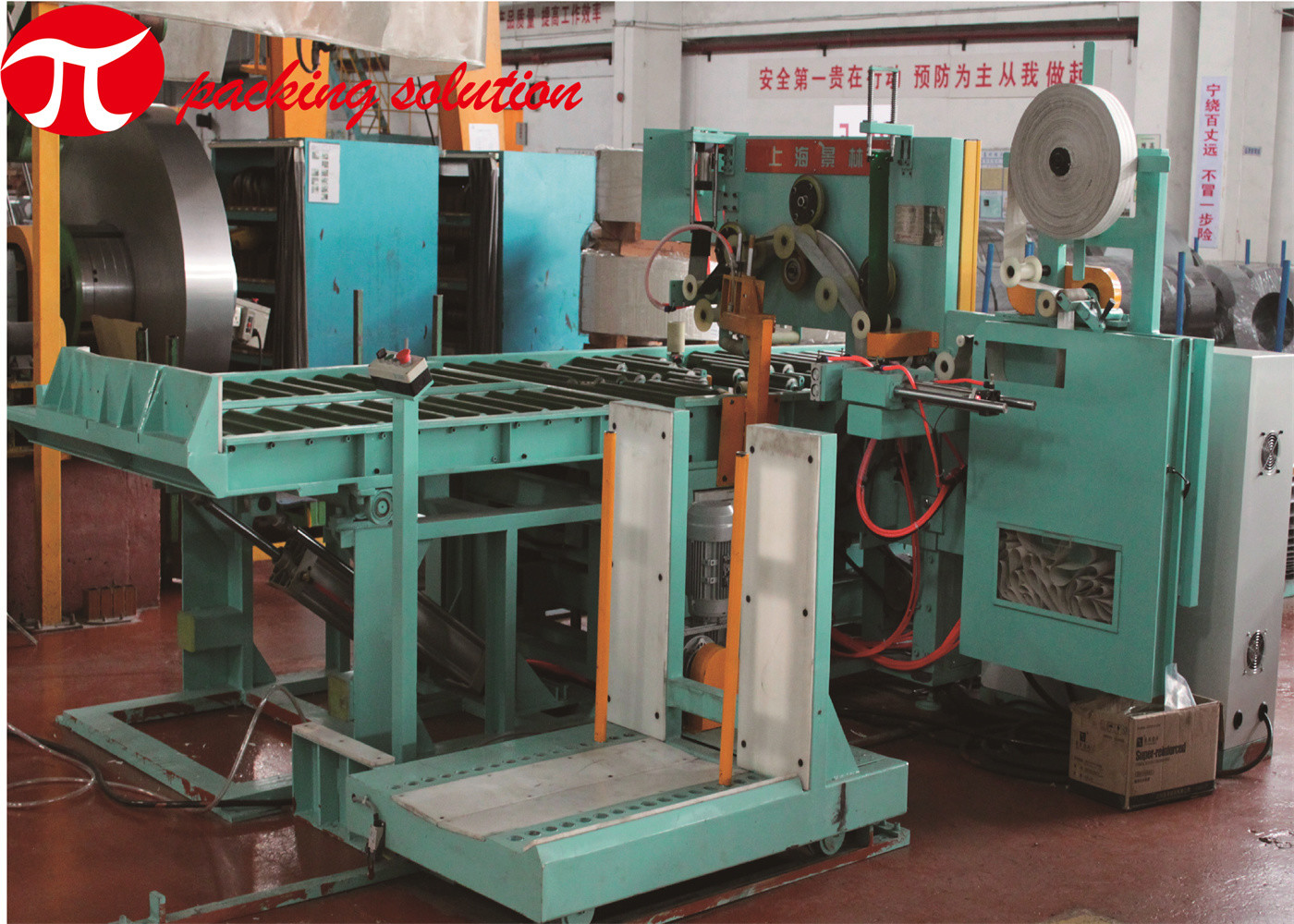

Automatic electrical control cabinet Rolled Steel Strip Coil Packing Machine with trolley
MACHINE APPLICATION:
The stainless steel wrapping machine is an automatic packing solution especially for modern steel manufacturers, which is also well applicable for different ring-shaped products of steel wire coils, strand coils, pipe coils, copper coils, etc. The machine is designed with a loading trolley for safe handling and loading of heavy steel coils. The wrapped steel coil is well-protected & sealed & beautiful & looks tidier with waterproof, dust proof, rust proof, wear proof, anti-aging functions.
BASIC FEATURES:
MAIN PARAMETERS
| Model | GD300 | GD600 | GD800 |
| Coil width | ≤300mm | 150mm-600mm | 400mm-800mm |
| Coil OD | ≤1500mm | 800mm-1600mm | 1000mm-1900mm |
| Coil ID | 508/610mm | 508/610mm | 508/610mm |
| Coil weight | ≤2000Kg | 300kg-6000Kg | 1000Kg-12000kg |
| Ring speed | Appr. 20-90r/min | Appr. 20-80r/min | Appr. 20-60r/min |
| Power output | About 4.0KW | About 7.5KW | About 10.5KW |
| Power supply | AC/380V/50Hz | AC/380V/50Hz | AC/380V/50Hz |
| Air supply | 6-8kgf/cm2 | 6-8kgf/cm2 | 6-8kgf/cm2 |
| Automatic manipulator | Optional | Optional | Optional |
Note: the datas are only for reference, the machine can be custom designed according to specific object size
Additional
All the switchgear & Isolation Transformer, control hardware would be given by JLPACK & is housed in panel.
All field wiring with Push Button Stations, Terminal Boxes, & Junction Boxes would be given.
All the Electrification with Field I/P Sensors, PRX, LS with Solenoids & other outputs are included in line.
Licensed Software for PLC + HMI + DRIVE would be given.
