INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | GD600/800 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Name: | Steel Strip Coil Wrapping Machine | Application: | Stee Strip, Steel Wire, Copper Strip |
|---|---|---|---|
| Automation: | Automatic | Roller Speed: | 5-8m/min |
| Driven Type: | Electric | Voltage: | 380V/50HZ |
| Packaging Material: | Stretch Film, Paper, Knit Tape,etc | Ring Speed: | Appr. 20-90r/min |
| Color: | Blue/green/custom | Usage: | Outer Protective Wrapping |
| Highlight: | 60r/min Coil Stretch Wrapping Machine,HMI Screen Coil Stretch Wrapping Machine,12000kg Screen Coil Stretch Wrapping Machine |
||

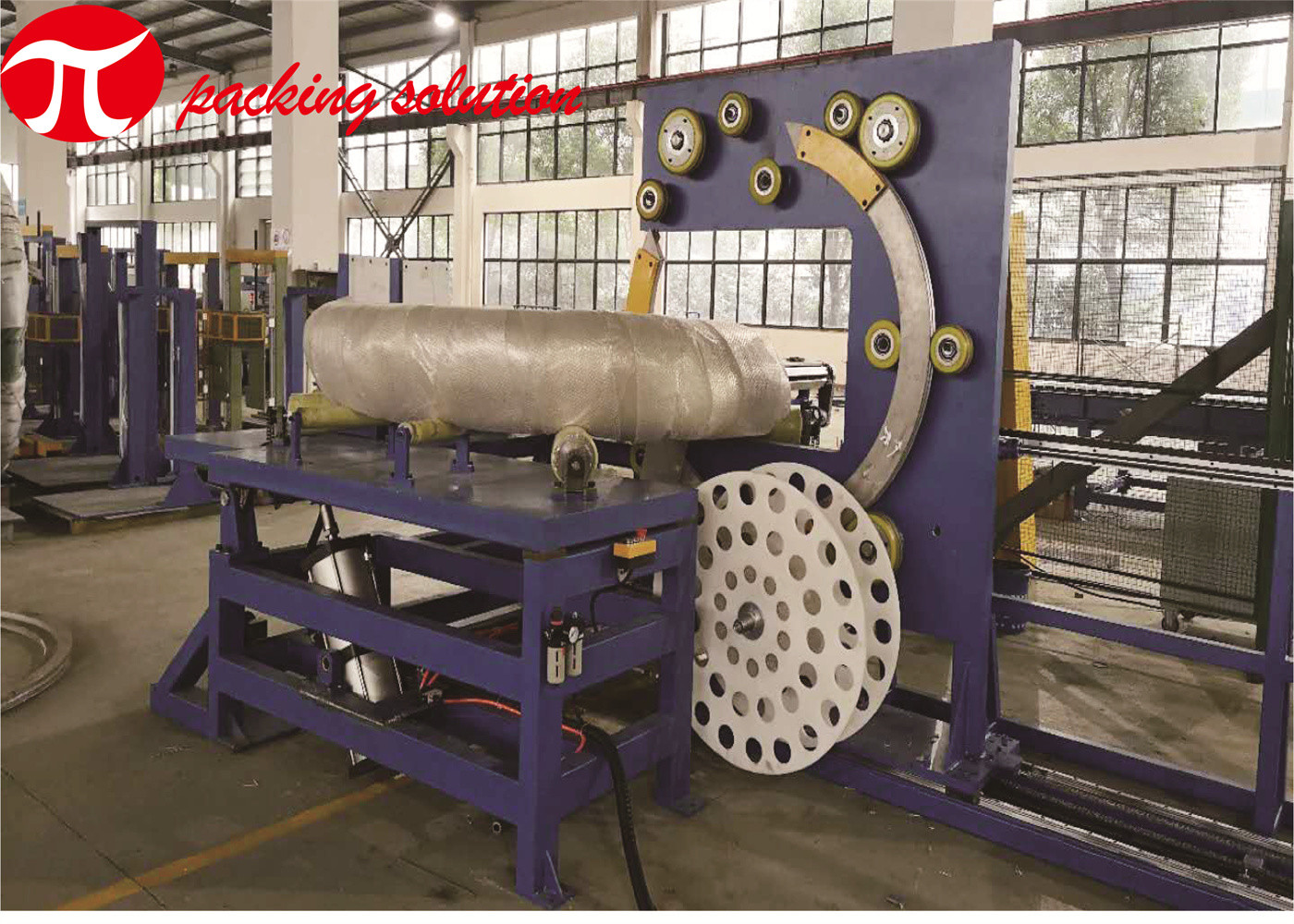

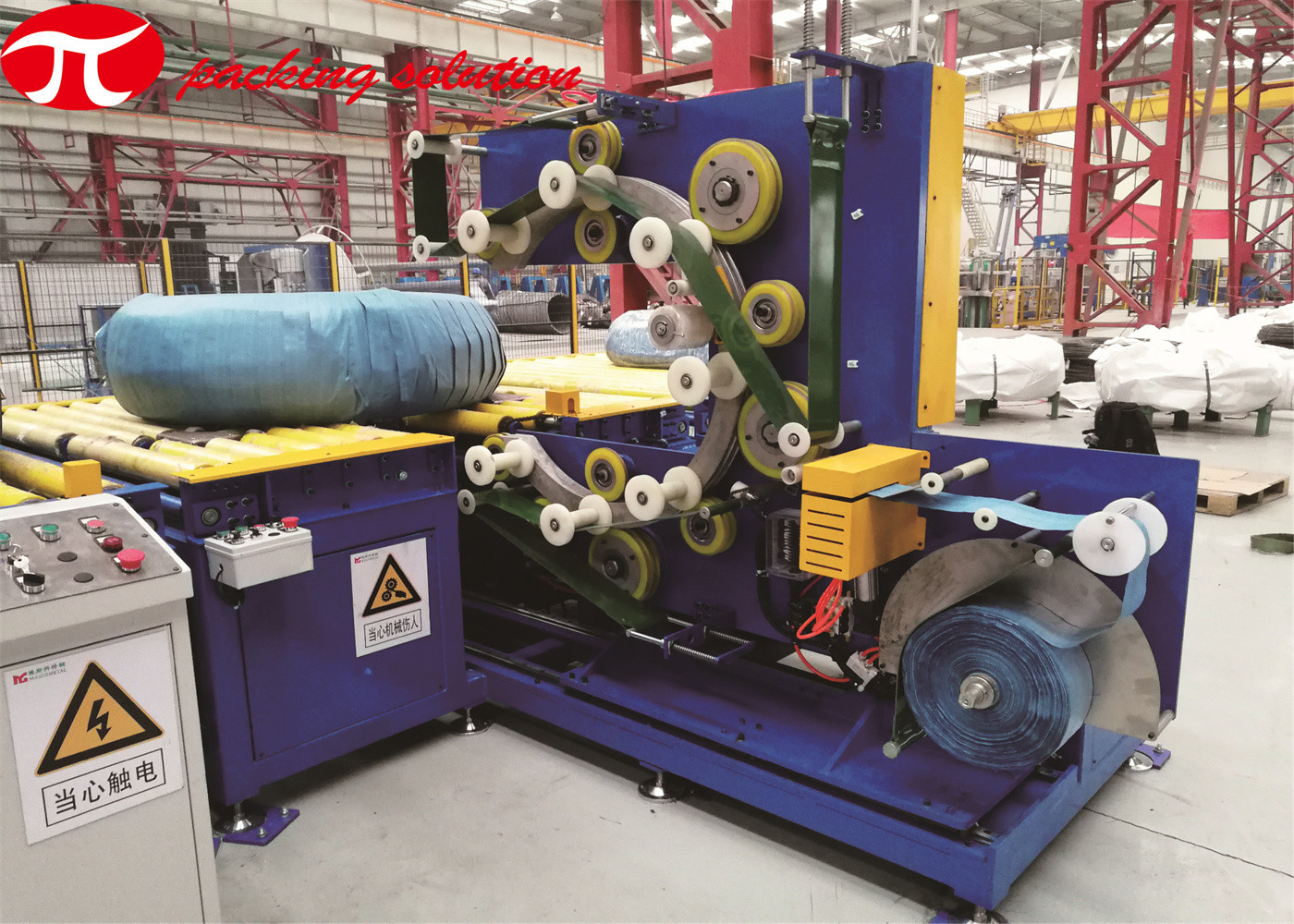

Stable performance automatic steel coil stretch wrapping machine with HMI screen
MACHINE APPLICATION:
The packing machine for steel coils is specially developed by Jinglin to suit for automatic packing needs of metallurgic industries including steel coils, wire coils, copper coils, strand coils, pipe coils, tires,bearings and so on, to make the product well-protected&sealed, waterproof, dustproof, rustproof, and safe for transportation.
MACHINE BASIC FEATURES:
OPERATIONS:
MAIN PARAMETERS:
| Model | GD600 | GD800 |
| Coil width | 150mm-600mm | 400mm-800mm |
| Coil OD | 800mm-1600mm | 1000mm-1900mm |
| Coil ID | 508mm/610mm | 508mm/610mm |
| Coil weight | 300kg-6000Kg | 1000Kg-12000kg |
| Ring speed | Appr. 20-80r/min | Appr. 20-60r/min |
| Roller speed | 5-8m/min | 5-8m/min |
| Power output | 7.5KW | 10.5KW |
| Power supply | AC/380V/50Hz | AC/380V/50Hz |
| Air supply | 6-8kgf/cm2 | 6-8kgf/cm2 |
| Packing material | Compound paper/Knit tape/VCI paper, etc: width:80-100mm; ID:55mm; OD≤500mm | Compound paper/Knit tape/VCI paper, etc: width:80-100mm; ID:55mm; OD≤500mm |
| Stretch film: width:80-100mm; ID:50mm;OD≤150mm | Stretch film: width:80-100mm; ID:50mm;OD≤150mm | |
| Automatic manipulator | Optional | Optional |
| Synchronous wrapping system | Optional | Optional |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
JINGLIN PRODUCTS AVAILABLE:
Steel/aluminum/copper/wire coil type wrapping machine;
Pipe/cable/tube/pipe/tyre/bearing packing machine;
Horizontal pipe/tube/door stretch wrapping machine;
Pallet stretch wrapping machine;
Automatic steel/copper coil packing line;
Automatic plastic pipe bundling&bagging line;
Automatic steel tube bundling& packing line;
Coil upender;
Other customized packing machines.
