INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | JL2100-C |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Type: | Wrapping Machine | Voltage: | 380V/50HZ |
|---|---|---|---|
| Application: | Food, Chemical, Commodity, Medical, Beverage | Packaging Material: | Stretch Film |
| Color: | Standard Blue | Turntable Diameter: | 1500mm |
| Turntable Height: | 110mm | Max Load Weight: | 1500KG |
| Max Load Height: | 2100mm | Warranty: | 1 Year |
| Highlight: | Commodity Pallet Wrapper,JL2100-C Pallet Wrapper,11r/Min Turntable Pallet Wrapper |
||

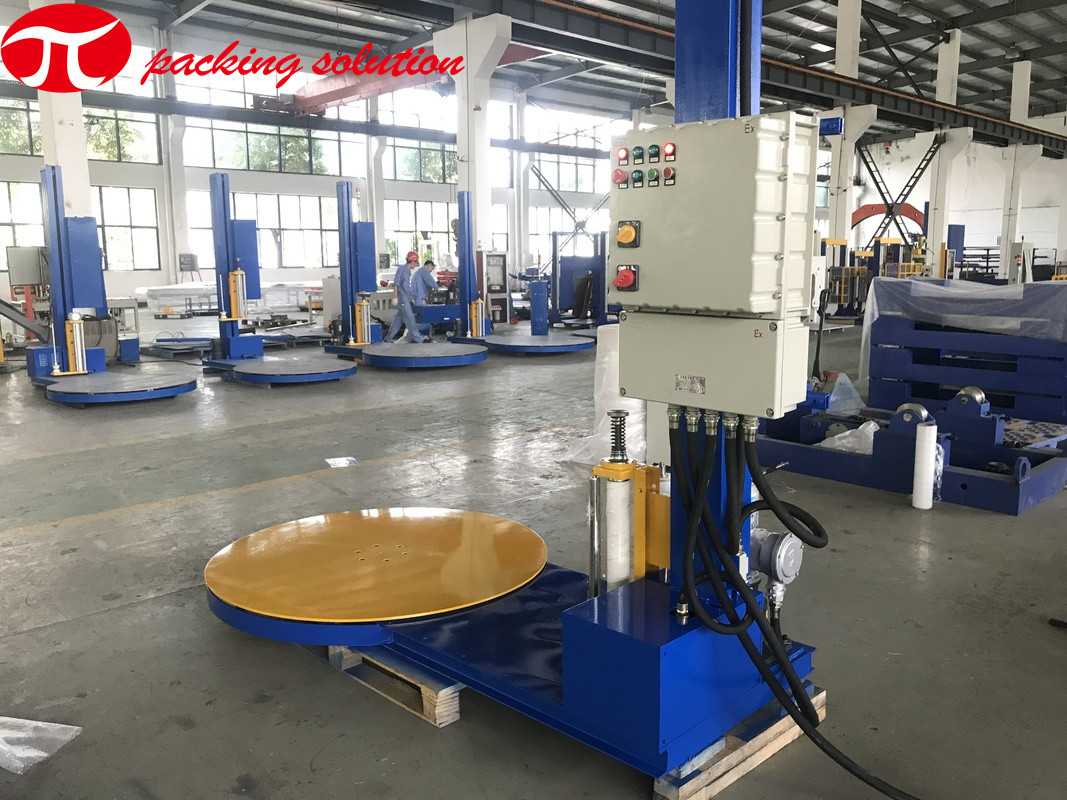

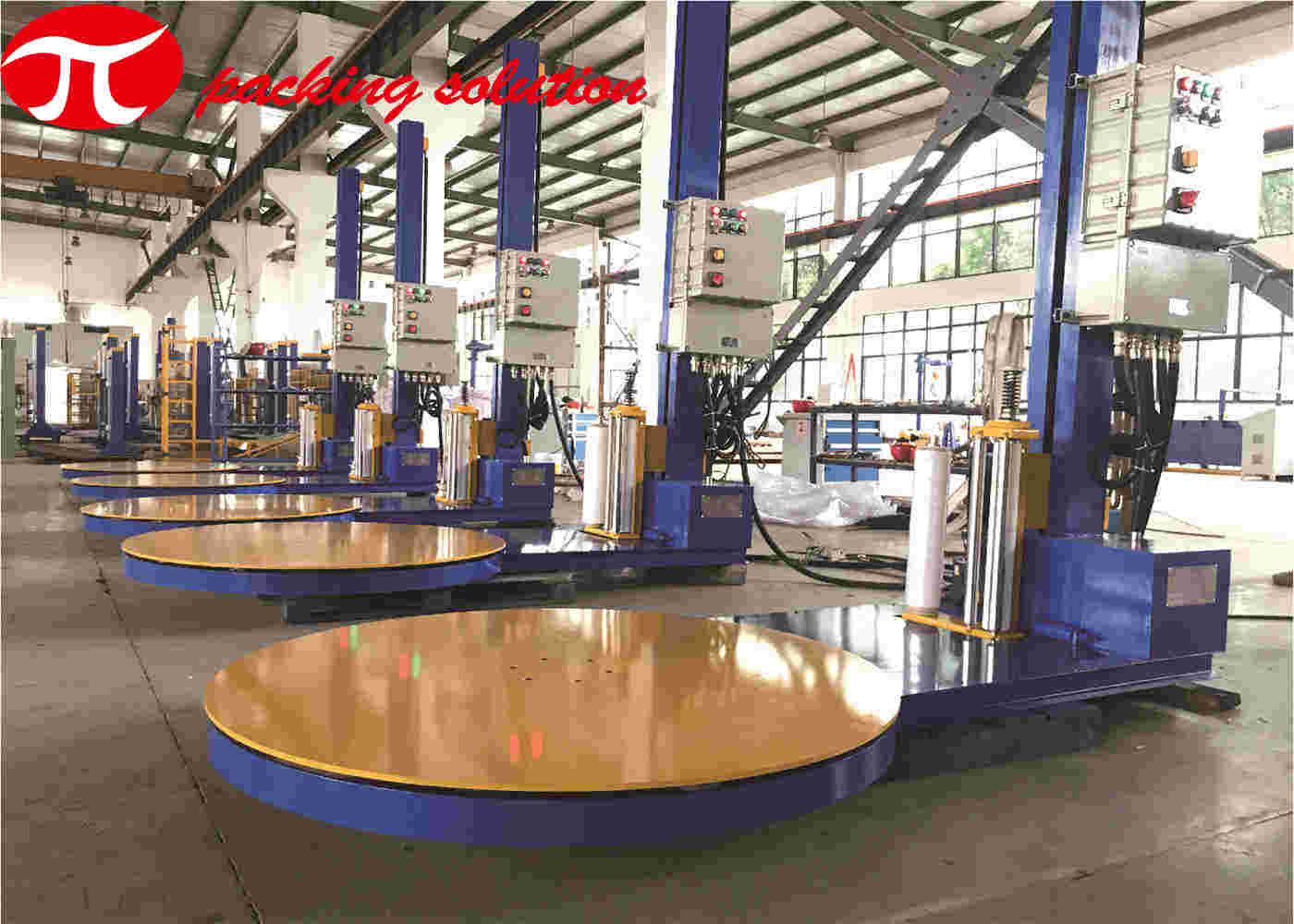

Automatic Turntable Pallet Wrapper JL2100-E With explosion-proof device 1200mm Wider Film Carriage
MACHINE APPLICATION:
The pallet wrapping machine can be widely used in various industries to pack the goods on a pallet with LLDPE stretch film.
It can make the goods stable, tidy and convenient for transportation; moreover. it has waterproof and dust proof effects.
It can also greatly lessen the labor density and improve work efficiency, so it is perfect packing equipment for the modern enterprise.
TECHNICAL PARAMETERS:
| Item data | JL2100- E(auto) |
| Working mode | Auto |
| Turntable motor | 0.40KW |
| Up-down motor | 0.37KW |
| Turntable speed | 11r/min(adjustable) |
| Film carriage speed | 2.9m/min |
| Turntable diameter | 1500mm |
| Turntable height | 110mm |
| Tension control | Manual |
| Height control | Sensor control |
| Turntable startstop mode | Soft start & Soft stop |
| Max load weight | 1500KG |
| Max load height | 2100mm |
| Wrapping material |
Stretch film ID76mm,width:500mm |
| Power voltage | AC 380V/50HZ |
| Gross weight | About 800kg |
| Volume | About 4cbm |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
MAIN PARAMETERS:
Option:
Pre-stretch & width film carriage
Top-platen(one set need)
Packing height: 1500mm
Turntable diameter: 1650mm, 2000mm
Turntable capacity: 2000kg
