INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | JL2100-B |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Type: | Auto Pallet Wrapping Machine | Application: | Food, Chemical, Commodity, Medical, Beverage |
|---|---|---|---|
| Packaging Material: | Stretch Film | Turntable Motor: | 0.40KW |
| Up-down Motor: | 0.37KW | Turntable Speed: | 11r/min(adjustable) |
| Film Carriage Speed: | 2.9m/min | Turntable Diameter: | 1500mm |
| Voltage: | 380V/50HZ | Warranty: | 12 Months |
| Highlight: | 0.40KW Auto Pallet Wrapper,JL2100-B Pallet Wrapper,1500KG Auto Pallet Wrapping Machine |
||

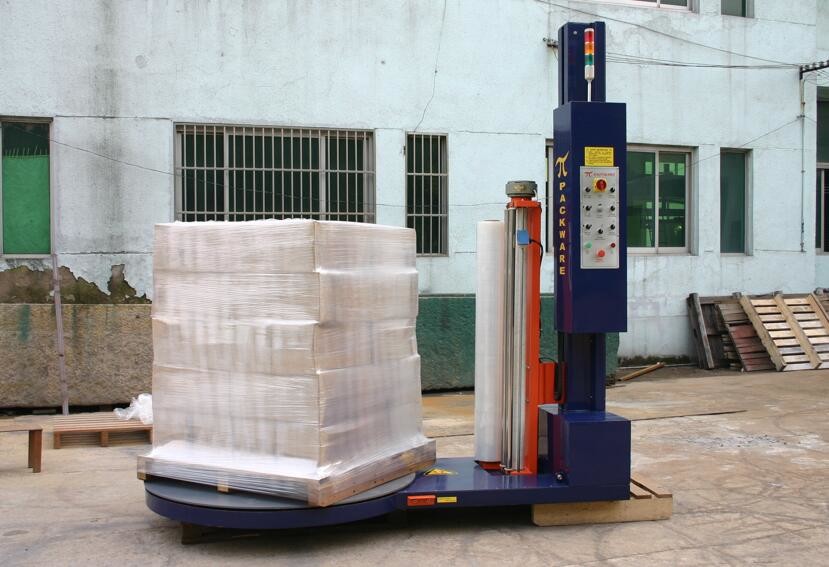

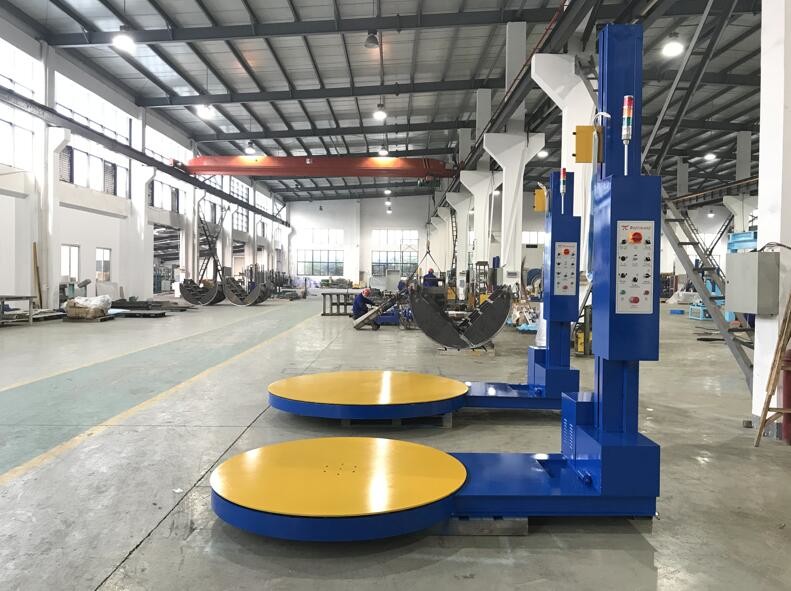

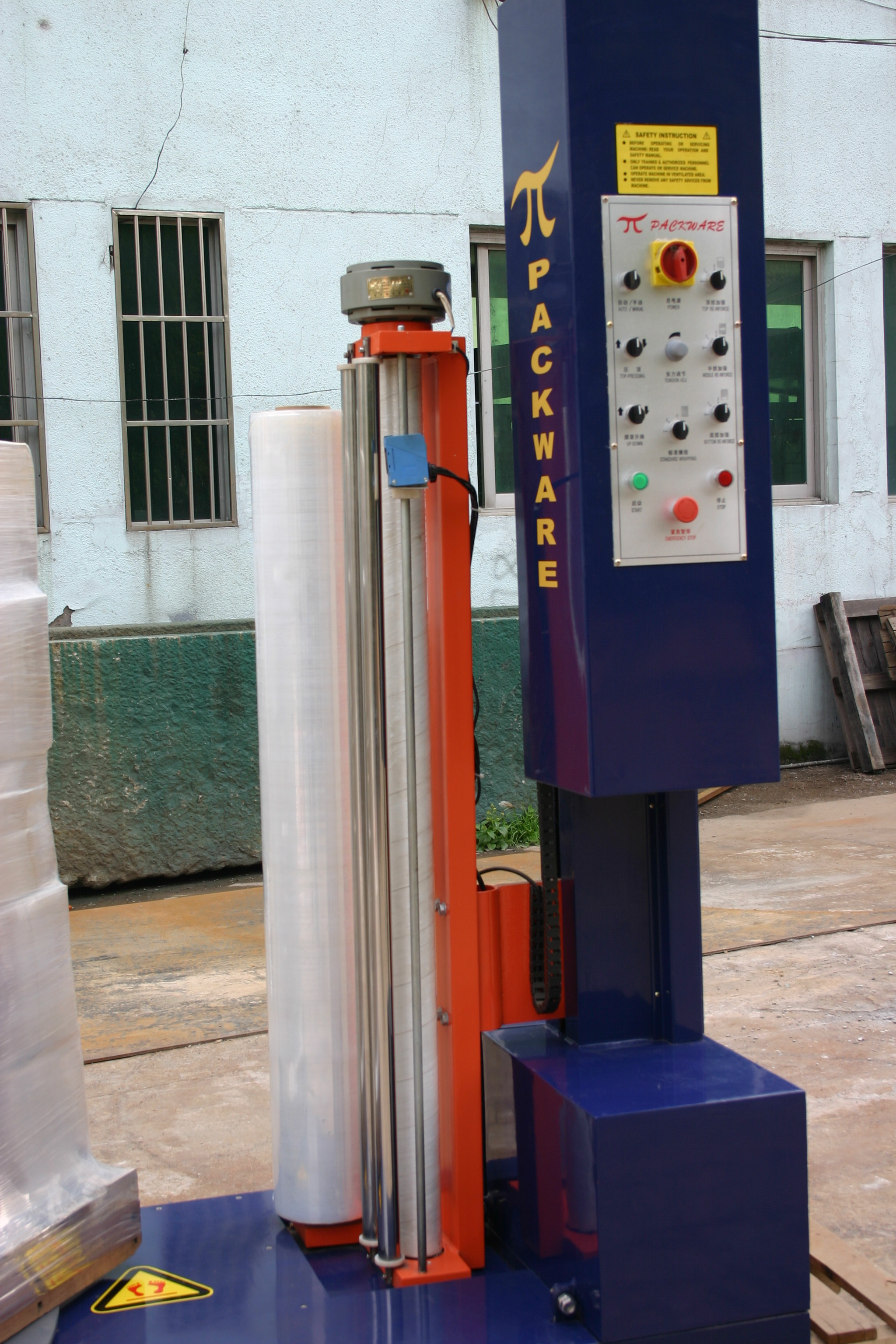

Auto Pallet stretch Wrapper Machine 1500KG Electrical PLC Control with pre-stretch function
MACHINE APPLICATION:
The pallet wrapping machine can be widely used in various industries to pack the goods on a pallet with LLDPE stretch film,
The machine is designed simply so it's easy for operation and maintenance.
The package makes the goods stable, tidy and convenient for transportation; moreover it has waterproof and dust proof effects. It can also greatly lessen the labor density and improve work efficiency, so it is perfect packing equipment for the modern enterprise.
MAIN PARAMETERS:
TECHNICAL PARAMETERS
| Item data | JL2100-B (Auto) |
| Working mode | Auto (PLC) |
| Turntable motor | 0.40KW |
| Up-down motor | 0.37KW |
| Turntable speed | 11r/min(adjustable) |
| Film carriage speed | 2.9m/min |
| Turntable diameter | 1500mm |
| Turntable height | 110mm |
| Tension control | Magnetic controller |
| Height control | Photocell sensor |
| Turntable startstop mode | Soft start & Soft stop |
| Max load weight | 1500KG |
| Max load height | 2100mm |
| Wrapping material |
Stretch film ID76mm,width:500mm |
| Power voltage | AC 380V/50HZ |
| Gross weight | About 800kg |
| Volume | About 4cbm |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
Optional parts:
1. TOP PLATEN: for extra high or very light pallets, the goods on the pallet is easy to falling down during turntable turning. The top platen is used to press the top of the pallets to fix the position and avoid falling and shifting of the goods.
2. ACCESS RAMP: used for convenient loading&offloading of the pallet when transport by the manual fork-lift. It’s not necessary when the loading is by an electric forklift.
