INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | JL2100-C |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Type: | Industrial Pallet Wrapper | Packaging Material: | Stretch Film |
|---|---|---|---|
| Turntable Height: | 110mm | Max Load Height: | 2000mm |
| Warranty: | 12 Months | Tension Control: | Mechanical |
| Voltage: | 380V/50HZ | Application: | Food, Chemical, Commodity, Medical, Beverage |
| Height Control: | Sensor Control | Color: | Standard Blue |
| Highlight: | PLC Control Industrial Pallet Wrapping Machine,2000KG Industrial Pallet Wrapping Machine,Pallet Wrapping Machine |
||

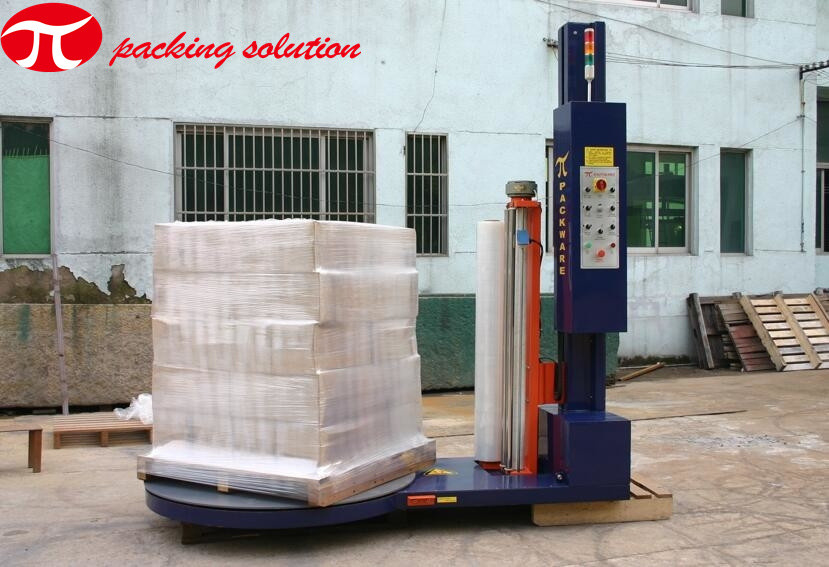

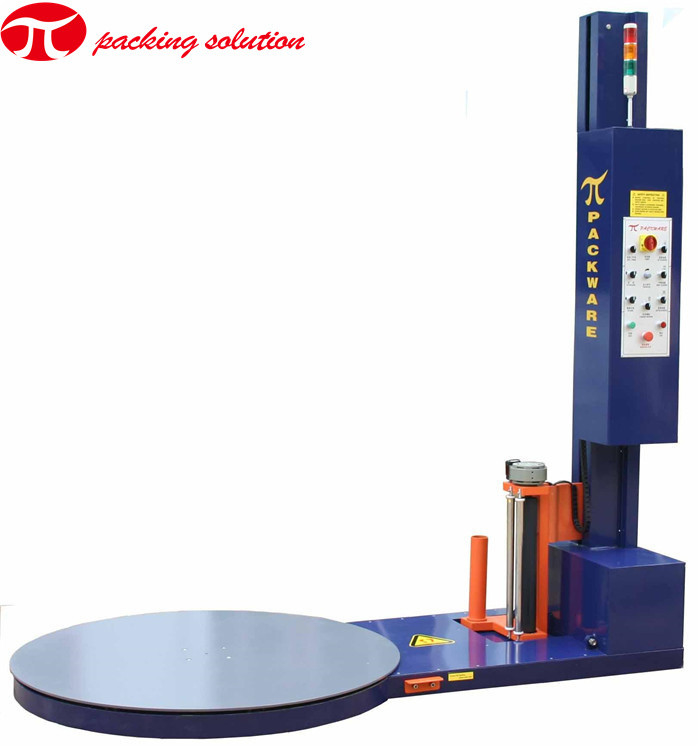

PLC Control High Efficiency Industrial Pallet Wrapping Machine 2000KG Load Weight
The wrapping machine application:
The pallet wrapping machine use LLDPE stretch film to pack industries goods on a pallet .
It makes the goods stable, tidy and convenient for transportation
It also has waterproof and dust proof effects.
It can also greatly lessen the labor density and improve work efficiency, so it is perfect packing equipment for the modern enterprise.
The wrapping machine features:
The wrapping machine paremeter data:
| Model | JL2100-C (auto) |
| Turntable motor | 0.40KW |
| Up-down motor | 0.37KW |
| Turntable speed | 11r/min(adjustable) |
| Film carriage speed | 2.9m/min |
| Turntable diameter | 1500mm |
| Turntable height | 110mm |
| Height control | Sensor control |
| Height control | Sensor control |
| Turntable startstop mode | Soft start & Soft stop |
| Max load weight | 1500KG |
| Max load height | 2000mm |
| Wrapping material |
Stretch film ID76mm,width:500mm |
| Gross weight | About 800kg |
| Volume | About 4cbm |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
Optional parts:
1. TOP PLATEN: for extra high or very light pallets, the goods on the pallet is easy to falling down during turntable turning. The top platen is used to press the top of the pallets to fix the position and avoid falling and shifting of the goods.
2. PRE-STRETCH DEVICE: Pre-stretch means the film is pre-stretched before wrapping the objects. It can ensure the stability when used for light or high package. It can make the pallet stable during wrapping. It can also save 30～50％ film than normal.
3. ACCESS RAMP: used for convenient loading&offloading of the pallet when transport by the manual fork-lift. It’s not necessary when the loading is by an electric forklift.
