INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | FZ-05 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | wooden case /standard container |
| Delivery Time: | 150 days |
| Payment Terms: | T/T |
| Supply Ability: | 10 sets/Year |
| Type: | Hydraulic Coil Upender | Application: | Metal Coils, Moulds,paper Rolls,barrels |
|---|---|---|---|
| Turning Degree: | 90 Degree | Power Output: | About 1.5kw |
| Max Loading: | 5T | Transfer Mode: | Mechanical |
| Color: | Standard Color | Product Width: | 600mm |
| Product Diameter: | 1500mm | Power Voltage: | 380V/ 3phase/50Hz |
| Highlight: | Remote Control Coil Upender Machine,Mechanical Coil Upender Machine,V table Mold Upender |
||

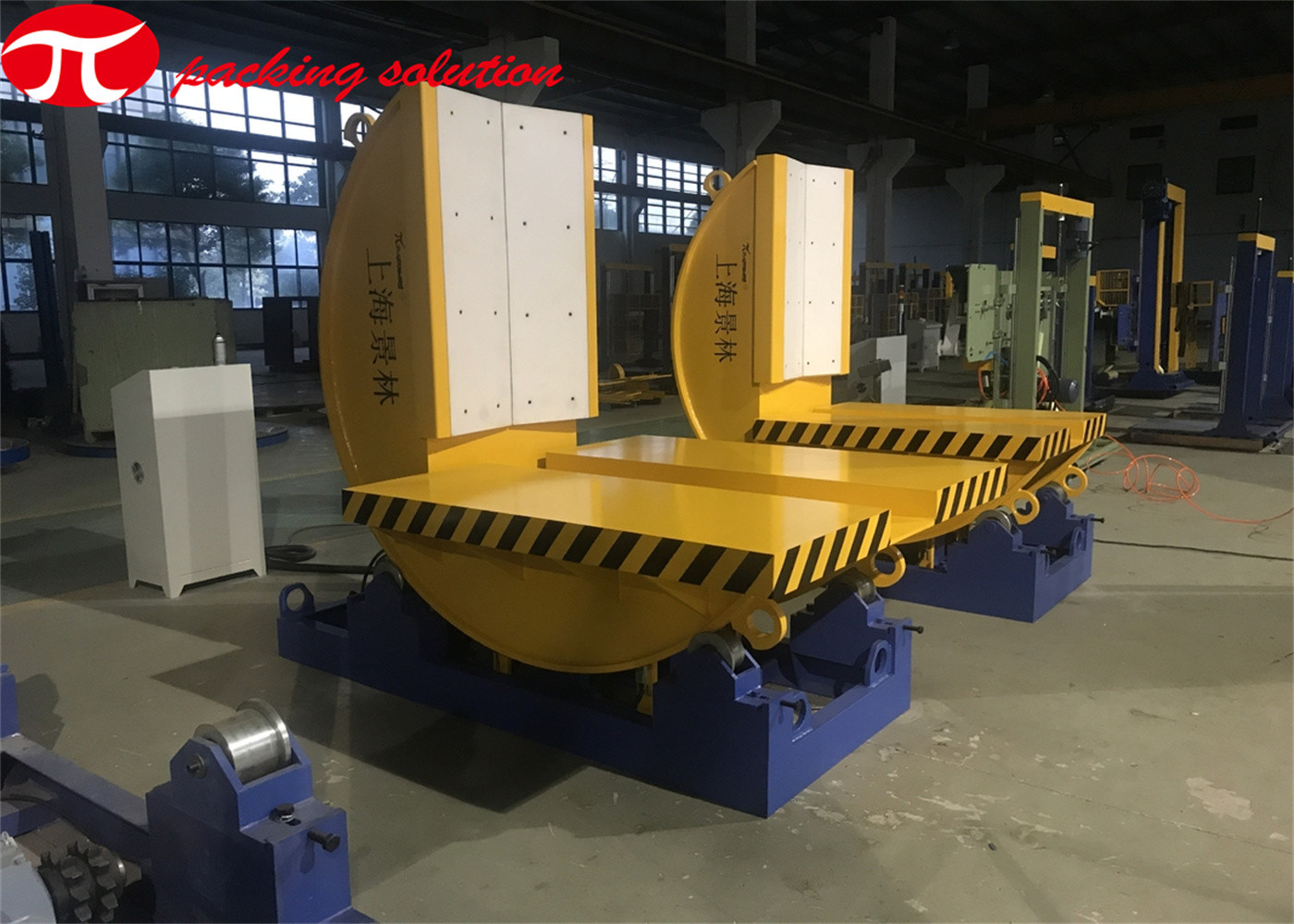

Automatic Coil Turnover Machine Mold Upender Coil Turnover Machine With Moveable V-table
Production application:

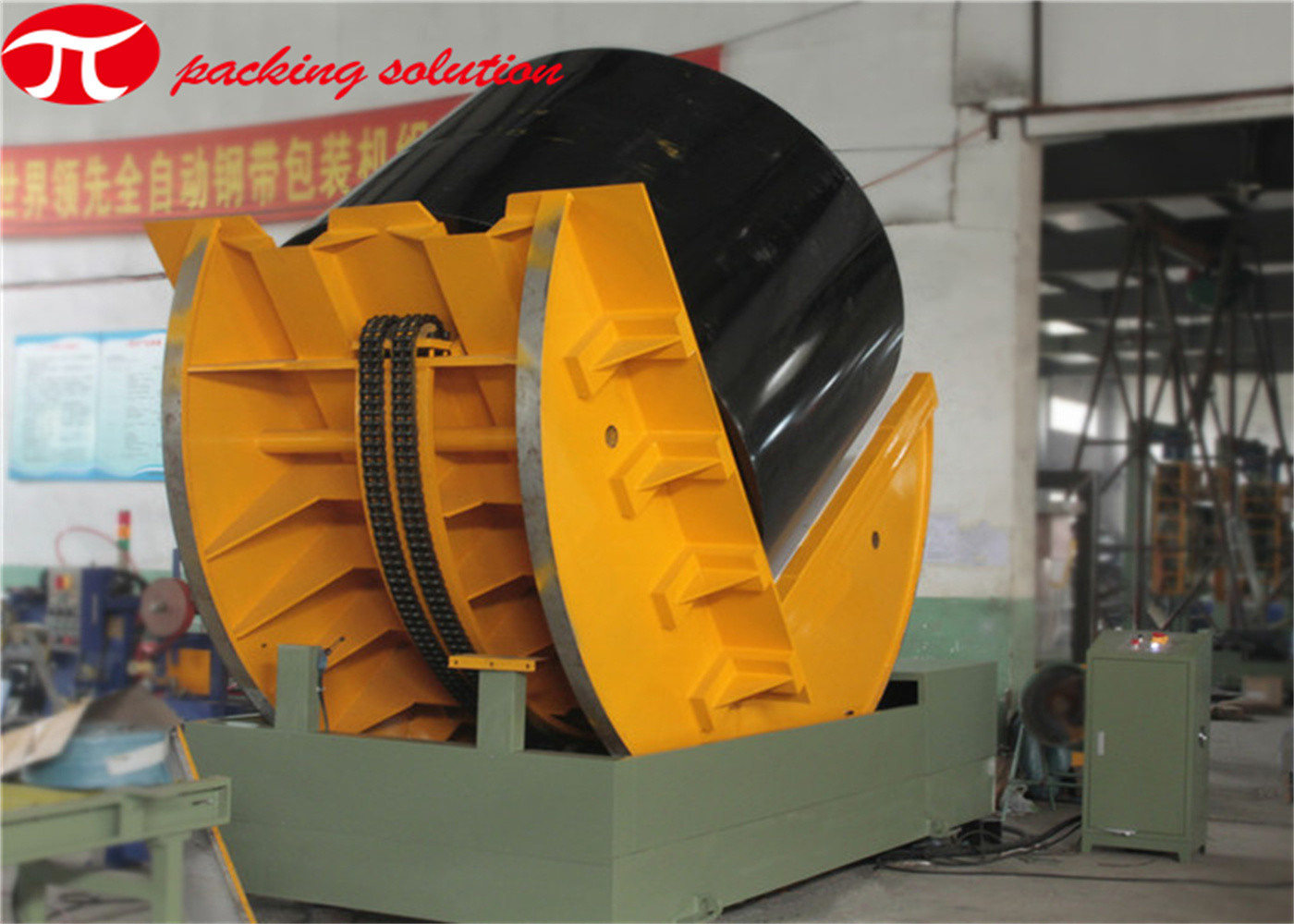

This automatic coil turnover machine is able to offer you a complete choice of tilters which include mechanical coil tilters and hydraulic coil tiltersfor tilting steel coils from eye vertical position to horizontal position or vice versa.
It has the function of rotating the workpiece, and can be turned to any Angle as required. It has the characteristics of simple operation, flexible and reliable use.
Product main performance:
1.Special double chain drive, oblique gear and worm speed reducer.
2.Reasonable four-roller device for object holding makes tuning smooth and steady.
3.Independent electrical panel control for easy and safe operation.
4.Micrometric setting for adjusting the floor level.
5.Converter controls, Fast, stable and safe.
6.Both electric & mechanical limit restrictors adopted to grantee safe operation.
7.The machine can be stopped at any angle during turning.
8.Emergence stop and position locking function avoid rotation.
9.The machine will stop automatically when turning process finished.
10.Emergency stop button can stop the machine rapidly in emergency conditions.
MAIN PARAMETERS:
| Item data | FZ-05 |
| Max loading | 5T |
| One-way turn-over speed | 50s |
| Transfer mode | Mechanical |
| Power output | approx. 1.5KW |
| Working mode | Manual switch / remote control |
| Product width | 600 mm |
| Product diameter | 1500mm |
| Product weight | Within 5000kg |
| Dimension | Approx. L2200mm/W1000/H1700mm |
| Power voltage | AC 380V, 3 phase 5wires |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
