INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | FZ-04 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Type: | Coil Turnover Machine | Application: | Metal Coils, Moulds,paper Rolls,barrels |
|---|---|---|---|
| Power Output: | About 1.5kw | Max Loading: | 4 Tons |
| Transfer Mode: | Hydraulic | Turning Degree: | 90 Degree |
| Color: | Standard Color | Turning Speed: | 40s |
| Warranty: | 12 Months | ||
| Highlight: | Safe Operation Coil Tilter,90 Degree Coil Tilter,Standard Color Mold Upender |
||

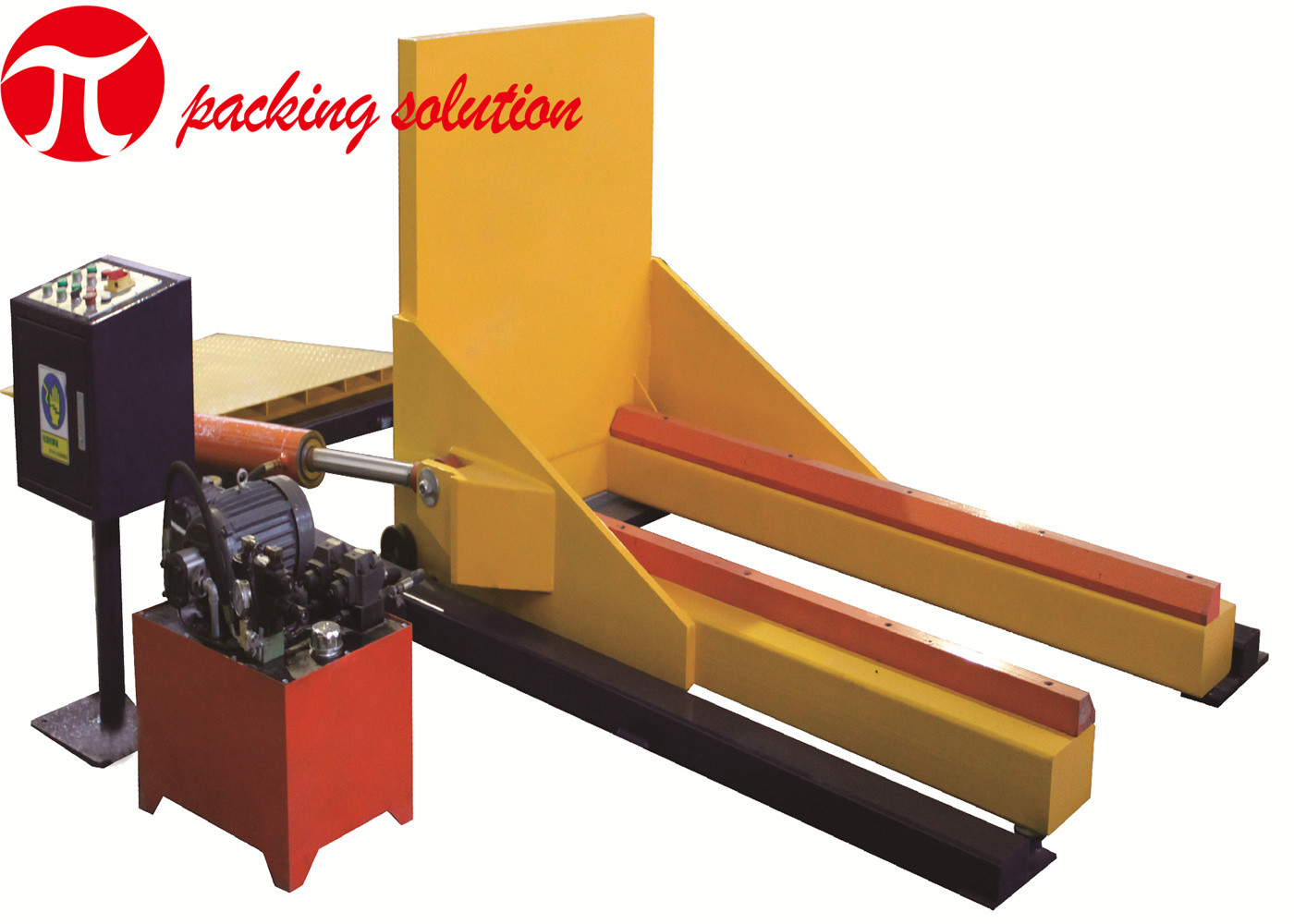

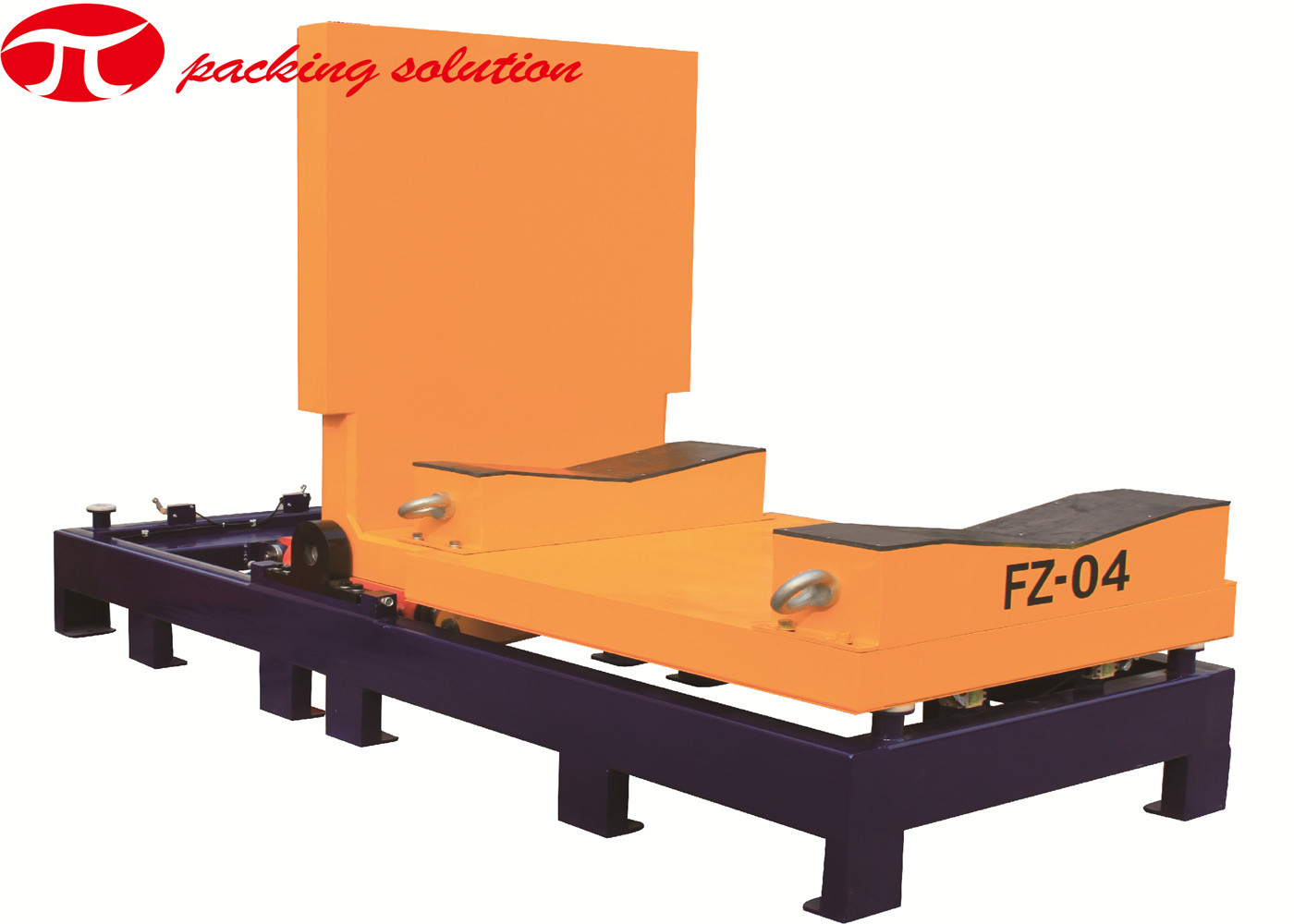

Safe Operation 90 Degree Hydraulic Coil Tilter Coil Turnover Machine Steel Coil In line Tilter
MACHINE APPLICATION:
The FZ-04 Hydraulic coil tilter can be used for dislocation of different horizontal or vertical objects.
It’s widely used in industries of metallurgy, stamping, metal plate, mold, paper making, steel strip, coil, barrels, and etc. High efficient working, safe and reliable.
.
MAIN PARAMETERS:
| Item data | FZ-04 |
| Max loading | 4T |
| One-way turn-over speed | 40s |
| Transfer mode | Hydraulic |
| Power output | Approx. 1.5KW |
| Working mode | Manual switch / remote control |
| Product width | 600 mm |
| Product diameter | 1500mm |
| Product weight | Within 5000kg |
| Dimension | Approx. L2200mm/W1000/H1700mm |
| Power voltage | AC 380V, 3 phase 5wires |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
