INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | FZ-05 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Type: | Coil Turn Over | Application: | Metal Coils, Moulds,paper Rolls,barrels |
|---|---|---|---|
| Power Output: | About 1.5kw | Max Loading: | 5 Tons |
| Transfer Mode: | Mechanical | Color: | Standard Color |
| Turning Degree: | 90 Degree | Product Width: | 600mm |
| Product Diameter: | 1500mm | Dimension: | Approx. L2200mm/W1000/H1700mm |
| Highlight: | Jinglin Mould Upender,FZ-05 Steel Coil Turnover,90 Degree Steel Coil Turnover |
||

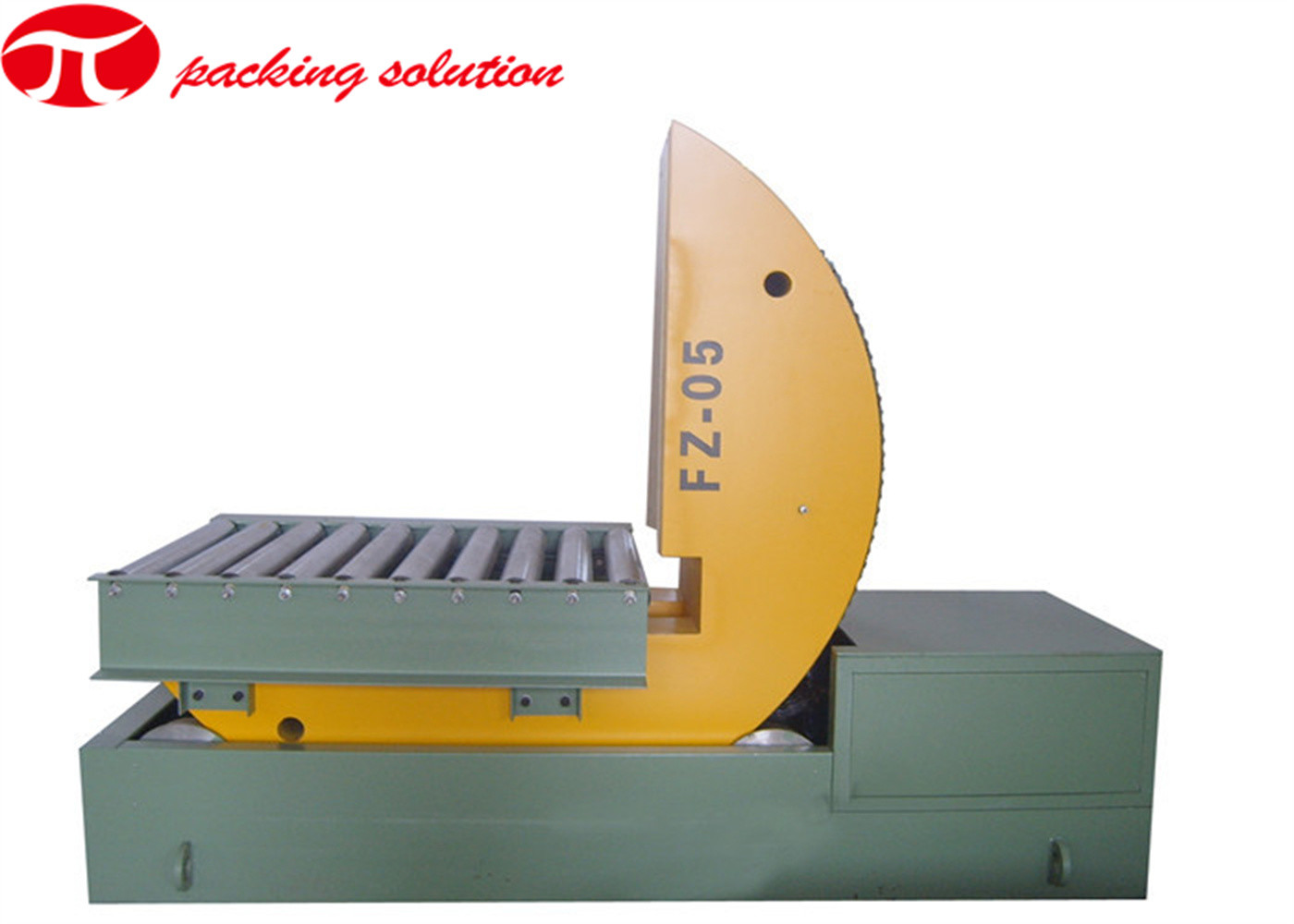

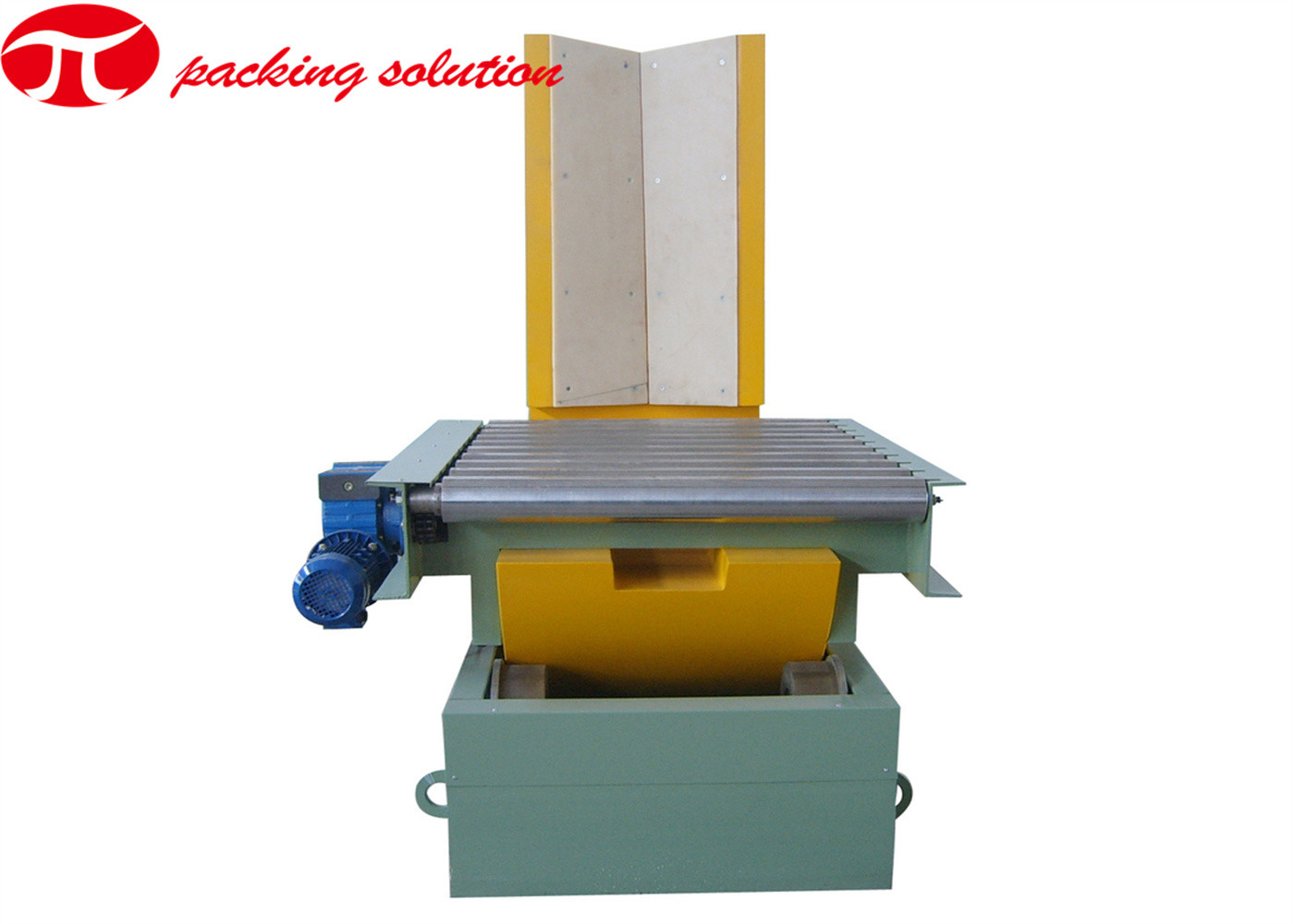

Jinglin FZ-05 Automatic Metal Coil Tilter 90 Degree Coil Turnover Machine Upender
MACHINE APPLICATION
The turning function can adapt to the engineering turning requirements of different specifications of goods, and provide process transportation safely, stably and effectively
BASIC FEATURES:
◆ Reasonable four-roller device for object holding makes tuning smooth and steady.
◆ Independent electrical panel control for easy and safe operation.
◆ Micrometric setting for adjusting the floor level.
◆ Converter controls, Fast, stable and safe.
◆ Both electric & mechanical limit restrictors adopted to grantee safe operation.
◆ The machine can be stopped at any angle during turning.
◆ Emergence stop and position locking function avoid rotation.
◆ The machine will stop automatically when turning process finished.
◆ Emergency stop button can stop the machine rapidly in emergency conditions.
MAIN PARAMETERS:
| Item data | FZ-05 |
| Max loading | 5T |
| One-way turn-over speed | 40s |
| Transfer mode | Mechanical |
| Power output | approx. 1.5KW |
| Working mode | Manual switch / remote control |
| Product width | 600 mm |
| Product diameter | 1500mm |
| Product weight | Within 5000kg |
| Dimension | Approx. L2200mm/W1000/H1700mm |
| Power voltage | AC 380V, 3 phase 5wires |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
