INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | FZ-05 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Type: | Mechanical Coil Upender | Application: | Aluminium Coil ,Steel Coil And Etc. |
|---|---|---|---|
| Power Output: | About 1.5kw | Max Loading: | 5 Tons |
| Transfer Mode: | Mechanical | Color: | Standard Color |
| Turning Degree: | 90 Degree | Product Width: | 600mm |
| Product Diameter: | 1500mm | Warranty: | 12 Months |
| Highlight: | Aluminium Coil Tilter,5T Loading Coil Tilter,5T Loading Coil Turnover Machine |
||
Mechanical Aluminium Coil Tilter / Remote Control Coil Turnover Machine 5T loading
MACHINE APPLICATION
According to the maximum turning Angle can be divided into 90° turning over, 180° turning over..

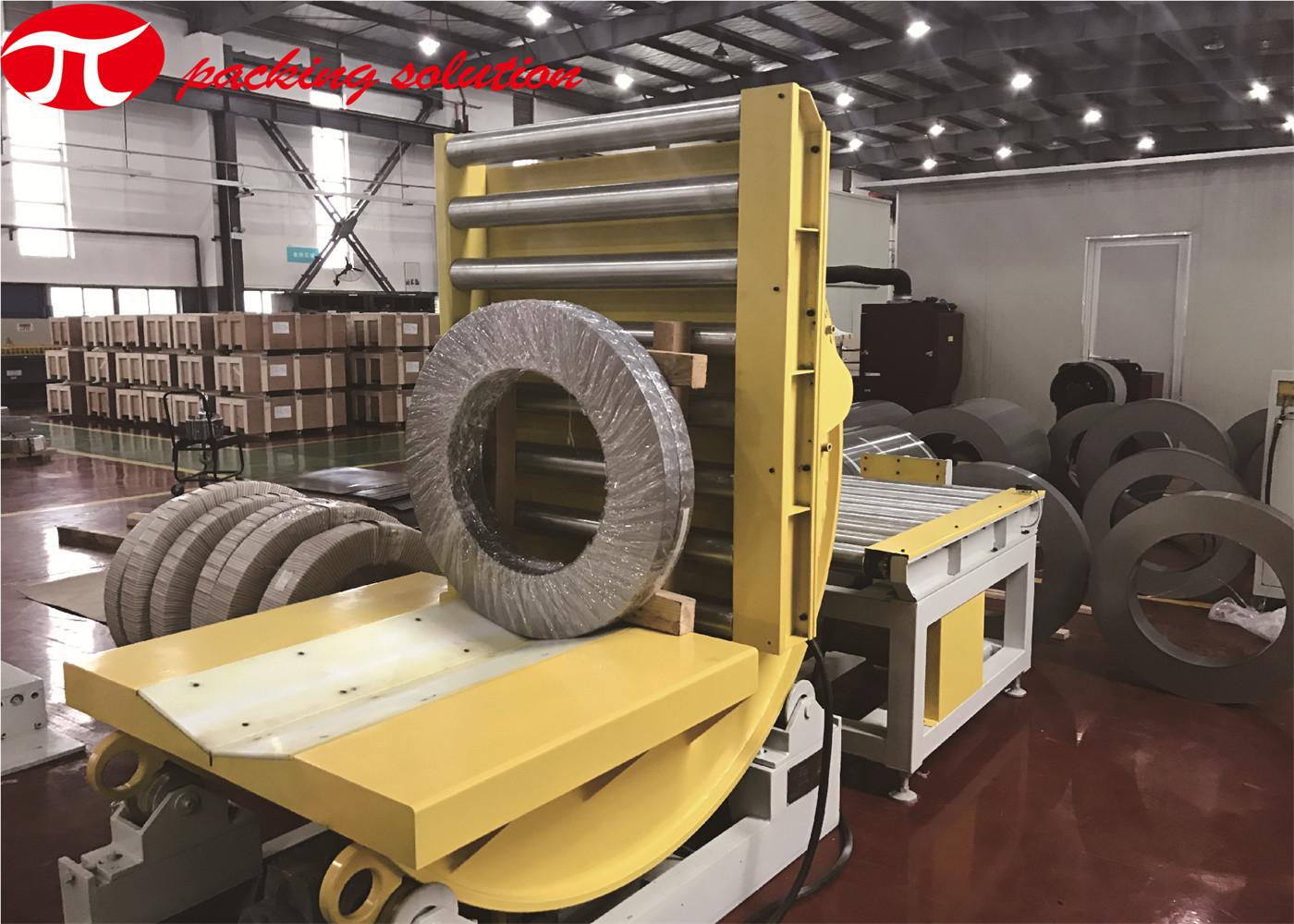

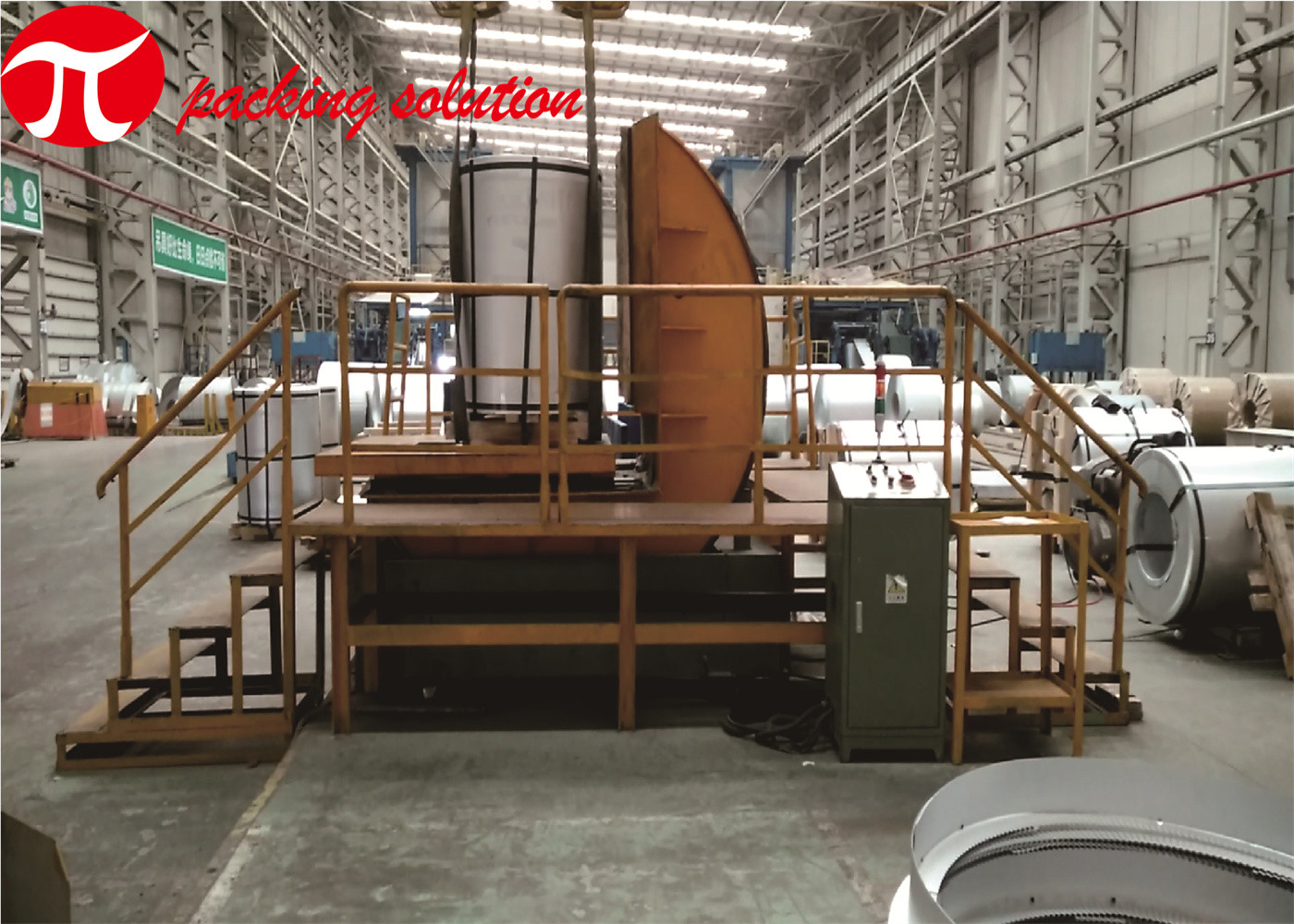

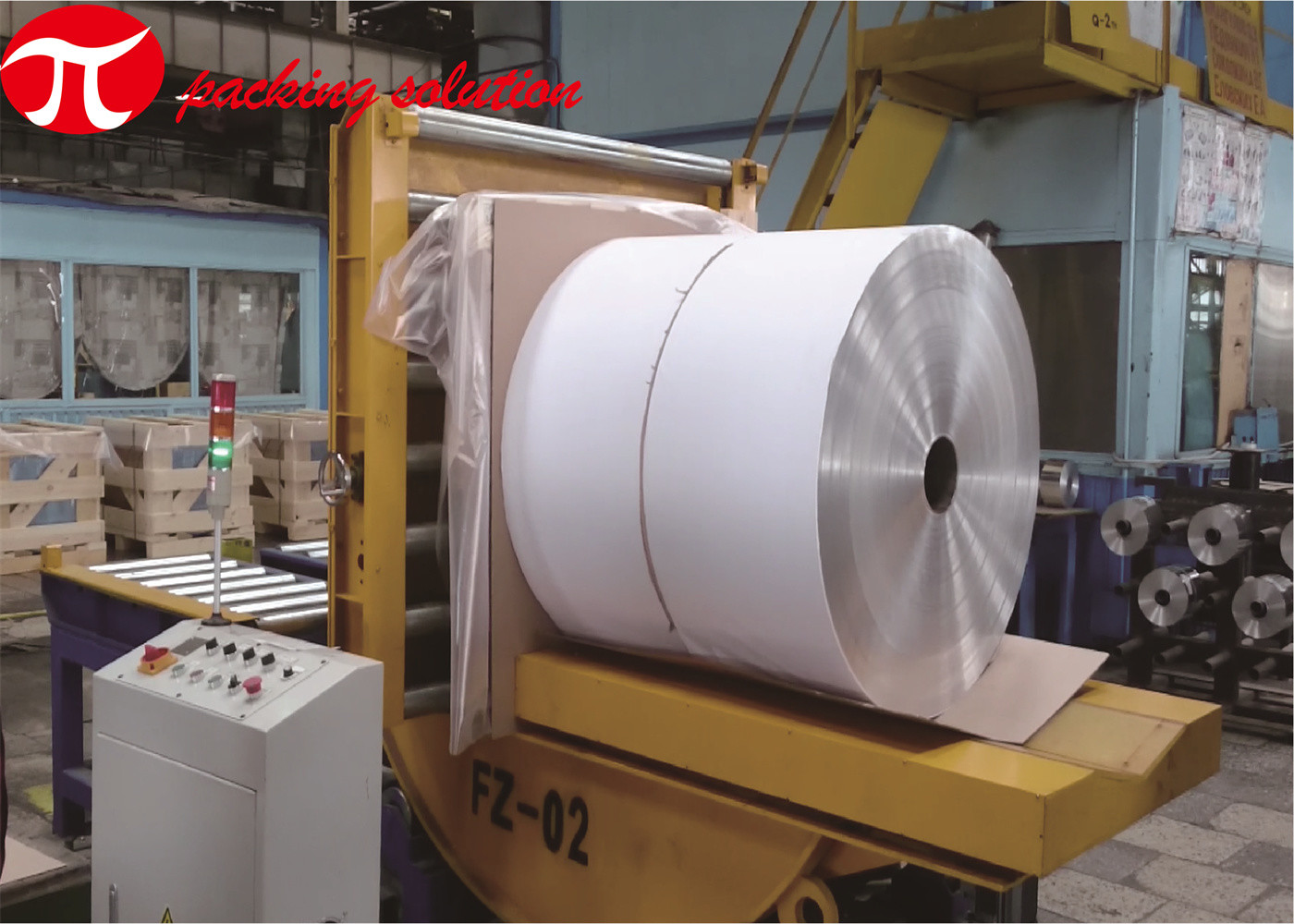

The heavy steel coil/aluminium coil is hoisted to the V-shaped surface of the turning machine, and the steel coil is placed flat on the tray through 0--90° turning.
BASIC FEATURES:
MAIN PARAMETERS
| Item data | FZ-05 |
| Max loading | 5T |
| One-way turn-over speed | 40s |
| Transfer mode | Mechanical |
| Power output | Approx. 1.5KW |
| Working mode | Manual switch/ remote control |
| Product width | 600 mm |
| Product diameter | 1500mm |
| Product weight | Within 5000kg |
| Dimension | Approx. L2200mm/W1000/H1700mm |
| Power voltage | AC 380V, 3 phase 5wires |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
