INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | FZ-04 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Metal Coils , Moulds , Paper Rolls , Barrels | Type: | Mold Tilter |
|---|---|---|---|
| Power Output: | About 1.5kw | Max Loading: | 4 Tons |
| Transfer Mode: | Mechanical | Turning Degree: | 90 Degree |
| Color: | Standard Color | Turning Speed: | 40s |
| Dimension: | Approx. L2200mm/W1000/H1700mm | Product Weight: | Within 4000kg |
| Highlight: | Automatic Coil Upender,5000kg Mould Turnover Machine,FZ-04 Mould Turnover Machine |
||

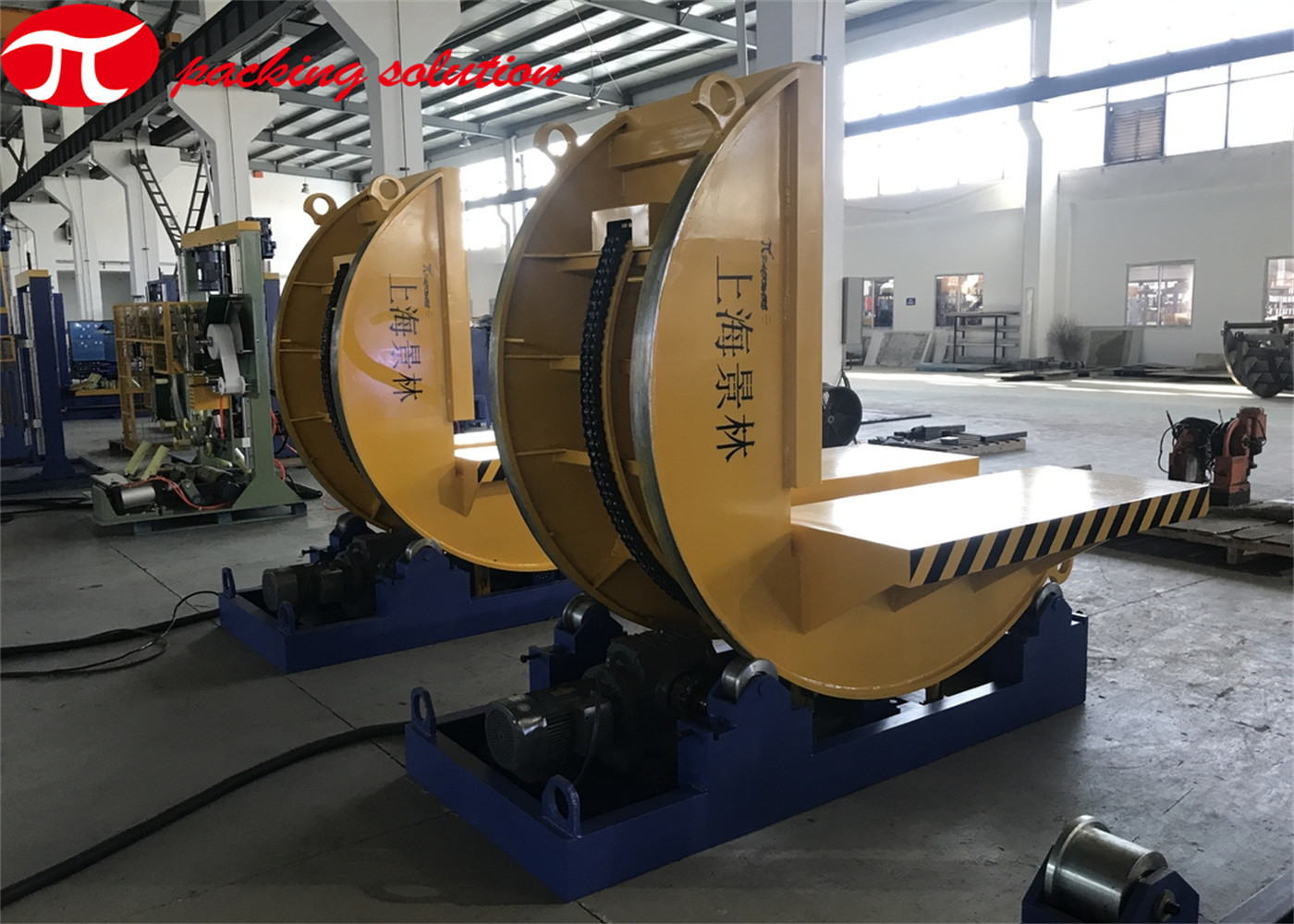

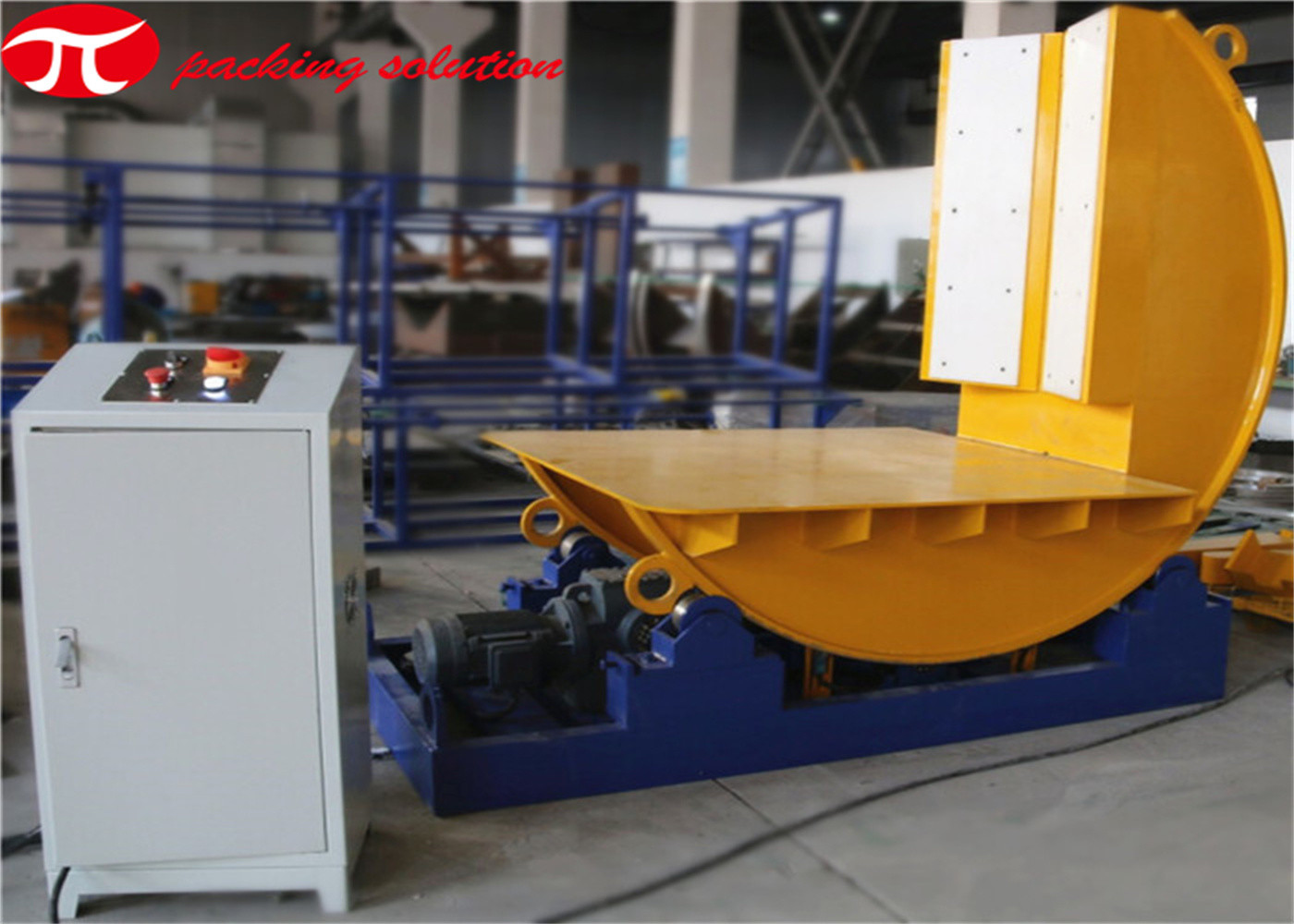

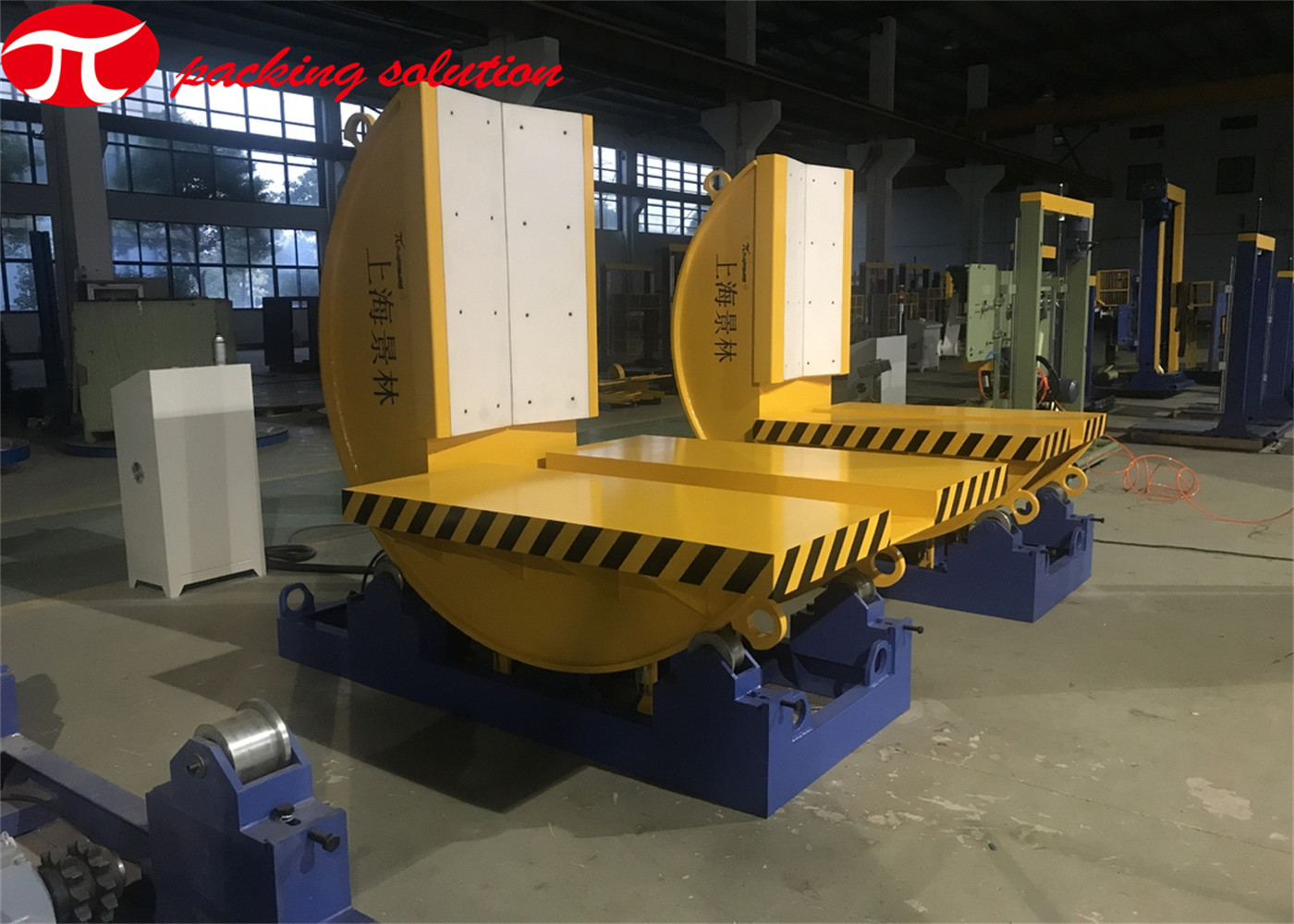

Automatic Coil Upender FZ-04 Mould Turnover Machine with Independent operating station
Application:
The FZ-04 is the type of industrial tilter which is used for tilting heavy objects with different specifications for 90 degree with max loading capacity 4tons.Using this equipment can improve the efficiency of turnover, greatly reduce the cost for users.
Basic features:
Main data (for reference):
| Item data | FZ-04 |
| Max loading | 4T |
| One-way turn-over speed | 40s |
| Transfer mode | Mechanical |
| Power output | approx. 1.5KW |
| Working mode | Manual switch / remote control |
| Product width | 600 mm |
| Product diameter | 1500mm |
| Product weight | Within 5000kg |
| Dimension | Approx. L2200mm/W1000/H1700mm |
| Power voltage | AC 380V, 3 phase 5wires |
