INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | FZ-04 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Metal Coils, Moulds,paper Rolls,barrels | Type: | Big Size Object Tilter |
|---|---|---|---|
| Turning Degree: | 90 Degree | Max Loading: | 10 Tons |
| Transfer Mode: | Hydraulic | Color: | Standard Color |
| Power Output: | About 1.5kw | One-way Turn-over Speed: | 50s |
| Warranty: | 12 Months | Dimension: | About L2200mm/W1000/H1700mm |
| Highlight: | Remote Control Coil Tilter,Mechanical Type Coil Tilter,Mechanical Type Mold Upender Machine |
||

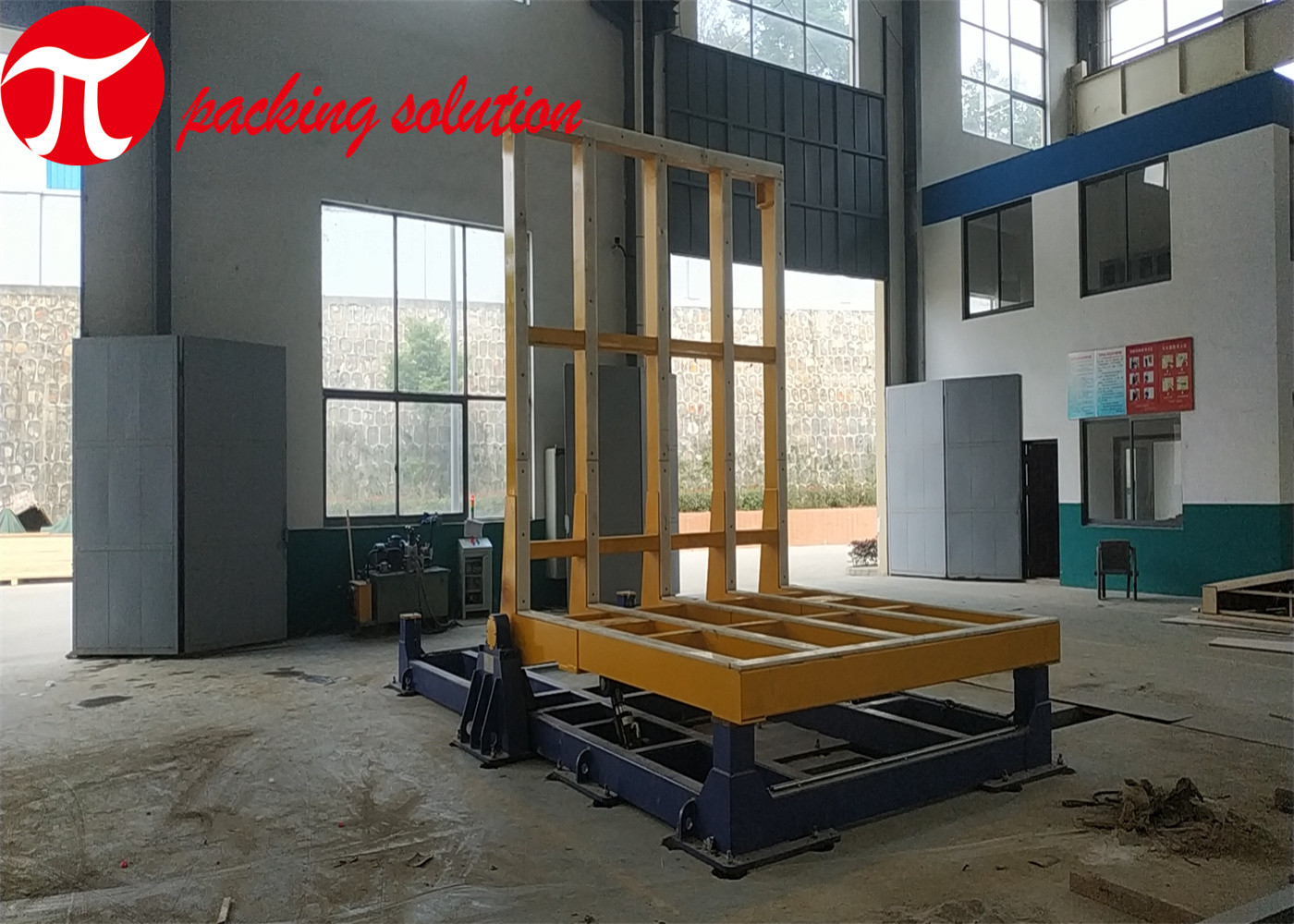

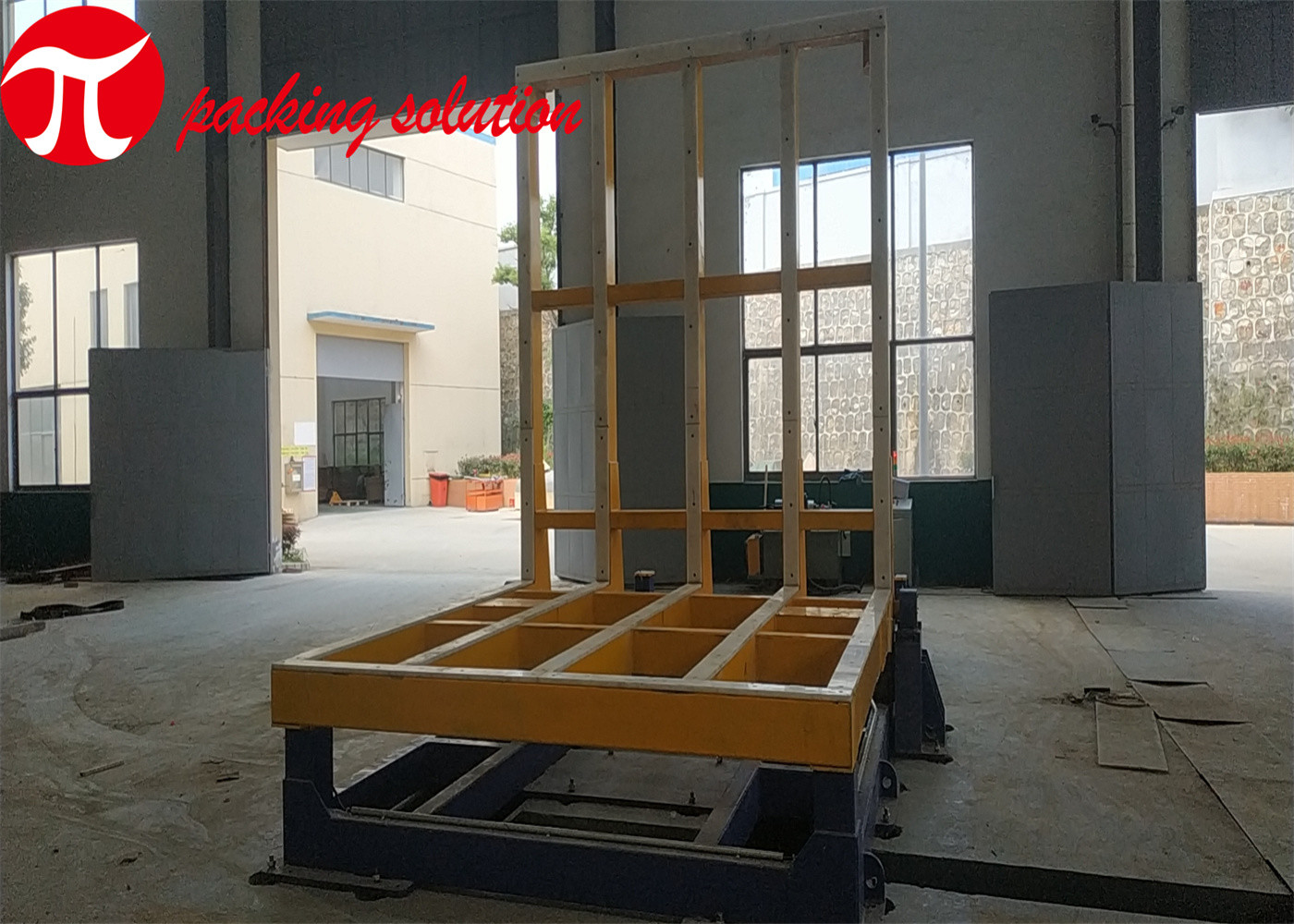

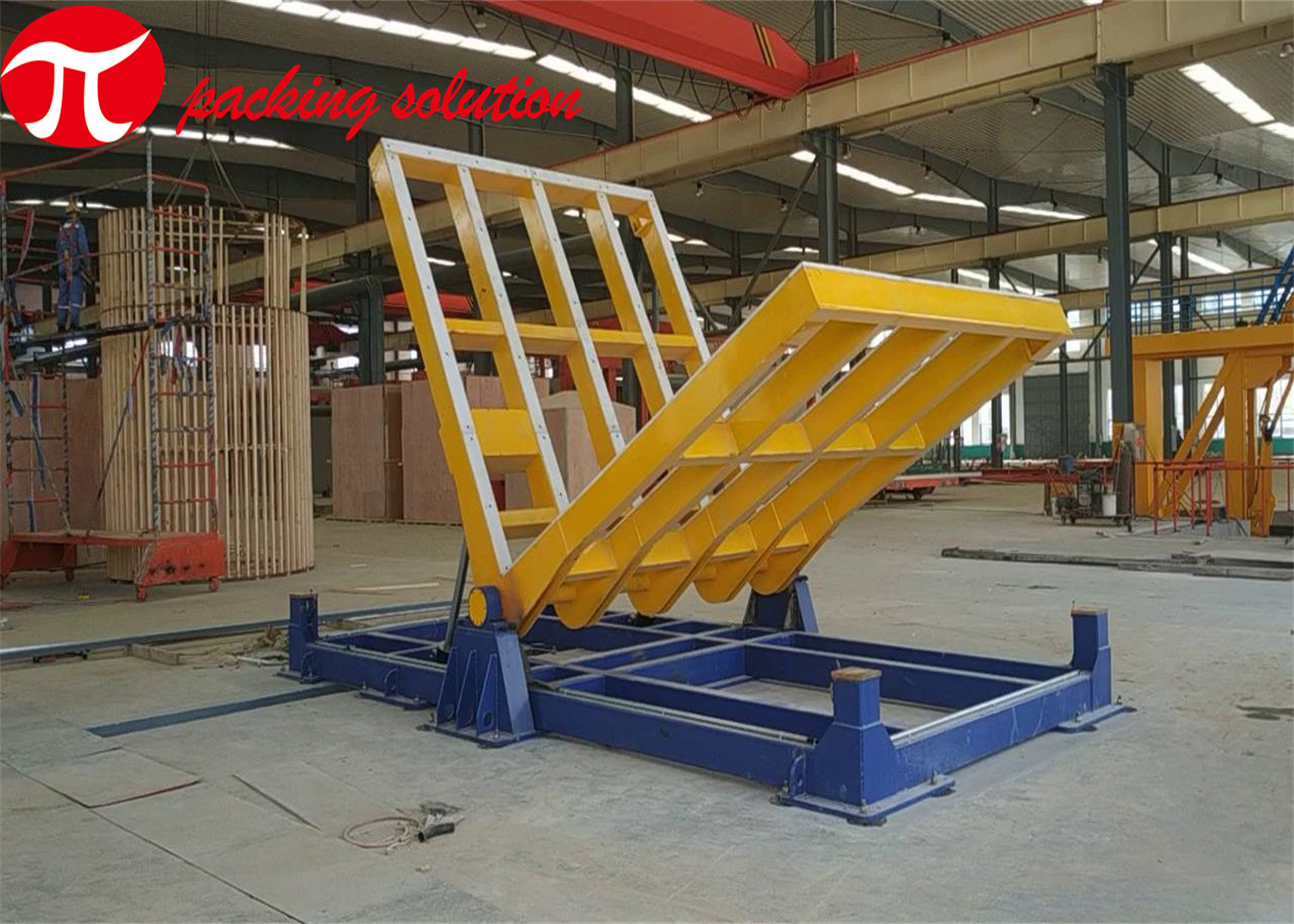

Remote Control Customized Mechanical Type Coil Tilter Coil Turnover Machine Mold Upender
The machine application:
This machine FZ-10 the max loading capacity is 10tons. It’s widely used in industries of metallurgy, stamping, metal plate, mold, paper making, steel strip, coil, barrels and other big size objects.High efficient working, safe and reliable.
The machine main data:
| Item data | FZ-10 |
| Max loading | 10T |
| One-way turn-over speed | 50s |
| Transfer mode | Hydraulic |
| Power output | Approx. 1.5KW |
| Working mode | Manual switch/ remote control |
| Product width | 600 mm |
| Product diameter | 1500mm |
| Product weight | Within 4000kg |
| Dimension | Approx. L2200mm/W1000/H1700mm |
| Power voltage | AC 380V, 3 phase 5wires |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.

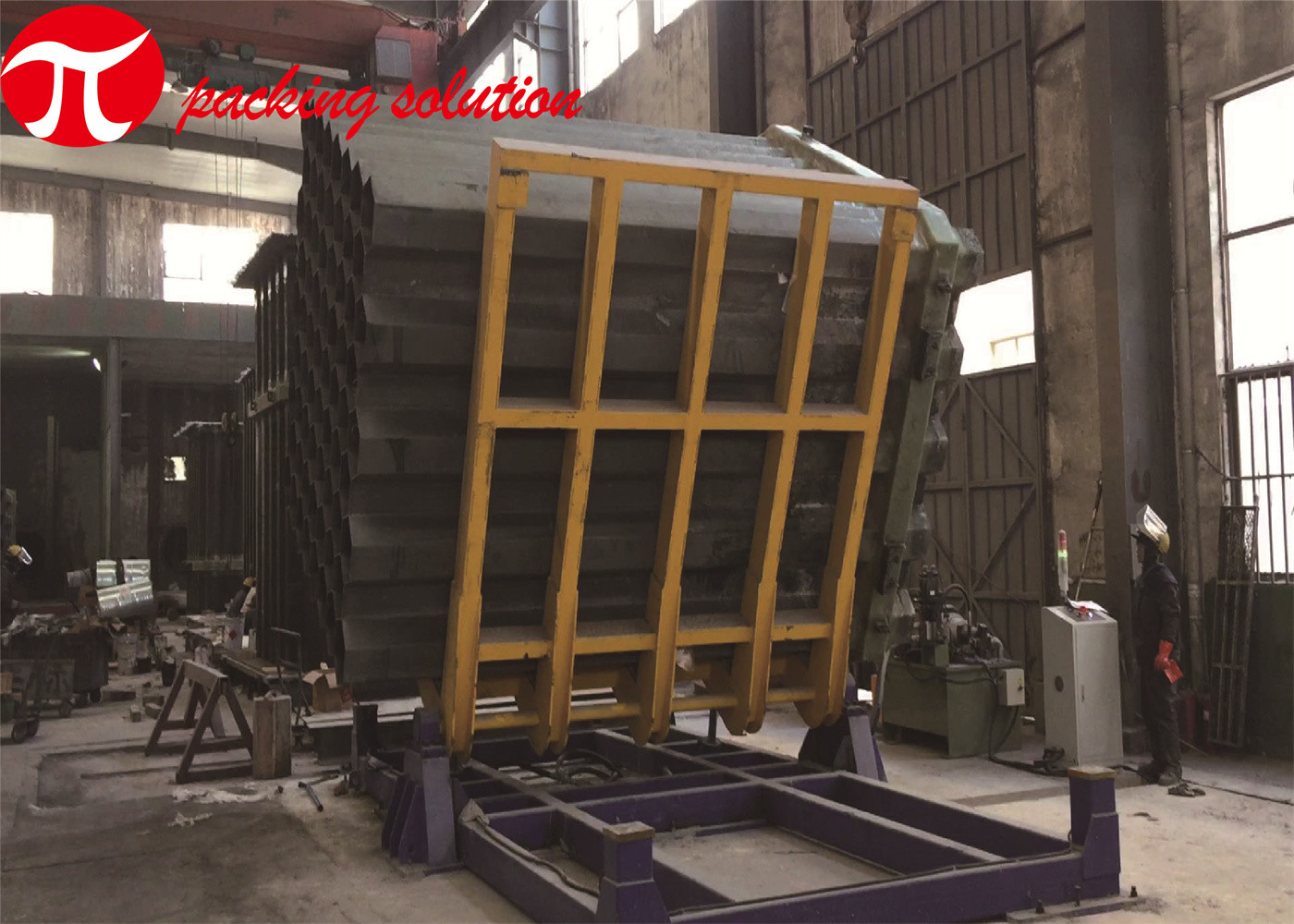

The machine basic applicaiton:
Our advatages:
* We are a professional manufacturer of packaging machinery, with more than 20 years of production experience in China.
* Having professional & rigorous design, R&D and manufacturing team.
* Non-stand wrapping machine, can be designed according to different clients' packing need.
* Providing excellent quality professionally for each client.
* Electrical parts adopt the inernational qualified brand, such as Siemens, Delta, Omron...
* Different packing solution can be made for various packing needs.
* Professional after-sale service team to solve your usage problems.
