INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | FZ-04 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Type: | Mold Turnover Machine | Application: | Metal Coils, Moulds,paper Rolls,barrels |
|---|---|---|---|
| Power Output: | About 1.5kw | Max Loading: | 4 Tons |
| Transfer Mode: | Mechanical | Color: | Standard Color |
| Turning Degree: | 90 Degree | Working Mode: | Remote Control |
| Dimension: | About L2200mm/W1000/H1700mm | Power Voltage: | AC 380V, 3 Phase 5wires |
| Highlight: | FZ-04 Coil Tilter,1500mm Coil Tilter,4000kg Mould Turnover Machine |
||

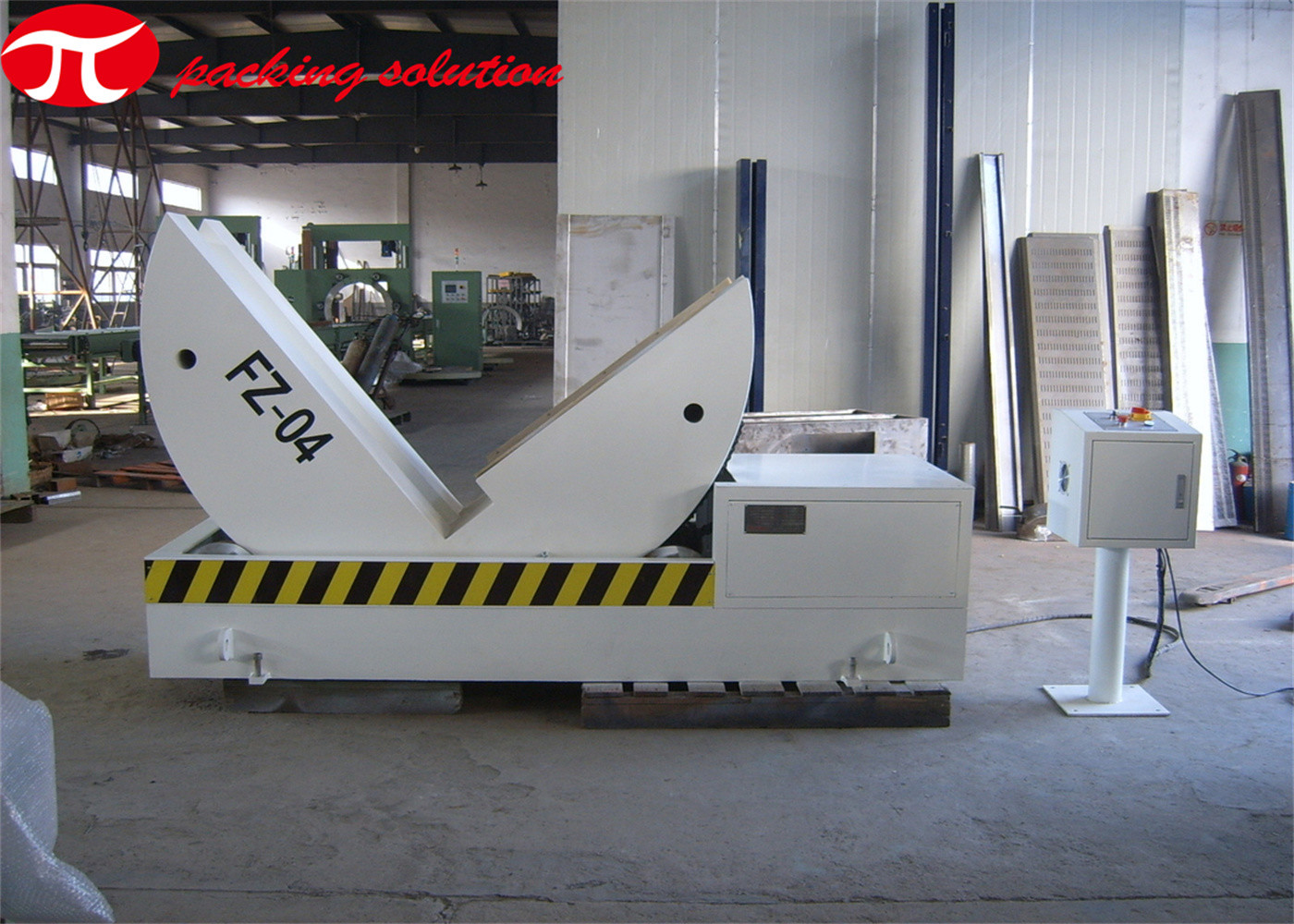

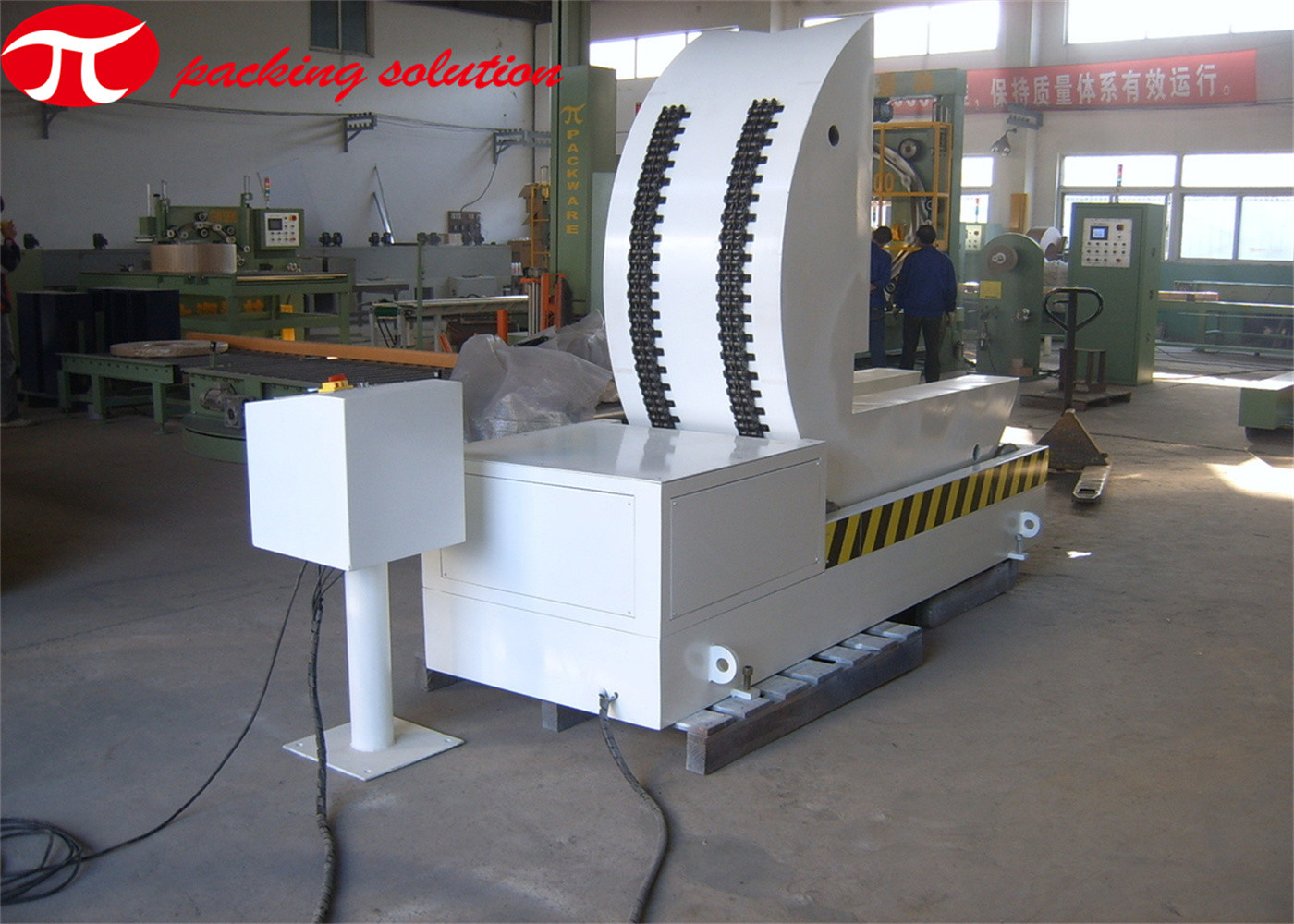

FZ-04 Coil Tilter 90 Degree Turning 1500mm diameter 4000kg Mould Turnover Machine
MACHINE APPLICATION
The FZ-04 coil tilter is used for tilting heavy objects with different specifications for 90 degree with max loading capacity 4tons. It’s widely used in industries of metallurgy, stamping, metal plate, mold, paper making, steel strip, coil, barrels, and etc. High efficient working, safe and reliable.
Jinglin is able to offer you a complete choice of tilters which include mechanical coil tilters and hydraulic coil tilters for tilting steel coils from eye vertical position to horizontal position or vice versa.
BASIC FEATURES:
MAIN PARAMETERS:
| Item data | FZ-04 |
| Max loading | 4T |
| One-way turn-over speed | 40s |
| Transfer mode | Mechanical |
| Power output | Approx. 1.5KW |
| Working mode | Manual switch / remote control |
| Product width | 600 mm |
| Product diameter | 1500mm |
| Product weight | Within 4000kg |
| Dimension | Approx. L2200mm/W1000/H1700mm |
| Power voltage | AC 380V, 3 phase 5wires |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
