INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | FZ-04 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Metal Coils, Moulds,paper Rolls,barrels | Turning Degree: | 90 Degree |
|---|---|---|---|
| Power Output: | About 1.5kw | Max Loading: | 6 Tons |
| Transfer Mode: | Hydraulic | Type: | Steel Coil Turnover |
| Color: | Standard Color | Feature: | Automatic |
| Warranty: | 12 Months | After-sales Service Provided: | Online Service |
| Highlight: | Hydraulic Transmission Coil Tilter,4 Tons Coil Tilter,4T Mold Turnover Machine |
||

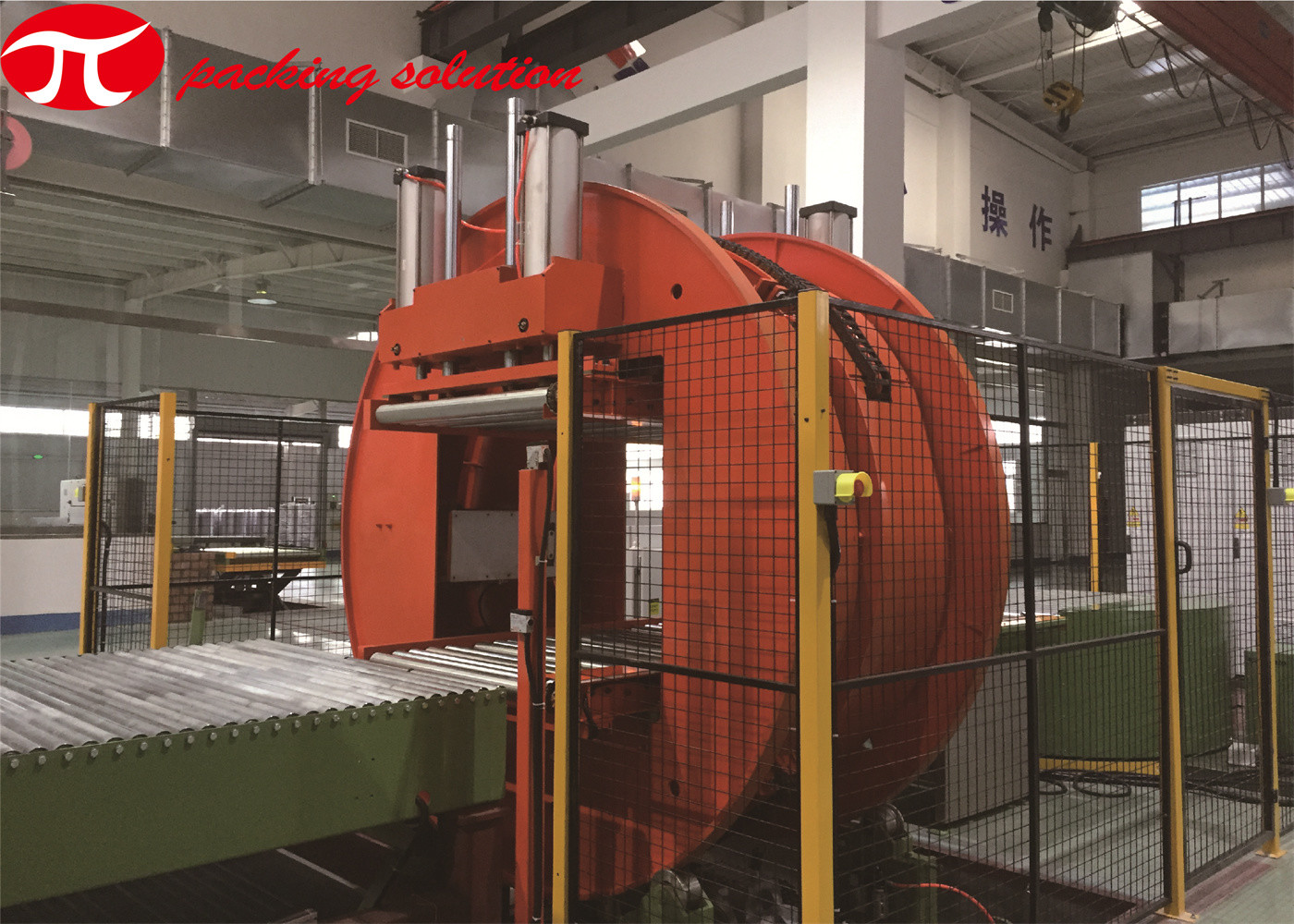

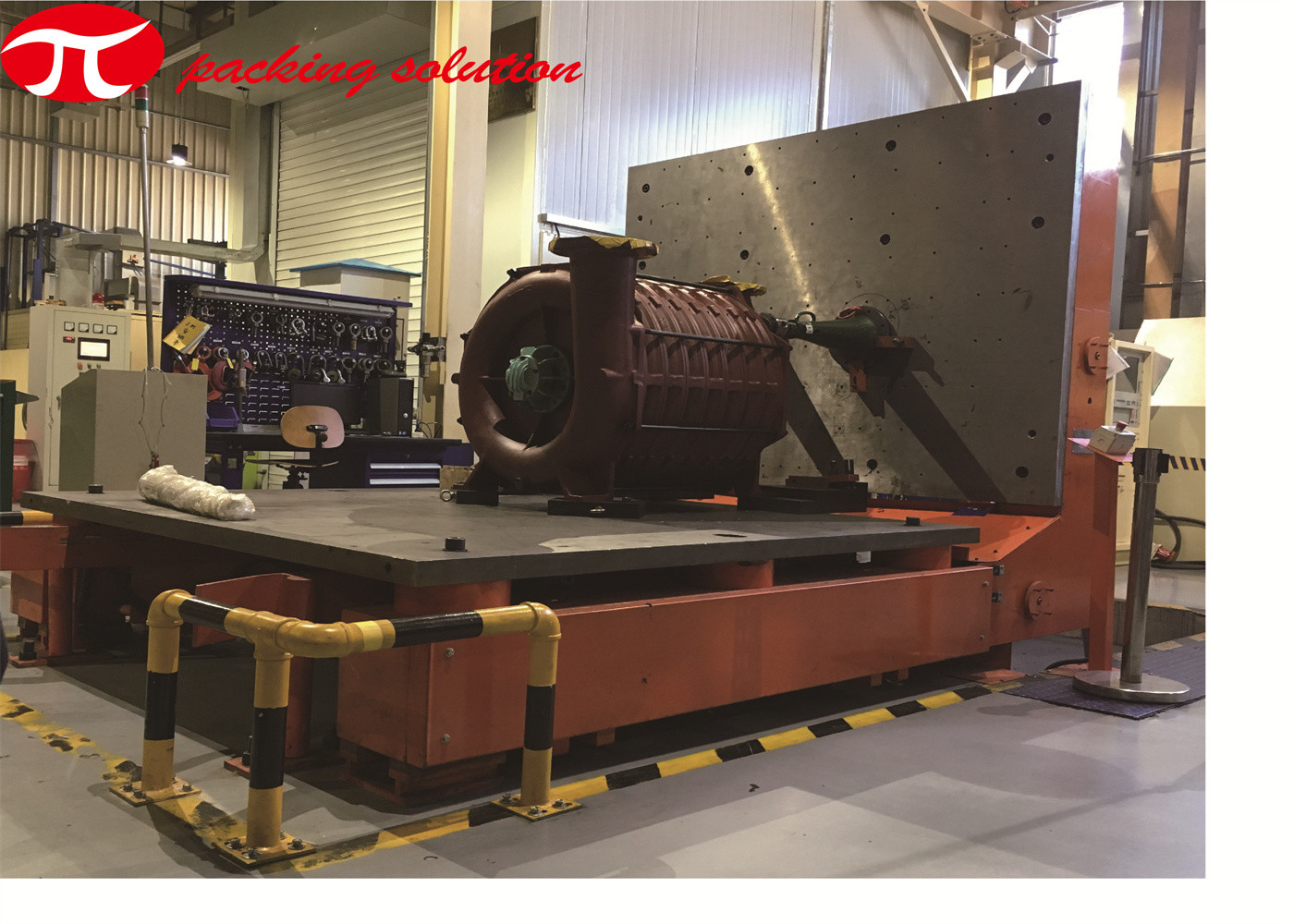

Hydraulic Transmission High Speed 90 Degree Automatic Coil Tilter Mold Turnover Machine
MACHINE APPLICATION:
The FZ-06 coil tilter is used for tilting heavy objects with different specifications for 90 degree with max loading capacity 6tons. It’s widely used in industries of metallurgy, stamping, metal plate, mold, paper making, steel strip, coil, barrels, and etc. High efficient working, safe and reliable.
BASIC FEATURES:
MAIN PARAMETERS:
| Item data | FZ-06 |
| Max loading | 6T |
| One-way turn-over speed | 40s |
| Transfer mode | Hydraulic |
| Power output | Approx. 1.5KW |
| Working mode | Manual switch/ remote control |
| Product width | 600 mm |
| Product diameter | 1500mm |
| Product weight | Within 4000kg |
| Dimension | Approx. L2200mm/W1000/H1700mm |
| Power voltage | AC 380V, 3 phase 5wires |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
