INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | FZ-05 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Metal Coils, Moulds,paper Rolls,barrels | Type: | Turning-over Machine |
|---|---|---|---|
| Turning Degree: | 90 Degree | Power Output: | About 1.5kw |
| Max Loading: | 5 Tons | Transfer Mode: | Mechanical |
| One-way Turn-over Speed: | 40s | Product Weight: | Within 5000kg |
| Power Voltage: | 380V/ 3phase/50Hz | Warranty: | 12 Months |
| Highlight: | FZ-03 Coil Turnover Machine,1.5kw Coil Turnover Machine,ISO9001 Turning over machine |
||

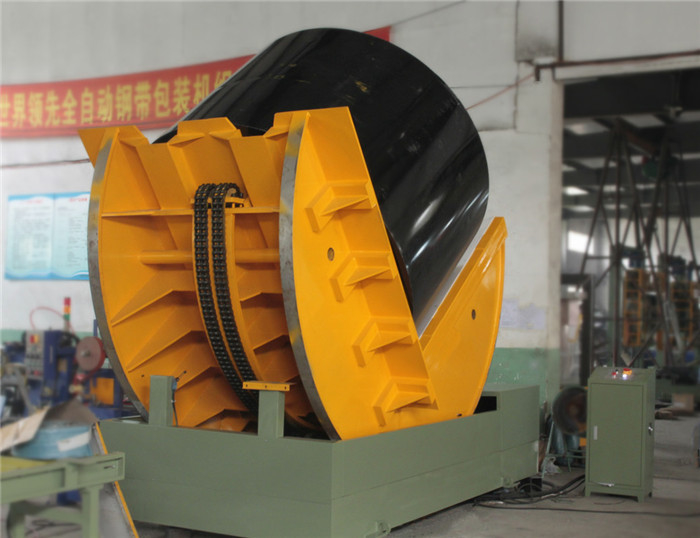

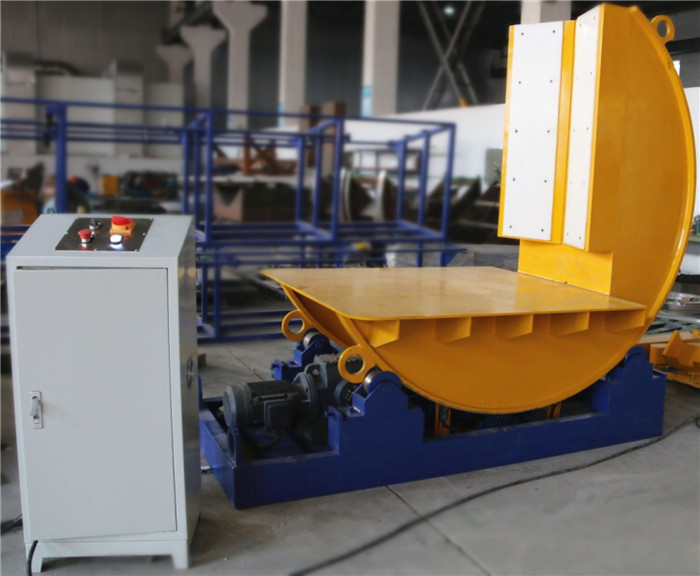

Coil Turnover Machine 1.5kw Easy Operation for Metallurgy Industries with Operation table
MACHINE APPLICATION:
The turning function can adapt to the engineering turning requirements of different specifications of goods, and provide process transportation safely, stably and effectively. Widely used in metallurgy, stamping, sheet metal, mold, papermaking, cold storage, steel belt, coil, barrel, coil and other industries.
MAIN PARAMETERS:
| Item data | FZ-05 |
| Max loading | 5T |
| One-way turn-over speed | 40s |
| Transfer mode | Mechanical |
| Power output | Approx. 1.5KW |
| Working mode | Manual switch/ remote control |
| Product width | 600 mm |
| Product diameter | 1500mm |
| Product weight | Within 5000kg |
| Dimension | Approx. L2200mm/W1000/H1700mm |
| Power voltage | AC 380V, 3 phase 5wires |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
BASIC FEATURES:
