Transfer Mechanical Coil Tilter Easy Operation 180 Degree Coil Turnover Machine With Steering

Transfer Mechanical Coil Tilter Easy Operation 180 Degree Coil Turnover Machine With Steering
Transfer Mechanical Coil Tilter Easy Operation 180 Degree Coil Turnover Machine With Steering Transfer Mechanical Coil Tilter Easy Operation 180 Degree Coil Turnover Machine With Steering Transfer Mechanical Coil Tilter Easy Operation 180 Degree Coil Turnover Machine With Steering Transfer Mechanical Coil Tilter Easy Operation 180 Degree Coil Turnover Machine With Steering Transfer Mechanical Coil Tilter Easy Operation 180 Degree Coil Turnover Machine With Steering Transfer Mechanical Coil Tilter Easy Operation 180 Degree Coil Turnover Machine With Steering Transfer Mechanical Coil Tilter Easy Operation 180 Degree Coil Turnover Machine With Steering Transfer Mechanical Coil Tilter Easy Operation 180 Degree Coil Turnover Machine With Steering Transfer Mechanical Coil Tilter Easy Operation 180 Degree Coil Turnover Machine With Steering
Basic Information
Place of Origin: China
Brand Name: jlpack
Certification: ISO9001，CE
Model Number: FZ Series
Minimum Order Quantity: 1
Packaging Details: Wooden case /standard container
Delivery Time: Stand-alone 1 week ,the packing line 150days
Payment Terms: T/T
Supply Ability: 200 sets/Year
Get Best Price Contact Now
Type: Metal Coil Upender Turning Degree: 180 Degree
Power Output: About 1.5kw Application: Metal Coils, Moulds,paper Rolls,barrels
Max Loading: 2 Tons Transfer Mode: Mechanical
Working Mode: Manual Switch/ Remote Control Product Width: 600mm
Product Diameter: 1500mm Power Voltage: AC 380V, 3 Phase 5wires
Highlight:

Mechanical Coil Tilter

,

Steel Coil Tilter

,

Coil Upender Machine

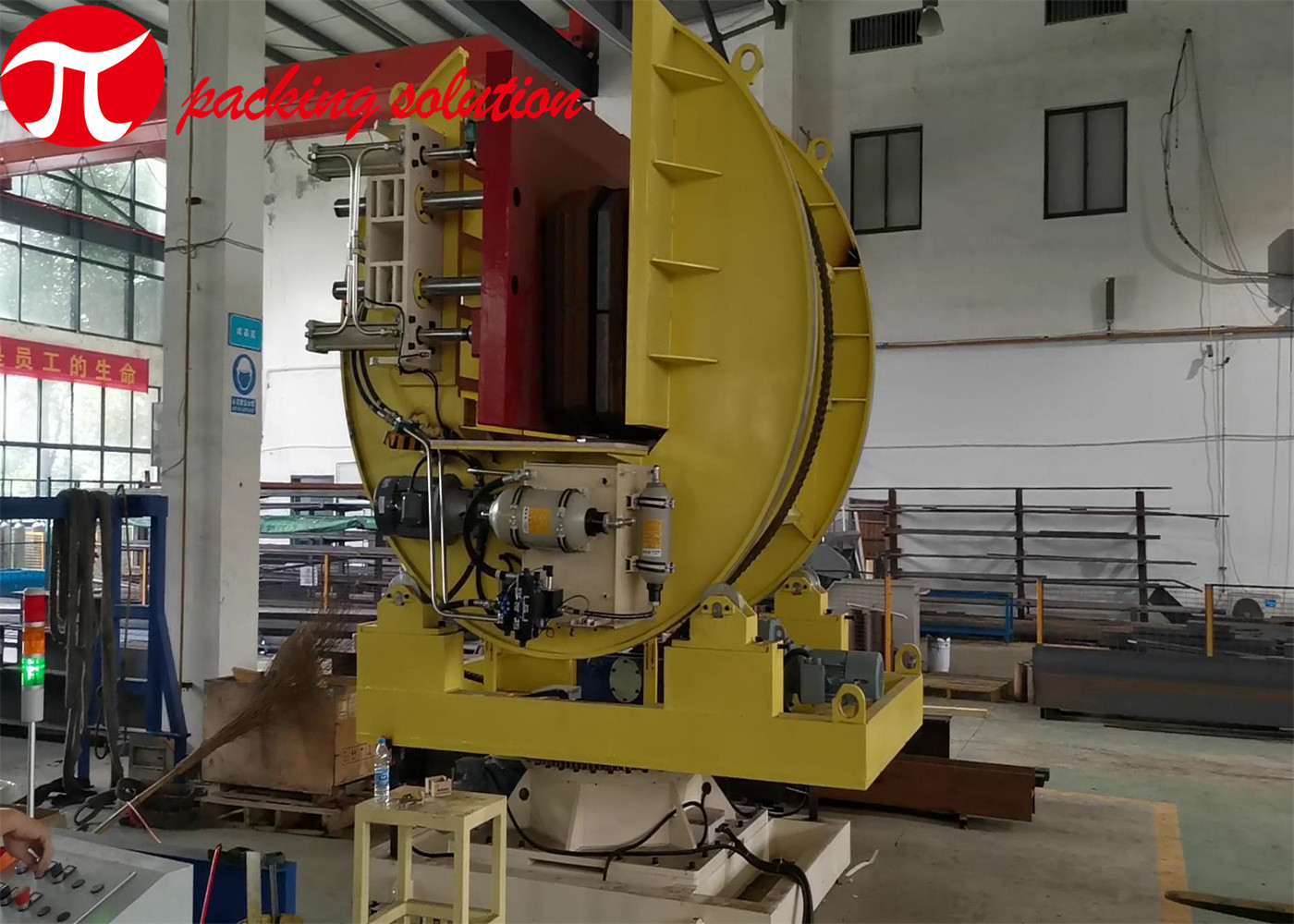

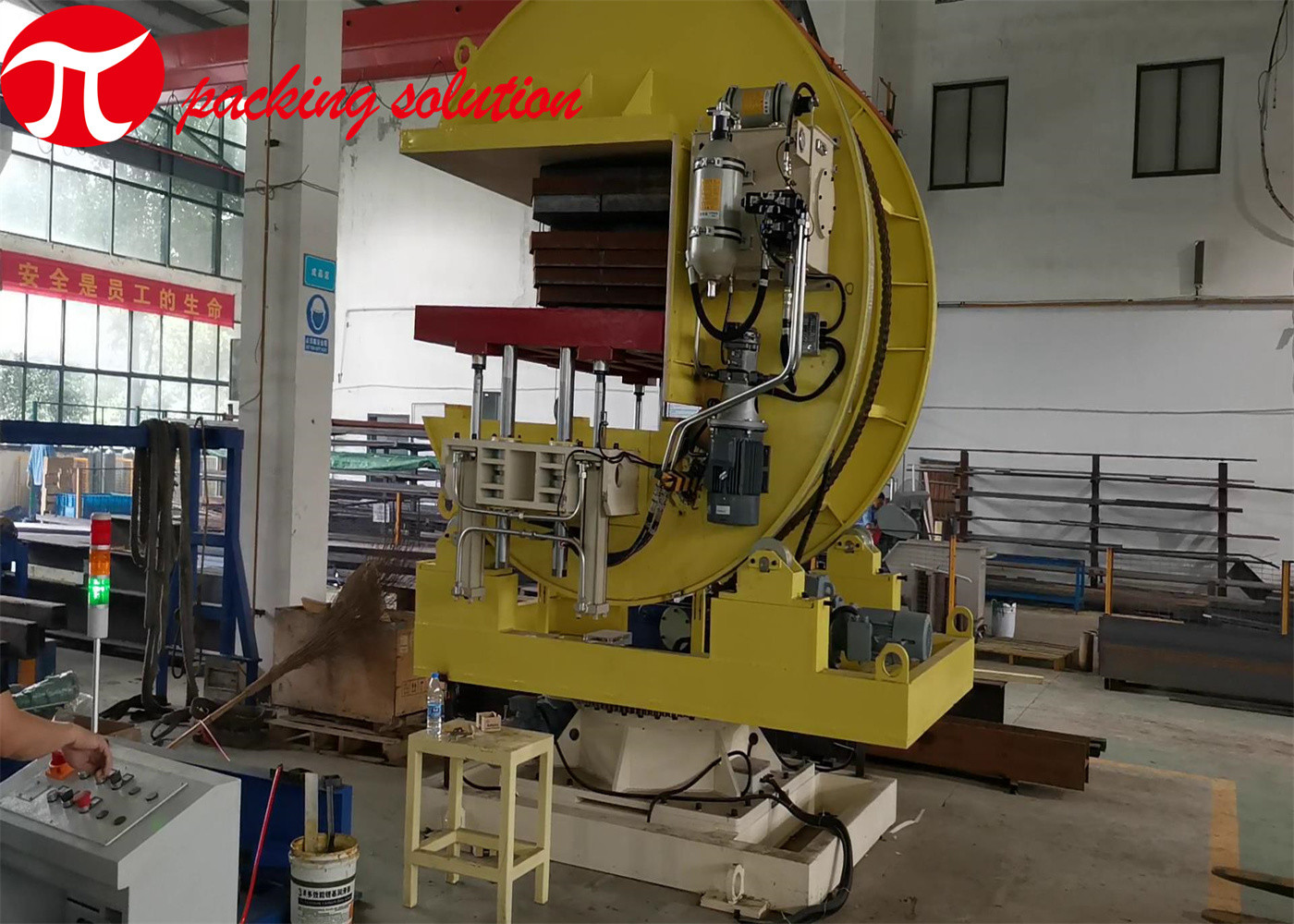

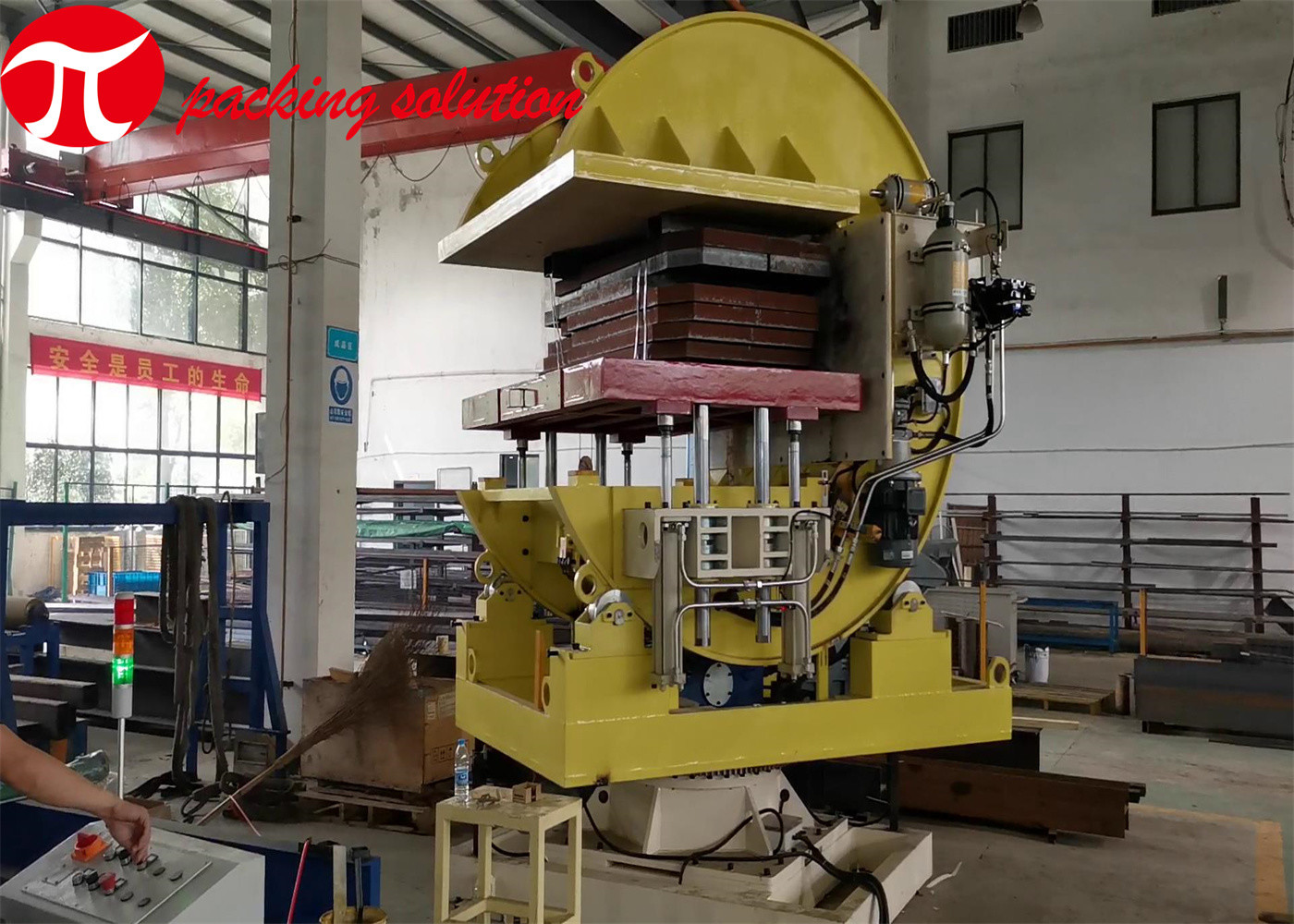

Transfer Mechanical Easy and safe Operation 180 degree Coil Turnover Machine with steering





Machine specification:



Jinglin is able to offer you a complete choice of tilters which include mechanical coil tilters and hydraulic coil tilters.

The FZ-05 coil tilter is used for tilting heavy objects with different specifications for 90 degree with max loading capacity 5tons.

It’s widely used in industries of Metal coils, moulds,paper rolls,barrelsc and etc.

The operation is simple and safe, and the work efficiency is greatly improved



Main paremeters:



Item data FZ-02-180
Max loading 2T
One-way turn-over speed 60s
Transfer mode Mechanical
Power output Approx. 1.5KW
Working mode Manual switch/ remote control
Product width 600 mm
Product diameter 1500mm
Product weight Within 5000kg
Dimension Approx. L2200mm/W1000/H1700mm
Power voltage AC 380V, 3 phase 5wires

Note: the datas are only for reference, the machine can be custom designed according to specific object size.



BASIC FEATURES:

  • Adopts the return chain to fix and suspend the overturning workpiece.
  • For special workpiece, the auxiliary groove wheel and lifting belt can be replaced.
  • Independent electrical panel control for easy and safe operation.

  • The equipment is lightweight and flexible.

  • Both electric & mechanical limit restrictors adopted to grantee safe operation.
  • The machine can be stopped at any angle during turning.
  • Emergence stop and position locking function avoid rotation.
  • The machine will stop automatically when turning process finished.
  • Emergency stop button can stop the machine rapidly in emergency conditions.



Transfer Mechanical Coil Tilter Easy Operation 180 Degree Coil Turnover Machine With Steering 0
