INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | FZ Series |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Type: | Turning Over Machine | Application: | Metal Coils, Moulds,paper Rolls,barrels |
|---|---|---|---|
| Turning Degree: | 90 Degree | Power Output: | About 1.5kw |
| Max Loading: | 4 Tons | Transfer Mode: | Hydraulic |
| Warranty: | 12 Months | Color: | Standard Color |
| Turning Speed: | 40s | Working Mode: | Remote Control |
| Highlight: | 3 Tons Coil Tilter,90 Degree Coil Tilter,Mold Upender |
||

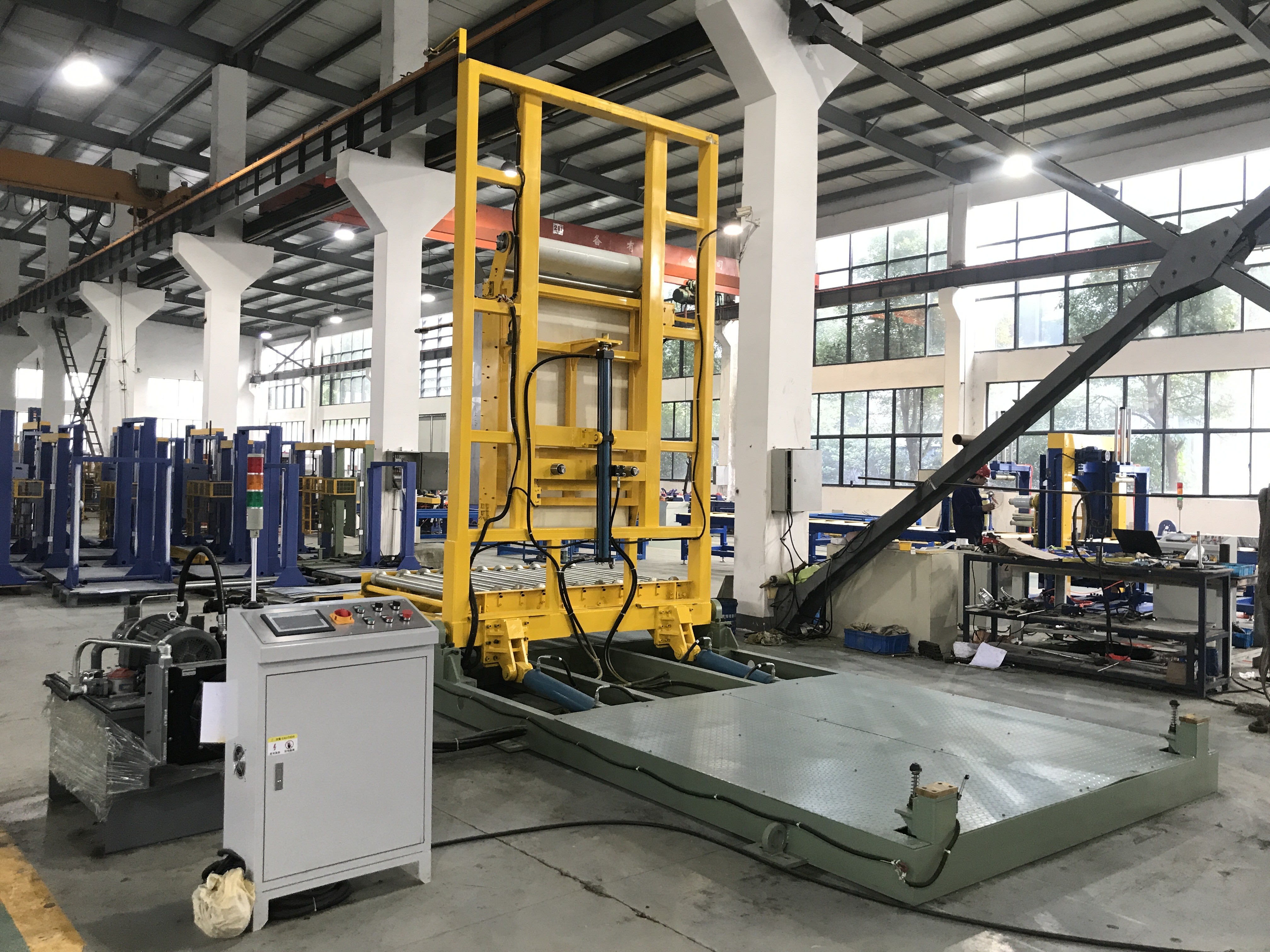

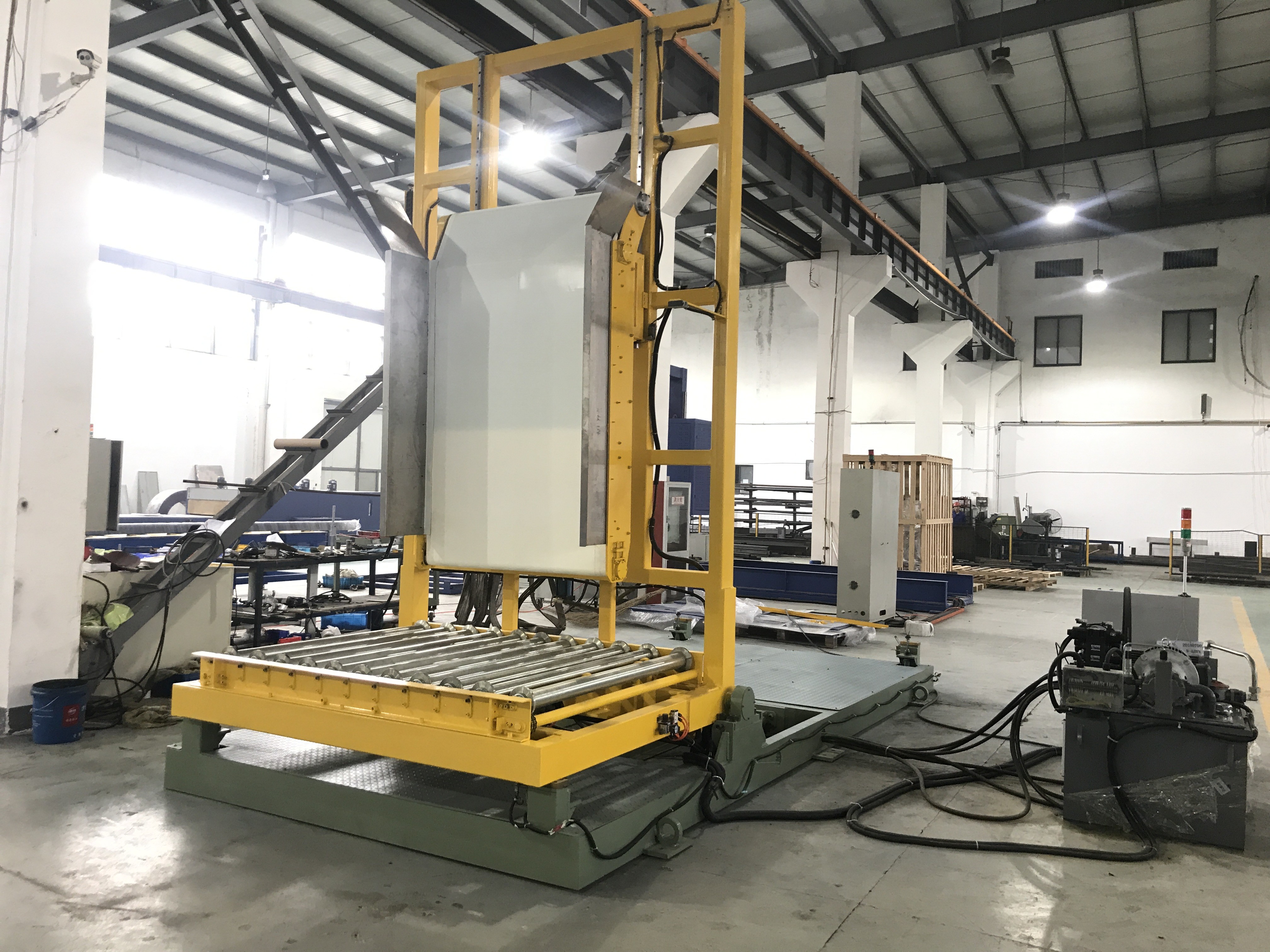

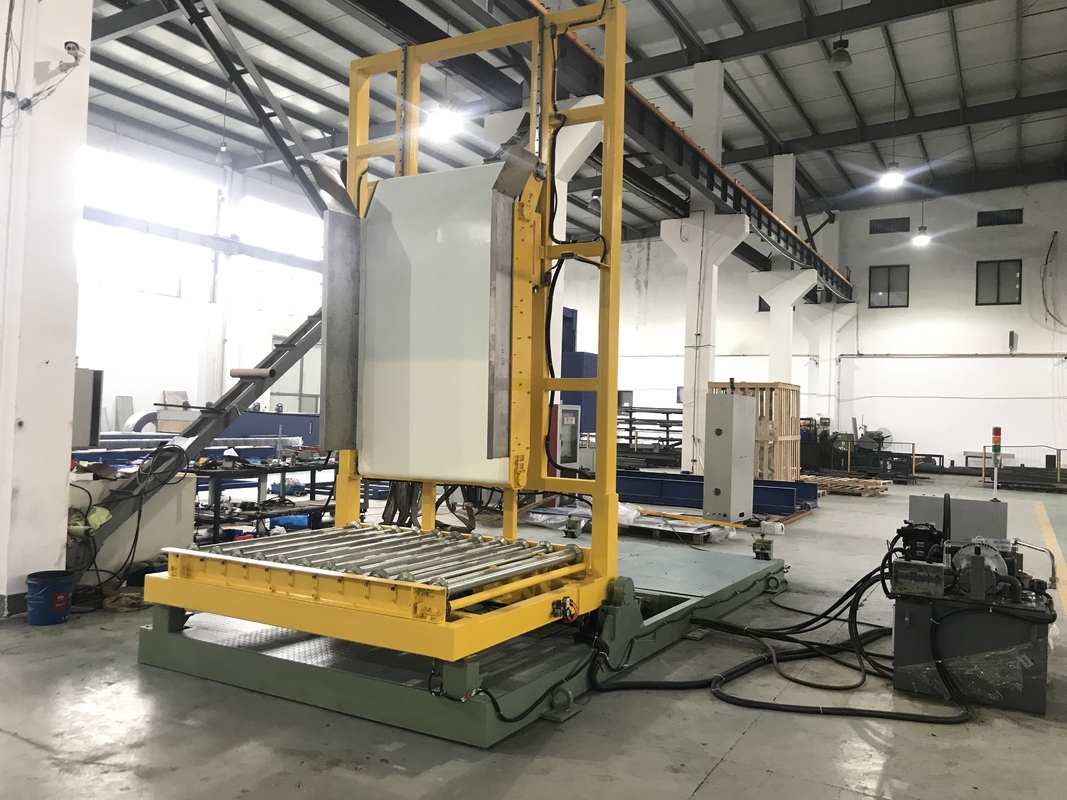

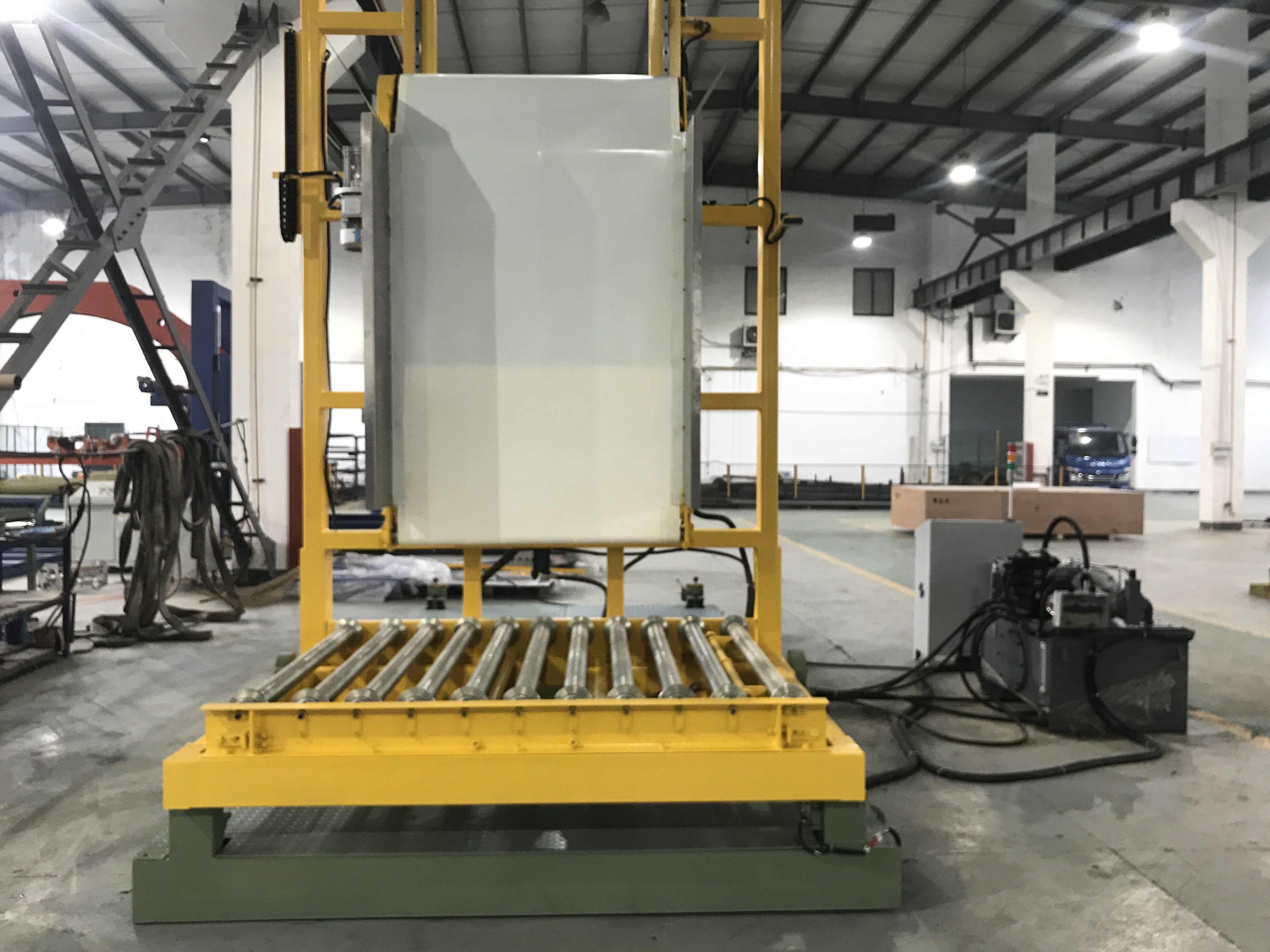

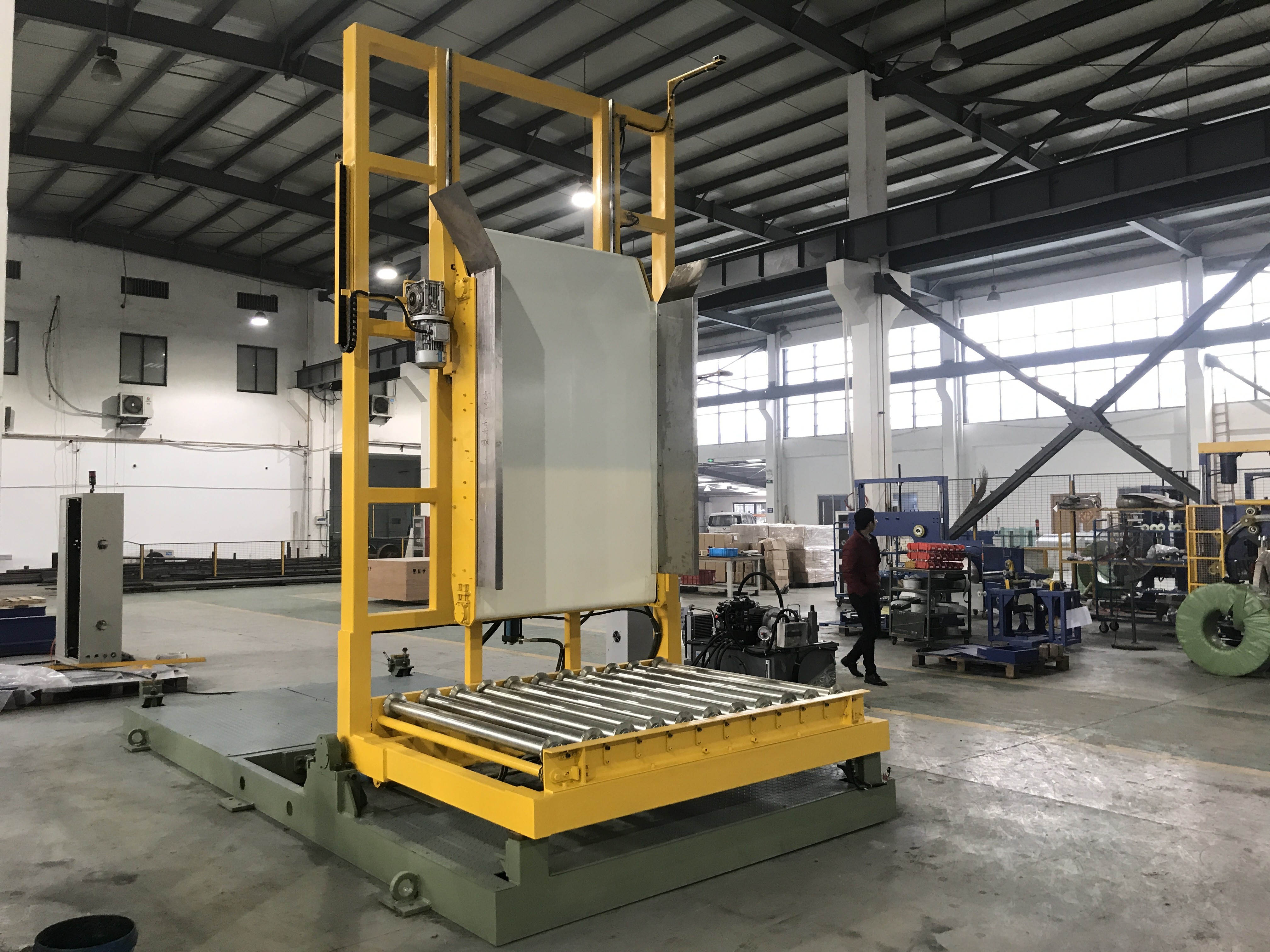

90 Degree Customized Mold Turnover Machine Mold Tilter Industrial Flip Mold Upender
MACHINE APPLICATION:
This Mold turnover machine is an integrated hydraulic dumperfor tilting steel coils from eye vertical position to horizontal position or vice versa.
It’s widely used in industries of metallurgy, stamping, metal plate, mold, paper making, steel strip, coil, barrels, and etc.
This machine has emergency stop button that can stop it rapidly in emergency conditions.
It is high efficient working, safe and reliable.
BASIC FEATURES:
MAIN PARAMETERS:
| Item data | FZ-04 |
| Max loading | 4T |
| One-way turn-over speed | 40s |
| Transfer mode | Hydraulic |
| Power output | Approx. 1.5KW |
| Working mode | Manual switch/ remote control |
| Product width | 600 mm |
| Product diameter | 1500mm |
| Product weight | Within 4000kg |
| Dimension | Approx. L2200mm/W1000/H1700mm |
| Power voltage | AC 380V, 3 phase 5wires |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
