INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | FZ Series |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Type: | Turning Over Machine | Application: | Metal Coils Like Steel Coils |
|---|---|---|---|
| Turning Degree: | 90 Degree | Power Output: | About 1.5kw |
| Product Width: | 600mm | Dimension: | Approx. L2200mm/W1000/H1700mm |
| Max Loading: | 5 T | Transfer Mode: | Mechanical |
| Warranty: | 12 Months | Color: | Standard Color |
| Highlight: | Steel Coil Upender,600mm Coil Turnover Machine,3T loading Coil Turnover Machine |
||

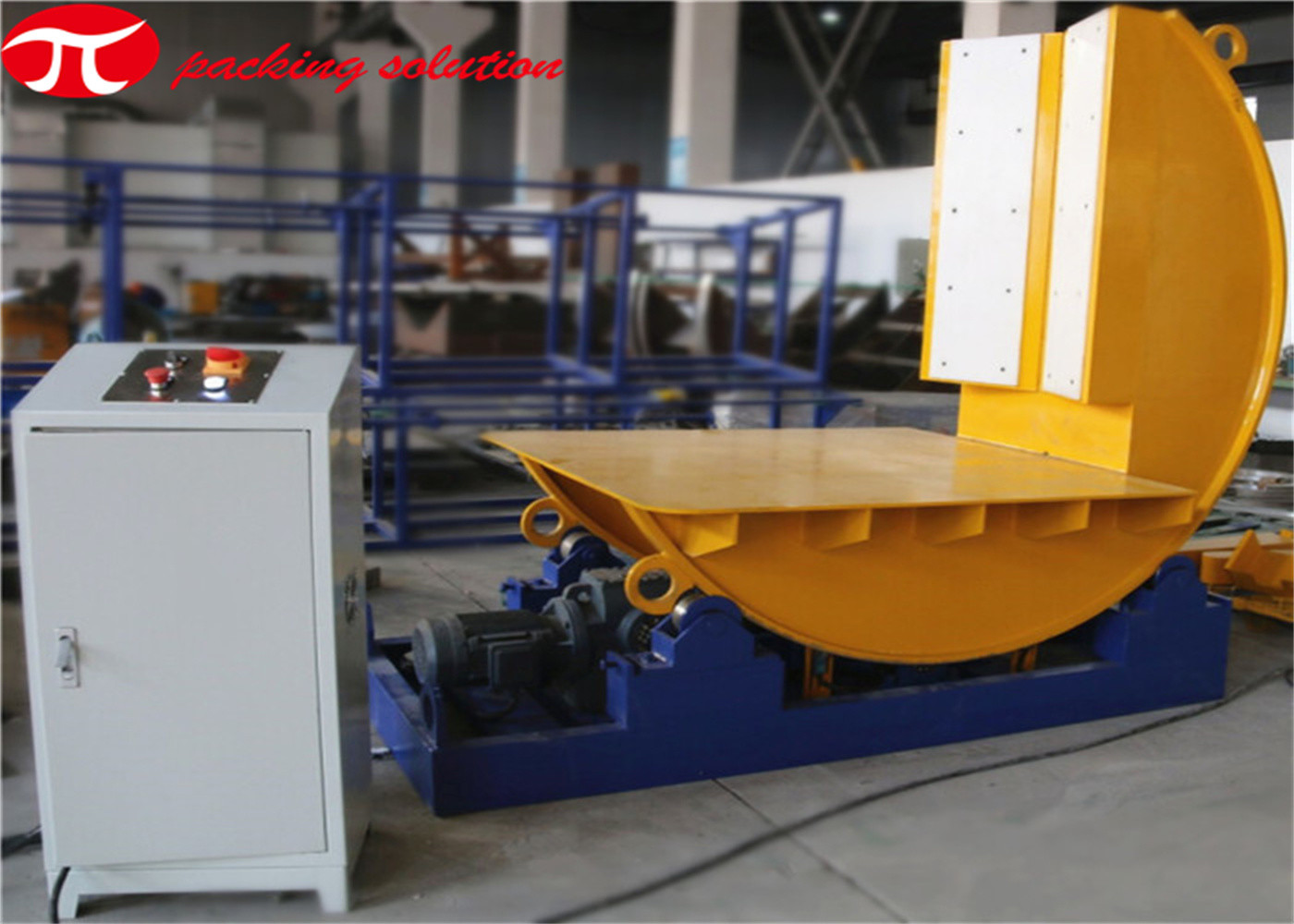

Steel Coil Upender Industrial Flip Coil Turnover Machine 5T Max Loading 600mm Width
MACHINE APPLICATION:
Jinglin is able to offer you a complete choice of tilters which include mechanical coil tilters and hydraulic coil tilters .

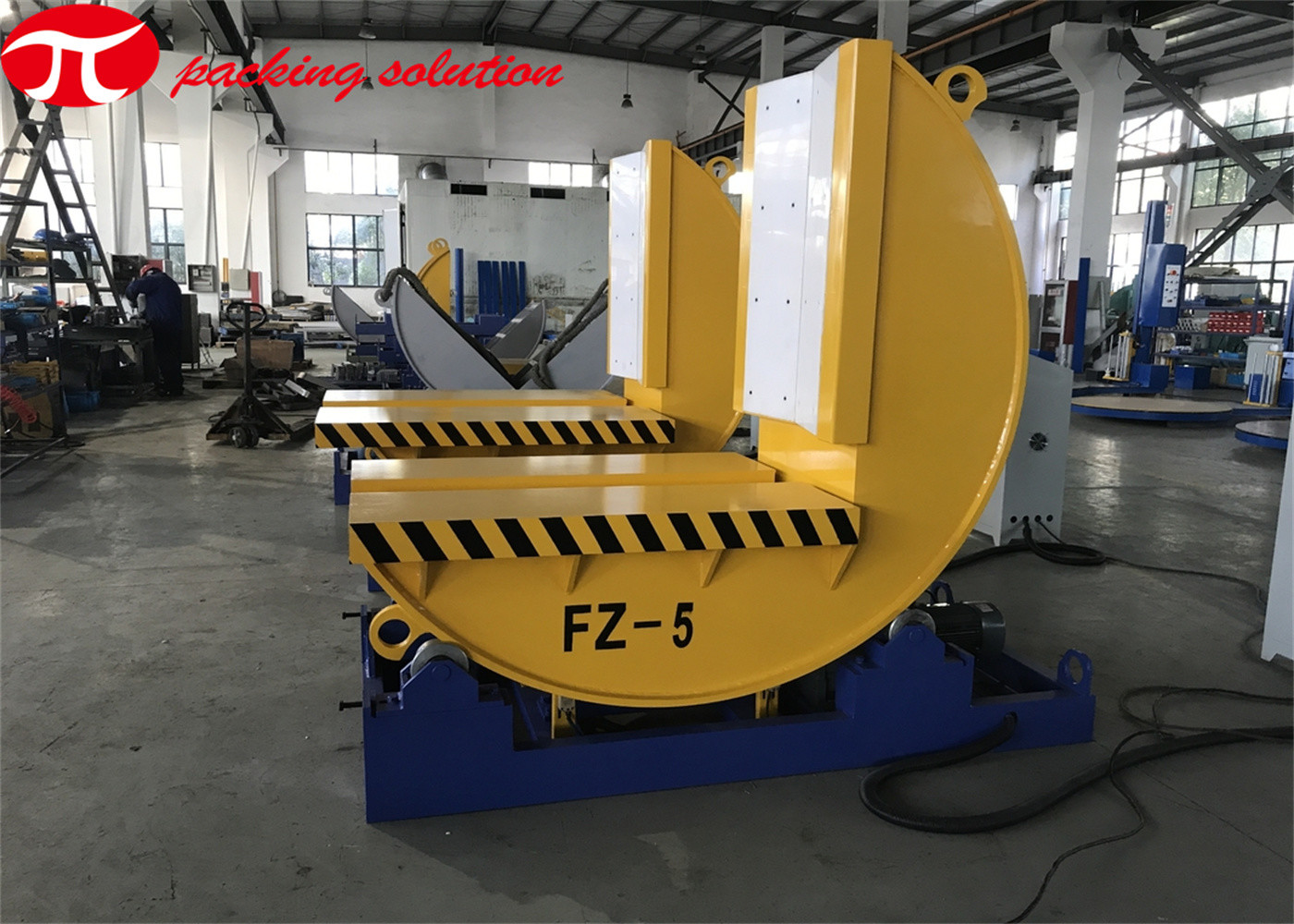

The FZ-05 coil tilter is used for tilting heavy objects with different specifications for 90 degree with max loading capacity 5tons.
BASIC FEATURES:
MAIN PARAMETERS:
| Item data | FZ-05 |
| Max loading | 5T |
| One-way turn-over speed | 40s |
| Transfer mode | Mechanical |
| Power output | Approx. 1.5KW |
| Working mode | Manual switch/ remote control |
| Product width | 600 mm |
| Product diameter | 1500mm |
| Product weight | Within 5000kg |
| Dimension | Approx. L2200mm/W1000/H1700mm |
| Power voltage | AC 380V, 3 phase 5wires |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
