INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | FZ Series |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Type: | Turning-over Machine | Application: | Metal Coils, Moulds,paper Rolls,barrels |
|---|---|---|---|
| Turning Degree: | 90 Degree | Max Loading: | 6 Tons |
| Transfer Mode: | Hydraulic | Power Output: | About 1.5kw |
| Turning Speed: | 40s | Dimension: | Approx. L2200mm/W1000/H1700mm |
| Color: | Standard Color | Warranty: | 12 Months |
| Highlight: | Customized Mold Flipper And Tipper,Automatic Mold Flipper And Tipper,90 Degree Mold Flipper And Tipper |
||

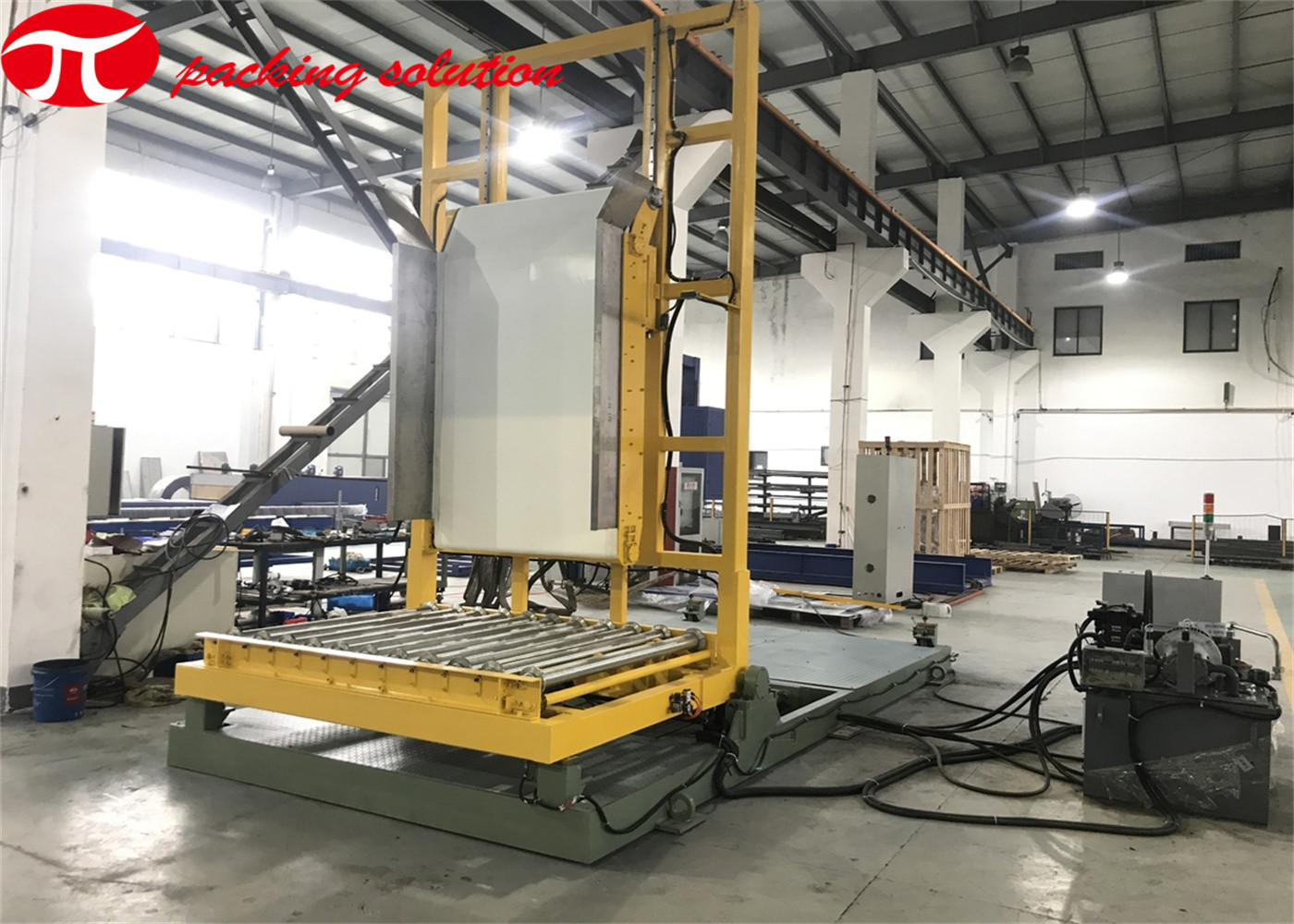

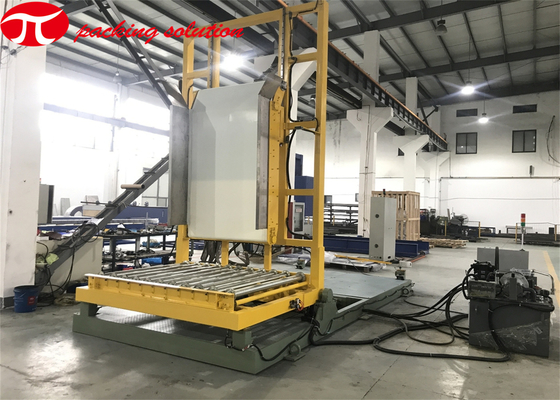

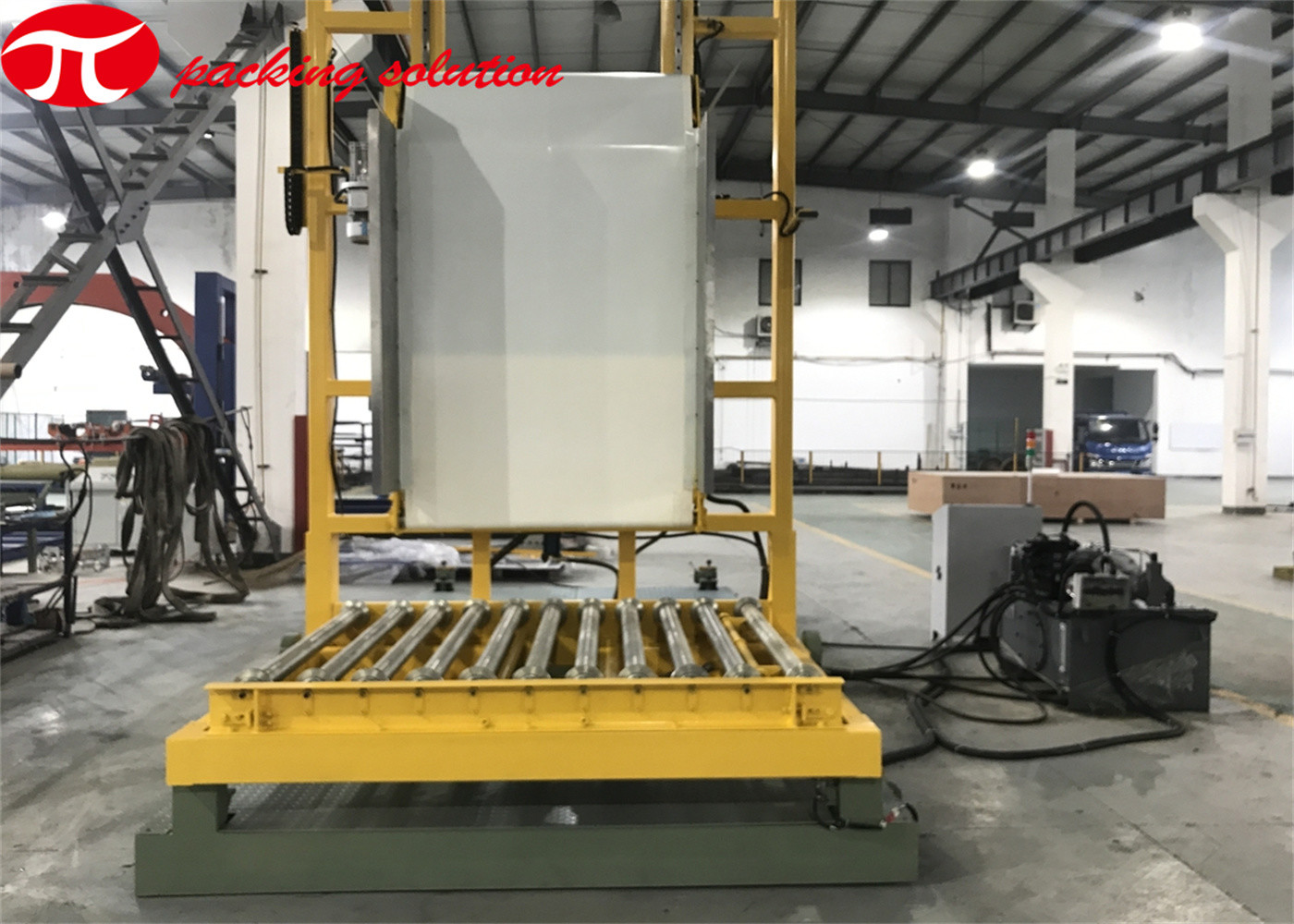

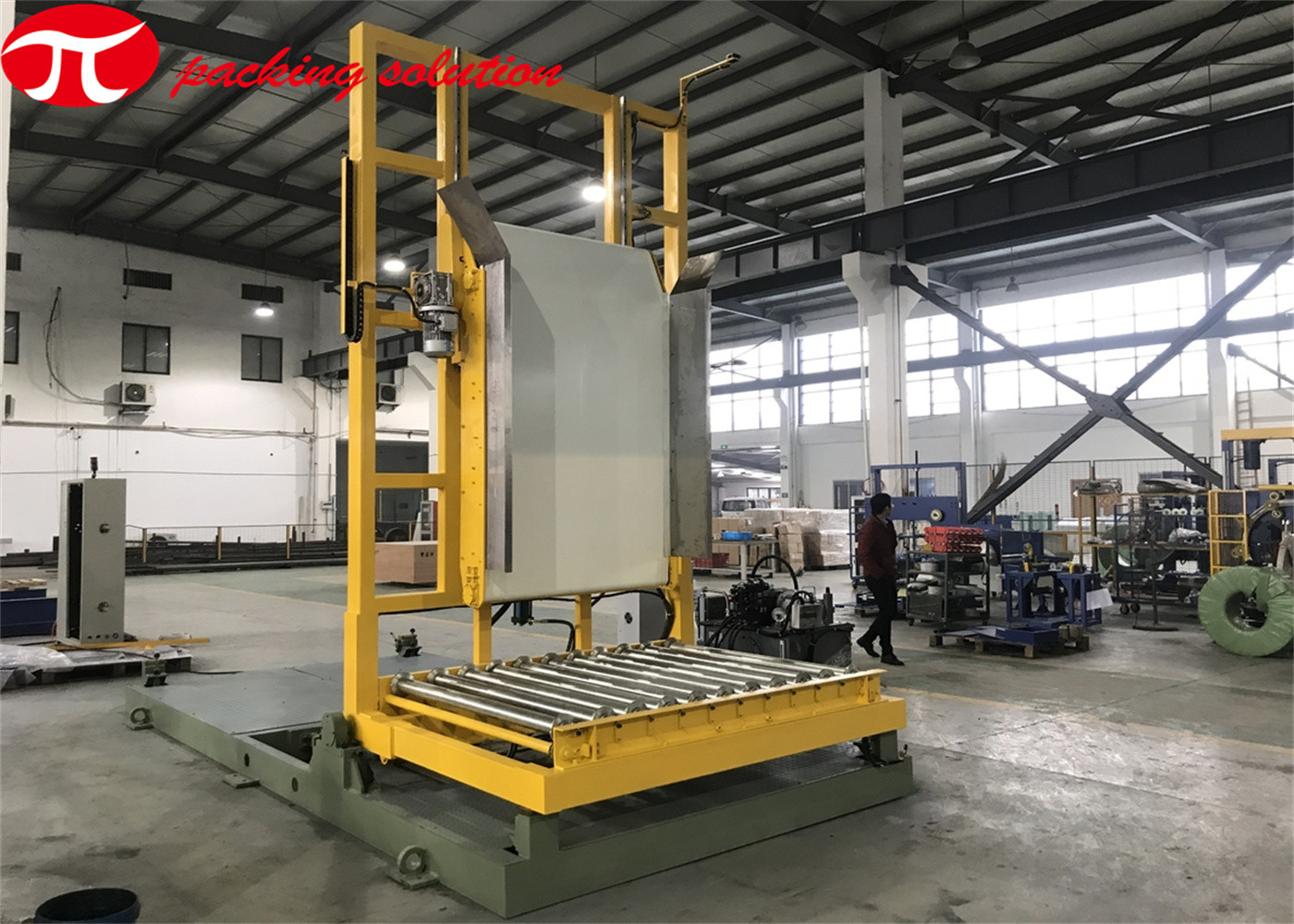

Automatic Customized Coil Turnover Machine Mold Flip Tipper Coil Tilter
MACHINE APPLICATION:
This machine uses Hydraulic transfer type to work. It’s widely used in industries of metallurgy, stamping, metal plate, mold, paper making, steel strip, coil, barrels, and etc.for tilting with different specifications for 90 degree with max loading capacity 6tons
It's eary to operate ,safe and saving time.
BASIC FEATURES:
MAIN PARAMETERS:
| Item data | FZ-06 |
| Max loading | 6T |
| One-way turn-over speed | 40s |
| Transfer mode | Hydraulic |
| Power output | approx. 1.5KW |
| Working mode | Manual switch/ remote control |
| Product width | 600 mm |
| Product diameter | 1500mm |
| Product weight | Within 6000kg |
| Dimension | Approx. L2200mm/W1000/H1700mm |
| Power voltage | AC 380V, 3 phase 5wires |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
