CE Automatic Aluminum Coil Packing Machine 90r/Min Ring Speed

Basic Information

Place of Origin:	China
Brand Name:	jlpack
Certification:	ISO9001，CE
Model Number:	GD300

Minimum Order Quantity:	1
Packaging Details:	Wooden case /standard container
Delivery Time:	Stand-alone 1 week ,the packing line 150days
Payment Terms:	T/T
Supply Ability:	200 sets/Year

Get Best Price Contact Now

Application:	Aluminum Coil, Steel Coil, Copper Coil,Wire Coil	Type:	Copper Wrapping Machine
Roller Speed:	About 2.5/min	Packaging Material:	Stretch Film, Paper, Knit Tape,etc
Usage:	Outer Protective Wrapping	Voltage:	380V / 50HZ
Ring SpeedAppr. 20-90r/min:	About 80r/min	Driven Type:	Electric
Color:	Blue/green/custom	Warranty:	12 Months
Highlight:	380V Copper Coil Packing Machine , 90r/min Copper Coil Packing Machine

Automatic high quality aluminum coil packing machine 90r/Min Ring Speed with CE certificate

Automatic high quality steel strip copper coil packing machine with CE certificate application:

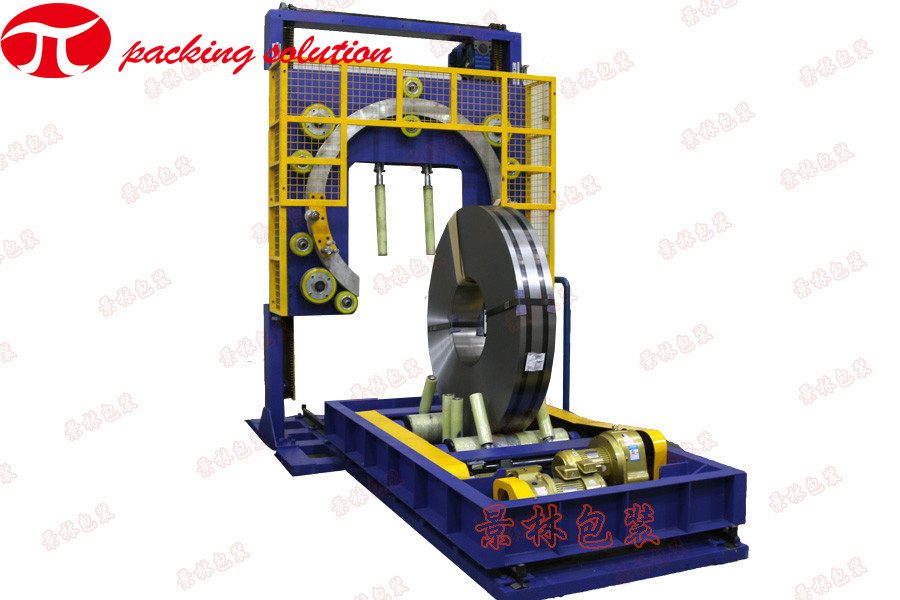

The GD vertical type automatic copper coil packing machine is designed by Jinglin engineers for automatically packing a wide range of ring-shaped objects such as copper coils, wire coils,steel coils and other applications which will be securely wrapped by ring wrapping. The machine well simplify the packing operations and free your labor forces, also improve the competitive of your products.

Automatic high quality steel strip copper coil packing machine with CE certificate features:

Simple structure, easy and safe operation and maintenance.
PLC applied for automatic control.
Indicator lamp alarms automatically when error occurs, and errors will be shown.
HMI easy operation for optional. Input coil dimensions, the PLC will calculate the material length for wrapping circles automatically.
The overlap rate and material tension could be adjusted for different packing needs.
The ring height could be adjusted to adapt for different coil diameter.
Anti-wearing PU used for the friction wheels, ring with integral mould structure.
Guardrails for the moving parts for safe operation.
Different kind of wrapping material can be adopted depends on your needs.
Pushing system is available for offloading the packed coils easily.

Automatic high quality steel strip copper coil packing machine with CE certificate parameters:

ITEMS	GD300	GD400	GD500
Coil width	≤300mm	≤400mm	≤500mm
Coil OD	≤1200mm	≤1500mm	≤1600mm
Coil ID	≥508mm	≥508mm	≥508mm
Packing material	Compound paper/compound woven belt/ anti-rust tape/stretch film W:90mm ID:55mm OD:600mm	Compound paper/compound woven belt/ anti-rust tape/stretch film W:90mm ID:55mm OD:600mm	Compound paper/compound woven belt/ anti-rust tape/stretch film W:90mm ID:55mm OD:600mm
Roller speed	About 2.5/min	About 2.5/min	About 2.5/min
Rotating speed	About 80r/min	About 80r/min	About 70r/min
Power output	About 3kw	About 3.5kw	About 4.5kw
Power voltage	380V/50Hz	380V/50Hz	380V/50Hz
Synchronous wrapping system	Optional	Optional	Optional
Automatic mechanical hand	Optional	Optional	Optional

CE Automatic Aluminum Coil Packing Machine 90r/Min Ring Speed 0

MACHINE INSTALLATION:

This coil packing machine is mainly composed of main engine, cutter board and electrical box etc.
Avoiding the occurrence of compression, crushing, contusion and other accidents during installation.
Since the machine has been transported and moved, all flexible shall be inspected carefully.
The entire installation work shall be completed under the condition that the power supply is cut off.
The machine shall be mounted on flat, hard ground.
Only skilled staffs can be allowed to enter the installation site.
Next packing procedure can be executed only after all the installation works are finished.
The machine shall be mounted in dry and dust free environment.
