INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | GD600 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Rolled Steel Coil Strip, Copper Strip | Automation: | Automatic |
|---|---|---|---|
| Ring Speed: | Appr. 20-90r/min | Roller Speed: | 5-8m/min |
| Packaging Material: | Stretch Film, Paper, Knit Tape,etc | Product OD: | ≤1500 |
| Product ID: | 508/610mm | Driven Type: | Electric |
| Voltage: | 380V/50HZ | Usage: | Outer Protective Wrapping |
| Highlight: | 610mm Steel Coil Packing Machine,4.0KW Steel Coil Packing Machine,Trolley type Coil Packaging Line |
||

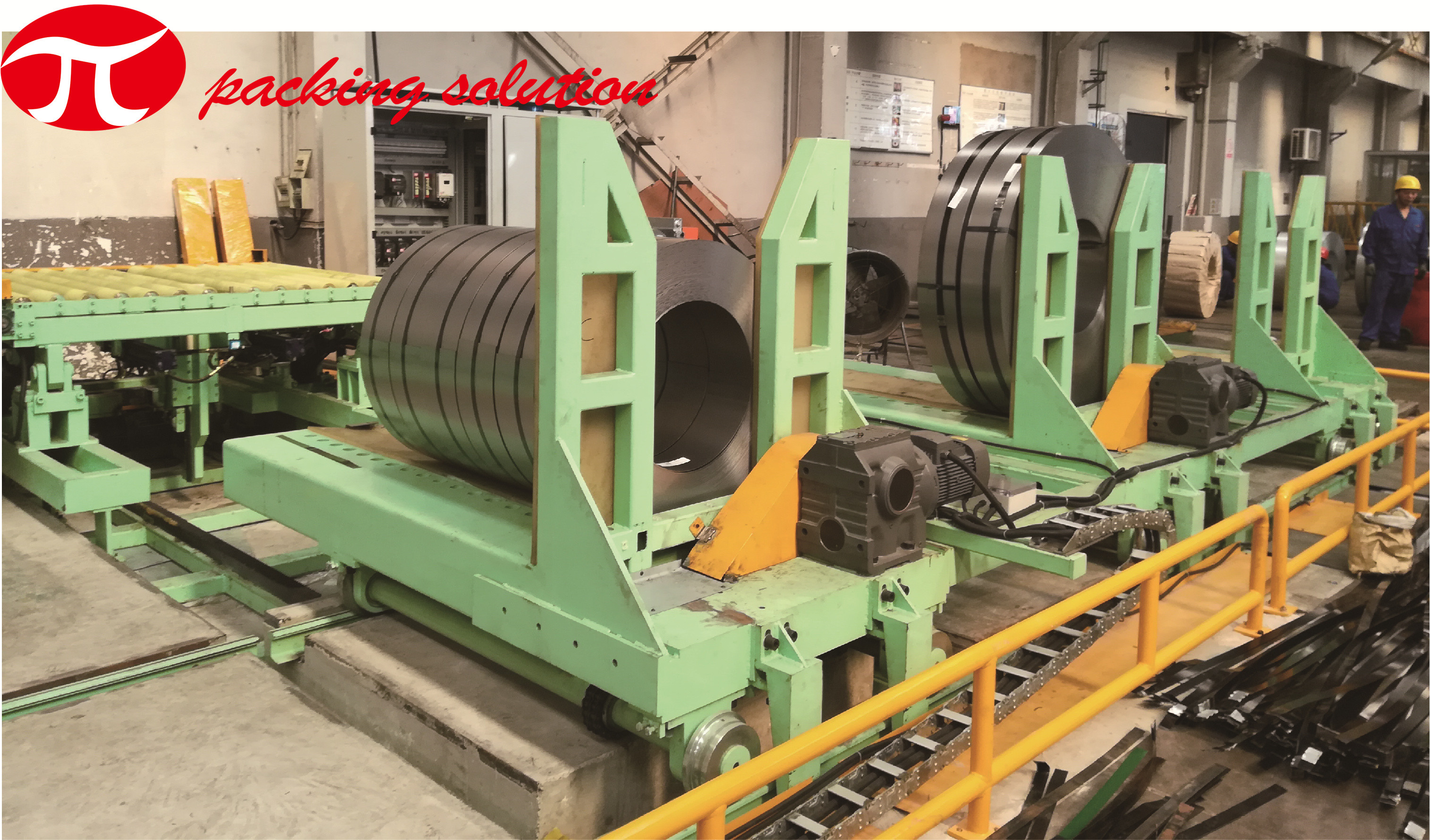

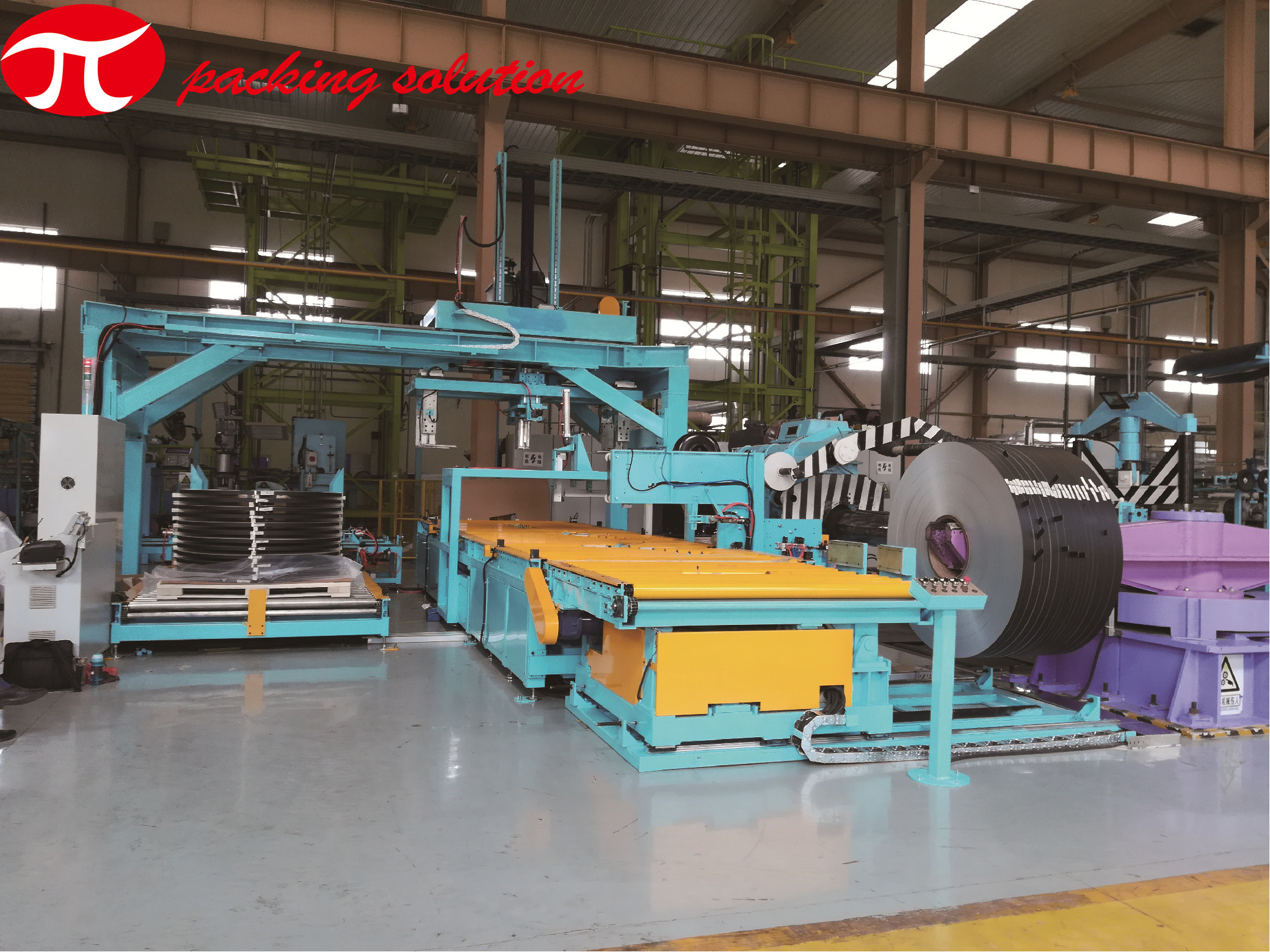

Factory supply Stretch Wrapping Steel Coil Packing Machine 610mm Coil ID with turnstile
MACHINE APPLICATION:
The packing machine for steel coils can also be broadly used for various circular objects such as wire coils, copper coils, aluminum coils, copper coils, cable coils, pipe coils, bearings,etc, to make the product well-protected from water, dust, rust and scratches, also convenient for storage and transportation. Greatly simplify your packing operation and free your labor forces.
BENEFITS OF MACHINE:
BASIC FEATURES:
MAIN PARAMETERS:
| Model | GD300 | GD600 |
| Type | Trolley type | Trolley type |
| Coil width | ≤300 | 150mm-600mm |
| Coil OD | ≤1500 | 800mm-1600mm |
| Coil ID | 508/610mm | 508mm/610mm |
| Coil weight | ≤2000Kg | 300kg-6000Kg |
| Ring turning speed | Appr. 20-90r/min | Appr. 20-80r/min |
| Roller speed | 5-8m/min | 5-8m/min |
| Total output | 4.0KW | 7.5KW |
| Power supply | AC/380V/50Hz | AC/380V/50Hz |
| Air supply | 6-8kgf/cm2 | 6-8kgf/cm2 |
| Packing material | Compound paper/VCI paper/Knit tape: width:80-100mm; ID:55mm; OD≤500mm | Compound paper/VCI paper/Knit tape: width:80-100mm; ID:55mm; OD≤500mm |
| Stretch film: width:80-100mm; ID:50mm;OD≤150mm | Stretch film: width:80-100mm; ID:50mm;OD≤150mm | |
| Synchronous wrapping system | Optional | Optional |
| Automatic manipulator | Optional | Optional |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
