INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Driven Type: | Electric | Packaging Material: | Stretch Film,paper Or Knit Tape |
|---|---|---|---|
| Application: | Steel, Copper, Aluminium And Metallurgic Industries | Type: | Packing Line |
| Packaging Type: | Film And Paper Wrapping | Width: | 60mm-500mm |
| Voltage: | 380V/50HZ | Warranty: | 12 Months |
| Weight: | ≤4T | Automatic Grade: | Automatic |
| Highlight: | Horizontal Copper Coil Packing Machine,Copper Coil Packing Machine 60mm,500mm Copper Coil Packaging Line |
||
Application:

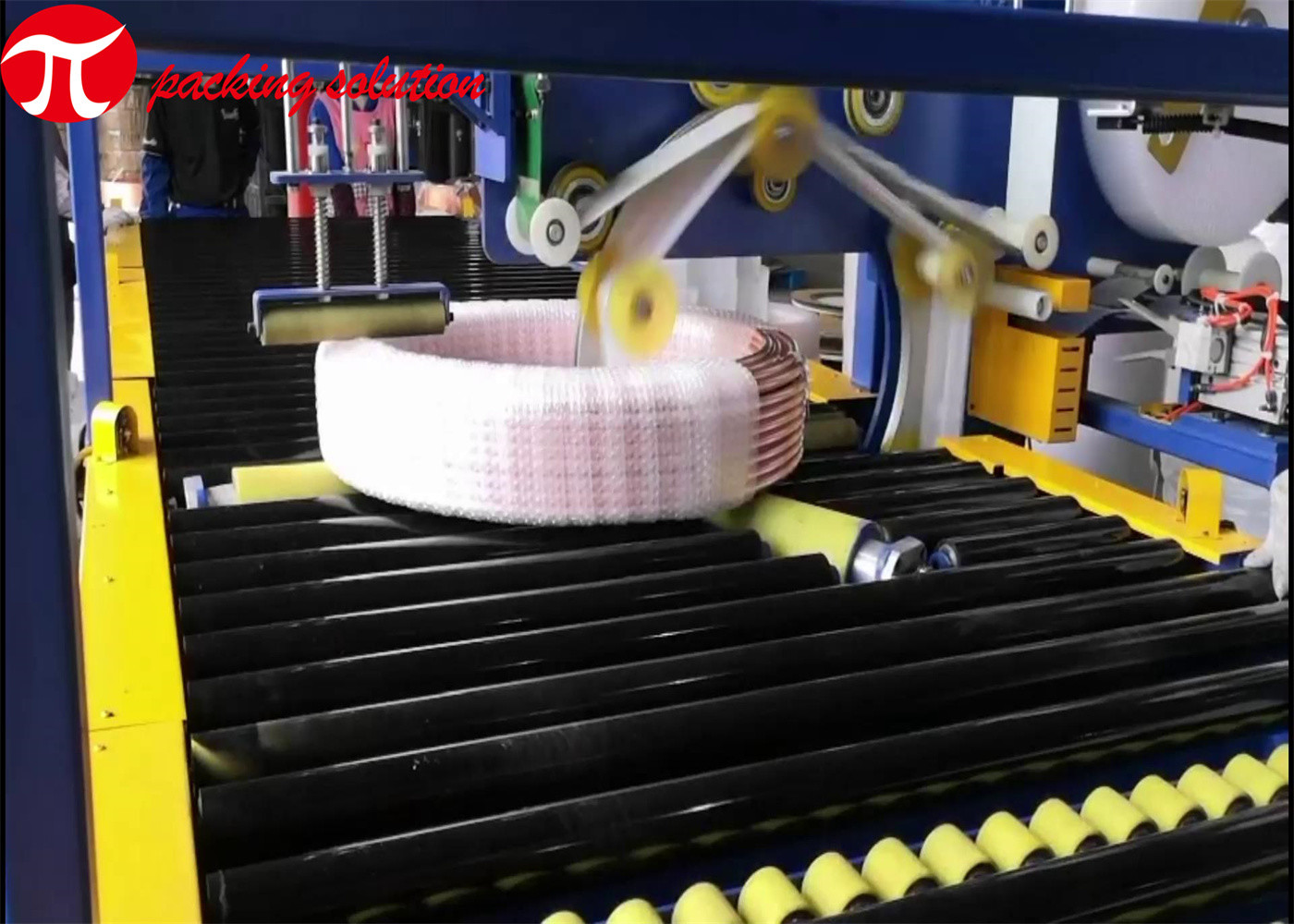

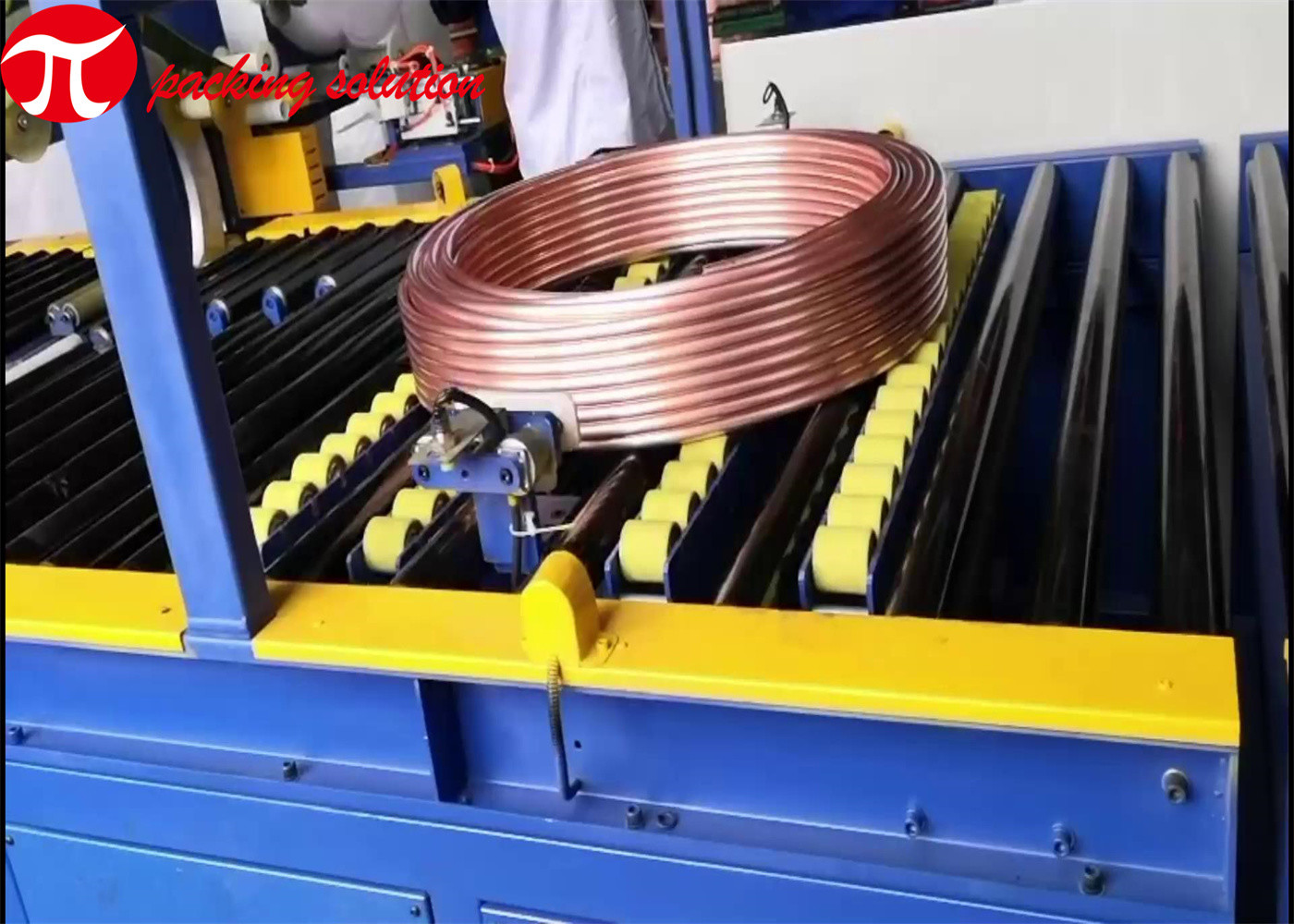

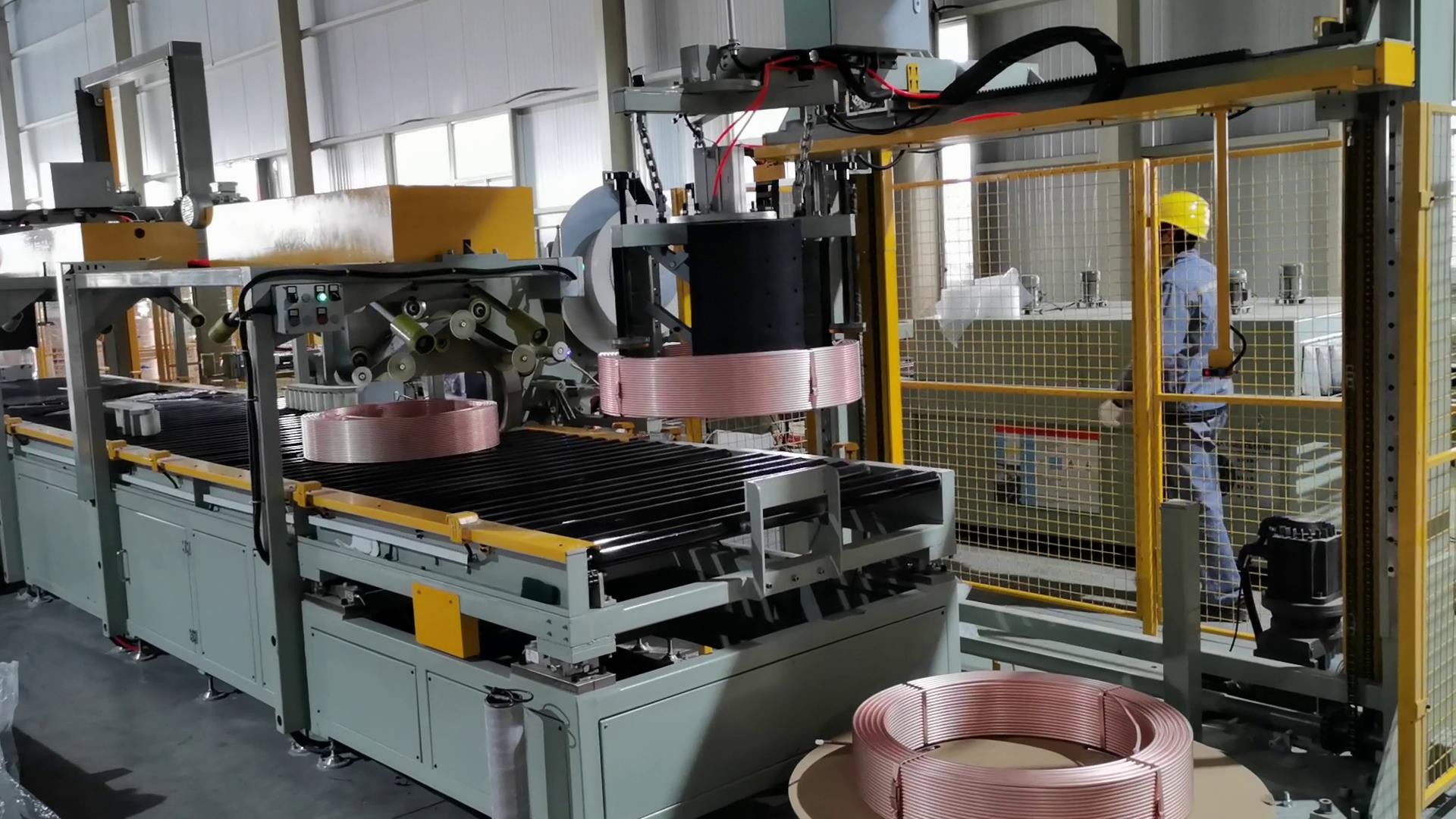

This packing line take compound paper as main packing material,apply coil picking, auto packing,stacking & etc for cooper coils, makes the object well packed and stacked, convenient for storage and transportation.
Basic composition:
| Coil loading system | Wrapping machine |
| Stacking system | electronic cabinet |
| Guardrails |
Main technical datas(for reference):
| OD | 800-1500MM |
| ID | 508-610MM |
| Width | 60mm-500mm |
| Weight | ≤4T |
| Wrapping material | LLDPE stretch film/compound paper |
| Wrapping overlap | 30%～80% adjustable |
| Wrapping material size | Film roll width 90mm, roll OD 500mm,roll ID 76mm |
Pre-sales service:
1.We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.
2.We will fist check customer’s goods and goods size, then we will recommend suitable wrapping machine to 100% suitable.
3.We will recommend and offer machine according to customer’s use and purchase budget.
In-sale service:
1.We will supply each manufacturing step photo for customer checking on time.
2.We will prepare packing and shipment according to customer’s needing in advance.
3.Testing the machine and making video for customer’s checking.
After-sale service:
1.We will guarantee the machine quality for 2 years.
2.We provide free training and answer customer's question on technology in time.
