INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Name: | Copper Coil Strapping Machine | Driven Type: | Electric |
|---|---|---|---|
| Packaging Material: | Stretch Film,paper Or Knit Tape | Automatic Grade: | Fully Auto |
| Packaging Type: | Film And Paper Wrapping | Application: | Copper Coils |
| Weight: | ≤200KG | Packaging Use: | Sealing/flip Conveying/Weighing Labeling |
| Convey Mode: | Unpowered Conveying | Warranty: | 12 Months |
| Highlight: | ISO9001 Copper Coil Wrapping Machine,JINGLIN Copper Coil Wrapping Machine,380V Vertical Coil Wrapping Machine |
||
Application:

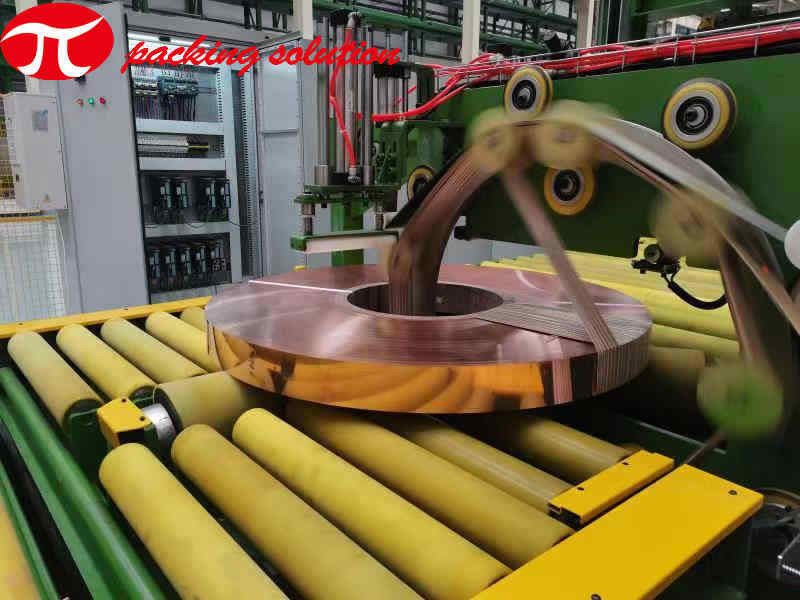

This packing line take compound paper as main packing material,apply coil picking, auto packing,stacking & etc for plastic coils,makes the object well packed and stacked, convenient for storage and transportation.
Basic composition:

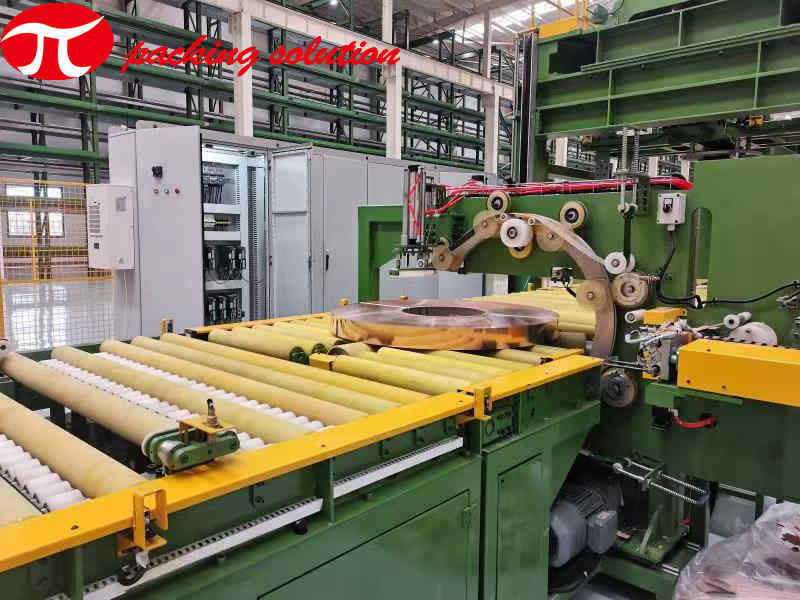

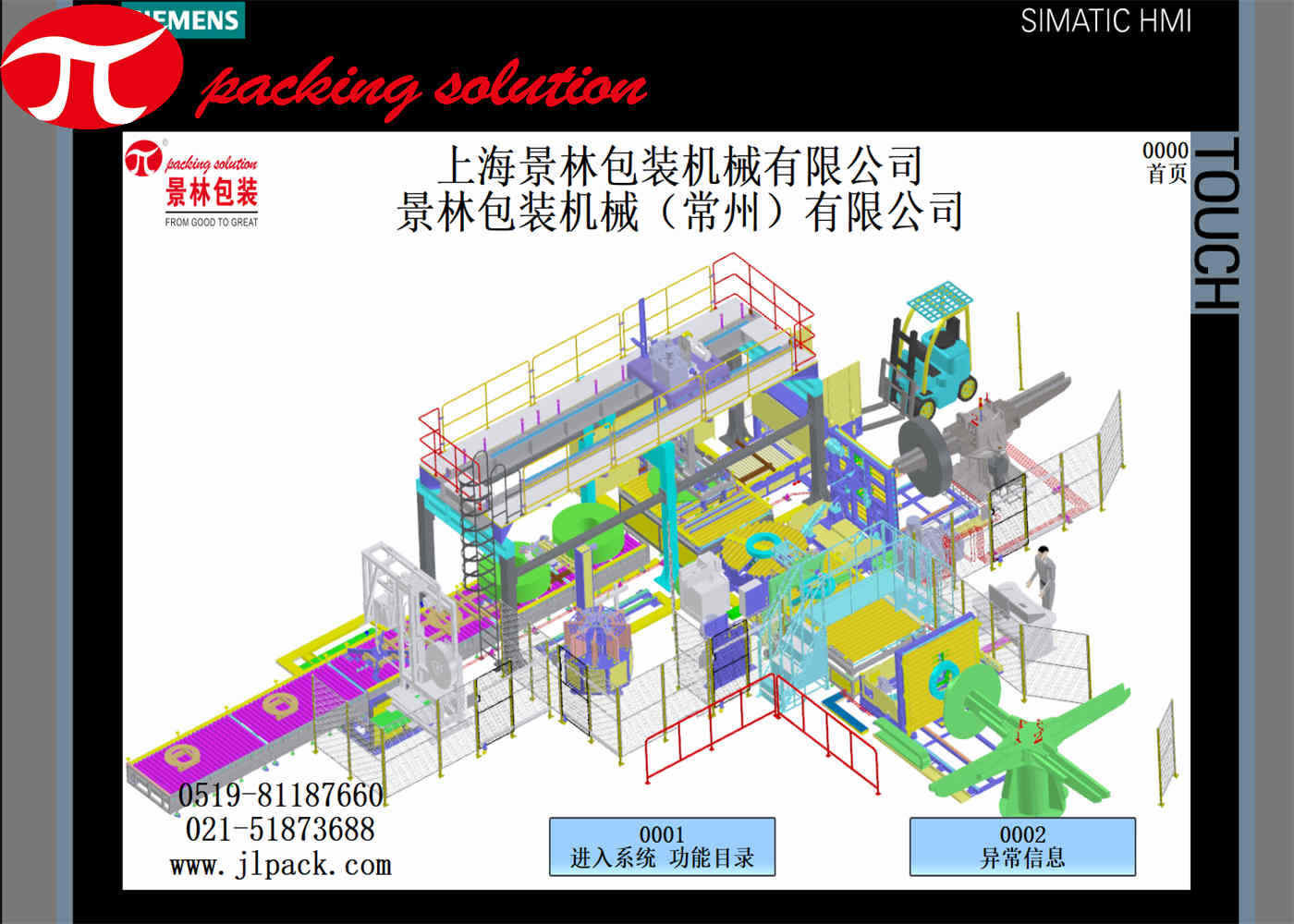

The fully auto machinery is composed of coil loading system,wrapping machine, stacking system, electrical cabinet and guardrails.
Feature and advantages:
1. easy come and easy go for the packaging objects, easy opeartion, convenient to adjust.
2. wide range of packaging film, such as paper, plastic film, etc, 2 different packing film can be used at the same time.
3. reduce table wear, improve sealing effects, easy to store and transport,. with beautiful appearence
Main technical datas(for reference):
| OD: | 600mm～1200mm |
| ID: | 300-800mm |
| Width: | 60mm～500mm |
| Weight: | ≤200KG |
| Wrapping material: | LLDPE stretch film/compound paper |
| wrapping overlap: | 30%～70% adjustable |
| Wrapping material size: | film roll width 90mm, roll OD 500mm,roll ID 76mm |
