INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Driven Type: | Electric | Packaging Material: | Stretch Film,paper Or Knit Tape |
|---|---|---|---|
| Application: | Copper Coils | Type: | Packing Machine |
| Packaging Type: | Film And Paper Wrapping | OD: | 600mm-1200mm |
| Weight: | 150KG | ||
| Highlight: | Automatic Copper Coil Wrapping Machine,PLC Control Copper Coil Wrapping Machine,600mm Copper Coil Packing Machine |
||
Description:

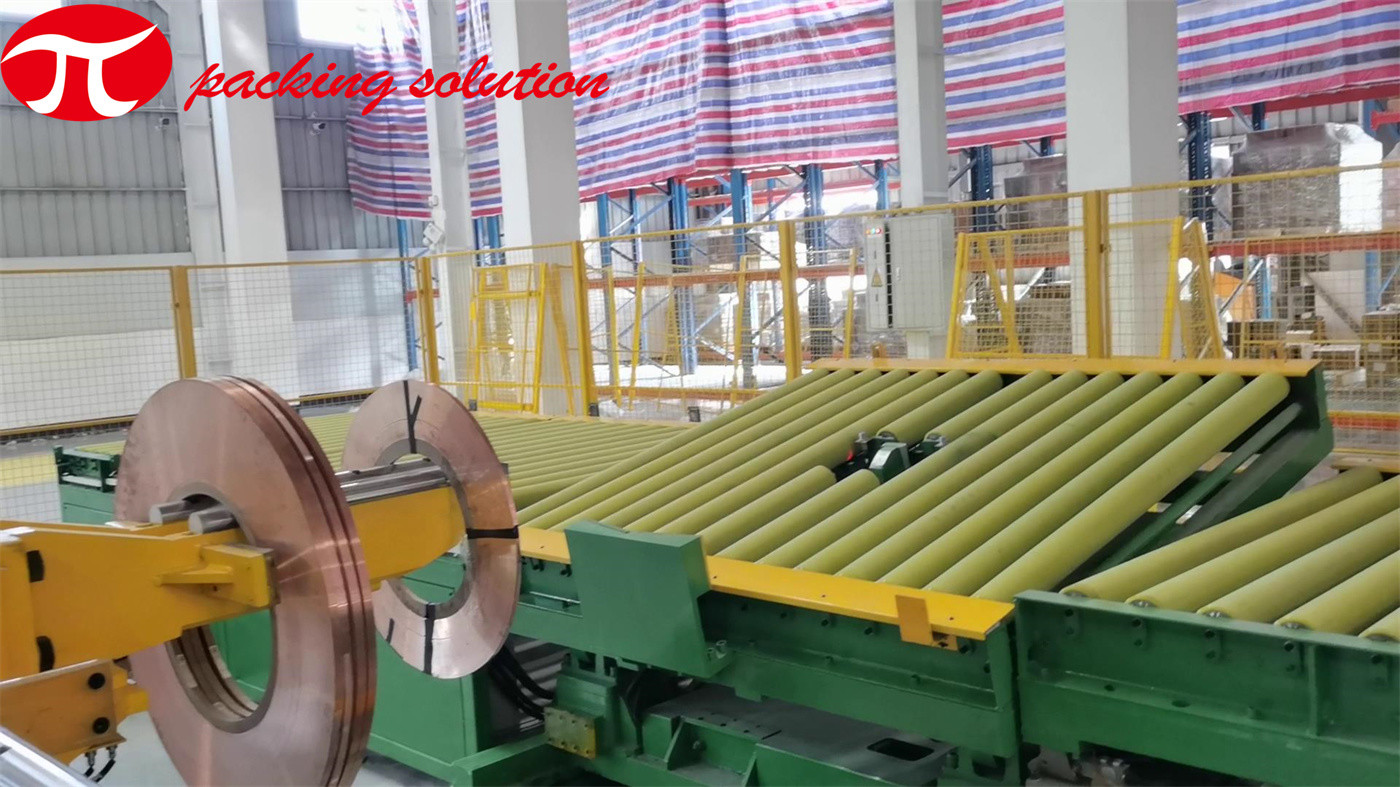

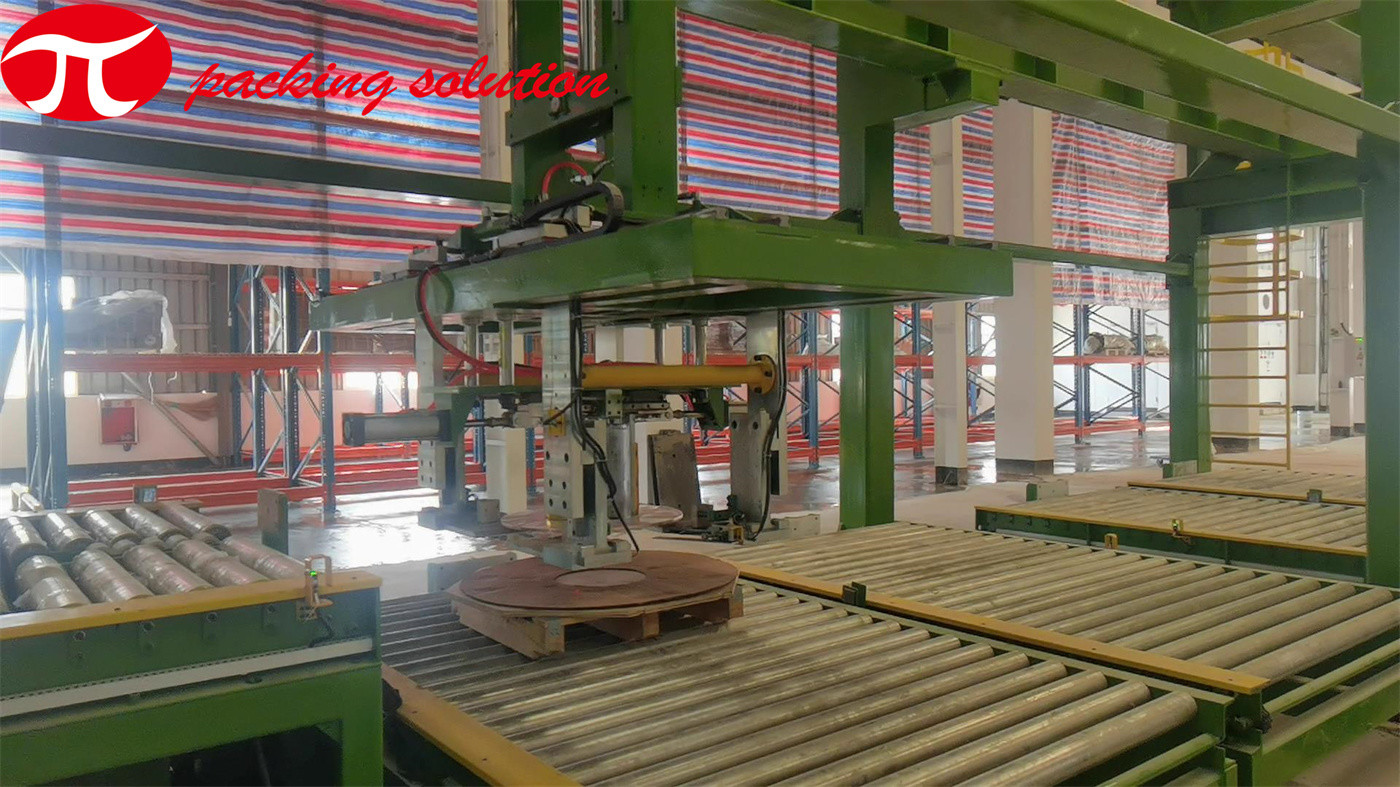

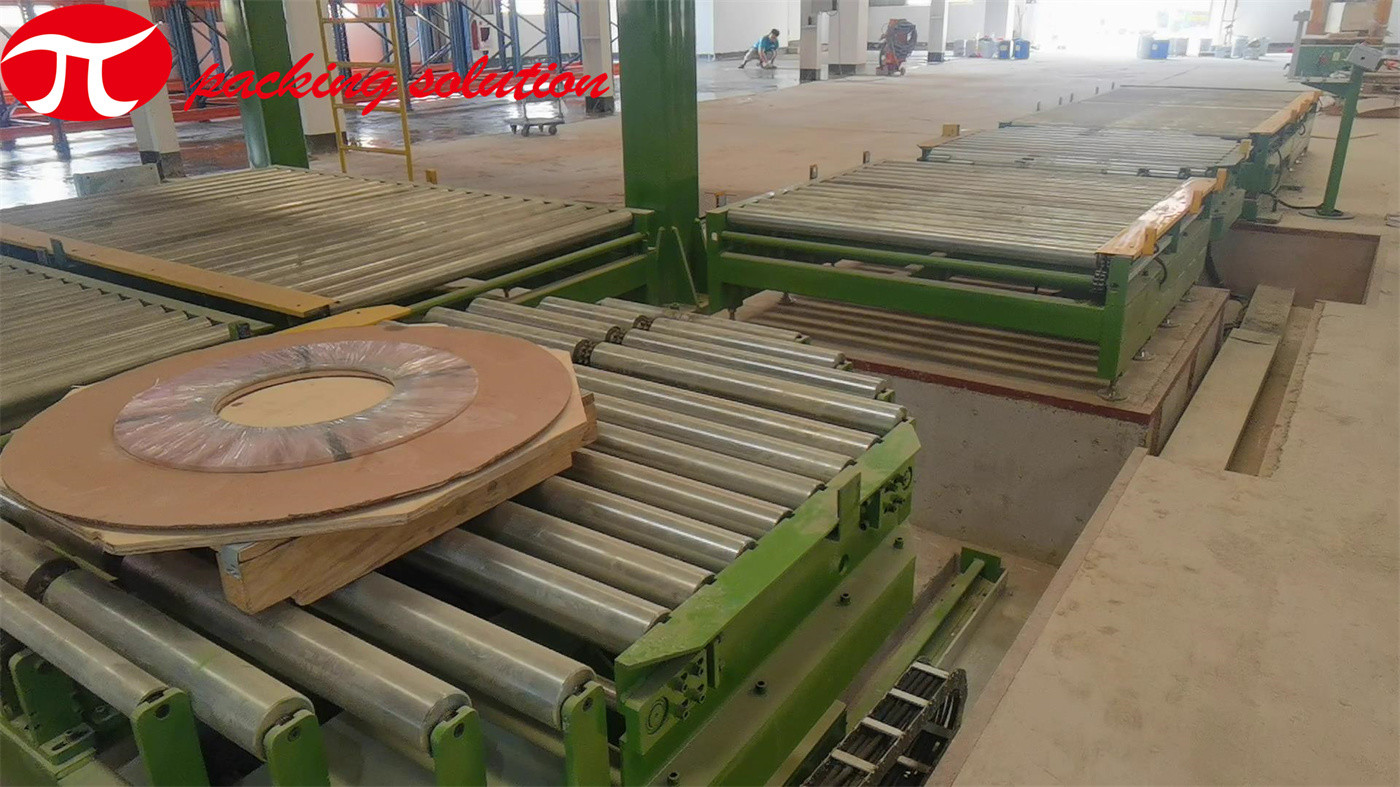

This packing line take compound paper as main packing material,apply coil picking, auto packing,stacking & etc for copper coils ,plastic coils,stell coils .It makes the object well packed and stacked, convenient for storage and transportation.
Basic composition:
| Coil loading system | Picking & tilting machine |
| Wrapping machine | Stacking system |
| Electrical cabinet | Guardrails |
Technical datas(for reference):
| OD | 600mm～1200mm |
| ID | 300-800mm |
| Width | 60mm～500mm |
| Weight | ≤200KG |
| Wrapping material | LLDPE stretch film/compound paper |
| Wrapping overlap | 30%～70% adjustable |
| Wrapping material size | film roll width 90mm, roll OD 500mm,roll ID 76mm |
OD:600mm～1200mm
ID:300-800mm
Width:60mm～500mm
Weight:≤200KG
Wrapping material:LLDPE stretch film/compound paper
wrapping overlap: 30%～70% adjustable
Wrapping material size: film roll width 90mm, roll OD 500mm,roll ID 76mm
A: We are packaging machine manufacturer in shanghai and workshop in Changzhou city.
A: Yes,we freely invite customer to watch video through our link on the youtube.
A: There are two ways for customers ,one is visiting us to check all equipments and test it, another one is you send someone over to test and inspect.
A: We accept T/T And L/C only.
