INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Steel, Copper, Aluminium And Metallurgic Industries | Driven Type: | Electric |
|---|---|---|---|
| Packaging Material: | Stretch Film,paper Or Knit Tape | Weight: | ≤4T |
| ID: | 508mm-610mm | Packaging Type: | Film And Paper Wrapping |
| Voltage: | 380V/50HZ | Color: | Standard Color |
| Condition: | New | Warranty: | 12 Months |
| Highlight: | 50HZ Copper Coil Wrapping Machine,508mm Copper Coil Wrapping Machine,ISO9001 Automatic Coil Wrapping Machine |
||
Application:

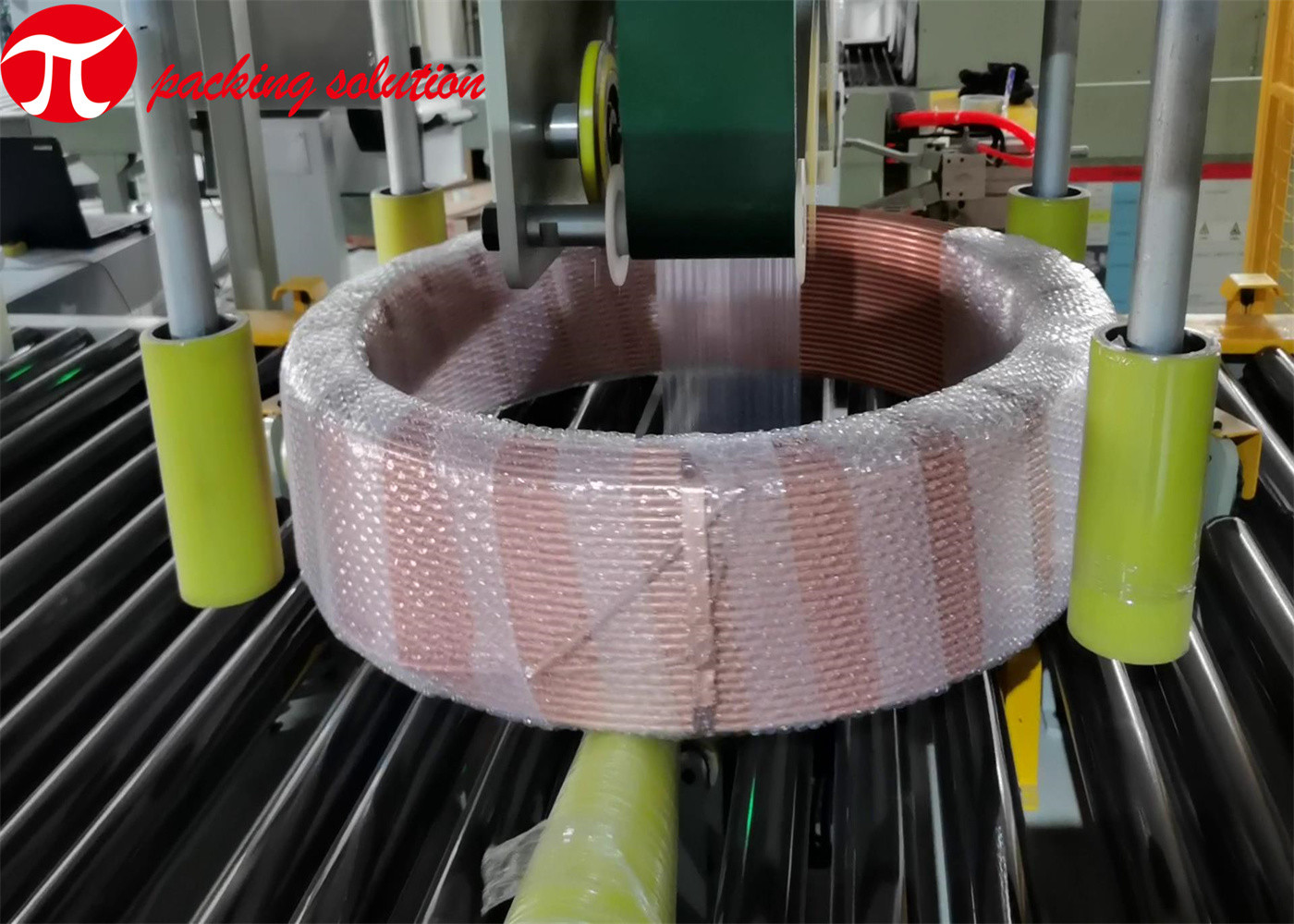

This packing line take compound paper as main packing material,apply coil picking, auto packing,stacking & etc for cooper coils, makes the object well packed and stacked, convenient for storage and transportation.
Main technical datas(for reference):
OD:800mm～1500mm
ID:508-610mm
Width:60mm～500mm
Weight:≤4T
Wrapping material:LLDPE stretch film/compound paper
wrapping overlap: 30%～80% adjustable
Wrapping material size: film roll width 90mm, roll OD 500mm,roll ID 76mm
Basic composition:

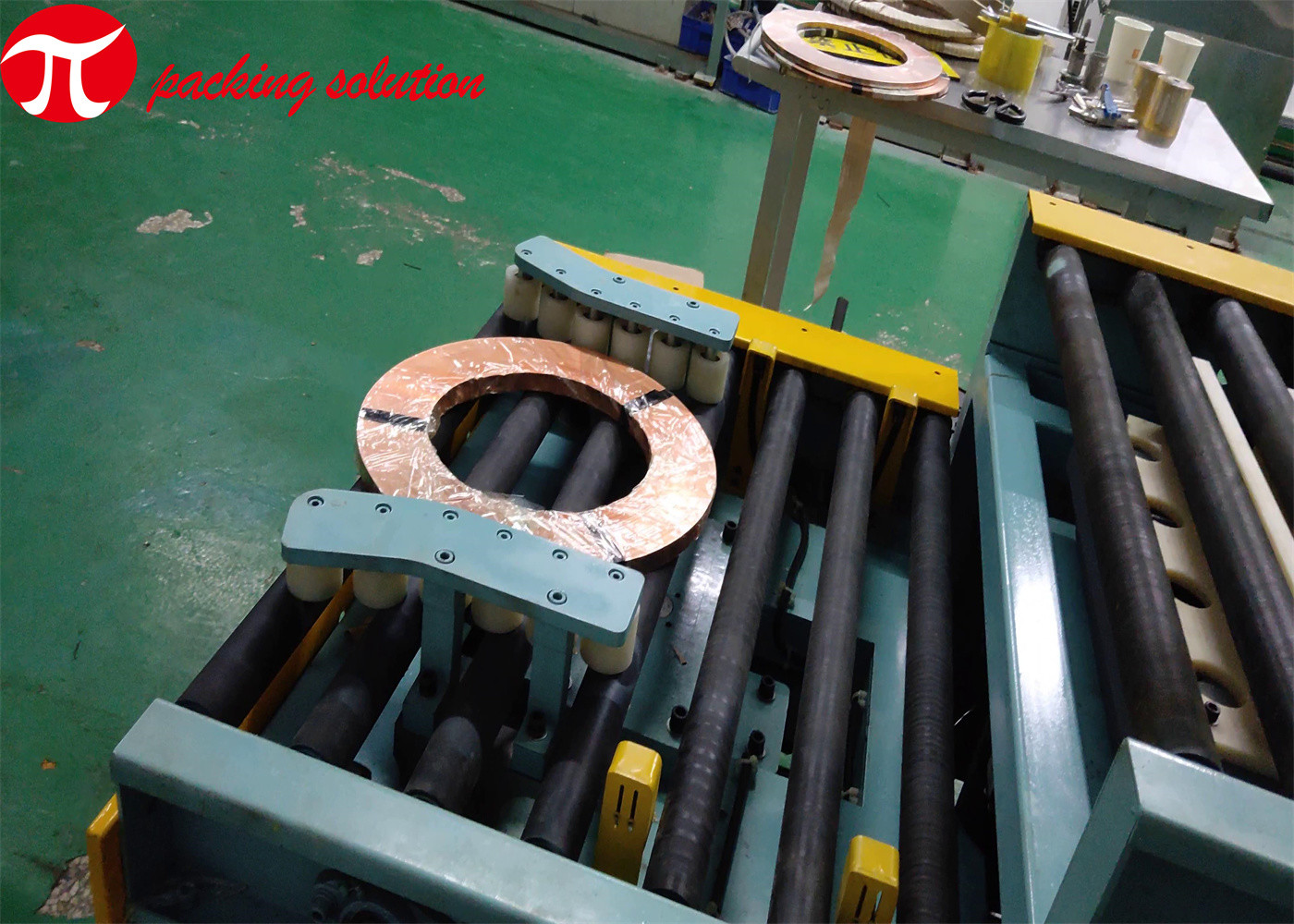

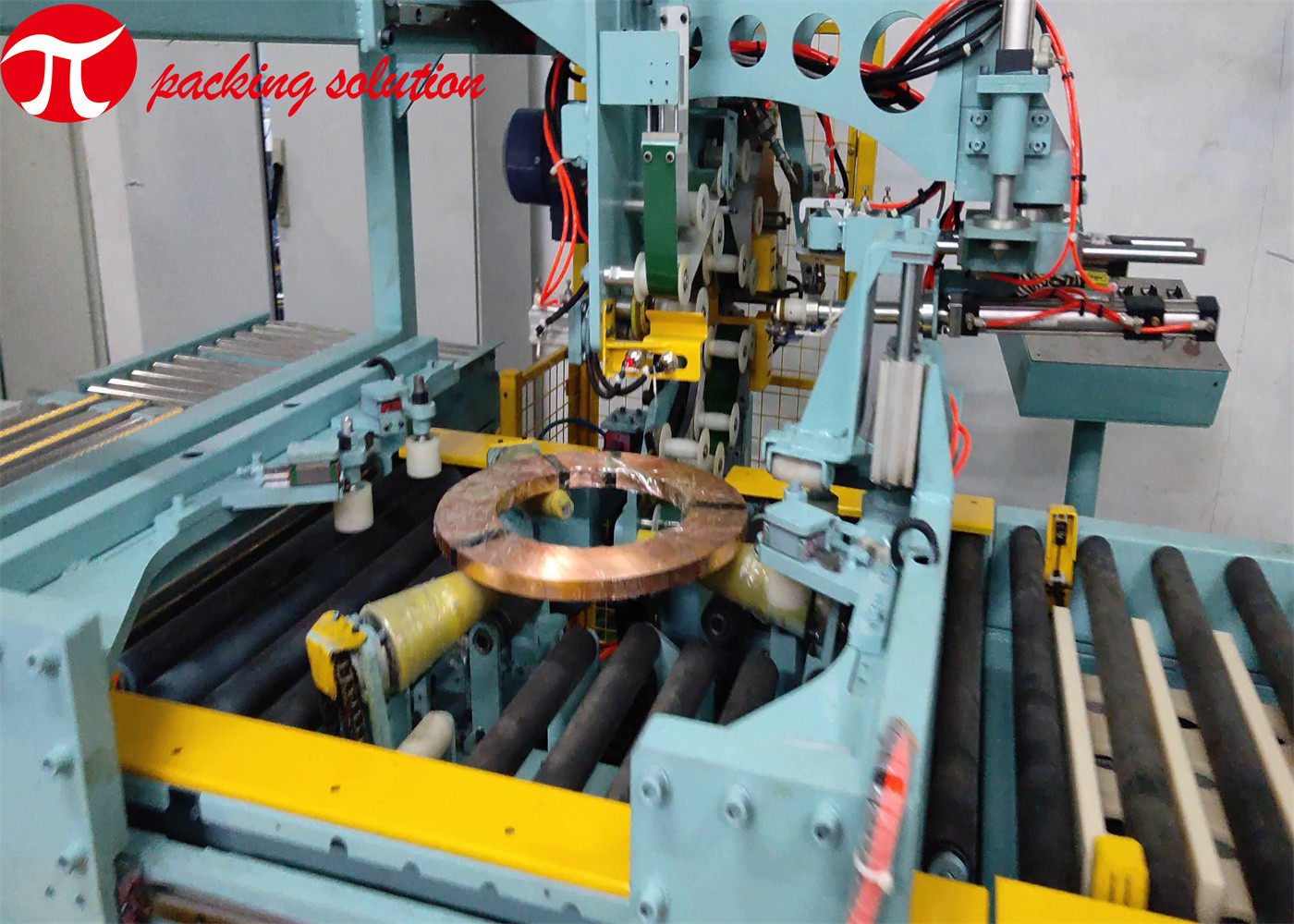

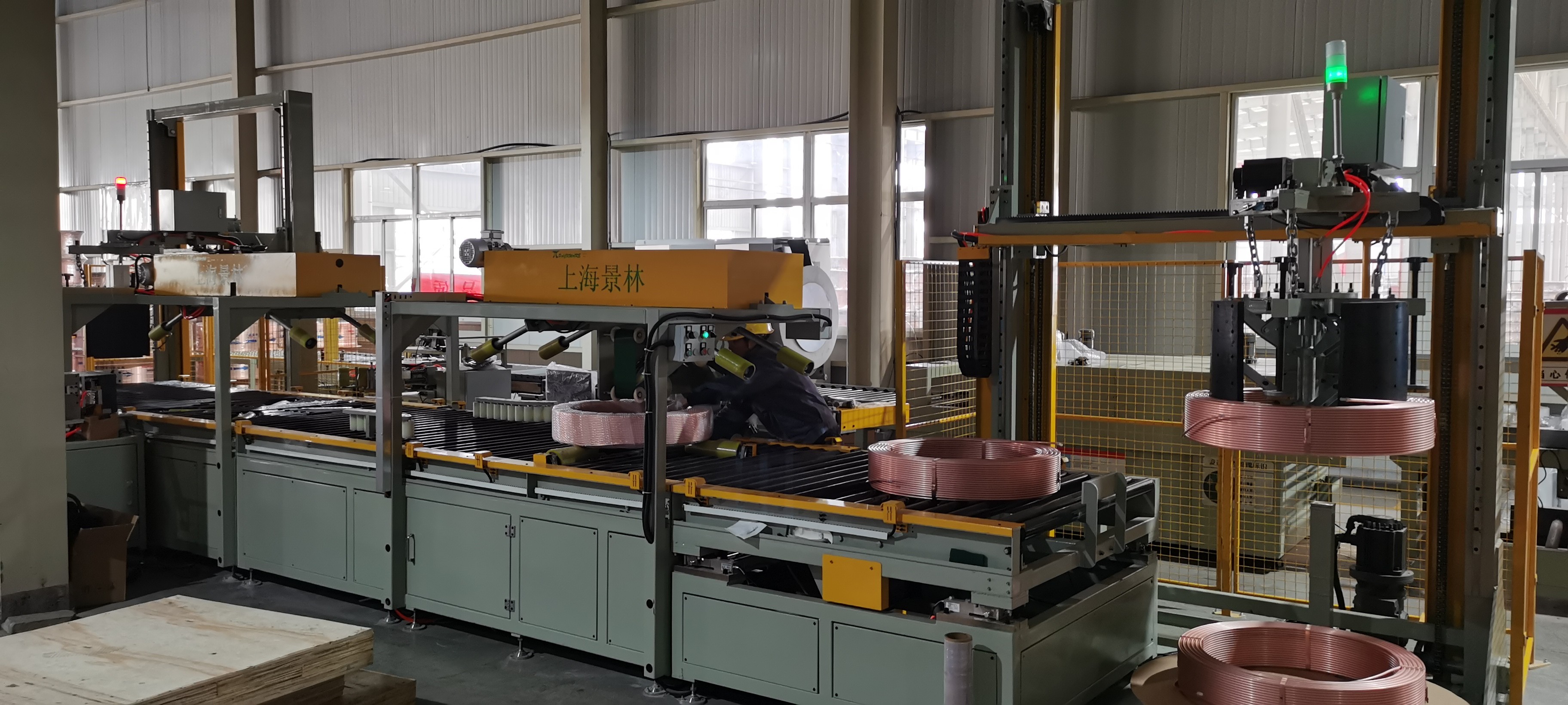

The fully auto machinery is composed of coil loading system,wrapping machine, stacking system, electrical cabinet and guardrails.
Production Equipment
We have more than ten production equipments including lathes, milling machines, drilling machines, cutting machines,welding machines and other processing machines.
Production Market
For the past 20 years, we have established a sales network worldwide. More than 1000 sets of our machines and packing lines have been supplied to more than 100 countries®ions over the world and have won a good reputation both at home&abroad.
