Place of Origin: | China |
---|---|
Brand Name: | jlpack |
Certification: | ISO9001,CE |
Model Number: | GD2000 |
Minimum Order Quantity: | 1 |
Packaging Details: | Wooden case /standard container |
Delivery Time: | Stand-alone 1 week ,the packing line 150days |
Payment Terms: | T/T |
Supply Ability: | 200 sets/Year |
Application: | Aluminium Coil,steel Coil, Wire Coil | Wrapping Material: | LLDPE Stretch Film |
---|---|---|---|
Wrapping Overlap: | 30%-80% Adjustable | Power Voltage: | 380V/50HZ |
Coil OD: | 800mm~2100mm | Coil ID: | 405mm~520mm |
Coil Width: | 800-2300mm | Coil Weight: | ≤12T |
Packing Type: | Stretch Wrapping | Automation: | Fully Automatic |
High Light: | Automatic Aluminum Coil Wrapping Machine,GD2000 Aluminum Coil Wrapping Machine,405mm Aluminum Coil Wrapping Machine |

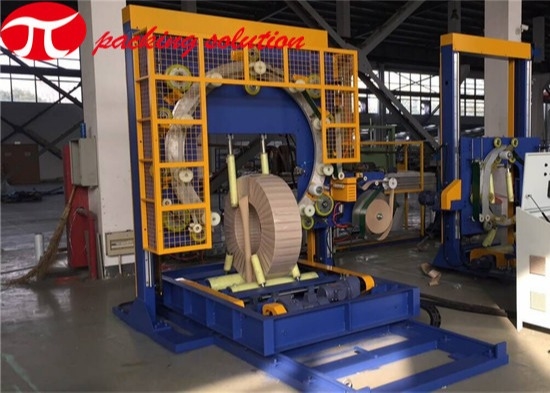

Automatic coil master for stretch wrapping of big slited aluminum coils GD2000 Coil ID 405mm
Automatic coil master for stretch wrapping of big slited aluminum coils application:
This machine is specially designed for packing extra wide metal coils. It’s a highly automatic& integrated, safe and practical packing machine. Multiple stations working reciprocating, to achieve long time continuous operation.
Mainly applicable for through-the-eye packing of big steel coils, aluminium coils, wire coils,etc.
Automatic coil master for stretch wrapping of big slited aluminum coils application composition:
The machine is mainly composed of the packing unit, roller stations, control cabinet, guardrails&etc.
Automatic coil master for stretch wrapping of big slited aluminum coils application main datas:
Applicable objects: steel coil, wire coil, aluminium coil
Coil OD: 800mm~2100mm
Coil ID: 405mm~520mm
Coil Width: 800mm~2300mm
Coil Weight: ≤12T
Packing station quantity: 1-3sets
Wrapping material: LLDPE stretch film
wrapping overlap: 30%~80% adjustable
Wrapping material size: film roll width 150mm, roll OD 160mm,roll ID76mm
Automatic coil master for stretch wrapping of big slited steel coils application scope of supply:
Item | Quantity |
Main engine of the machine with guide rail | 1 set |
U-type Orbital | 1 set |
Electrical cabinet, guardrail etc. | 1 set |
Shuttle | 1set |
Roller station | 1 set |
Spare parts and user manual | 1 set for each |
PLC&HMI control system | 1 set for each |
