Place of Origin: | China |
---|---|
Brand Name: | jlpack |
Certification: | ISO9001,CE |
Model Number: | GD300 |
Minimum Order Quantity: | 1 |
Packaging Details: | Wooden case /standard container |
Delivery Time: | Stand-alone 1 week ,the packing line 150days |
Payment Terms: | T/T |
Supply Ability: | 200 sets/Year |
Machine Name: | Copper Coil Packing Machine | Application: | Copper Coil,stee Coil, Steel Wire,etc |
---|---|---|---|
Automation: | Automatic | Ring Speed: | Appr. 20-80r/min |
Driven Type: | Electric | Voltage: | 220V/380V/50HZ |
Packaging Material: | Stretch Film,crepe Paper, Knit Plastic | Function: | Surface Protective Wrapping/stacking |
Power Type: | Electricity | Product Nature: | Customized |
High Light: | 4.0KW Copper Strip Coil Packaging Line,380V Copper Strip Coil Packaging Line,80r/Min Copper Strip Coil Packaging Line |

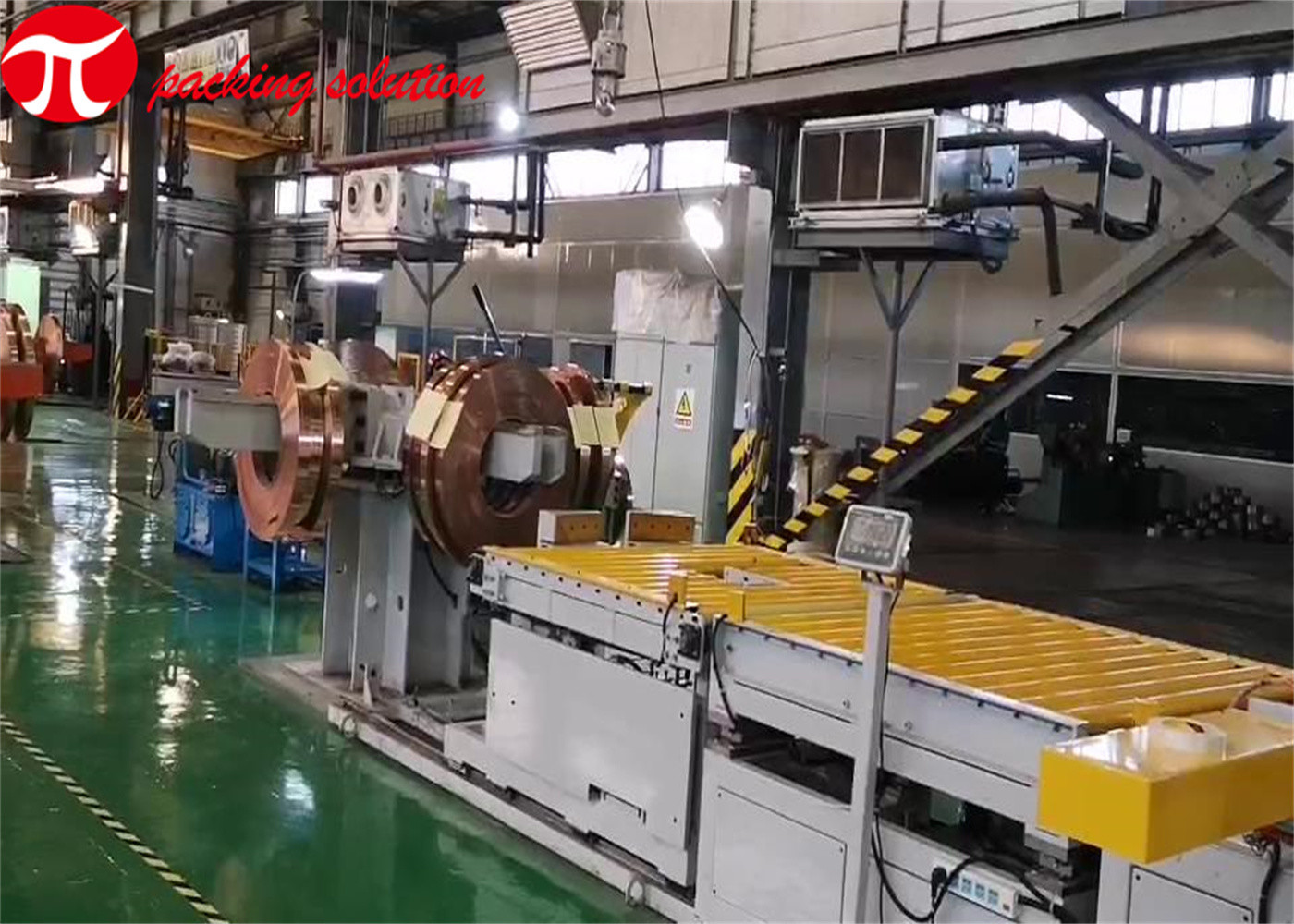

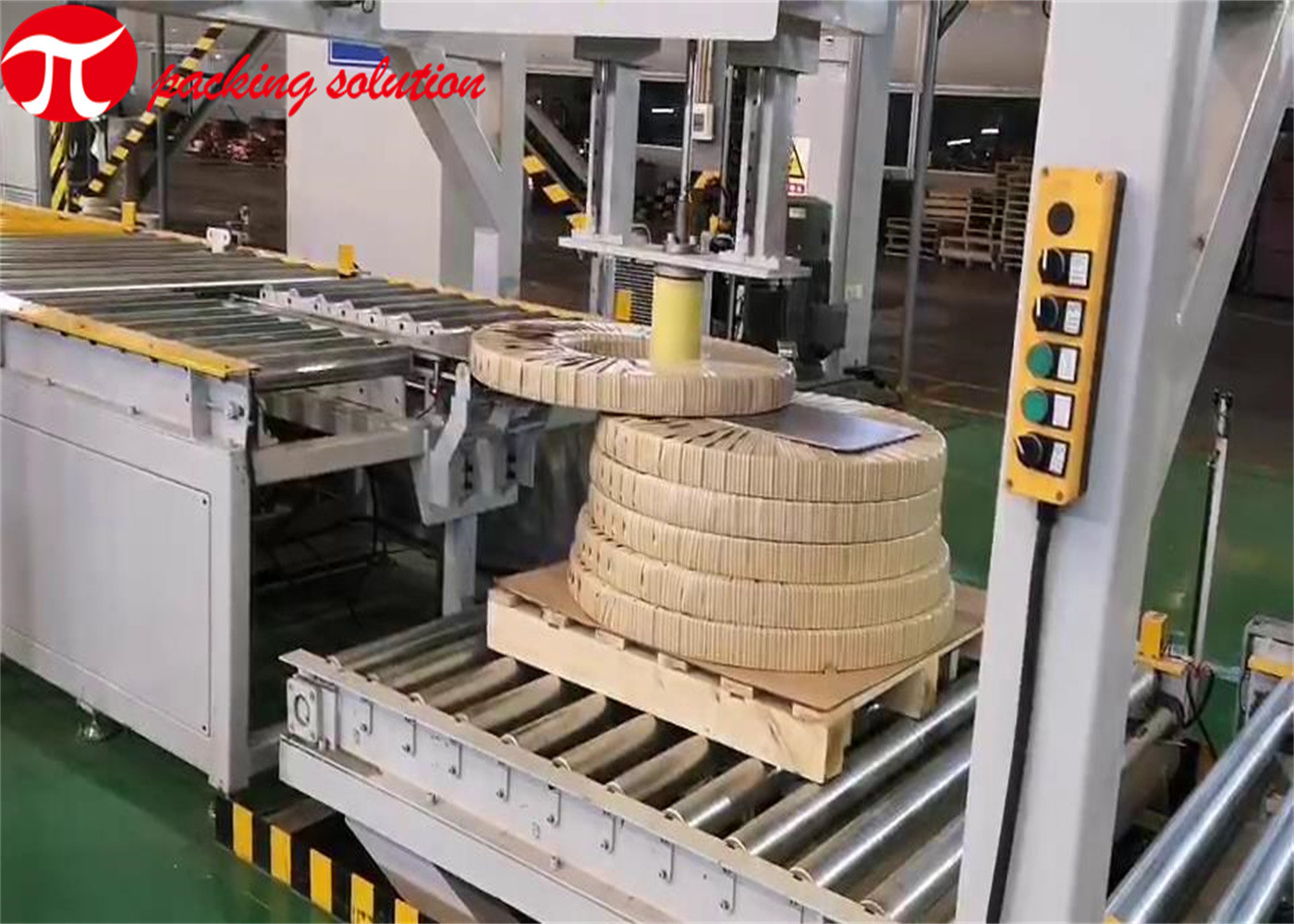

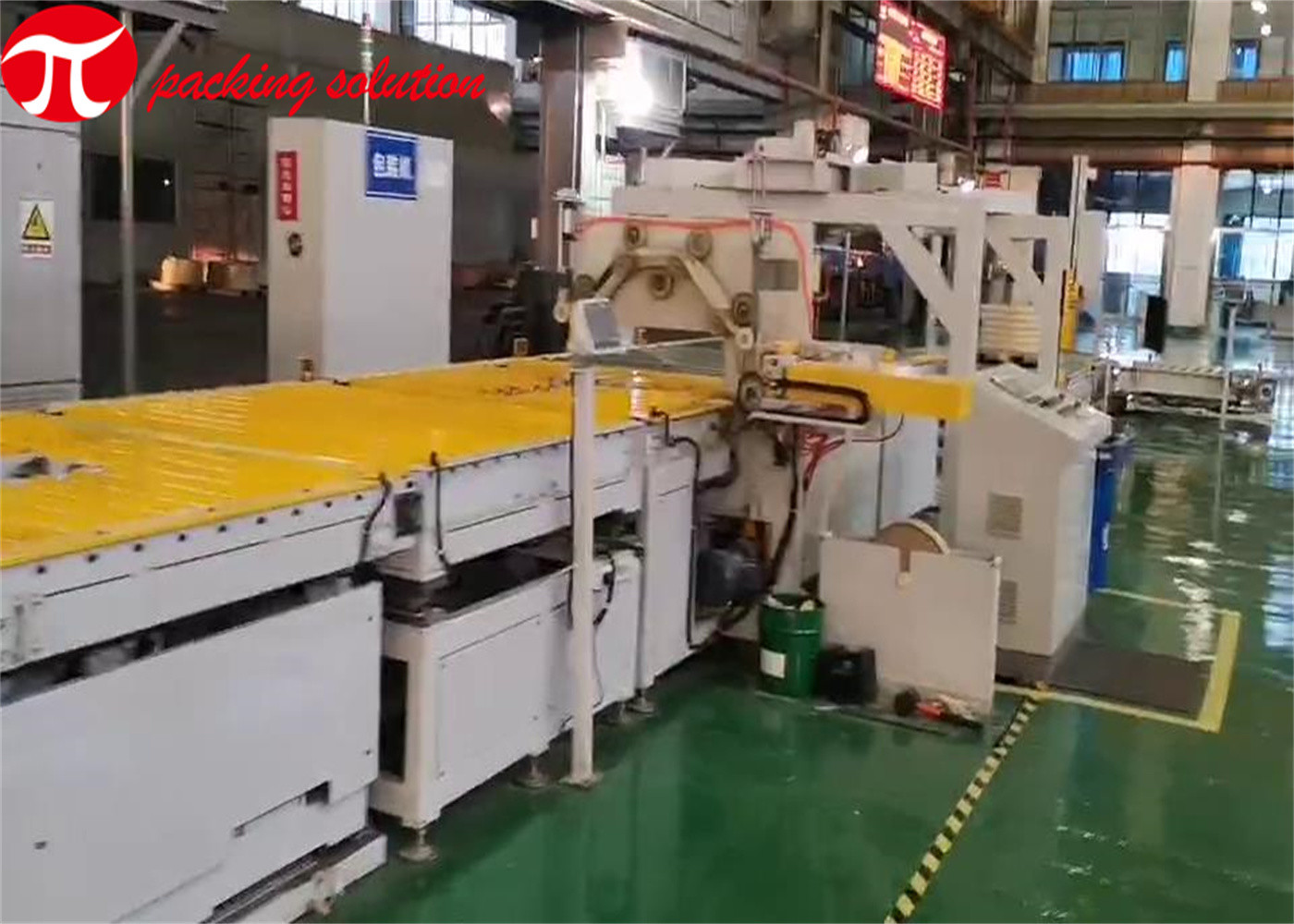

Labor Saving Copper Strip Coil Packaging Line with turnstile and stacking system 4.0KW 380V 20-80r/min
Production Descripment:

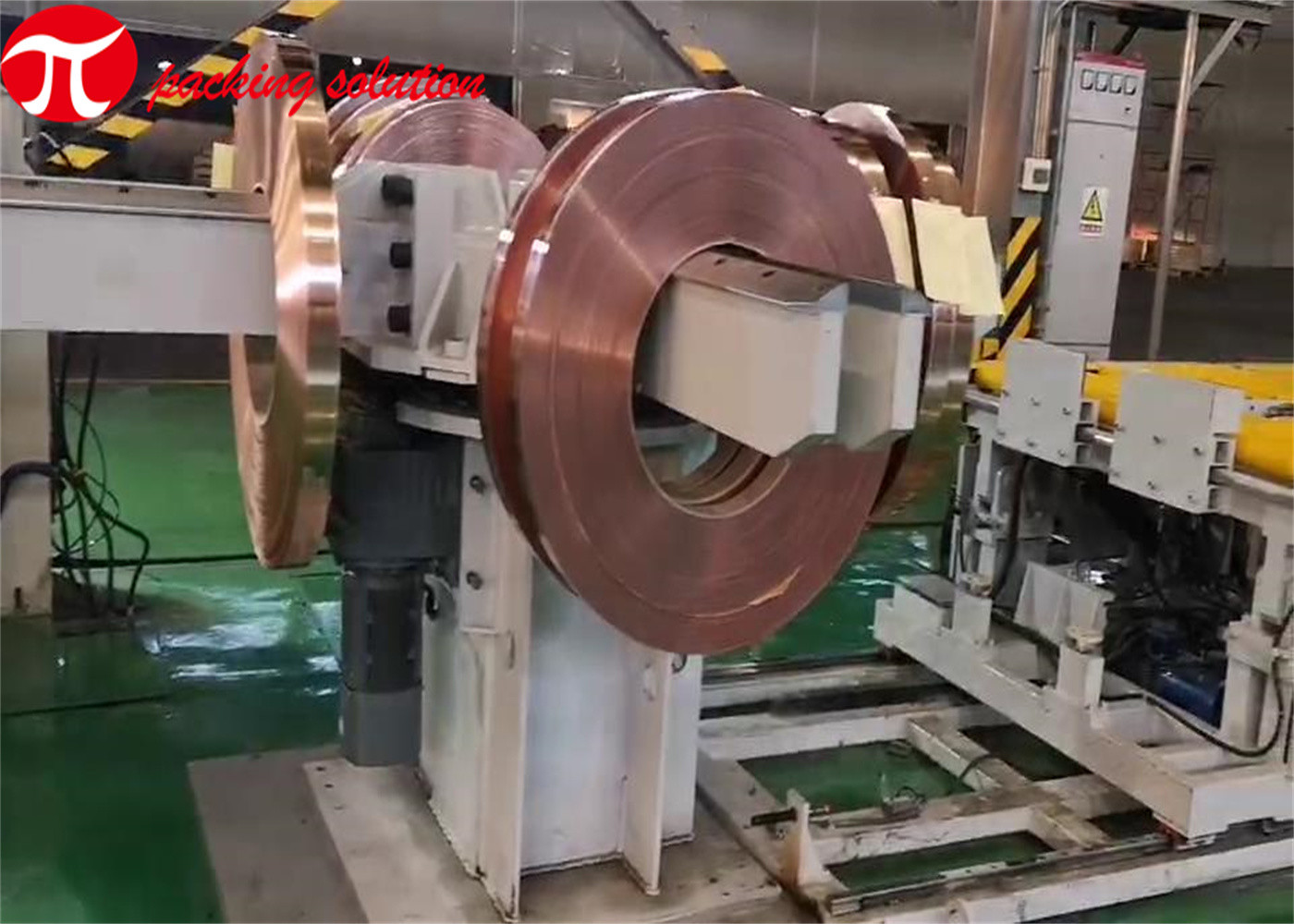

The copper coil packing machine is developed for packing different ring-shaped products including steel coils, aluminum coils, copper coils, wire coils, cable coils, pipe coils, tyres&etc by stretch film, paper or other packing material available. Easy operation and convenient maintenance. It greatly save the labor force and improve the work efficiency from the traditional manual packing.
Automatic Copper Strip Coil Packing Machine Labor Saving 4.0KW 380V features:
Automatic Copper Strip Coil Packing Machine Labor Saving 4.0KW 380V parameters:
Model | GD300 | GD600 |
Type | Wrapper moveable | Wrapper moveable |
Coil OD | 700mm-1500mm | 700mm-1500mm |
Coil ID | 508mm/610mm | 508/610mm |
Coil width | 20mm-300mm | 30mm-600mm |
Coil weight | 50kg-2000Kg | 50kg-3000Kg |
Roller speed | 5-8m / min | 5-8m / min |
Ring speed | 80r/min | 80r/min |
Power supply | AC/380V/50Hz | AC/380V/50Hz |
Air supply | 6-8kgf/cm2 | 6-8kgf/cm2 |
Driven type | Electric | Electric |
Power output | About 4.0KW | About 4.0KW |
Wrapping material |
Knit tape/VCI paper, etc: width:80-100mm; ID:55mm; OD≤500mm Stretch film: width:80-100mm; ID:50mm;OD≤150mm |
Knit tape/VCI paper, etc: width:80-100mm; ID:55mm; OD≤500mm Stretch film: width:80-100mm; ID:50mm;OD≤150mm |
Automatic mechanical hand | Optional | Optional |
HMI screen | Optional | Optional |
Synchronous wrapping system | Optional | Optional |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
