Horizontal Wrapping Steel Coil Packing Machine 380V 50HZ 800mm OD

Horizontal Wrapping Steel Coil Packing Machine 380V 50HZ 800mm OD
Horizontal Wrapping Steel Coil Packing Machine 380V 50HZ 800mm OD
Horizontal Wrapping Steel Coil Packing Machine 380V 50HZ 800mm OD Horizontal Wrapping Steel Coil Packing Machine 380V 50HZ 800mm OD Horizontal Wrapping Steel Coil Packing Machine 380V 50HZ 800mm OD Horizontal Wrapping Steel Coil Packing Machine 380V 50HZ 800mm OD Horizontal Wrapping Steel Coil Packing Machine 380V 50HZ 800mm OD Horizontal Wrapping Steel Coil Packing Machine 380V 50HZ 800mm OD Horizontal Wrapping Steel Coil Packing Machine 380V 50HZ 800mm OD Horizontal Wrapping Steel Coil Packing Machine 380V 50HZ 800mm OD Horizontal Wrapping Steel Coil Packing Machine 380V 50HZ 800mm OD Horizontal Wrapping Steel Coil Packing Machine 380V 50HZ 800mm OD
Basic Information
Place of Origin: China
Brand Name: jlpack
Certification: ISO9001，CE
Model Number: GW200
Minimum Order Quantity: 1
Packaging Details: Wooden case /standard container
Delivery Time: Stand-alone 1 week ,the packing line 150days
Payment Terms: T/T
Supply Ability: 200 sets/Year
Get Best Price Contact Now
Application: Steel, Wire,copper,aluminium Driven Type: Electric
Voltage: 380V/50HZ Packaging Material: Stretch Film,paper,knit Plastic
Packaging Type: Film Stretch Wrapping Coil OD: 800mm
Coil ID: 600mm Coil Weight: 300KG
Warranty: 12 Months Packaging Usage: Stacking Transportation
Highlight:

380V Steel Coil Packing Machine

,

800mm Steel Coil Packing Machine

,

380V Automatic Steel Coil Wrapping Machine

High Safety Horizontal Automatic Steel Coil Wrapping Machine 380V 50HZ 800mm Coil OD





MACHINE APPLICATION:

With an aim to fulfill varied requirements of our valued clients, we are engaged in offering the high performance steel coil strip wrapping machine which is applied for automatic packing a wide range of steel strips in horizontal state, to make the copper strip well-protected from influence of water, dust, rust, etc. with high efficiency and nice packaging for saving material and labor cost.



BASIC FEATURES:

  1. Automatic or semi-auto control can be chose according needs.
  2. With motor driven powered roller conveyor for automatic loading&offloading of the copper coils.
  3. High anti-friction PU adopted for friction wheels; whole casting structure for turning ring.
  4. The level height of turning ring is adjustable, suit for different diameter.
  5. Synchronous wrapping system can be chose for wrapping two different material at one operation process.
  6. The supportive and protective rollers wrapped by PU.
  7. Special tension control system, the tension and overlapping rate of packing material can be adjusted according to needs.
  8. Central positioning for best packaging performance.
  9. Different packing material can be chose.



MAIN PARAMETERS:

Model GW200-N GW200-W
Coil OD 600-1200mm 600-1200mm
Coil ID ≥400mm ≥400mm
Coil width ≤200mm ≤200mm
Coil weight ≤300KG ≤500KG
Cutting type Manual cutting Auto cutting
Ring speed About 70r/min About 80r/min
Wrapping material knit tape, compound paper tape,stretch film, non-woven fabrics,etc knit tape,compound paper tape, etc
Material width 100-120mm 80-100mm
Material OD 200mm 450mm
Material ID 55mm 55mm
Power output 1.5KW 2.2KW
Power supply AC/380V AC/380V
Air supply (6-8kgf/cm2) Without With
Circular labeling system Optional Optional
Synchronous wrapping system Optional Optional



Note: the datas are only for reference, the machine can be custom designed according to specific object size.





Horizontal Wrapping Steel Coil Packing Machine 380V 50HZ 800mm OD 0

OPERATION:

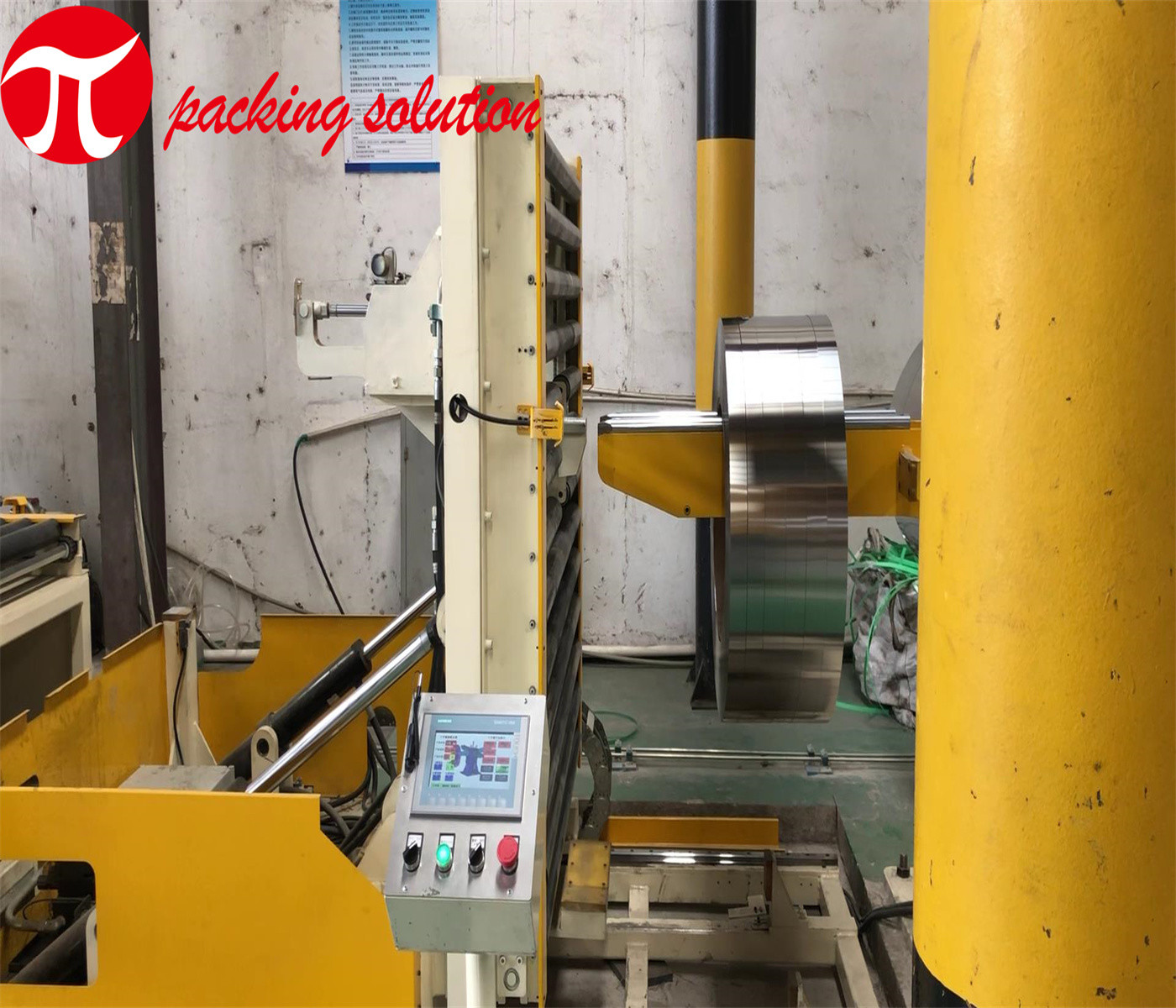

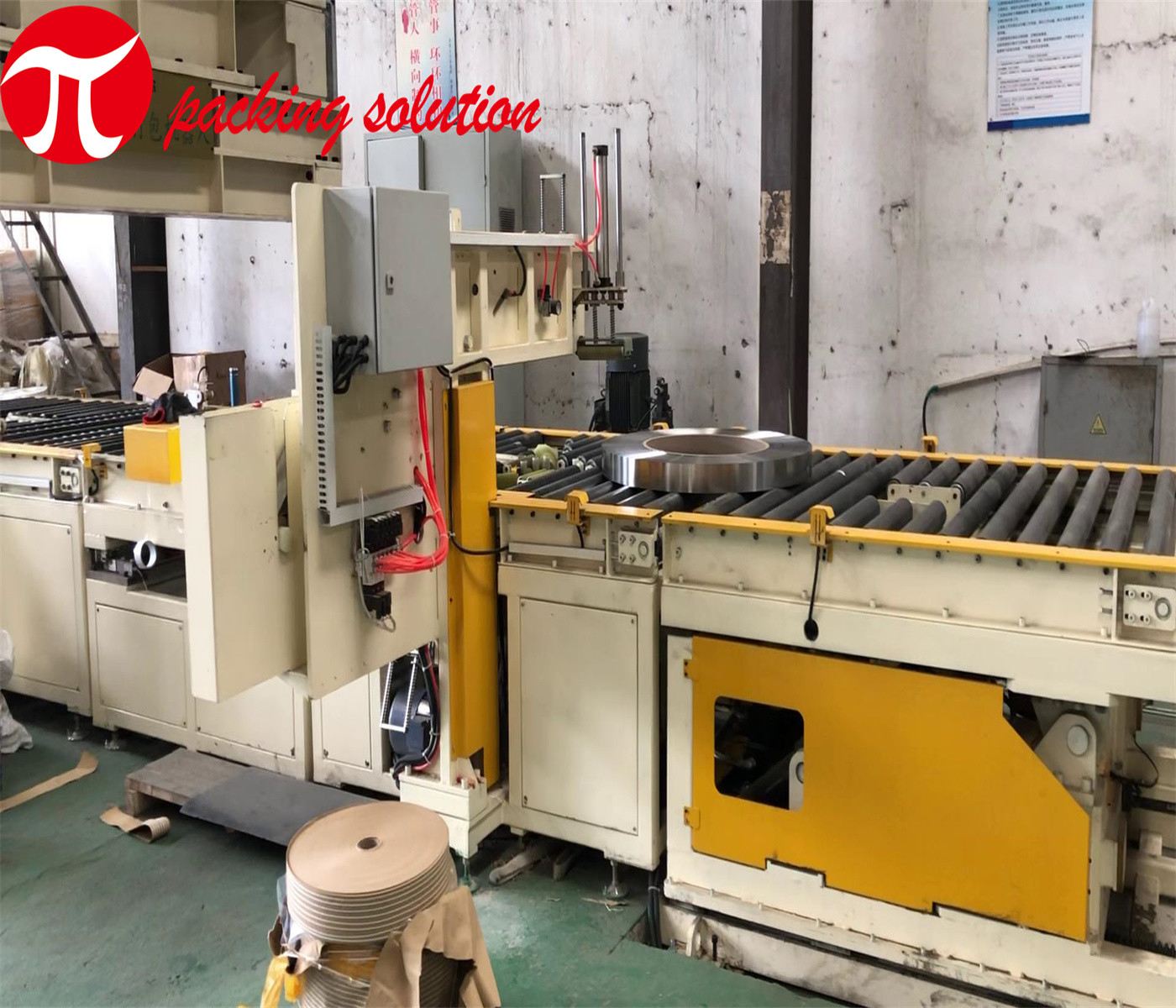

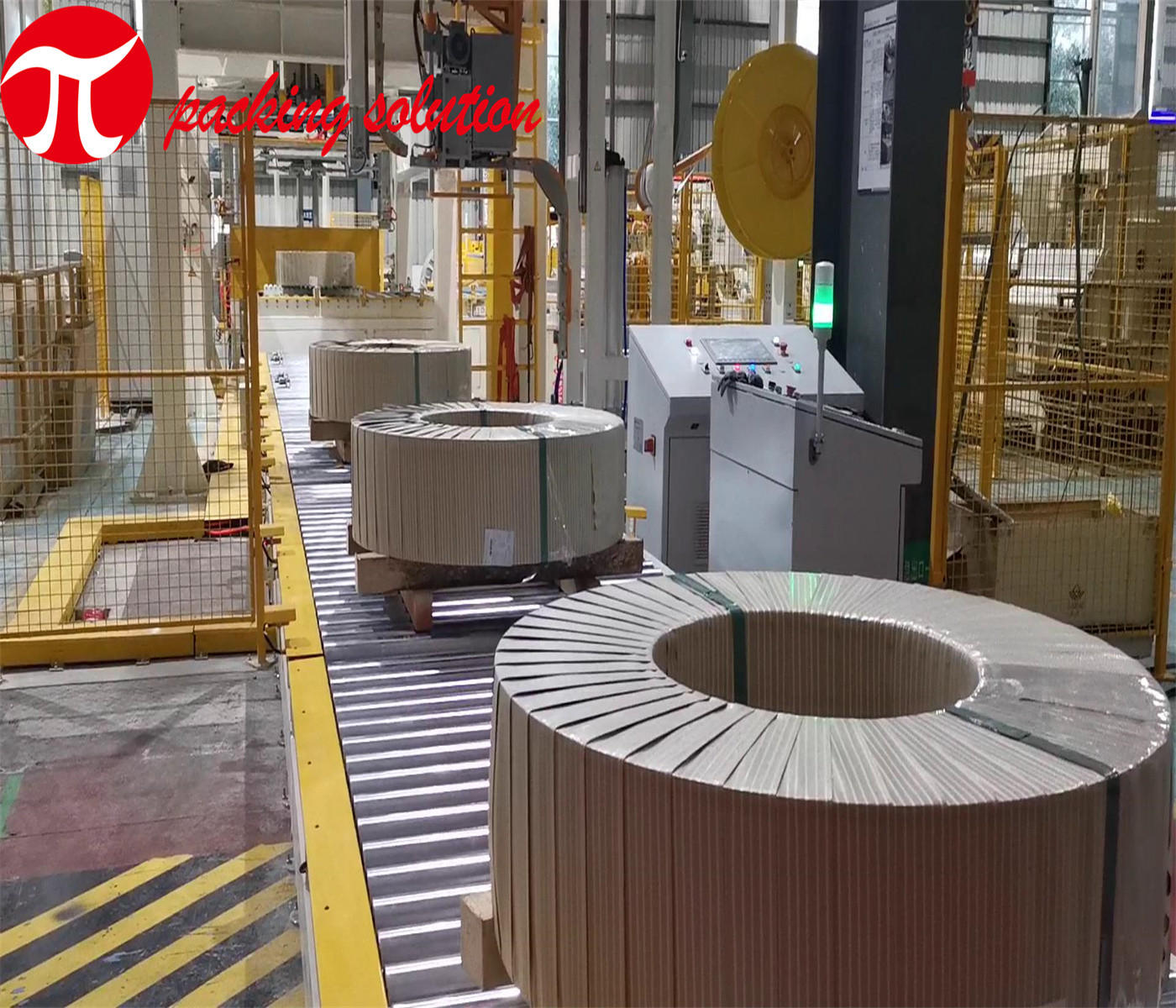

The automatic steel coil wrapping machine includes: powered feeding conveyor, automatic wrapping station, powered discharging conveyor. Operation process is as follow:

  1. Load coil by manual or automatically from the front end of production station to the feeding conveyor of the packing machine.
  2. The conveyor transferred the coil to the wrapping station automatically.
  3. Automatic coil centering.
  4. Automatic coil wrapping.
  5. Automatic cutting the wrapping material.
  6. The packed coil is transferred out from the wrapping station.
  7. Move the coil away from the machine and ready for next packaging.
