INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Steel, Copper, Aluminium And Etc | Driven Type: | Electric |
|---|---|---|---|
| Packing Material: | Stretch Film,paper | Coil Width: | 20mm-300mm |
| Packaging Type: | Film And Paper Wrapping | Roll Weight: | ≤2T |
| Voltage: | 220V/380V/50HZ | Function: | Coil Packing, Strapping, Stacking |
| Warranty: | 1 Year | After-sale Service: | Provide Online Service |
| Highlight: | Horizontal Copper Coil Wrapping Machinery,Copper Coil Wrapping Machine 220V |
||
Application:

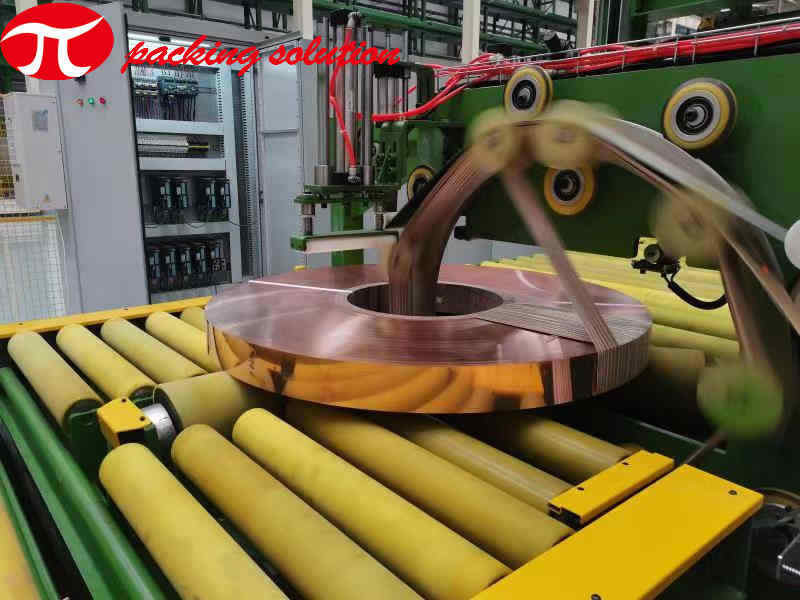

The machine uses composite paper as the main packaging material, which is suitable for coiling, automatic packaging, stacking of slitting steel coils, etc., so that the items are well packaged and stacked, which is convenient for storage and transportation.
Basic composition of copper coil packaging machine:

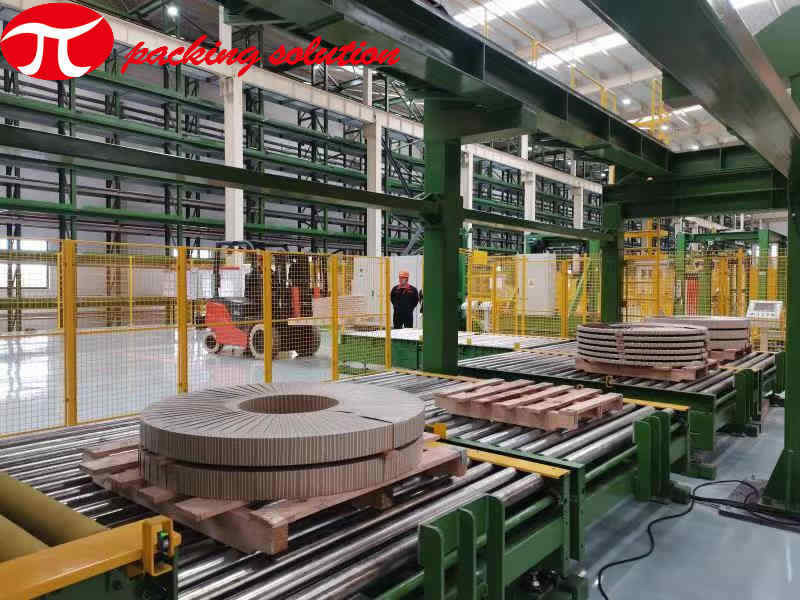

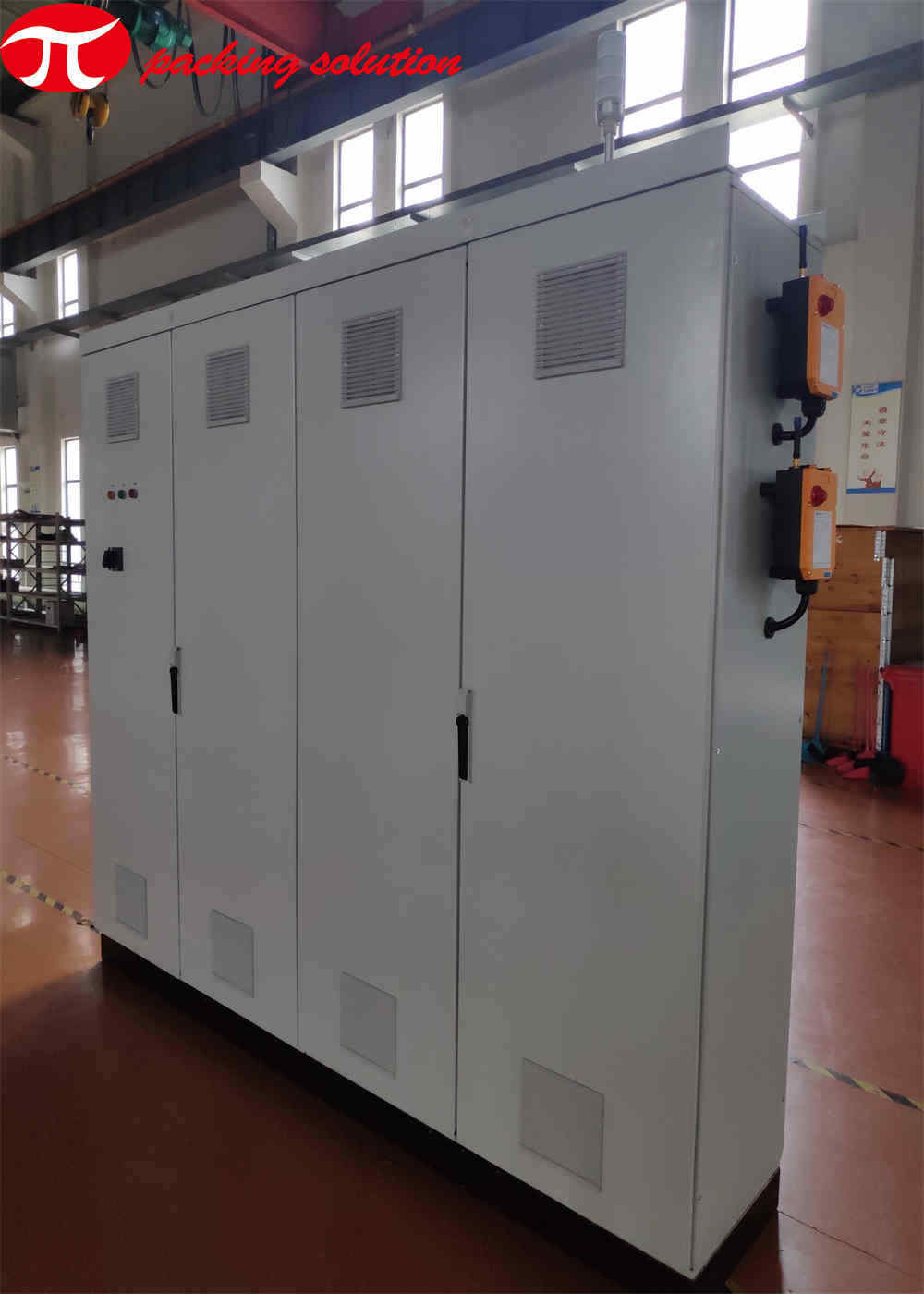

The machine consists of gate, coiling tilting system, net/gross weighing station, PP tape strapping machine, winding machine, palletizing system, steel strapping machine, electrical cabinet, guardrail, hydraulic station, etc.
Main parameters of copper coil packaging machine:
Applicable products: steel coil/copper coil/aluminum coil, etc.
Coil outer diameter: 800mm～1500mm
Coil inner diameter: 508mm～610mm
Coil width: 20mm～300mm
Roll weight:≤2T
Packaging material: LLDPE stretch film/laminate paper
Winding overlap: 30%～80% adjustable
Packaging material size: film roll width 90mm, roll outer diameter 500mm, roll inner diameter 76mm
our products
* Steel/Aluminum/Cable/Wire/Copper/Tube/Tube/Tire coil wrapping machine;
* Horizontal tube/tube/door packing machine;
* Stretch pallet packing machine;
* Fully automatic steel/copper/aluminum coil packing line;
* Automatic bundling, bagging and packaging line for plastic pipes;
* Fully automatic steel tube baling and packaging line;
* Automatic coil tilter;
* Shrink wrapping machine.
our service
We provide complete customer service including:
*Pre-sales service: technical consultation; proven customized solutions; factory tour.
*Sales service: provide drawings; order tracking.
*After-sale service: free spare parts; overseas installation and commissioning; technical consultation.
