INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001,CE |
| Model Number: | GW100 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Metal And Matel Coils | Product Width: | ≦150mm |
|---|---|---|---|
| Product ID: | ≧150MM | Product Weight: | ≦25KG |
| Ring Speed: | 60-100r/min | Power: | 1.2KW |
| Air Supply: | 6-8kgf/cm2 | Convey Mode: | Artificial |
| Wrapping Material: | LLDPE Stretch Film/compound Paper | Warranty: | 12 Months |
| Highlight: | 1.2KW Horizontal Wrapping Machine,100r/min Horizontal Wrapping Machine |
||

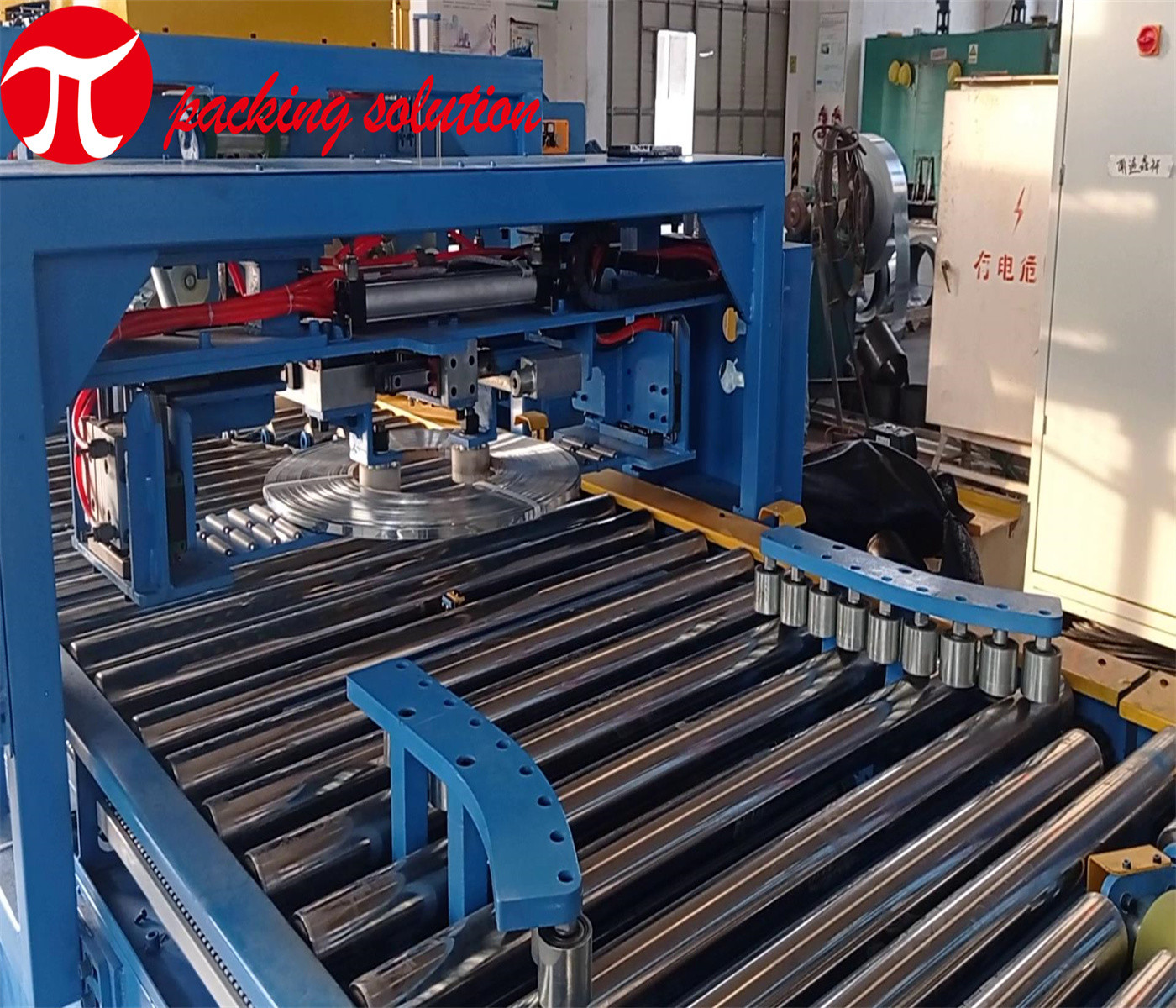

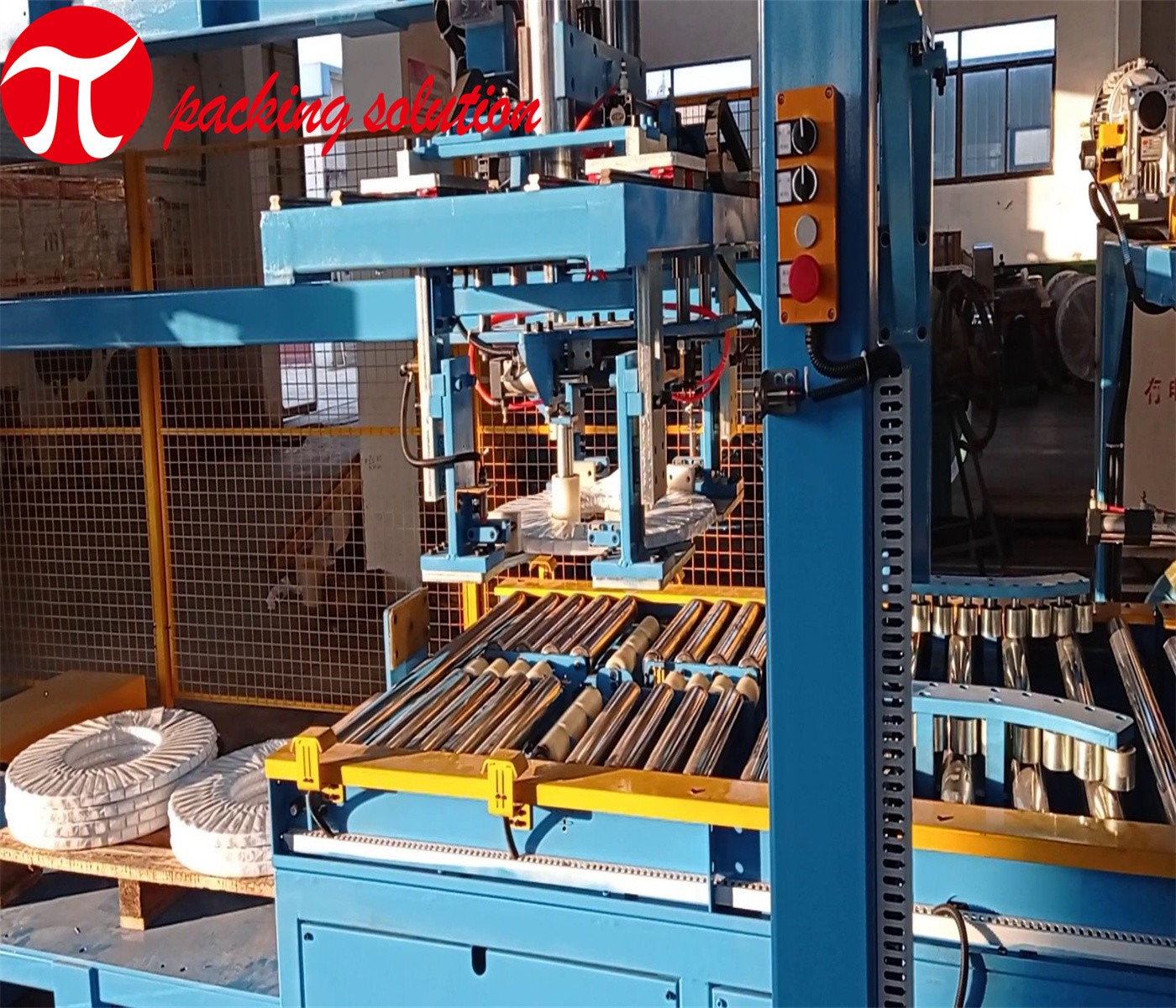

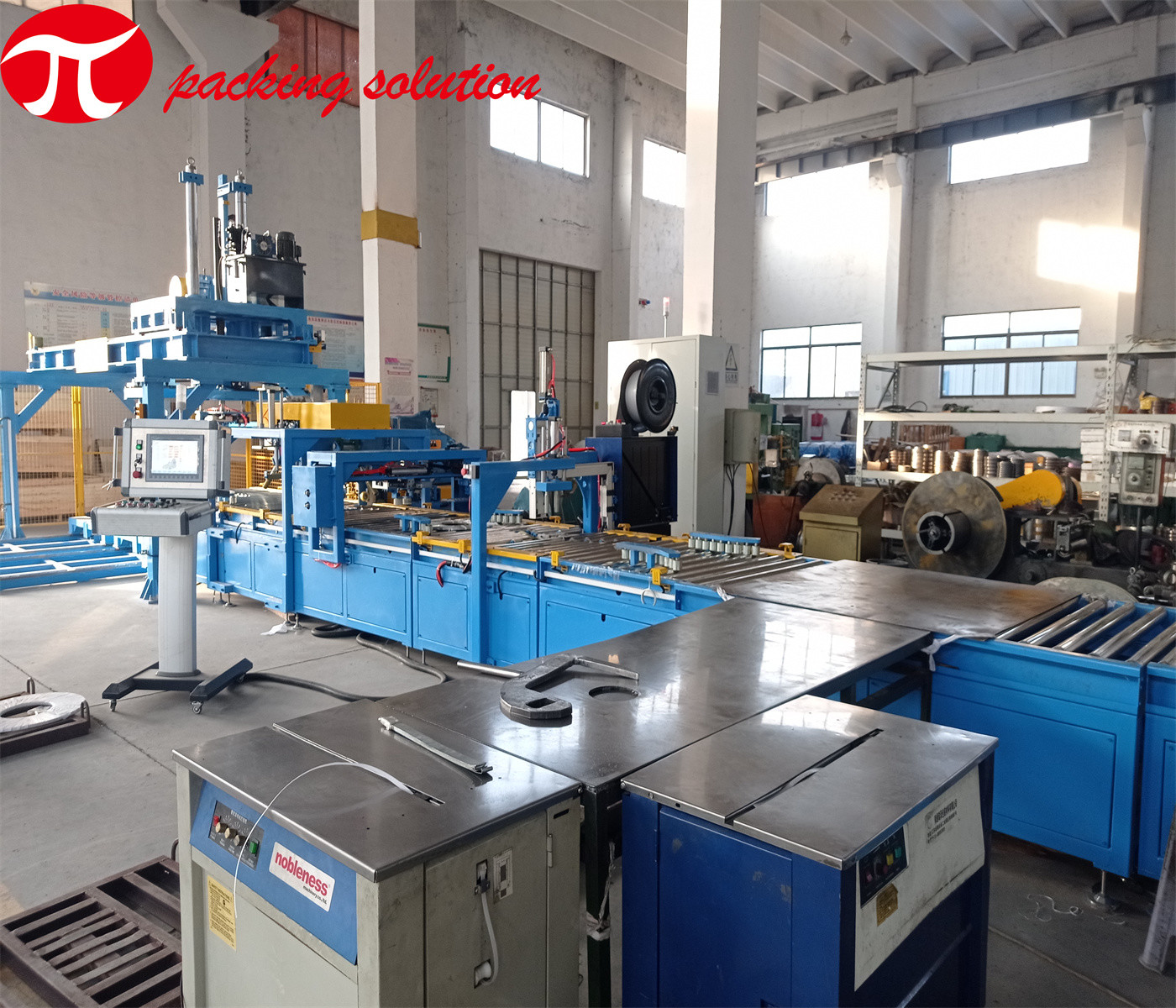

Strong Tension Horizontal Wrapping Machine With PLC Programmer Controller
Horizontal Wrapping Machine Application:
The horizontal wrapping machine is a winding packaging equipment specially designed for various metallurgy, rubber and plastic industries. It is widely used in stainless steel pipes, plastic pipes, steel pipes, copper pipes, copper bars, aluminum profiles, aluminum pipes. Bars, flats, profiles, cylinders, door panels, wood-plastic panels, steel plates, pallets, etc. are all wrapped in long straight products, which are easy to transport and store, and improve the appearance quality of the products. The object to be packaged is relatively sealed to provide good protection, fixation and decoration.
Horizontal Wrapping Machine Technical data:
| Model | GW100 |
| Product width | ≦150mm |
| Product OD | ≦400mm |
| Product ID | ≧150MM |
| Product weight | ≦25KG |
| Ring speed | 60-100r/min |
| Wrapping material | Stretch film,Compound paper |
| Material width | 520mm |
| Material ID | 20/55mm |
| Material OD | 80-450mm |
Horizontal Wrapping Machine Advantages:
• Protect the surface of the product
• Improve production efficiency
• Dust proof
• Moisture proof
• High efficiency
• Heavy duty appearance
