INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001,CE |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Steel Coil And Other Coiled Objects | Packaing Material: | Stretch Film/compound Paper |
|---|---|---|---|
| Product OD: | 300mm/2000mm | Product ID: | 200mm/800mm |
| Product Width: | 100mm/300mm | Voltage: | 380V/50Hz |
| Type: | Packaging Machine | Packaging Usage: | Easy To Transport And Store |
| Warranty: | 12 Months | Colour: | Customized |
| Highlight: | 50Hz Industrial Wrapping Machine,380V Industrial Wrapping Machine,PLC Horizontal Wrapping Machine |
||

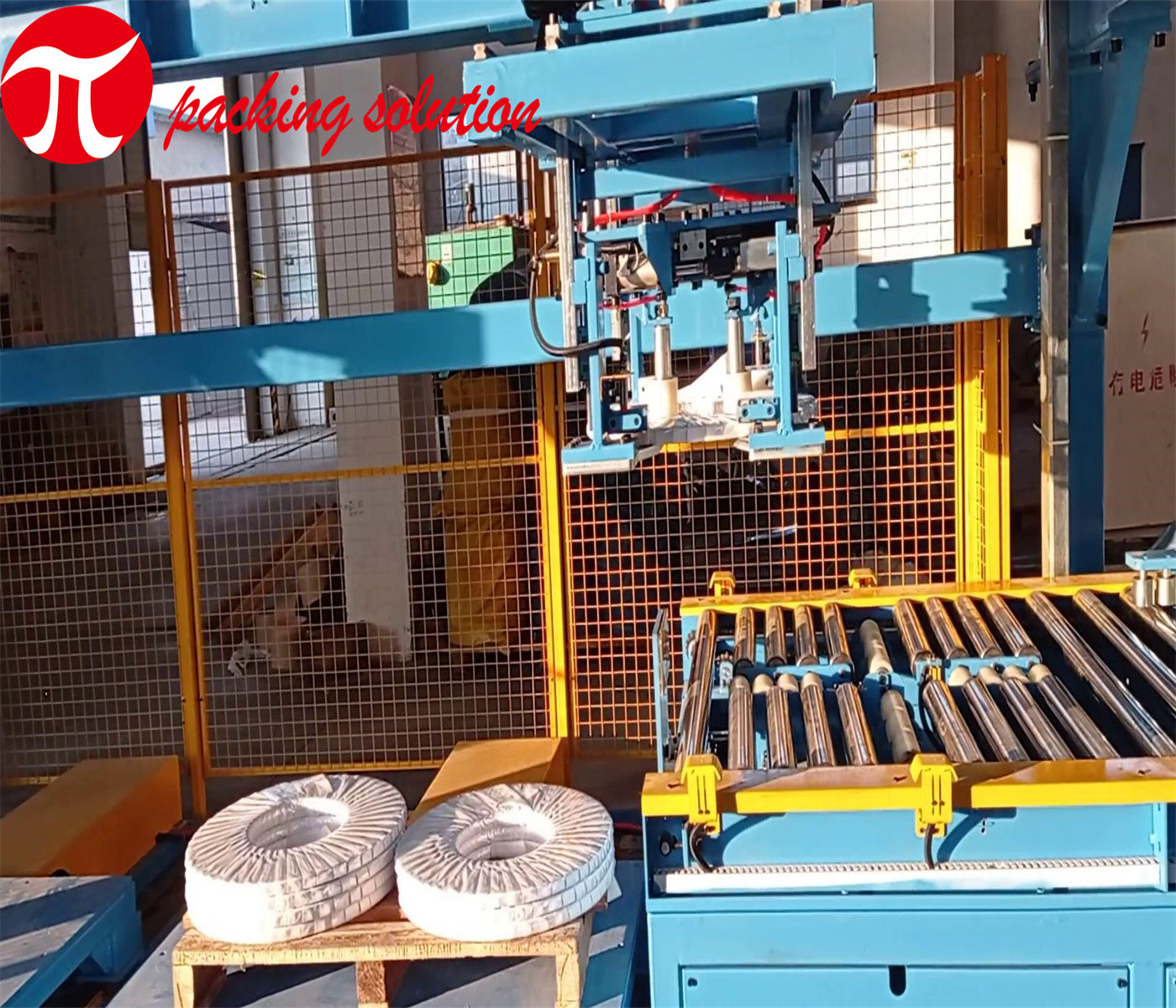

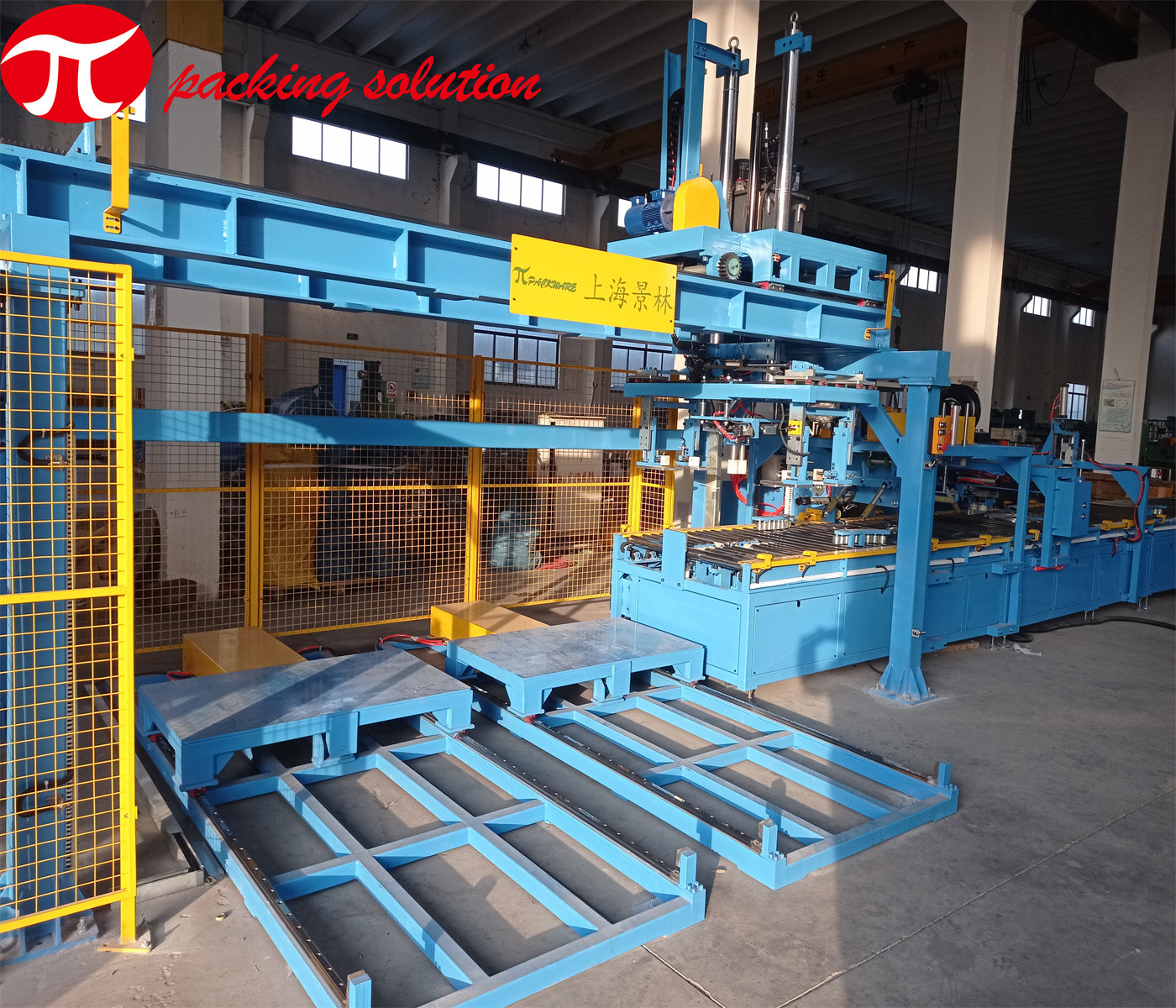

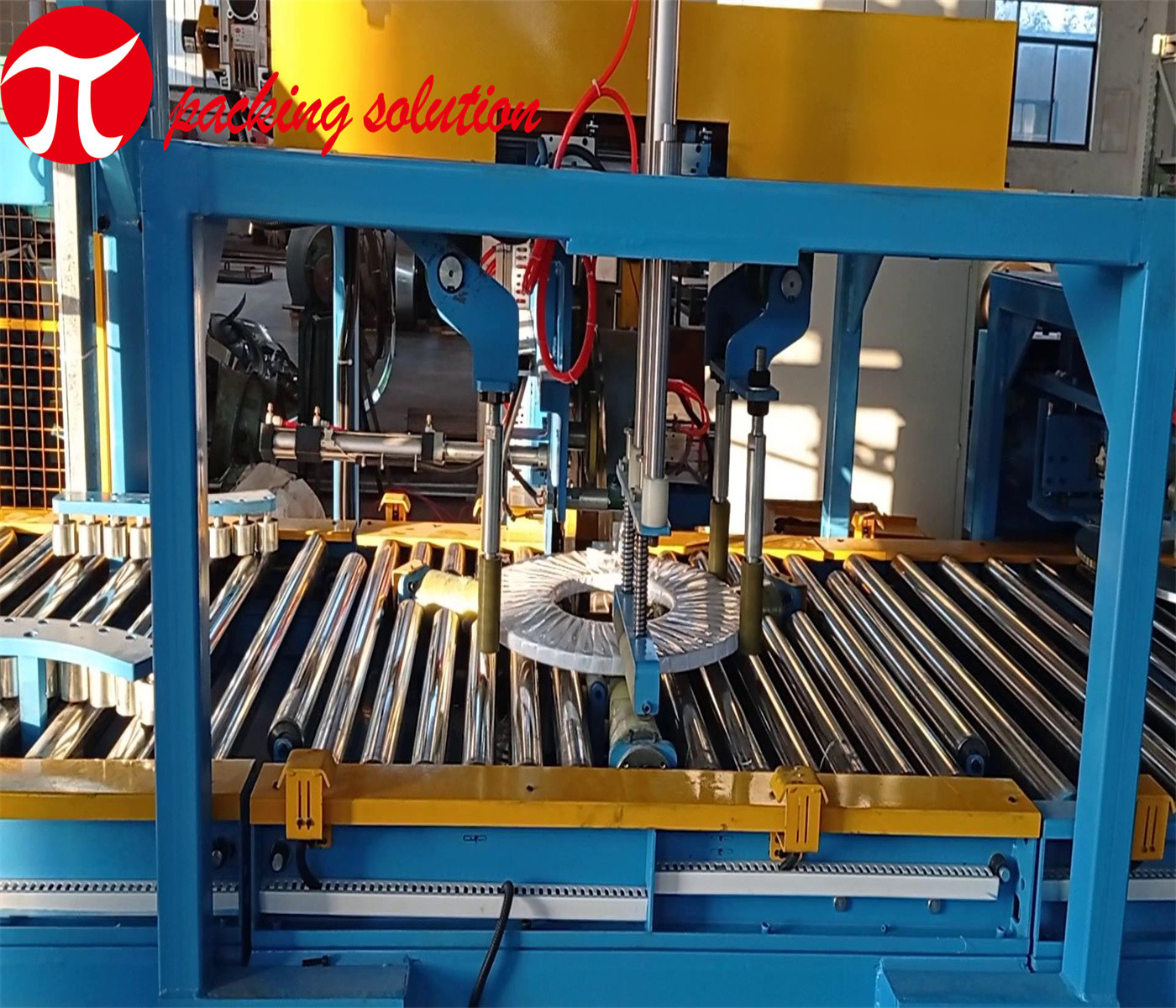

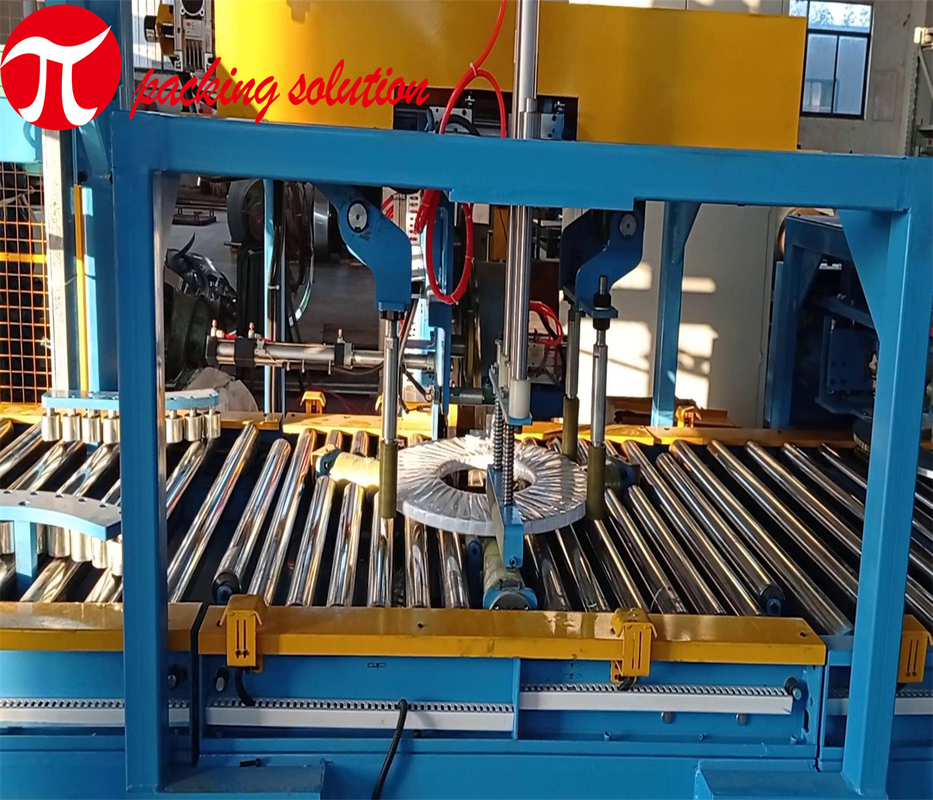

Horizontal Industrial Wrapping Machine for steel coils with PLC program control
Product description:
The horizontal industrial wrapping machine is widely applied for wrapping copper coil,steel coil,aluminum coil,bearing,steel wire coil, cable coil,rubber coil and other coil objects,which are easy to transport and store,and improve the appearance quality of the products.The object to be packed is relating sealed to provide good protection,fixation and decoration.
Product technical data:
| Model | GW100 | GW400 |
| Wrapping material | Stretch film/compound paper | Stretch film/compound paper |
| Material size | Width:50mm,ID:20mm | Width:150mm,ID:50mm |
| Ring speed | 60-100r/min | 70r/min |
| Product width | 100mm | 300mm |
| Product OD | 300mm | 2000mm |
| Product ID | 200mm | 800mm |
Note: The datas are only for reference, the machine can be custom designed according to specific object size.
Product basic features:
1.Simple structure, easy and safe operation.
2.PLC adopted for automatic program control.
3.Indicator alarms automatically when trouble occurs, and errors will be shown automatica lly.
4.HMI for option for more intelligent control.
5.A wide range size of steel coils can be wrapped by this machine.
6.The ring height could be adjusted for different object ID&OD.
7.Anti-wearing polyurethane is adopted for the friction wheel, ring with integral mould structure.
8.Different packing material can be used according to your needs.
9.The carrier roller and protective roller are wrapped with polyurethane.
10.Soft start, soft stop and precise reset of the ring.
