INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001,CE |
| Model Number: | GD400 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Metal Coiled Objects | ID: | 508/610mm |
|---|---|---|---|
| OD: | 1200MM | Weight: | 2000KG |
| Width: | 300MM | Wrapping Material: | Paper/stretch Film&etc |
| Power Type: | Electricity | Power Supply: | 380V/50Hz |
| Power: | 3.5KW/4.5KW | Warranty: | 12 Months |
| Highlight: | 70r/Min Vertical Coil Packing Machine,Vertical Coil Packing Machine,3.5KW Metal Coil Packing Machine |
||

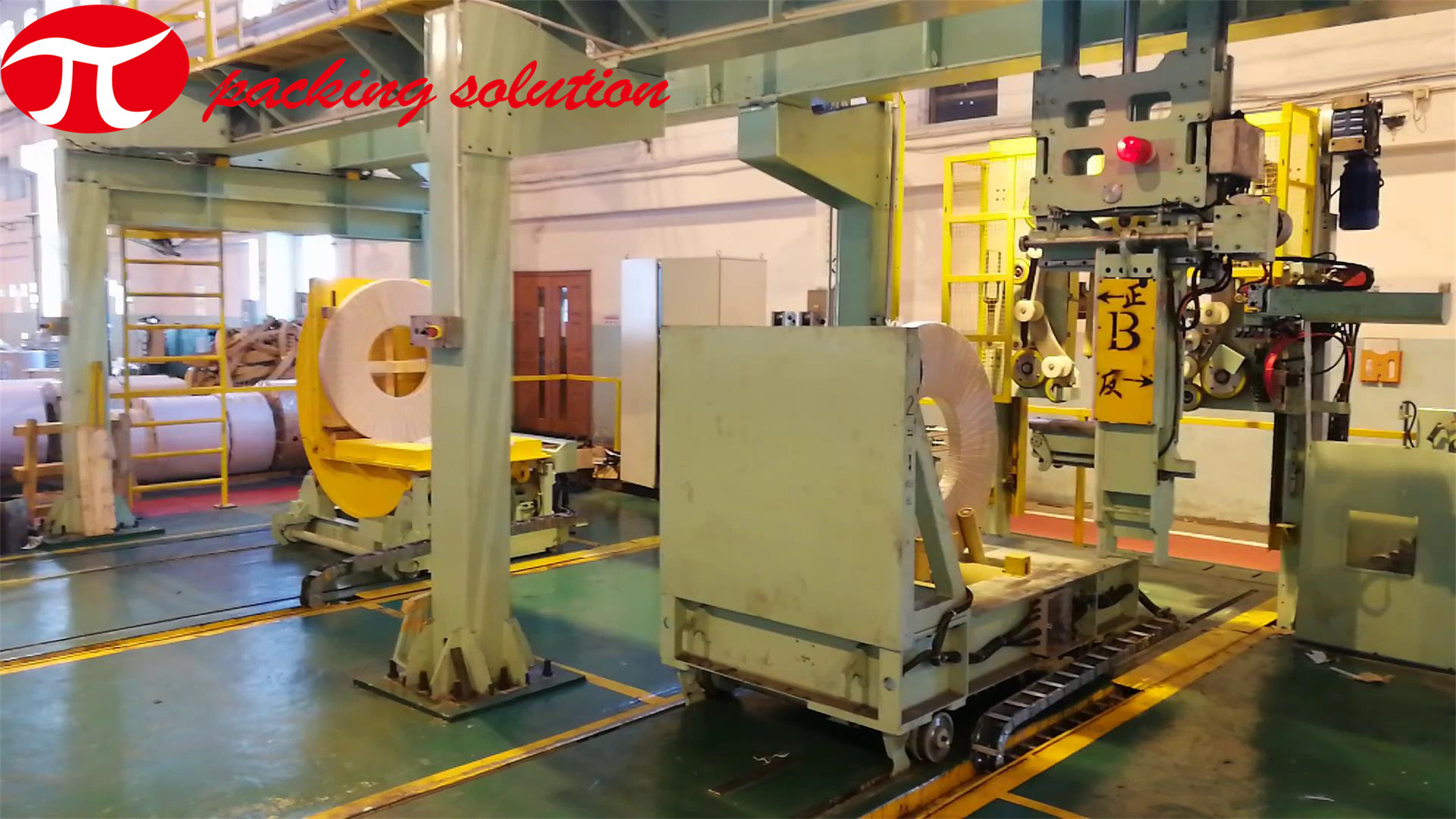

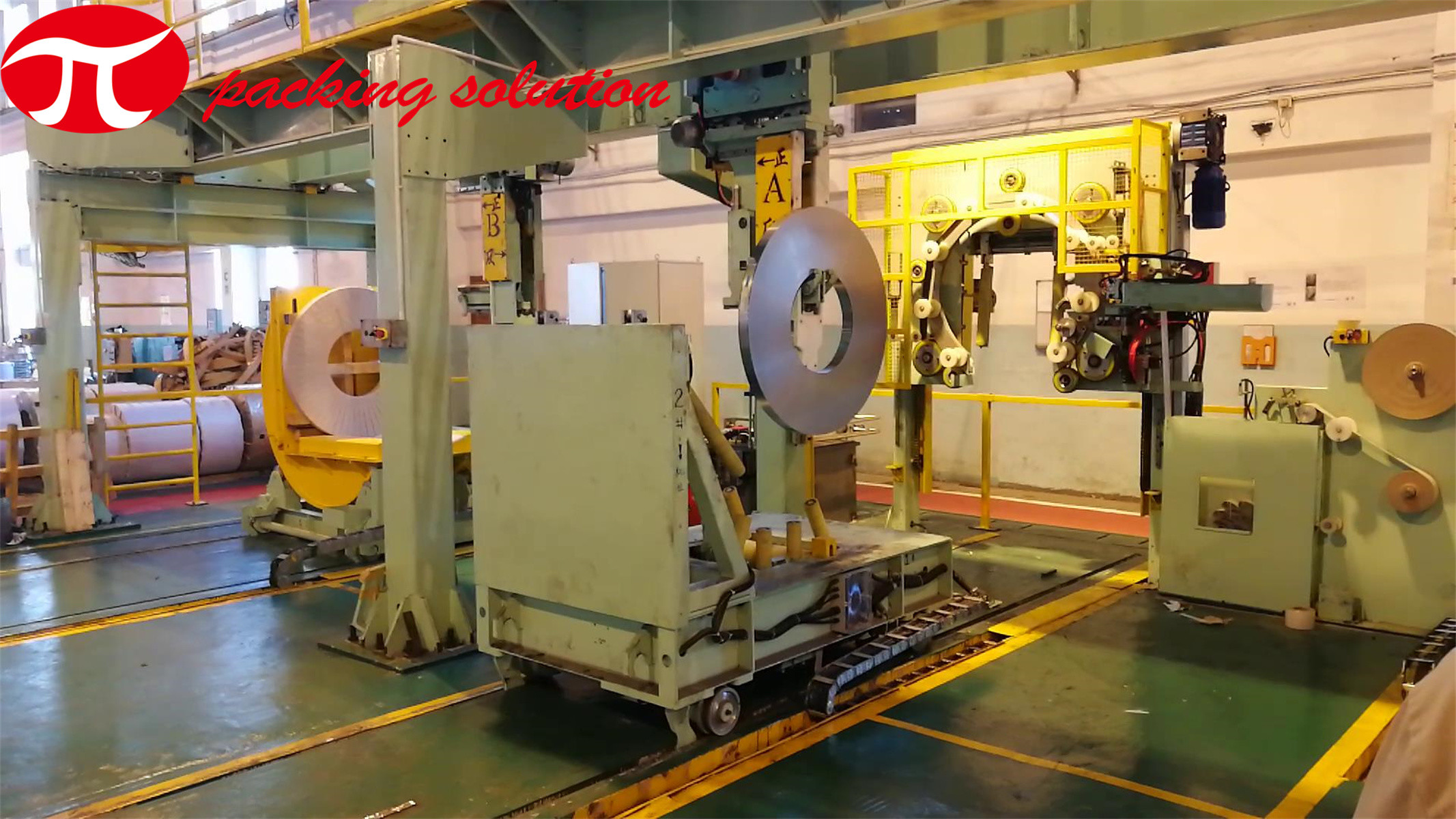

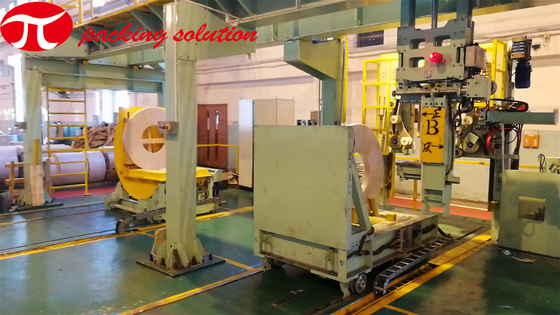

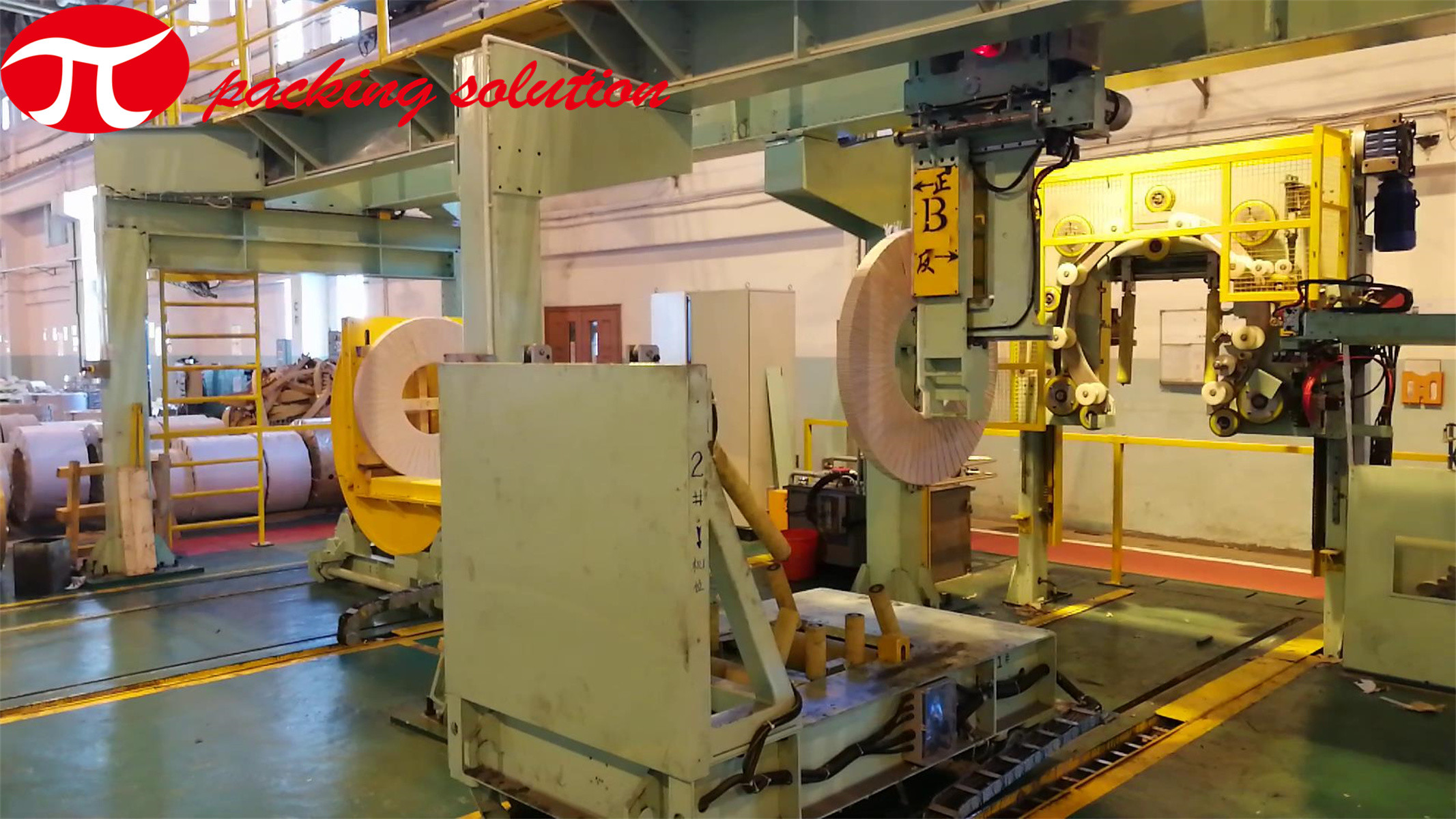

Simple operation 70r/min ring speed Vertical coil packing machine for improving efficiency
The machine's application:
The machine is mainly designed for matallurgical industries and widely used for wrapping steel coil,copper coil,aluminum coil ,wire coil and other coiled objected.
The machine's basic features:
1.Designed with a moving trolley station for high efficient loading and safe operation.
2.Adopt PLC program control and HMI screen operation.
3.The overlapping of wrapping material is adjustable by converters.
4.The turning ring height adjustable according to different metal coil diameter.
5.The ring speed and roller speed can be controlled by converters.
6.Steady tension control system.
7.Solid whole casting structure for turning ring.
8.A wide range of different kinds of wrapping material can be used.
9.Stable performance and convenient maintenance of the metal coil packing machine.
The machine's technical data:
| Model | GD400 |
| OD | 1200MM |
| ID | 508/610MM |
| Width | 300MM |
| Weight | 2000KG |
| Ring speed | 70r/min |
| Roller speed | 4-7m/min |
| Power | 3.5/4.5KW |
| Power supply | AC/380V/50Hz |
| Wrapping material | Paper/stretch film&etc |
| Synchronous wrapping | Optional |
| Automatic manipulator | Optional |
