INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001,CE |
| Model Number: | GW100/200 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Steel Coil,copper Coil And Wire | OD: | 300mm/1000mm |
|---|---|---|---|
| ID: | 90mm/500mm | Width: | ≦120mm/250mm |
| Product Weright: | ≦20KG/400KG | Packing Material: | Flim/compound Paper |
| Convey Mode: | Manual | Power Supply: | 380V/ 50Hz |
| Warranty: | 12 Months | Packaging Usage: | Dustproof/waterproof/rustproof |
| Highlight: | 50Hz Steel Coil Packing Machine,380V Steel Coil Packing Machine,Horizontal Packing Machine |
||

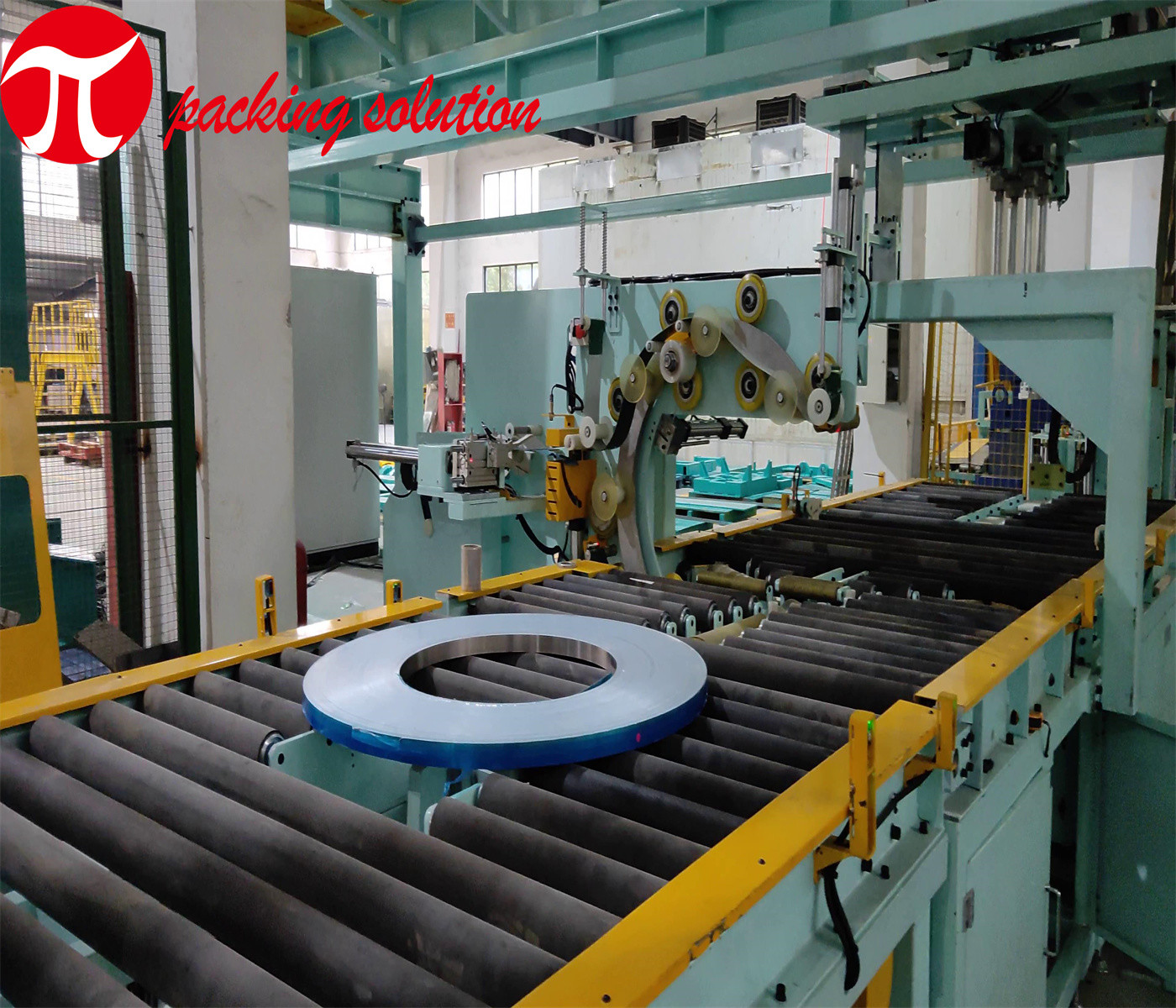

GW100/200 Automatic Alarm Horizontal Coil Packing Machine with manual delivery mode
Horizontal Packaging Machine Main performance:
•Automatic alarm and automatic display the fault contents.
•The configuration is excellent, and the main components are all international famous brands.
•It adopts PLC programmable controller and human-machine dialogue touch screen.
•Photoelectricity automatically tracks the length of the package and accurately locates it.
•The slip ring is integrally cast, the texture is even and firm, the precision is reset, and the slow start and slow stop, the packaging ends, and the automatic positioning.
Horizontal Packaging Machine Application:
It's widely applied for wrapping copper coil,steel coil,aluminum coil and etc.
Horizontal Packaging Machine details:
| Product type | GW100 | GW200 |
| Product Width | ≦120mm | ≦250mm |
| Product ID | 90mm | 500mm |
| Product OD | 300mm | 1000mm |
| Product Weright | ≦20KG | ≦400KG |
| Ring speed | 60-100r/min | 70r/min |
| Packing material | Flim/compound paper | Flim/compound paper |
| Material size | Width:50mm ID:20mm OD:80-450mm | Width:90mm ID:55mm OD:200-450mm |
