INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001,CE |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Metal Coils | Wrapping Material: | Knit/compound Paper |
|---|---|---|---|
| Material Size: | Width;90mm ID:55mm OD:200-450mm | Ring Speed: | 70r/min |
| Product ID: | ≧300mm | Product OD: | ≦1000mm |
| Product Weight: | ≦800mm | Convey Mode: | Unpowered Conveying |
| Warranty: | 12 Months | Product Nature: | Customized |
| Highlight: | 1000mm Horizontal Wrapping Machine,70r/Min Horizontal Wrapping Machine,ISO9001 High Speed Wrapping Machine |
||

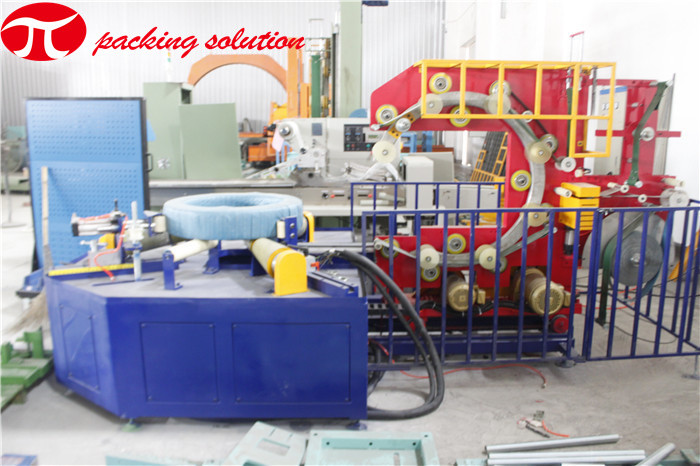

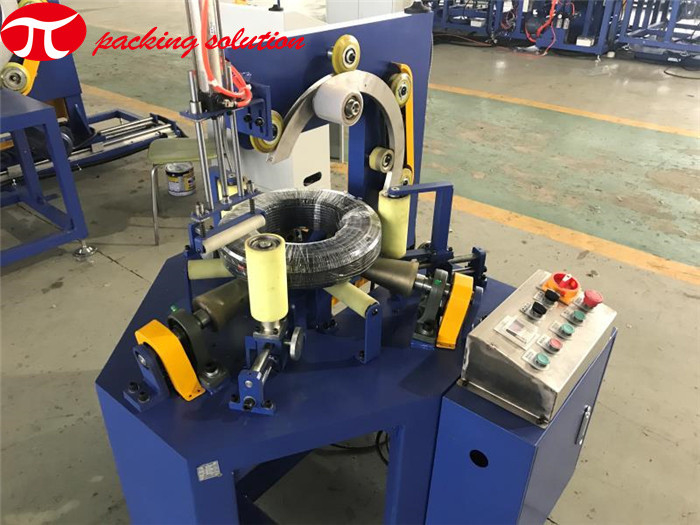

High Speed Horizontal Wrapping Machine For Products Package to provide good protection
Machine's Description:
Horizontal Wrapping Machine Manufacturers Serving you with the best Horizontal Stretch Wrapping Machines, we also serve you with it's effective as well as efficient performance within a restricted time frame. Along side this, the most noticeable thing about us is that we provide the products at the most prominent and the market's leading rates.
Machine's mail data:
| Model | GW300 | KW300 |
| Coil Width | ≦200mm | ≦300mm |
| Coil OD | ≦1000mm | ≦1200mm |
| Coil ID | ≧300mm | ≧300mm |
| Coil Weight | ≦800KG | ≦2000KG |
| Power | 2.0KW | 7.5KW |
| Ring speed | 70r/min | 70r/min |
| Worktable height | 800mm | 800mm |
Operations:
1. Load the coil onto the trolley by crane/lifting rope/hoist;
2. Forward the trolley with the coil wrapping position;
3. Set the coil dimensions and related datas in the HMI screen.
4. Fix the wrapping tape on the metal coil;
5. Machine start wrapping and stops automatically;
6. Move out the packed coil from the wrapping station by trolley;
7. Unload the packed coil by crane.
