INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Driven Type: | Electric | Packaging Material: | Stretch Film,paper Or Knit Tape |
|---|---|---|---|
| Application: | Steel, Copper, Aluminium And Metallurgic Industries | Type: | Packing Line |
| Packaging Type: | Film And Paper Wrapping | Width: | 60mm-500mm |
| Voltage: | 380V/50HZ | Warranty: | 12 Months |
| Weight: | ≤4T | Automatic Grade: | Automatic |
| Highlight: | Vacuum Chuck Wire Coil Wrapping Machine,1500mm Wire Coil Wrapping Machine,Automatic Horizontal Wrapping Machine |
||
Application:

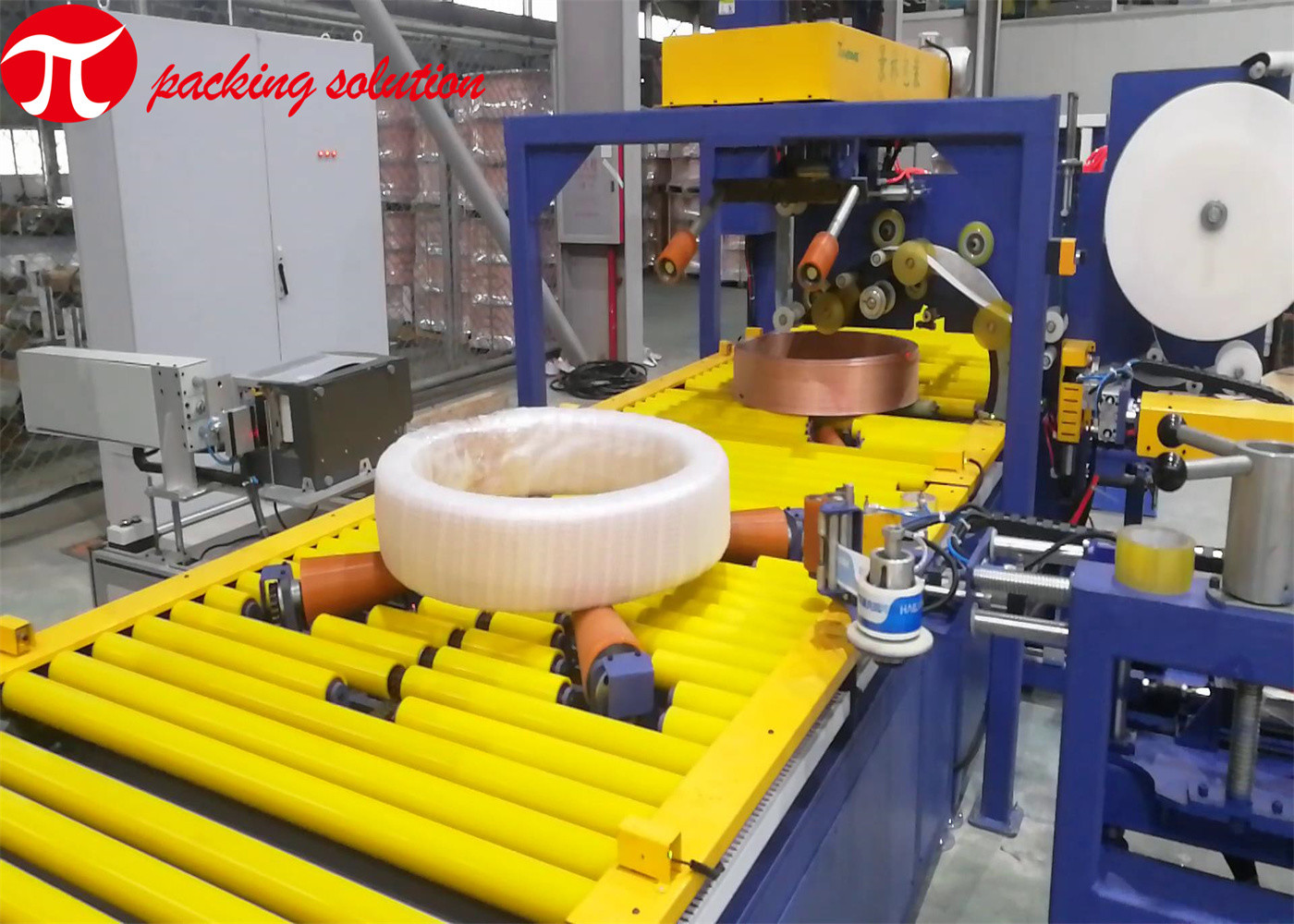

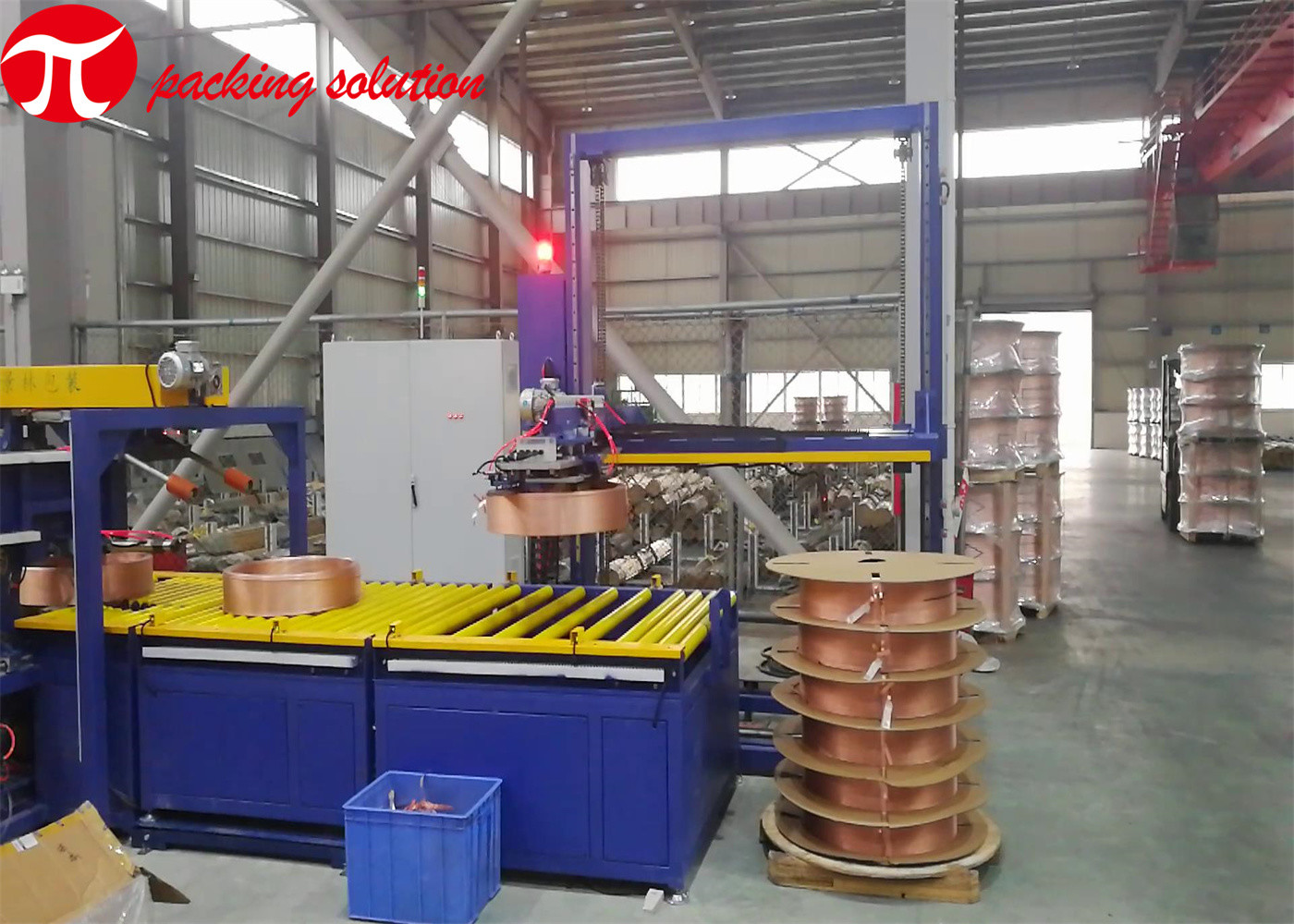

This packing line take compound paper as main packing material,apply coil picking, auto packing,stacking & etc for cooper coils, makes the object well packed and stacked, convenient for storage and transportation.
Basic composition:
This machine is composed of Coil loading system,Wrapping machine,Stacking system,electronic cabinet,Guardrails & etc.
Main technical datas(for reference):
| OD | 800-1500MM |
| ID | 508-610MM |
| Width | 60mm-500mm |
| Weight | ≤4T |
| Wrapping material | LLDPE stretch film/compound paper |
| Wrapping overlap | 30%～80% adjustable |
| Wrapping material size | Film roll width 90mm, roll OD 500mm,roll ID 76mm |
1. Advanced technology:
Through continuous innovation, R&D investment, product development and technical polishing, Jinglin has owned a number of advanced products and hundreds of domestic initiative technologies.
2.Diverse products:
More than 200 types of packing machines and professional solutions for 18 industries including steel industry, aluminum processing industry, copper processing industry, plastic pipe industry, wire products, bar products&etc.
3.Rich experience:
With rich experience gained in our long-term work of R&D, production and customer service, we’re able to face the pain point of the industry demands and provide custom solutions for different needs.
4.Good service:
Service is the continuation of technology and production, as well as the beginning of the next development. From products to services is a leap, but also a regression.
