INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jl pack |
| Certification: | ISO9001，CE |
| Model Number: | GD300 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Coiled Object In Metallurgy | Automatic Grade: | Automatic |
|---|---|---|---|
| Object ID: | 508/610mm | Object OD: | ≤1300mm |
| Object Width: | ≤300mm | Object Wight: | ≤2000KGS |
| Packing Material: | Stretch Film And Compund Paper | Ring Speed: | 80 R/ Min |
Customized automatic vertical wrapping machine with two packing materials
Wrapping machine's application:
This machine design for with heavy weight steel coil or big size coil wrapping such as cable coil ,copper coil ,wire coil and etc.
Machine can be achieved full- auto without any manul operations during wrapping packing.
Wrapping machine's basic features:
1) Fixed or moveable trolley operation, safe, concenient and efficient.
2) Adopt PLC program control and HM operation.
3) Automatic alarming ,fault will be displayed automatically.
4) The overlap degree and tightness of packaging tape can be adjusted based on needs.
5)Turning ring height can be adjusted in order to adapt to the different size of the product.
6) The wrapping tape is cut automatically by program calculation.
7) The rollers are wrapped by Polyurethane to protect the steel coil surface.
Wrapping machine's techinecal data:
| Application | Coiled object in metallurgy |
| Object ID | 508/610mm |
| Object OD | ≤1300mm |
| Object width | ≤300mm |
| Object Wight | ≤2000KGS |
| Ring speed | 80 r/ min |
| Roller speed | 5-8 m/min |
| Power | 4.0KW |

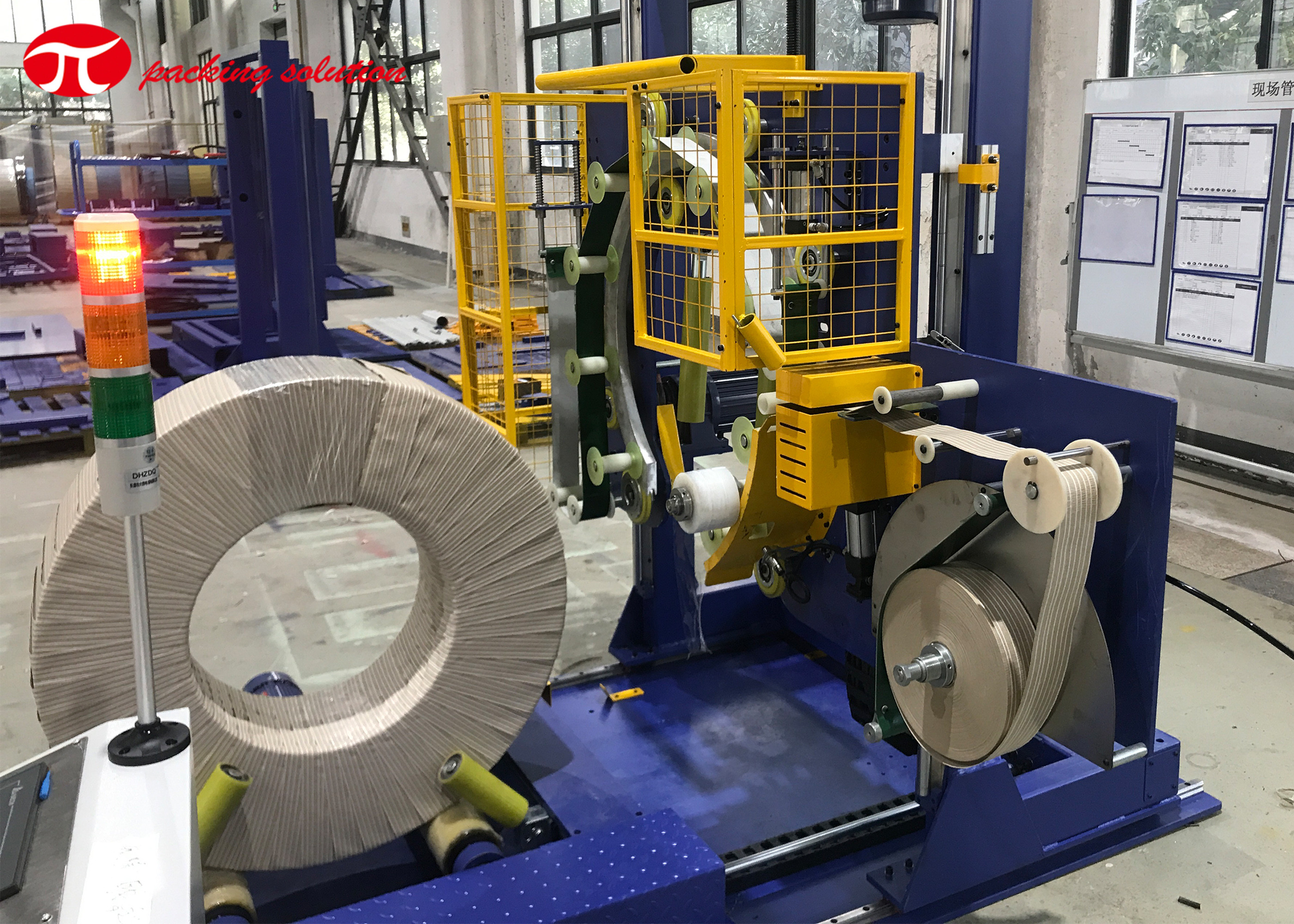

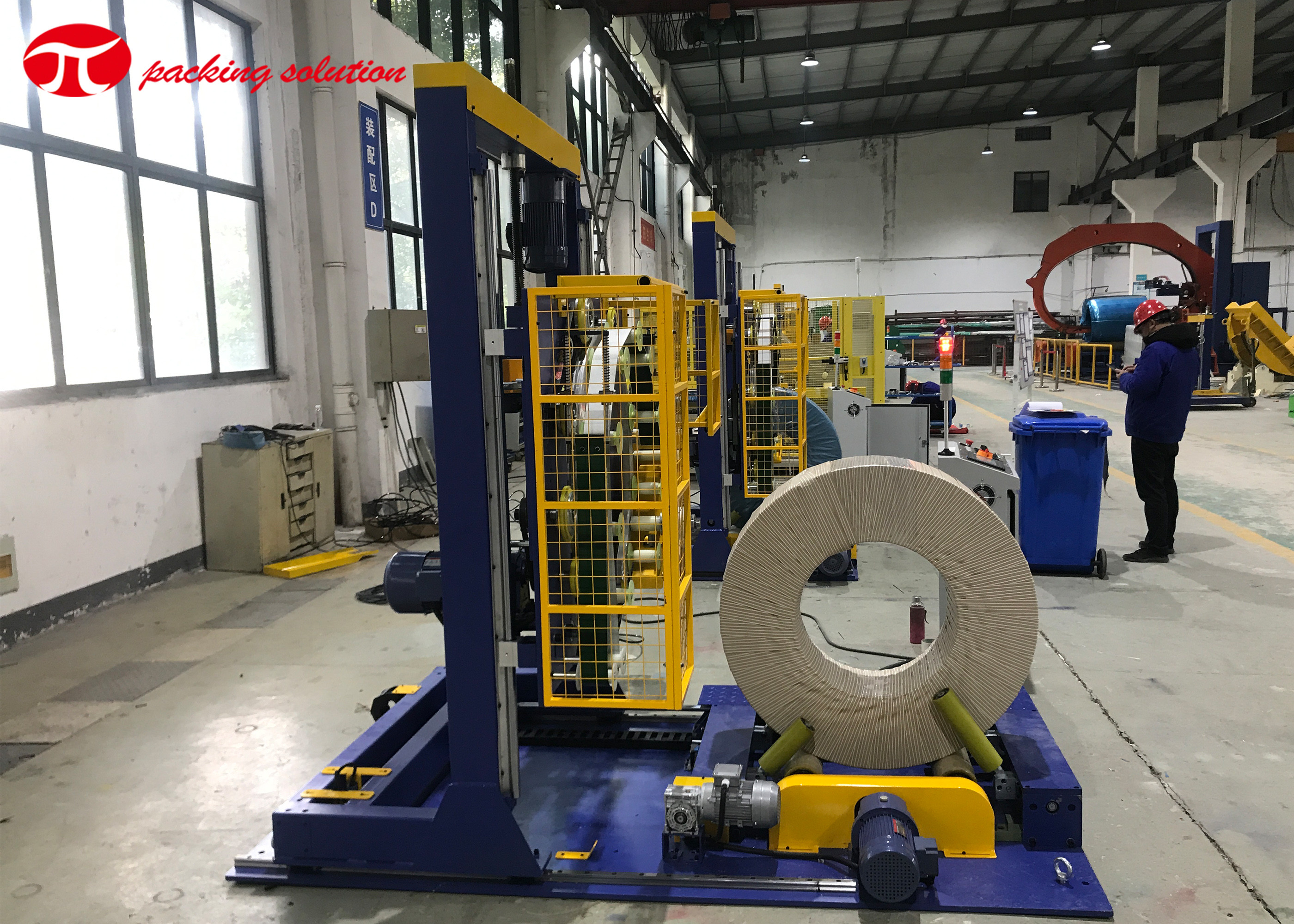

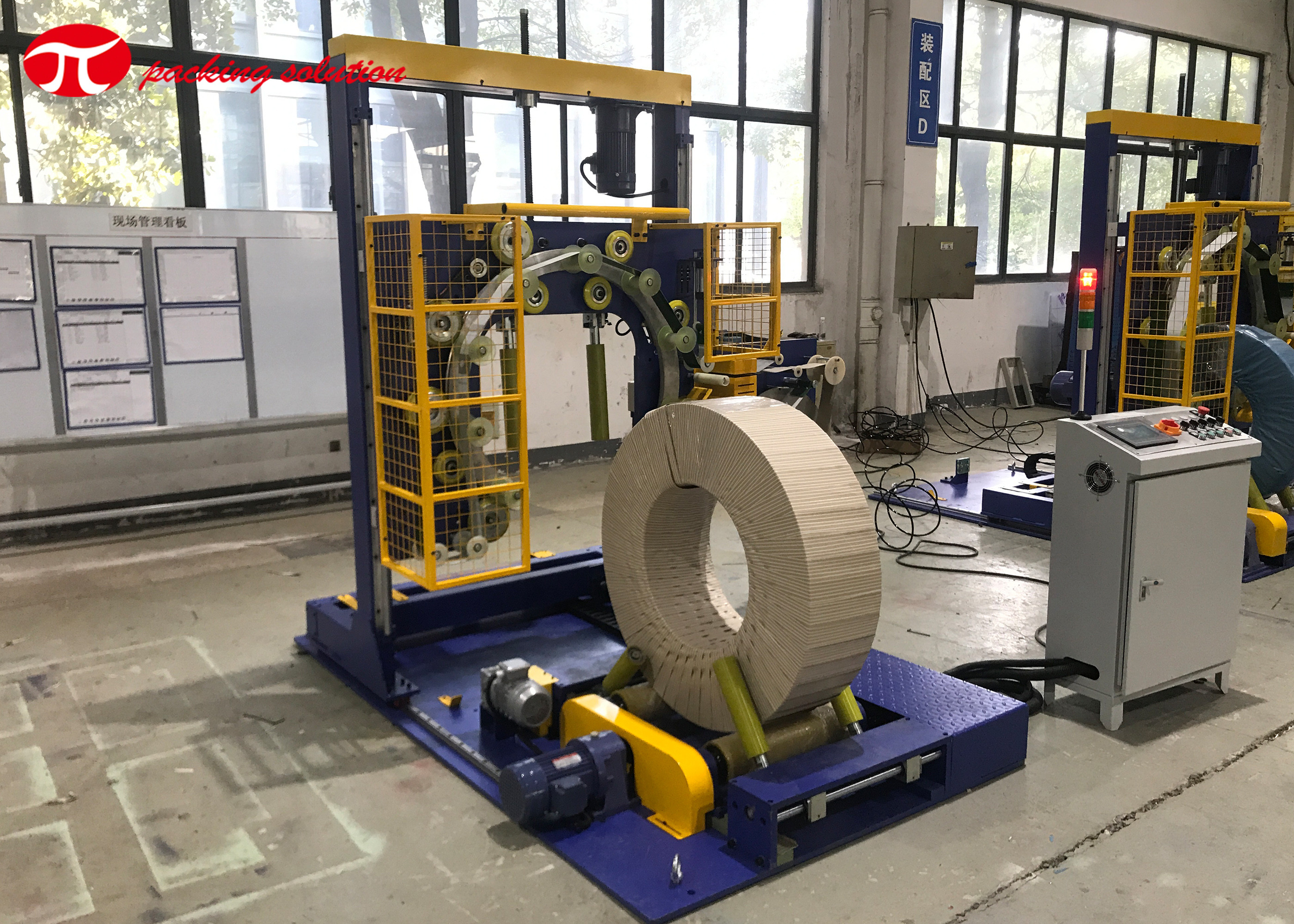

Wrapping machine 's photo :
