INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jl pack |
| Certification: | ISO9001，CE |
| Model Number: | GD300 |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Application: | Coiled Objects | Object Width: | ≤300mm |
|---|---|---|---|
| Object OD: | ≤1500mm | Object ID: | 508/610mm |
| Object Weight: | ≤2000kg | Ring Speed: | 80r/min |
| Wrapping Material: | Stretch Fiilm ,compound Paper | Power: | 4.0KW |
Vertical steel coil wrapping machine with trolley GD300
Vertical Wrapping Machine' Application:
This machine is good machine applicable to big and heavy steel coil and reels.
It's easy to load the coil by crame or hoist directly to the supportive rollers of the machine.
Vertical Wrapping Machine' Main Features:
● Moveable trolley operation,safe, convenient and efficient.
● Adopt PLC program control and HMI operation.
● Automatic alarming, fault will be displayed automatically.
● Simple operation by imputing OD, ID, width & corrected parameter of the coils, the material length and wrapping circles will be calculated cutomatically.
● The overlap and tension of the packing tape can be adjusted according to requirement.
Vertical Wrapping Machine' Technical Data:
| Model | GD300 | GD400 |
| Object Width | ≤300mm | ≤400mm |
| Object OD | ≤1500mm | ≤1500mm |
| Object ID | 508/610mm | 508/610mm |
| Object weight | ≤2000kg | ≤3000kg |
| Ring speed | 80r/min | 70r/min |
| Wrapping material | Stretch fiilm ,compound paper | Stretch fiilm ,compound paper |
| Power | 4.0KW | 4.5KW |

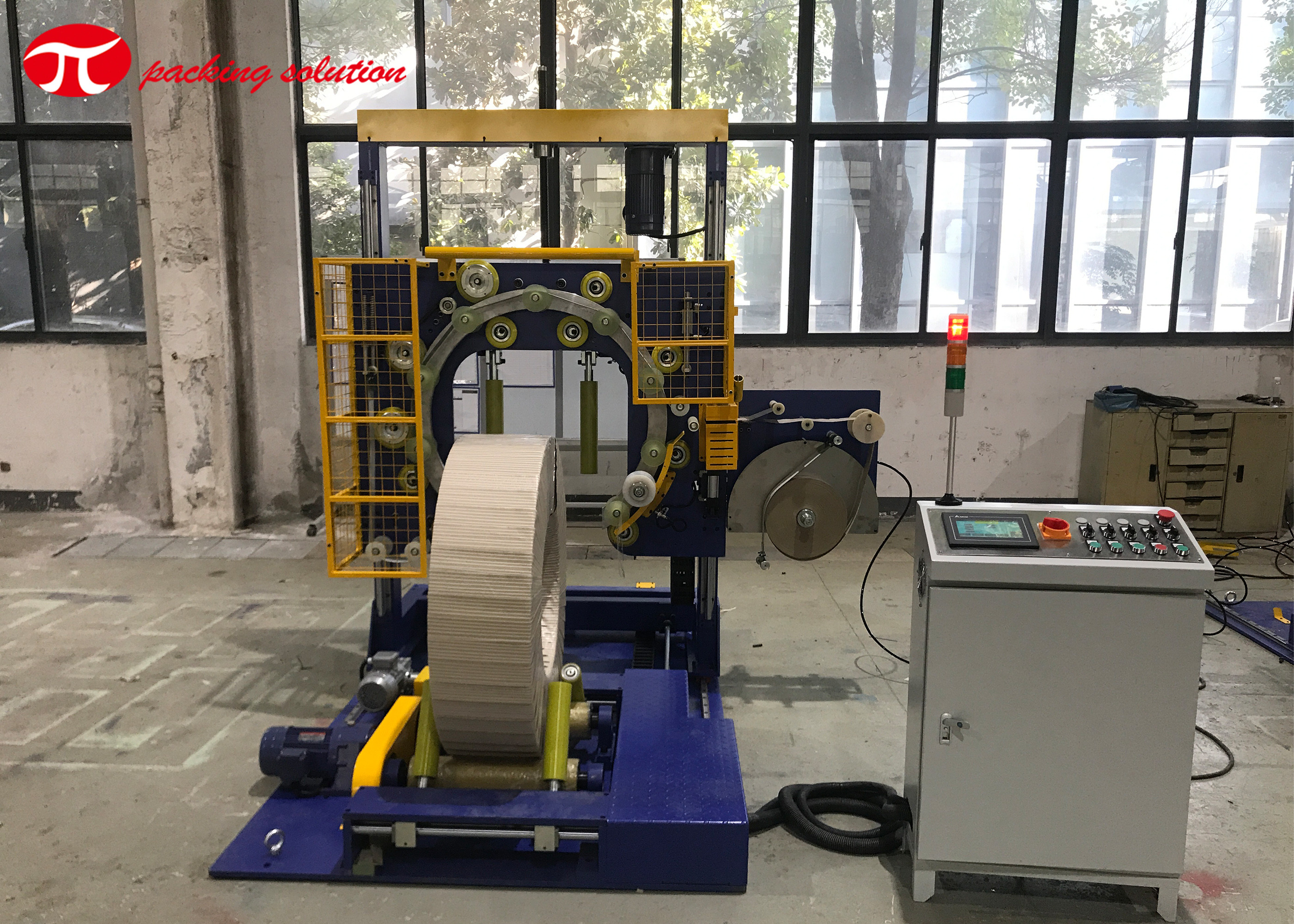

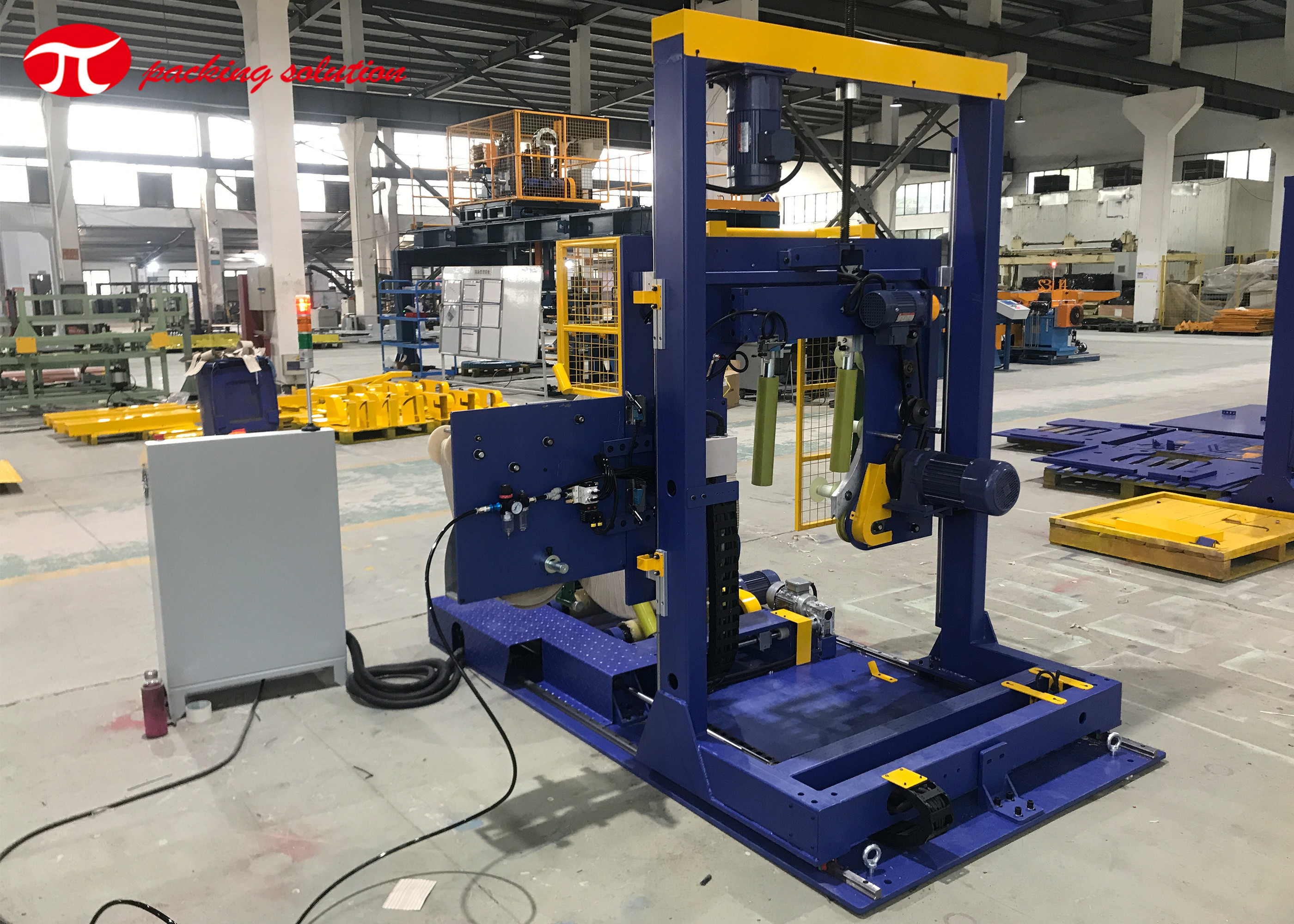

Vertical Wrapping Machine' Photo:
