INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | JL2100-B |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Type: | Auto Stretch Wrap Machine | Application: | Food, Chemical, Commodity, Medical, Beverage |
|---|---|---|---|
| Packaging Material: | Stretch Film | Packing Height: | 2100mm |
| Voltage: | 380V/50HZ | Turntable Capacity: | 2000KG |
| Up-down Motor: | 0.37KW | Turntable Motor: | 0.40KW |
| Color: | Standard Blue | Warranty: | 12 Months |
| Highlight: | 2.9m/min Automatic Stretch Wrap Machine,380V Auto Stretch Wrap Machine,50HZ Automatic Stretch Wrap Machine |
||

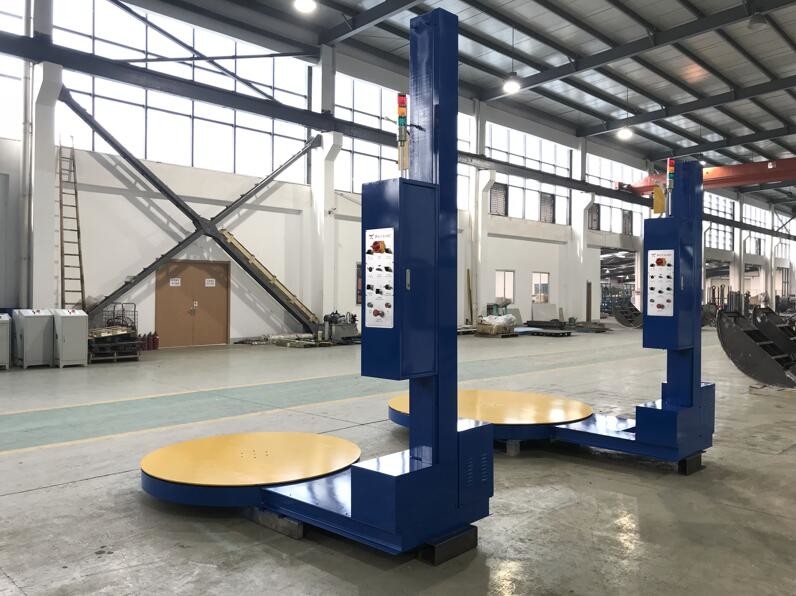

2.9m/min High Packing Efficiency Automatic Stretch Wrap Machine With Anti-explosion function
MACHINE APPLICATION:
The pallet wrapping machine can be widely used in various industries to pack the goods on a pallet with LLDPE stretch film.
It is especially suitable for large quantities of fast shipping or storage, strapping cartons, bottled items or bulky items. At the same time, it reduces labor intensity and improves packaging efficiency. It is an ideal equipment for modern enterprise product packaging.
MAIN PARAMETERS:
TECHNICAL PARAMETERS:
| Itemdata | JL2100-B (Auto) |
| Working mode | Auto (PLC) |
| Turntable motor | 0.40KW |
| Up-down motor | 0.37KW |
| Turntable speed | 11r/min(adjustable) |
| Film carriage speed | 2.9m/min |
| Turntable diameter | 1500mm |
| Turntable height | 110mm |
| Tension control | Magnetic controller |
| Height control | Photocell sensor |
| Turntable startstop mode | Soft start & Soft stop |
| Max load weight | 1500KG |
| Max load height | 2100mm |
| Wrapping material |
Stretch film ID76mm,width:500mm |
| Power voltage | AC 380V/50HZ |
| Gross weight | About 800kg |
| Volume | About 4cbm |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
Option
Pre-stretch & width film carriage
Top-platen(one set need)
Packing height: 1500mm
Turntable diameter: 1650mm, 2000mm
Turntable capacity: 2000kg
