INDUSTRIAL AUTOMATIC PACKING SOLUTION PIONEER.
| Place of Origin: | China |
|---|---|
| Brand Name: | jlpack |
| Certification: | ISO9001，CE |
| Model Number: | JL2100-W |
| Minimum Order Quantity: | 1 |
| Packaging Details: | Wooden case /standard container |
| Delivery Time: | Stand-alone 1 week ,the packing line 150days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets/Year |
| Type: | Automatic Stretch Wrap Machine | Application: | Food, Chemical, Commodity, Medical, Beverage |
|---|---|---|---|
| Packaging Material: | Stretch Film | Turntable Motor: | 1.5KW |
| Max Load Weight: | 2000kgs | Turntable Speed: | 14r/min(adjustable) |
| Conveyor Speed: | 12m/min | Voltage: | 380V/50HZ |
| Conveyor Height: | 400mm | Warranty: | 12 Months |
| Highlight: | Top Platen Stretch Film Pallet Wrapping Machine,2000kgs Stretch Film Pallet Wrapping Machine |
||

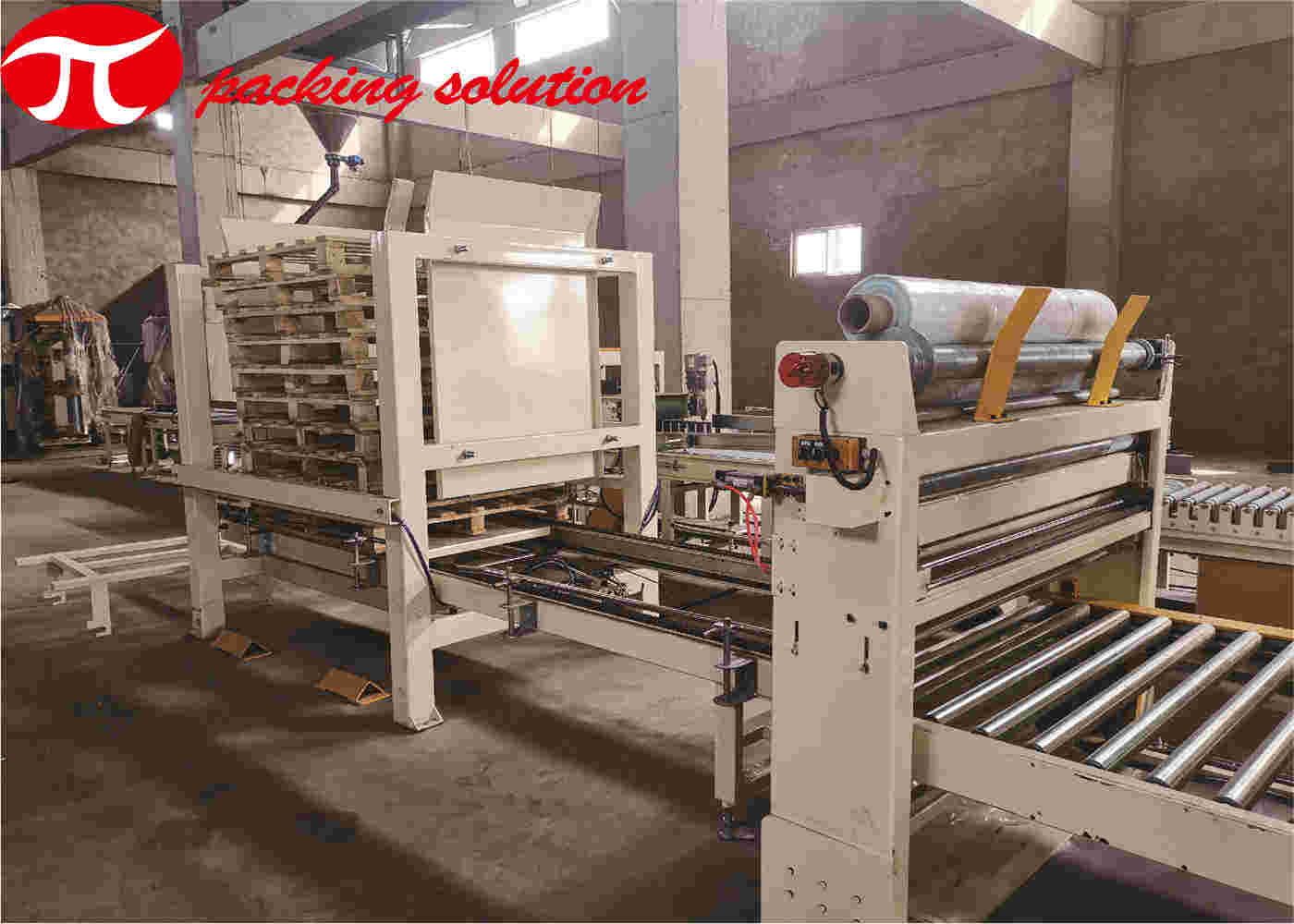

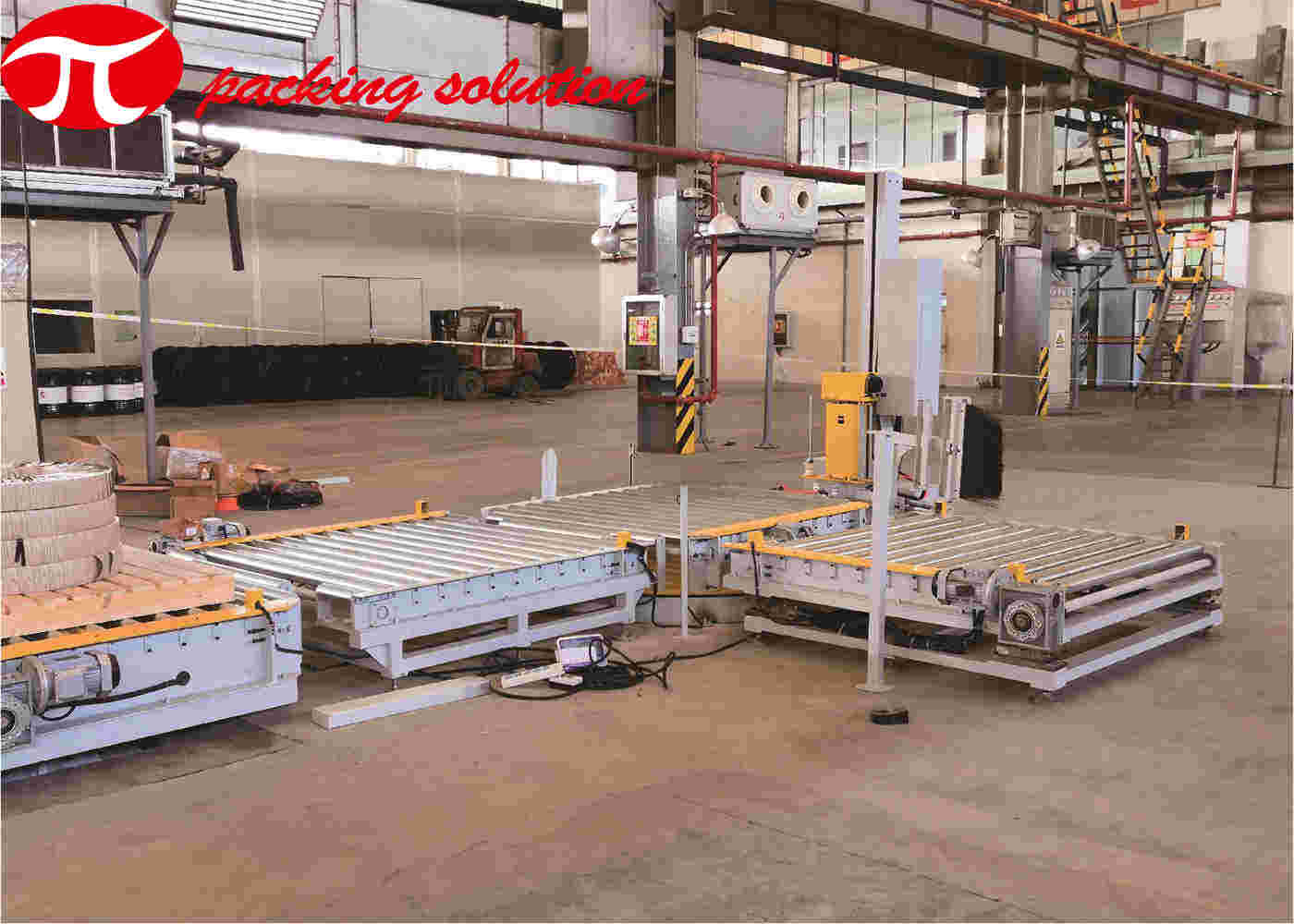

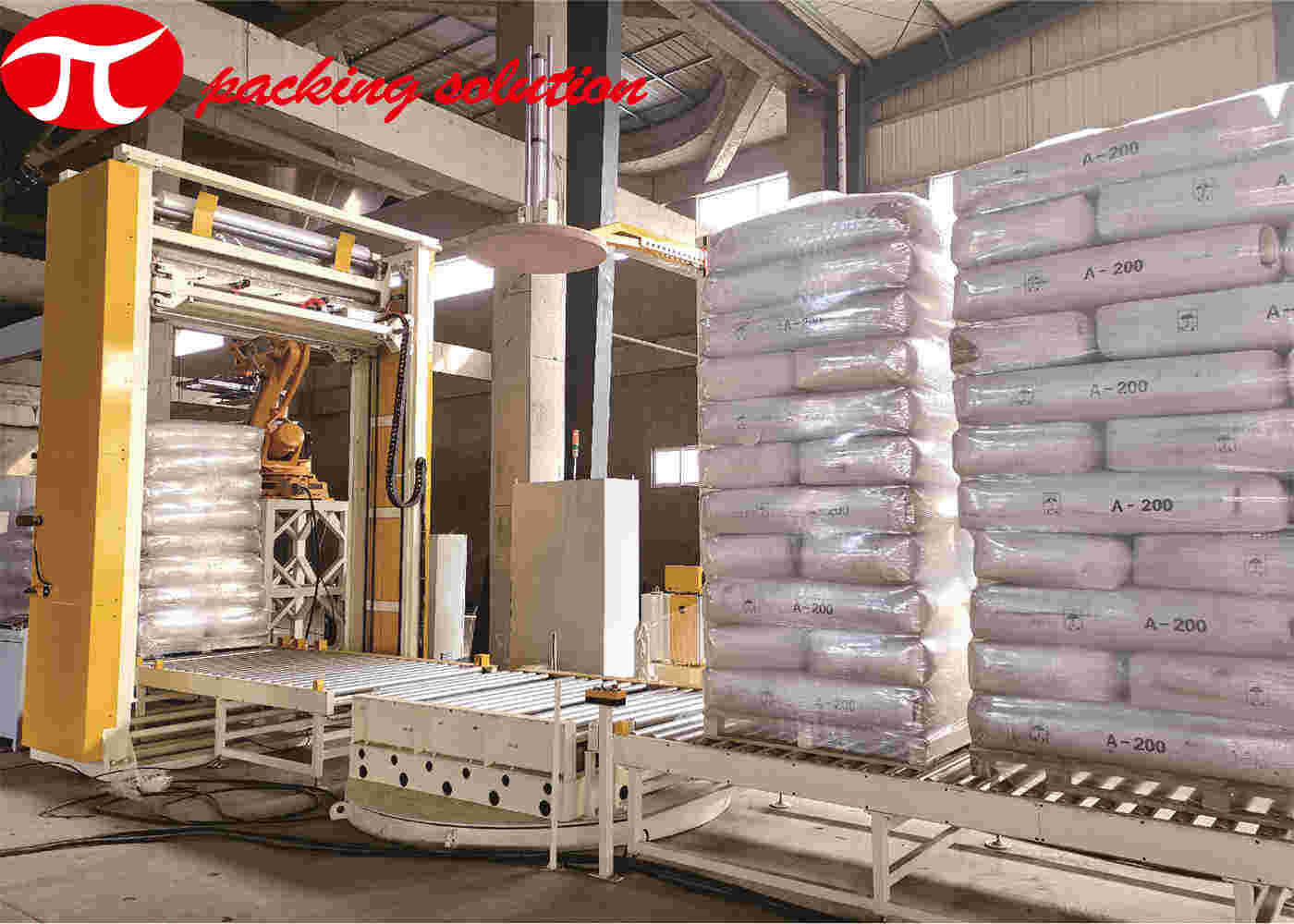

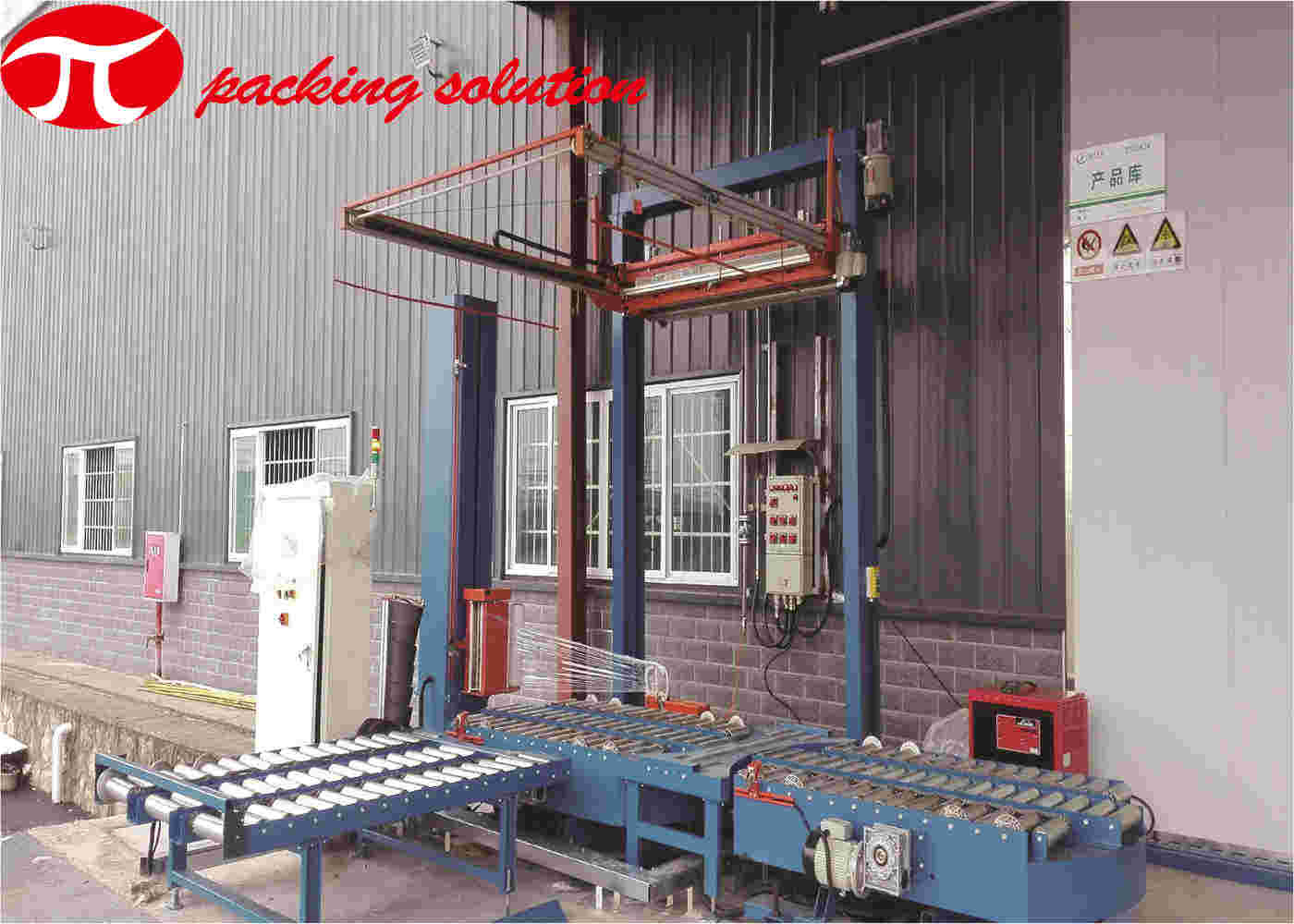

Fully-auto Pallet Wrapping Machine With Top covering For Food / Electronics Industry
Machine application:
The pallet wrapping machine can be widely used in various industries to pack the goods on a pallet with LLDPE stretch film, which makes the goods stable, tidy and convenient for transportation; moreover it has waterproof and dust proof effects. It can also greatly lessen the labor density and improve work efficiency, so it is perfect packing equipment for the modern enterprise.
Features:
• Longer service life
• Easy installation
• Low maintenance
• Simple operations
Specification:
| Item data | JL2100-W (Full-Auto) |
| Working mode | Auto (PLC) |
| Turntable motor | 1.5KW |
|
Conveyor motor |
1.5KW/pcs total 3pcs 1.5KW*3 |
| Turntable speed | 14r/min(adjustable) |
| Film sheif speed | 2-6m/min |
| Conveyor speed | 12m/min |
| Conveyor height | 400mm |
| Turntable turning diameter | 2300mm |
| Packing weight | 2000KG |
| Packing size | L1200*W1200*H1200mm |
| Machine Diamension | L5500mm/W4000mm/H3500mm |
| Machine weight | 2000KG |
| Efficiency | About 30p/h |
| Power voltage | AC 380V/50HZ |
| Air supply | 6-8kfg/cm2 |
| Packing material | Stretch film |
Note: the datas are only for reference, the machine can be custom designed according to specific object size.
MAIN PARAMETERS:
