Automatic Stretch Wrapping Machine Anti Explosion Pallet Packing Machine With Ramp

Automatic Stretch Wrapping Machine Anti Explosion Pallet Packing Machine With Ramp
Automatic Stretch Wrapping Machine Anti Explosion Pallet Packing Machine With Ramp Automatic Stretch Wrapping Machine Anti Explosion Pallet Packing Machine With Ramp Automatic Stretch Wrapping Machine Anti Explosion Pallet Packing Machine With Ramp Automatic Stretch Wrapping Machine Anti Explosion Pallet Packing Machine With Ramp Automatic Stretch Wrapping Machine Anti Explosion Pallet Packing Machine With Ramp Automatic Stretch Wrapping Machine Anti Explosion Pallet Packing Machine With Ramp Automatic Stretch Wrapping Machine Anti Explosion Pallet Packing Machine With Ramp Automatic Stretch Wrapping Machine Anti Explosion Pallet Packing Machine With Ramp Automatic Stretch Wrapping Machine Anti Explosion Pallet Packing Machine With Ramp Automatic Stretch Wrapping Machine Anti Explosion Pallet Packing Machine With Ramp Automatic Stretch Wrapping Machine Anti Explosion Pallet Packing Machine With Ramp Automatic Stretch Wrapping Machine Anti Explosion Pallet Packing Machine With Ramp
Basic Information
Place of Origin: China
Brand Name: jlpack
Certification: ISO9001，CE
Model Number: JL2100-B
Minimum Order Quantity: 1
Packaging Details: Wooden case /standard container
Delivery Time: Stand-alone 1 week ,the packing line 150days
Payment Terms: T/T
Supply Ability: 200 sets/Year
Get Best Price Contact Now
Type: Turntable Stretch Wrapper Anti-explosion Voltage: 380V/50HZ
Application: Food, Chemical, Commodity, Medical, Beverage Packing Height: 2100mm
Packaging Material: Stretch Film Max Load Weight: 2000kgs
Turntable Diameter: 1800mm Up-down Motor: 0.37KW
Warranty: 12 Months Color: Standard Blue
Highlight:

JL2100-B Stretch Wrapping Equipment

,

2.9m/min Pallet Packing Machine

,

Pallet Packing Machine With Ramp

                             Automatic Stretch Wrapping Machine Anti-explosion Pallet Packing Machine With Ramp





Main Performance:

  1. PLC is adopted for electrical control.
  2. Can set special wrapping position reinforcement at random, can reset automatically.
  3. Indicator alarms automatically.
  4. Photo electric for pallet height detecting.
  5. Tension controlled by Magnetic controller.
  6. Simple design, easy for operation and maintenance.
  7. Can start,stop,reset freely.
  8. Can set packing position reinforcement at random.

TECHNICAL PARAMETERS:

Itemdata JL2100-B (Auto)
Working mode Auto (PLC)
Turntable motor 0.40KW
Up-down motor 0.37KW
Turntable speed 11r/min(adjustable)
Film carriage speed 2.9m/min
Turntable diameter 1800mm
Turntable height 110mm
Tension control Magnetic controller
Height control Photocell sensor
Turntable startstop mode Soft start & Soft stop
Max load weight 2000KG
Max load height 2100mm
Wrapping material

Stretch film

ID76mm,width:500mm
Power voltage AC 380V/50HZ
Gross weight About 800kg
Volume About 4cbm

Note: the datas are only for reference, the machine can be custom designed according to specific object size.



MACHINE APPLICATION



The pallet wrapping machine is made of stretch film/wrap film as packaging material, applied to pallet packaging, wrapping various regular or irregular products by winding method, utilizing the retractability of stretched film and Self-adhesive binds the goods and pallets into a whole, plays a fixed role, and protects the cargo from dust, moisture and damage.

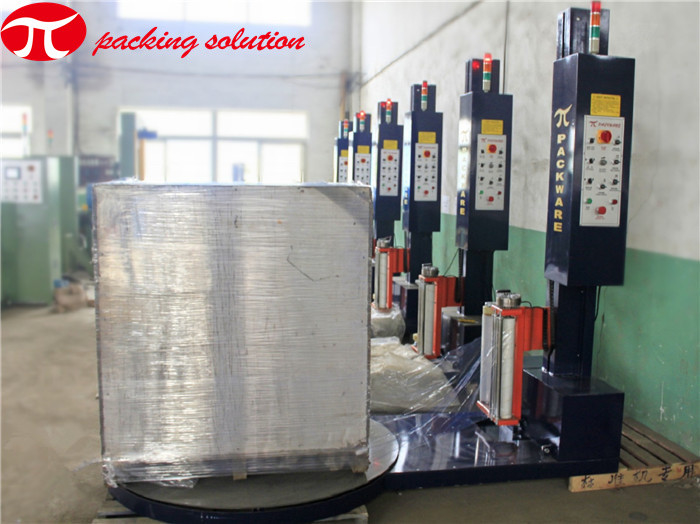

Automatic Stretch Wrapping Machine Anti Explosion Pallet Packing Machine With Ramp 0

Tag:

11r/min Stretch Film Packing Machine,

2100mm Stretch Film Packing Machine,

JL2100-B Stretch Wrapping Equipment
